Technical Report 069 Router Application
Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic
Document No. APP-0114-EN, revision from 1st November, 2023.
© 2023 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent.
Information in this manual is subject to change without notice, and it does not represent a commitment on the part of Advantech.
Advantech Czech s.r.o. shall not be liable for incidental or consequential damages resulting from the furnishing, performance, or use of this manual.
All brand names used in this manual are the registered trademarks of their respective owners. The use of trademarks or other designations in this publication is for reference purposes only and does not constitute an endorsement by the trademark holder.
Used symbols
Danger – Information regarding user safety or potential damage to the router.
Attention – Problems that can arise in specific situations.
Information – Useful tips or information of special interest.
Example – Example of function, command or script.
Changelog
1.1 Technical Report 069 Changelog
v1.0.0 (2022-03-30)
- First release.
Basic Information
Technical Report 069 (TR-069) is a technical specification of the Broadband Forum that defines an application layer protocol for remote management and provisioning of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. TR-069 uses the CPE WAN Management Protocol (CWMP) which provides support functions for auto-configuration, software or firmware image management, software module management, status and performance managements, and diagnostics.
Router App Description
3.1 Web Interface
After Router App installation, the module’s GUI can be invoked by clicking the router app name on the Router Apps page of router’s web interface.
Left part of this GUI contains menu with Status menu section, Configuration menu section and Information menu section. Customization menu section contains only the Return item, which switches back from the module’s web page to the router’s web configuration pages. The main menu of router app GUI is shown on Figure below.
3.2 Status
Status menu section contains Overview item where we can find detailed data about TR-069 service and received parameters.

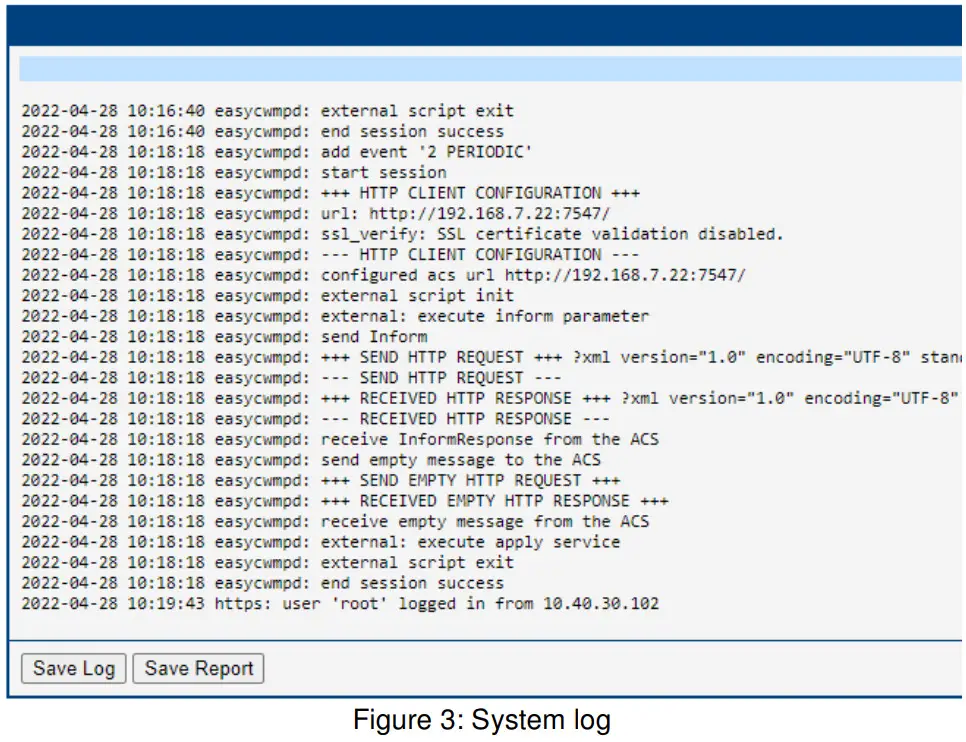

While System log contains log messages.
3.3 Configuration
Global configuration is place where the configuration string should be. Most important lines are option url, option username and option password in the config acs part.
3.4 Licenses
Summarizes Open-Source Software (OSS) licenses used by this module.
Example
In this example is geniacs¹ solution used as auto configuration server (acs). There are 3 routers managed with ACS.
We can display the detail of each added device
In this detail it is possible to edit parameter values
or even push files. Files, that can be pushed to router are only:
- Config files
- Router firmware
to the router which could be useful for changing config files of even uploading new firmware.
You can obtain product-related documents on Engineering Portal at icr.advantech.cz address.
To get your router’s Quick Start Guide, User Manual, Configuration Manual, or Firmware go to the Router Models page, find the required model, and switch to the Manuals or Firmware tab, respectively.
The Router Apps installation packages and manuals are available on the Router Apps page.
For the Development Documents, go to the DevZone page.
