Conference Min In Desk Top Access and Housing
IN DESK TOP ACCESS & HOUSING
CONFERENCE MIN

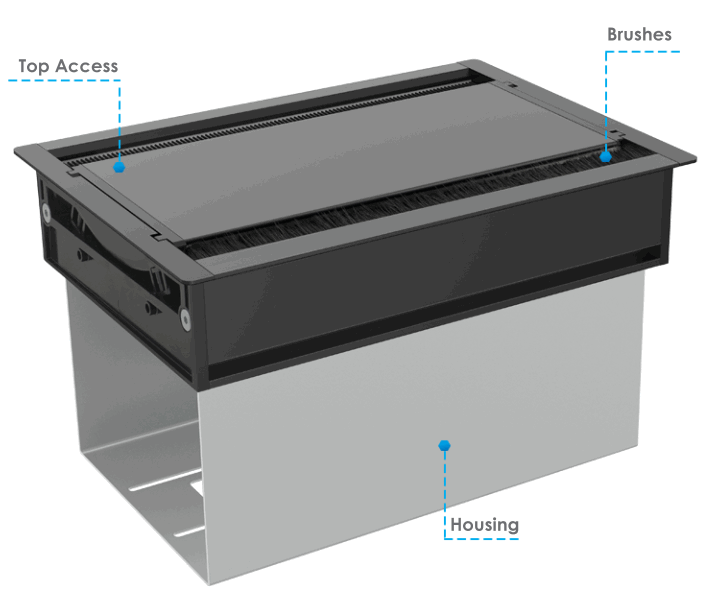

Conference Top Access & Housing is a perfect solution for boardrooms and meeting tables when you need to access power and media from both sides. Conference’s low profile design allows the lid to close while devices are connected. The brushing system allows the cables to run out smoothly at the same time preventing dust ingress.
| TOP ACCESS LENGTH | 247mm |
| CUT OUT DIMENSION | 235 x 156mm |
FEATURES
- The accompanying under desk power module, Link, complies with IEC 60884-1:2002 + Al :2006 + A2:2013
- Top Access is available in Silver, Black and White
- It is available in three dimensions – MIN, MID and MAX depending on the configuration
INSTALLATION INSTRUCTIONS
Before making a cut-out, please contact your supplier to provide you with to suitable table cut-out dimensions. Ensure that there is a sufficient clearance, 1 mm between the cut-out edge and the edge of the work surface.

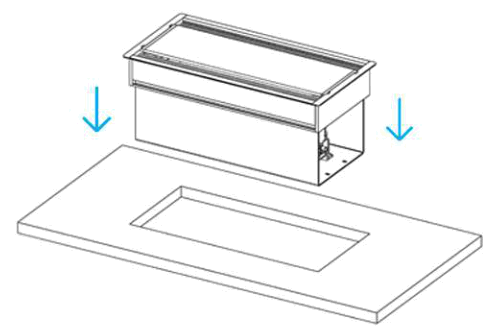

- Place the Conference into the table cut-out.

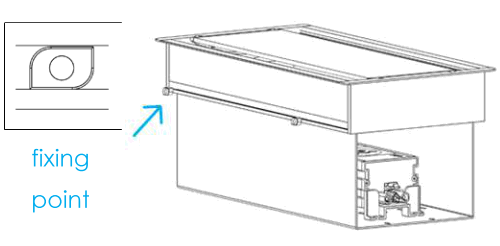

- Place the fixing point into the sliding cannol.

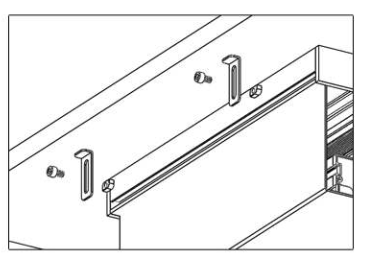

- Place the L tighteners onto the fixing points.

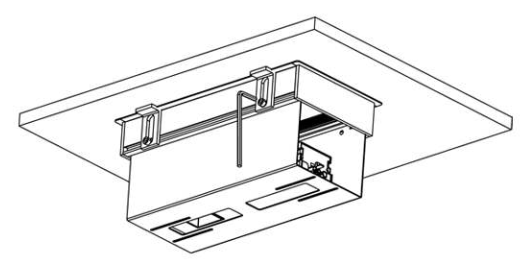

- Tighten the screws using Allen key.

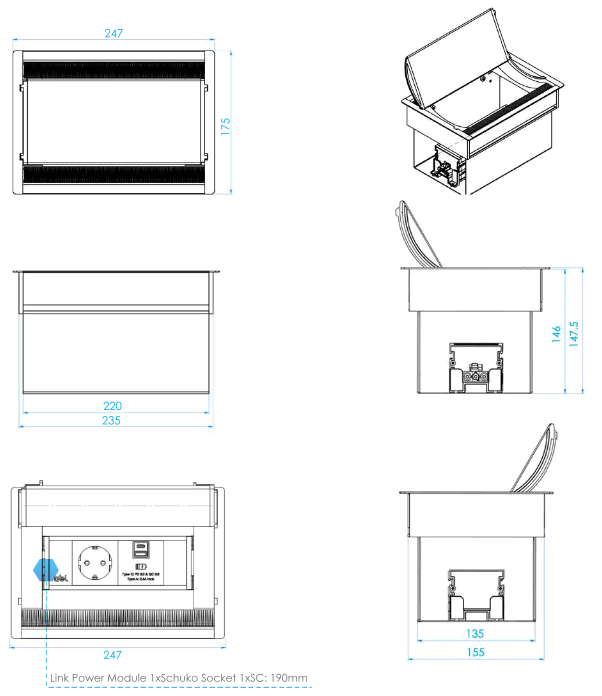

DIMENSIONS
Conference MIN with the Link under desk power module inside ailable for up to Iwo sockets or tunnels.
Status: Approved
‘Approved by: S. Savkovid ‘
Document ID: T_COG_8_rev0
