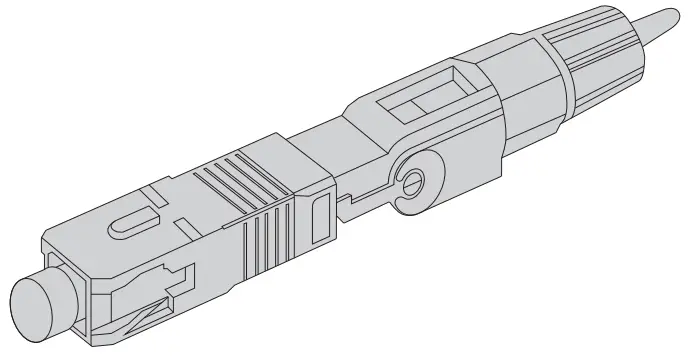

SC UPC/APC FIELD ASSEMBLY CONNECTORS
Quick Start Guide
V2.0

	SC housing
	Fast connector
	Screw cap

Optional (Not Included)

Over 30mm

25 mm

Tight Buffer (φ900μm) (φ250μm) (φ125μm)

NOTE:

1. Strip off the 900μm tight buffer to 250μm and 125μm as shown above.
2. Clean the fiber after stripping.

Length Fixed Instrument

NOTE: Cut the bare fiber of 125μm to be 19mm with a cleaver and check the length.

NOTE: Do not break the fiber

NOTE:

1. Push the yellow cover towards the top to lock the fiber
2. If you need to reassemble the fiber, pull the yellow cover in reverse with procedure 7. Then pull out the fiber and reassemble.

NOTE: Tighten the housing and the screw cap, then the fiber cannot be reassembled.

Q.C. PASSED
Copyright ©2021 FS.COM All Rights Reserved.
