FS 100G QSFP28 and SFP-DD Transceiver Module
Audience:
This installation note provides instructions for installing FS Quad Small Form-factor Pluggable 28 (QSFP28) and Small Form-factor Pluggable Double Density (SFP-DD) transceiver modules. These modules are hotswappable input/output (I/O) devices that plug into 100GBASE ports, connecting the module to a fiber-optic or copper network.
Preface
The table below lists the optical module part number for QSFP28 and SFP-DD packages:
| Part Number | QSFP-SR4-100G | QSFP-LR4-100G | QSFP-CWDM4-100G |
| QSFP-BIDI-100G | QSFP-ER4L-100G | QSFP-DR-100G | |
| Q28-40/100G-SM4 | QSFP-LR-100G | QSFP-PSM4-100G | |
| QSFP-ELR4-100GM | QSFP-PLR4L-100G | QSFP-ZR4-100G | |
| QSFP-LR4-100GM | QSFP-FR-100G | QSFP-ESR4-100G | |
| QSFP-ER4-100GM | QSFP-4W10-100G | QSFP-ER4L-100GM | |
| QSFP-PLR4-100G | QSFP-ERL-100G | QSFP-SR1.2-100G | |
| Q28-100G-BX40 | Q28-100G-BX10 | QSFP-100G-BX20 | |
| QSFP-eER4-100G | QSFP-SR4-100GM | QSFP-LX4-100G | |
| QSFP-ER-100G | Q28-100G-BX30 | QSFP-LR4-100G-I | |
| QSFP-SL4-100G | QSFP-SR4-100G-I | QSFP-CWDM4-100G-I | |
| QSFP-ZR4-100G-I | QSFP-4W40-100G-E | QSFP-FR-100G-29 | |
| QSFP-LR-100G-29 | QSFP-FR-100G-33 | QSFP-FR-100G-27 | |
| QSFP-LR-100G-33 | QSFP-4W20-100G-I | QSFP-LR-100G-27 | |
| QSFP-4W40-100G-I | QSFP-EZR4-100G | QSFP-ZR-100G-S | |
| QSFP-ZR-100G | DWDM2-Q28100G-80 | SFPDD-DR-100G | |
| SFPDD-FR-100G | SFPDD-LR-100G |
Overview
Module Purpose and Instructions for Use
- QSFP28 and SFP-DD transceiver modules are hot-swappable I/O devices that can be plugged into module slots. These transceivers connect the module’s circuitry to the fiber-optic network.
- You can use any combination of QSFP28 and SFP-DD transceiver modules supported by FS devices. The only restriction is that each port must match the wavelength specifications of the other end of the fiber or cable, and the cable must not exceed the specified length to ensure reliable communication.
- Use only FS QSFP28 transceiver modules with your FS devices. Each QSFP28 transceiver module supports the FS Quality Identification (ID) feature, allowing the FS switch or router to identify and verify whether the transceiver module has been certified and tested by FS.
Module Appearance Overview

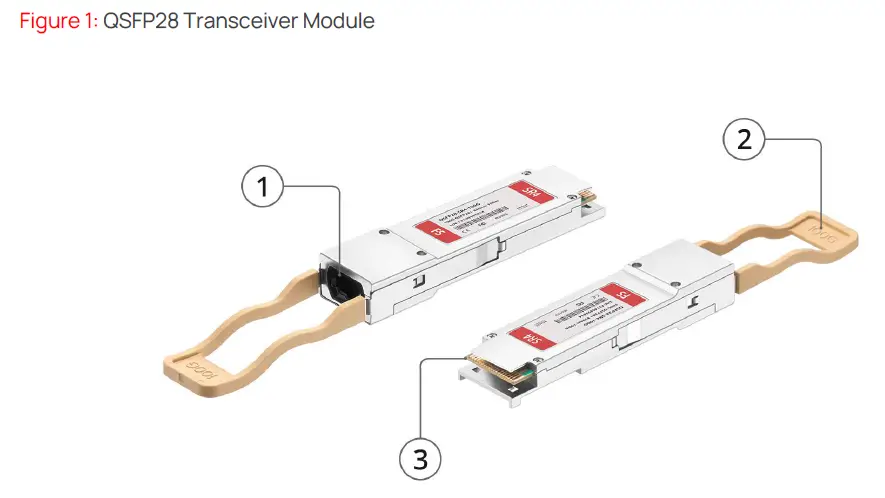

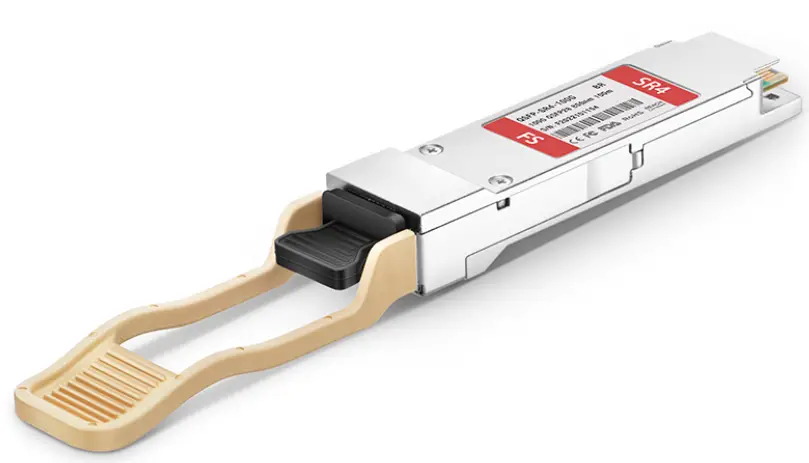

An optical QSFP28 transceiver module is shown in Figure 1.

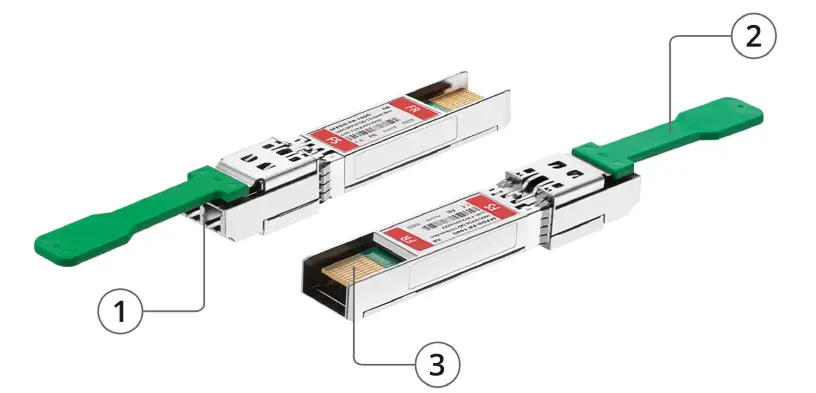

An optical SFP-DD transceiver module is shown in Figure 2.
Figure 2: SFP-DD Transceiver Module
| Number | Description | Number | Description |
| 1 | Optical Interface | 3 | Golden Fingers |
| 2 | Pull Tab |
Product Part Numbers and Descriptions
Table 1 Product Numbers and Descriptions
| Part Number | Description |
| 100G QSFP28 Transceiver | |
| QSFP-SR4-100G | 100GBASE SR4 QSFP28 Transceiver, MTP/MPO, 100m over OM4 MMF |
| QSFP-LR4-100G | 100GBASE LR4 QSFP28 Transceiver, Duplex LC, 10km over SMF |
| QSFP-CWDM4-100G | 100GBASE IR4 QSFP28 Transceiver, Duplex LC, 2km over SMF |
| QSFP28-BIDI-100G | 100G-SR SWDM4 BiDi QSFP28 Transceiver, Duplex LC, 100m OM4 MMF |
| QSFP-ER4L-100G | 100GBASE ER4 QSFP28 Transceiver, Duplex LC, 40km over SMF |
| QSFP-DR-100G | 100GBASE DR QSFP28 Transceiver, Duplex LC, 500m over SMF |
| Part Number | Description |
|
Q28-40/100G-SM4 |
40/100GBASE QSFP28 Transceiver, Duplex LC, 100m over MMF |
| QSFP-LR-100G | 100GBASE LR QSFP28 Transceiver, Duplex LC, 10km over SMF |
| QSFP-PSM4-100G | 100GBASE PSM4 QSFP28 Transceiver, MTP/MPO, 500m over SMF |
| QSFP-ELR4-100GM | 100GBASE LR4 and 112GBASE OTU4 QSFP28 Transceiver, Duplex LC, 20km over SMF |
| QSFP-PLR4L-100G | 100GBASE PSM4 QSFP28 Transceiver, MTP/MPO, 2km over SMF |
| QSFP-ZR4-100G | 100GBASE ZR4 QSFP28 Transceiver, Duplex LC, 80km over SMF |
| QSFP-LR4-100GM | 100GBASE LR4 and 112GBASE OTU4 QSFP28 Transceiver, Duplex LC, 10km over SMF |
| QSFP-FR-100G | 100GBASE FR QSFP28 Transceiver, Duplex LC, 2km over SMF |
| QSFP-ESR4-100G | 100GBASE ESR4 QSFP28 Transceiver, MTP/MPO, 300m over MMF |
| QSFP-ER4-100GM | 100GBASE ER4 and 112GBASE OTU4 QSF28 Transceiver, Duplex LC, 40km over SMF |
| QSFP-4W10-100G | 100GBASE 4WDM-10 QSFP28 Transceiver Duplex LC, 10km over SMF |
| QSFP-ER4L-100GM | 4WDM40 and 112GBASE-OTU4 QSFP28 Transceiver, Duplex LC, 30km over SMF |
| QSFP-PLR4-100G | 100GBASE PLR4 QSFP28 Transceiver, MTP/MPO, 10km over SMF |
| QSFP-ERL-100G | 100GBASE ERL QSFP28 Transceiver, Duplex LC, 25km over SMF |
| QSFP-SR1.2-100G | 100GBASE-SR1.2 QSFP28 Transceiver, Duplex LC, 100m over MMF |
| Q28-100G-BX40 | 100GBASE-BX40-D BiDi Transceiver,Simplex LC,40km over SMF |
| Q28-100G-BX10 | 100G BX10 QSFP28 Transceiver, Simplex LC, 10km over SMF |
| QSFP-100G-BX20 | 100G BX20 QSFP28 Transceiver, Simplex LC, 20km over SMF |
| QSFP-eER4-100G | 100GBASE ER4 QSFP28 Transceiver, Duplex LC, 60km over SMF |
| Part Number | Description |
|
QSFP-SR4-100GM |
100GBASE SR4 and 112GBASE OTU4 QSFP28 Transceiver, MPO-12, 100m over MMF |
| QSFP-LX4-100G | 100GBASE LX4 QSFP28 Transceiver, Duplex LC, 2km over SMF and 100m over QSFP-LX4- 100G OM3 MMF |
| QSFP-ER-100G | 100GBASE ER QSFP28 Transceiver, Duplex LC, 40km over SMF |
| Q28-100G-BX30 | 100G BX30 QSFP28 Transceiver, Simplex LC, 30km over SMF |
| QSFP-LR4-100G-I | 100GBASE LR4 QSFP28 Transceiver, Duplex LC, 10km over SMF, I-Temp |
| QSFP-SL4-100G | 100GBASE-SL4 QSFP28 Transceiver,MPO-12,20m over OM3/30m over OM4 MMF |
| QSFP-SR4-100G-I | 100GBASE SR4 QSFP28 Transceiver, MTP/MPO, 100m over OM4 MMF, I-Temp |
| QSFP-CWDM4-100G-I | 100GBASE IR4 QSFP28 Transceiver, Duplex LC, 2km over SMF, I-Temp |
| QSFP-ZR4-100G-I | 100GBASE ZR4 QSFP28 Transceiver, Duplex LC, 80km over SMF, I-Temp |
| QSFP-4W40-100G-E | 100GBASE ER4L Transceiver, 40km over SMF, duplex, Duplex LC, E-Temp |
| QSFP-FR-100G-29 | 100GBASE-FR Single Lambda 1290nm QSFP28 Transceiver, Duplex LC, 2km over SMF |
| QSFP-LR-100G-29 | 100GBASE-LR Single Lambda 1290nm QSFP28 Transceiver, Duplex LC, 10km over SMF |
| QSFP-FR-100G-33 | 100GBASE-FR Single Lambda 1330nm QSFP28 Transceiver, Duplex LC, 2km over SMF |
| QSFP-FR-100G-27 | 100GBASE-FR Single Lambda 1270nm QSFP28 Transceiver, Duplex LC, 2km over SMF |
| QSFP-LR-100G-33 | 100GBASE-LR Single Lambda 1330nm QSFP28 Transceiver, Duplex LC, 10km over SMF |
| QSFP-4W20-100G-I | 100GBASE 4WDM QSFP28 Transceiver, Duplex LC, 20km over SMF, I-Temp |
| QSFP-LR-100G-27 | 100GBASE-LR Single Lambda 1270nm QSFP28 Transceiver, Duplex LC, 10km over SMF |
| QSFP-4W40-100G-I | 100GBASE 4WDM QSFP28 Transceiver, Duplex LC, 40km over SMF, I-Temp |
| QSFP-EZR4-100G | 100GBASE-ZR4 QSFP28 Transceiver,Duplex LC,100km over SMF |
|
QSFP-ZR-100G-S |
100GBASE ZR QSFP28 Transceiver, DCO, CMIS |
| QSFP-ZR-100G | 100GBASE ZR QSFP28 Transceiver, DCO, SFF-8636 |
| DWDM2-Q28100G-80 | 100GBASE DWDM QSFP28 Transceiver, CS, 80km over SMF |
| 100G SFP-DD Transceiver | |
| SFPDD-DR-100G | 100GBASE-DR SFPDD Transceiver, Duplex LC, 500m over SMF |
| SFPDD-FR-100G | 100GBASE-FR SFPDD Transceiver, Duplex LC, 2km over SMF |
| SFPDD-LR-100G | 100GBASE-LR SFPDD Transceiver, Duplex LC, 10km over SMF |
Optical Transmit and Receive Specifications
Table 2 Optical Transmit and Receive Specifications
|
Part Number |
Transceiver Type |
Transmit Power (dBm) | Receive Power (dBm) | Transmit and Receive Wavelength (nm) |
|
100G QSFP28 Transceiver |
||||
| QSFP-SR4-100G | 100GBASE-SR4,850nm MMF | -8.4~2.4 | -10.3~2.4 | 840-860 |
|
QSFP-LR4-100G |
100GBASE-LR4,1310nm SMF |
-4.3~4.5 |
-10.6~4.5 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.09) |
|
QSFP-CWDM4-100G |
100GBASE- CWDM4,1310nm SMF |
-6.5~2.5 |
-20.5~-3.5 |
L0 1271 (1264.5-1277.5)
L1 1291 (1284.5-1297.5) L2 1311 (1304.5-1317.5) L3 1331 (1324.5-1337.5) |
| QSFP-BIDI-100G | 100GBASE-SR
BiDi,850nm MMF |
-5.5~3 | -9.5~3.4 | 850, 880, 910,940 |
|
QSFP-ER4L-100G |
4WDM40,1310nm SMF |
-2.5~6.5 |
-20.9~4.9 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.09) |
|
Part Number |
Transceiver Type |
Transmit Power (dBm) | Receive Power (dBm) | Transmit and Receive Wavelength (nm) |
|
QSFP-DR-100G |
100GBASE-DR Single
Lambda,1310nm SMF |
-2.9~4 |
-5.9~4 |
1304.5-1317.5 |
|
Q28-40/100G-SM4 |
40/100GBASE-SM4 Dual Rate,850nm MMF |
100G:-7.5~2 40G:- 7.5~3 |
100G:
L0：-9.5Min L1：-9.4Min L2：-9.4Min L3：-9.4~3.4 40G： L0：-12.9Min L1：-12.5Min L2：-12.2Min L3：-11.9~2.4 |
L0 844~858 L1 874~888 L2 904~918 L3 934~948 |
| QSFP-LR-100G | 100GBASE-LR Single
Lambda,1310nm SMF |
-1.4~4.5 | -7.7~4.5 | 1304.5-1317.5 |
| QSFP-PSM4-100G | 100GBASE- PSM4,1310nm SMF | -9.4~2 | -12.66~2 | 1295-1325 |
|
QSFP-ELR4-100GM |
100GBASE-LR4 and
112GBASE-OTU4 Dual Rate,1310nm 20km SMF |
100G：-1.0~4.5 112G：0~4 |
100G-9.5~4.5 112G：-9.0~4 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.09) |
| QSFP-PLR4L-100G | 100GBASE- PLR4L,1310nm SMF | -6~2 | -12.66~2.5 | 1295-1325 |
|
QSFP-ZR4-100G |
100GBASE-ZR4,1310nm SMF |
2~6.5 |
-28~2 |
L0 1294.53-1296.59
L1 1299.02-1301.09 L2 1303.54-1305.63 L3 1308.09-1310.19 |
|
QSFP-LR4-100GM |
100GBASE-LR4 and
112GBASE-OTU4 Dual Rate,1310nm SMF |
100G:-4.3~4.5 112G：-0.6~4 |
100G: -8.6~4.5 112G: -8.4~4.5 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.09) |
| QSFP-FR-100G | 100GBASE-FR Single
Lambda,1310nm SMF |
-2.4~4 | -6.4~4.5 | 1304.5-1317.5 |
| QSFP-ESR4-100G | 100GBASE-ESR4,850nm MMF | -4~4 | -12~2.4 | 840-860 |
|
QSFP-4W10-100G |
100GBASE-4W10,1310nm SMF |
-6.5~2.5 |
-13~2.5 |
L0 1271 (1264.5-1277.5)
L1 1291 (1284.5-1297.5) L2 1311 (1304.5-1317.5) L3 1331 (1324.5-1337.5) |
|
QSFP-ER4L-100GM |
4WDM40 and 112GBASE-
OTU4 Dual Rate,1310nm SMF |
100G：-2.5~4.5 112G：-1.5~4.5 |
100G：-15~-4.9 112G：-14.5~-4.9 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.09) |
| QSFP-PLR4-100G | 100GBASE-PLR4,1310nm SMF | -6~2 | -12~2.5 | 1295-1325 |
| QSFP-ERL-100G | 100GBASE-ERL Single
Lambda,1310nm SMF |
0~5.6 | -13.5~-2.6 | 1304.5-1317.5 |
|
Part Number |
Transceiver Type |
Transmit Power (dBm) | Receive Power (dBm) | Transmit and Receive Wavelength (nm) |
|
QSFP-SR1.2-100G |
100GBASE-SR1.2,850nm MMF |
-6.2~4 |
-8.2~4 |
844~863
900~918 |
|
Q28-100G-BX40 |
100GBASE-BX40-D BiDi,1309.14nm- TX/1304.58nm-RX SMF |
1.7~7.1 |
-13.8~-3 |
1304.58+/- 1.01309.14+/- 1.0 |
|
Q28-100G-BX10 |
100GBASE-BX10-D
BiDi,1331nm-TX/1271nm- RX SMF |
-1.9~4.8 |
-26~4.8 |
1264.5- 1277.5 1324.5- 1337.5 |
|
QSFP-100G-BX20 |
100GBASE-BX20-D BiDi,1310nm-TX/1280nm- RX SMF |
-4.3~4.5 |
-14.5~4.5 |
L0 1273.55（1272.55-1274.54） L1 1277.89（1276.89-1278.89） L2 1282.26（1281.25-1283.27） L3 1286.66（1285.65-1287.68）
L0 1295.56（1294.53-1296.59） L1 1300.05（1299.02-1301.09） L2 1304.58（1303.54-1305.63） L3 1309.14（1308.09-1310.19） |
|
QSFP-eER4-100G |
100GBASE-ER4,1310nm SMF |
1~6 |
-30~-7 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.09) |
|
QSFP-SR4-100GM |
100GBASE-SR4 and
112GBASE-OTU4 Dual Rate,850nm MMF |
-8.4~2.4 |
10.3 ~2.4 |
840-860 |
| QSFP-LX4-100G | 100GBASE-LX4,1310nm SMF/MMF | -3~4.5 | -7.3~4.5 | 1271,1291,1311,1331 |
| QSFP-ER-100G | 100GBASE-ER Single
Lambda,1310nm SMF |
1.7~7.1 | -16~-3.4 | 1308.09-1310.19 |
|
Q28-100G-BX30 |
100GBASE-BX30-D BiDi,1309.14nm- Tx/1304.58nm-Rx SMF |
1.7~7.1 |
-16~-3.4 |
1303.54-1305.63 1260-1620 |
|
QSFP-LR4-100G-I |
100GBASE-LR4,1310nm SMF |
-4.3~4.5 |
-10.6~4.5 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.09) |
|
QSFP-SL4-100G |
100GBASE-SL4,850nm MMF |
-8.4~2.4 |
-10.3~2.4 |
840-860 |
| QSFP-SR4-100G-I | 100GBASE-SR4,850nm MMF | -8.4~2.4 | -10.3~2.4 | 840-860 |
|
QSFP-CWDM4-100G-I |
100GBASE- CWDM4,1310nm SMF |
-2.5~6.5 |
-11.5~3.5dBm |
L0 1271 (1264.5-1277.5)
L1 1291 (1284.5-1297.5) L2 1311 (1304.5-1317.5) L3 1331 (1324.5-1337.5) |
|
QSFP-ZR4-100G-I |
100GBASE-ZR4,1310nm SMF |
2.0~6.5 |
-28.0~-5 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.09) |
|
Part Number |
Transceiver Type |
Transmit Power (dBm) | Receive Power (dBm) | Transmit and Receive Wavelength (nm) |
|
QSFP-4W40-100G-E |
100GBASE- 4W40,1310nm SMF |
-2.5~6.5 |
-20.5~-3.5 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.09) |
|
QSFP-FR-100G-29 |
100GBASE-FR Single Lambda,1290nm SMF |
-3.1~4 |
-7.1 ~4 |
L0 1271 (1264.5-1277.5)
L1 1291 (1284.5-1297.5) L2 1311 (1304.5-1317.5) L3 1331 (1324.5-1337.5) |
|
QSFP-LR-100G-29 |
100GBASE-LR Single Lambda,1290nm SMF |
-1.9 ~4.8 |
-8.2~4.8 |
L0 1271 (1264.5-1277.5)
L1 1291 (1284.5-1297.5) L2 1311 (1304.5-1317.5) L3 1331 (1324.5-1337.5) |
|
QSFP-FR-100G-33 |
100GBASE-FR Single Lambda,1330nm SMF |
-3.1 ~4 |
-7.1 ~4 |
L0 1271 (1264.5-1277.5)
L1 1291 (1284.5-1297.5) L2 1311 (1304.5-1317.5) L3 1331 (1324.5-1337.5) |
|
QSFP-FR-100G-27 |
100GBASE-FR Single Lambda,1270nm SMF |
-3.1 ~4 |
-7.1 ~4 |
L0 1271 (1264.5-1277.5)
L1 1291 (1284.5-1297.5) L2 1311 (1304.5-1317.5) L3 1331 (1324.5-1337.5) |
|
QSFP-LR-100G-33 |
100GBASE-LR Single Lambda,1330nm SMF |
-1.9~4.8 |
-8.2~4.8 |
L0 1271 (1264.5-1277.5)
L1 1291 (1284.5-1297.5) L2 1311 (1304.5-1317.5) L3 1331 (1324.5-1337.5) |
|
QSFP-4W20-100G-I |
100GBASE-4WDM- 20,1310nm SMF |
-4.3~4.5 |
-14.5~4.5 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.19) |
|
QSFP-LR-100G-27 |
100GBASE-LR Single Lambda,1270nm SMF |
-1.9~4.8 |
-8.2~4.8 |
L0 1271 (1264.5-1277.5)
L1 1291 (1284.5-1297.5) L2 1311 (1304.5-1317.5) L3 1331 (1324.5-1337.5) |
|
QSFP-4W40-100G-I |
100GBASE-4WDM- 40,1310nm SMF |
-2.5~6.5 |
-20.5~-3.5 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.19) |
|
QSFP-EZR4-100G |
100GBASE-ZR4,1310nm SMF |
2~6 |
-30~-7 |
L0 1295.56 (1294.53-1296.59)
L1 1300.05 (1299.02-1301.09) L2 1304.58 (1303.54-1305.63) L3 1309.14 (1308.09-1310.09) |
|
100G SFP-DD Transceiver |
||||
|
SFPDD-DR-100G |
100GBASE-DR Single Lambda,1310nm SMF |
-2.9~4 |
-5.9~4 |
1304.5-1317.5 |
|
Part Number |
Transceiver Type |
Transmit Power (dBm) | Receive Power (dBm) | Transmit and Receive Wavelength (nm) |
|
SFPDD-FR-100G |
100GBASE-FR Single Lambda,1310nm SMF |
-3.1~4 |
-7.1~4 |
1304.5- 1317.5 |
|
SFPDD-LR-100G |
100GBASE-LR Single Lambda,1310nm SMF |
-1.9~4.8 |
-8.2~4 |
1304.5- 1317.5 |
Safety

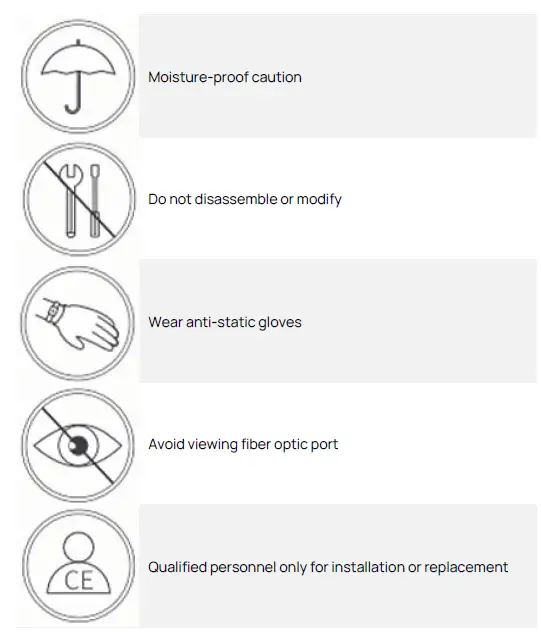

Required Tools
You will need the following tools to install the QSFP28 & SFP-DD transceiver modules:
- A wrist strap or other personal grounding device to prevent ESD occurrences.
- An antistatic mat or foam to place the transceiver on.
- Fiber-optic end-face cleaning tools and inspection equipment. For complete information on inspecting and cleaning fiber-optic connections, see the white paper at this URL: 5.1 Optical Module Endface Testing.
Installing QSFP28 and SFP-DD Transceiver Modules
Caution: QSFP28 and SFP-DD transceiver modules are static-sensitive devices. Always use an ESD wrist strap or a similar grounding device when handling or coming into contact with these modules.
To install an QSFP28 / SFP-DD transceiver module, please follow these steps:
- Step 1: Attach an ESD-preventive wrist strap to your wrist and to the ESD ground connector or a bare metal surface on your chassis.
- Step 2: Remove the QSFP28 / SFP-DD transceiver module from its protective packaging.
- Step 3: Check the label on the QSFP28 / SFP-DD transceiver module body to verify that you have the correct model for your network.
- Step 4: For optical QSFP28 or SFP-DD transceivers, remove the dust cap from the optical port and set it aside.

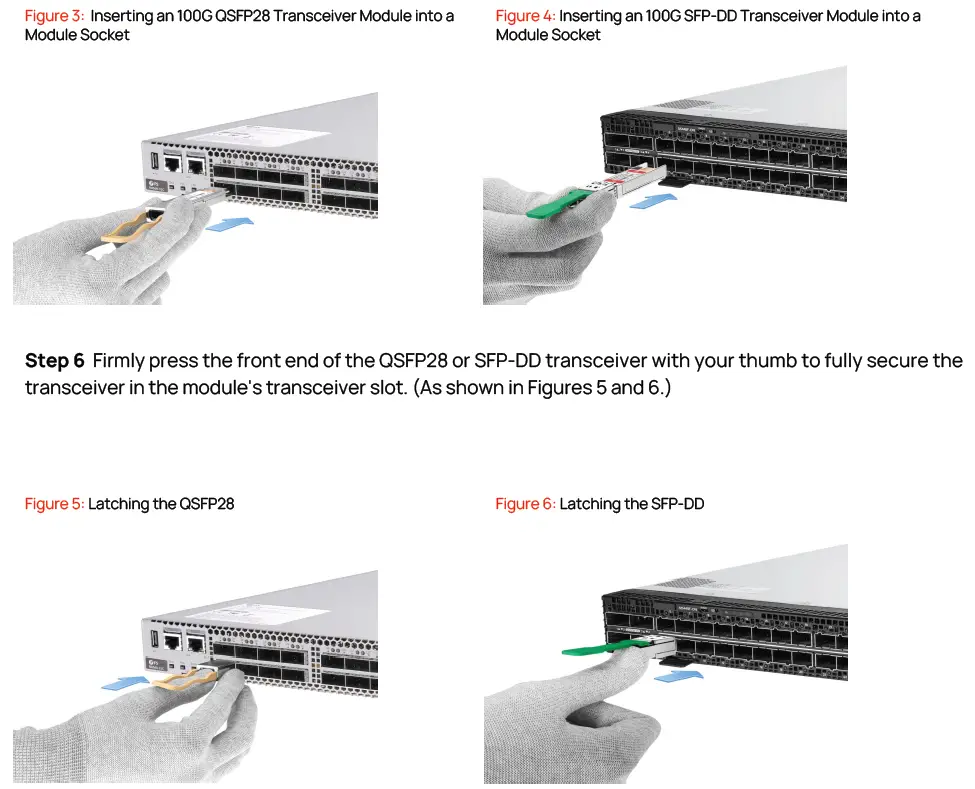

- Step 5: Hold the transceiver with the identifier label facing up. Align the QSFP28 or SFP-DD transceiver in front of the module transceiver socket opening, then carefully slide the transceiver into the socket until the transceiver contacts the electrical connector of the socket. (As shown in Figures 3 and 4.)
Step 7: For optical QSFP28 or SFP-DD modules, reinsert the dust plug into the transceiver’s optical port until you are ready to connect the network interface cable. Do not remove the dust plug until you are prepared to make the connection.
Connect Fiber Optic Network Cables
Before removing the dust plug and making any optical connections, please follow these guidelines:
- Keep the dust plug installed on the unconnected fiber cable connectors and transceiver optical ports until you are ready to make the connection.
- Inspect and clean the end faces of MPO / duplex LC connectors before making any connections. Refer to the tip after Step 2 in the next procedure for pointers to the fiber inspection and cleaning white paper.
- Insert or remove the fiber cable only by holding the MPO or duplex LC connector housing.
Caution: The MPO and duplex LC connectors on QSFP28 and SFP-DD transceivers support network interface cables with Physical Contact (PC) or Ultra Physical Contact (UPC) polished surface types. The MPO and duplex LC connectors on optical QSFP28 and SFP-DD transceivers do not support network interface cables with Angled Polished Contact (APC) surface types.
- Step 1: Remove the dust plug from the MPO connector of the fiber network interface cable. Please keep the dust plug in a safe place for future use.
- Step 2: Inspect and clean the fiber end face of the MPO or duplex LC connector. Refer to the tips below for a link to the fiber inspection and cleaning white paper.
Tips: For complete information on inspecting and cleaning fiber connections, please see this URL:
https://resource.fs.com/mall/resource/800g400g-transceiver-acceptance-testing-guide.pdf - Step 3: Remove the dust plug from the optical port of the QSFP28 or SFP-DD transceiver module.

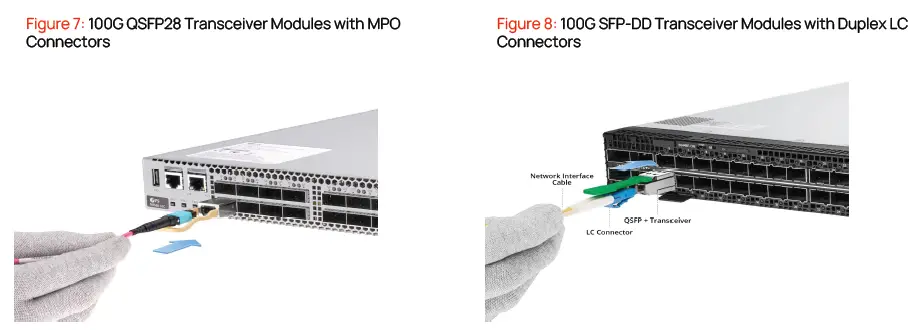

- Step 4: Immediately connect the network interface cable MPO connector to the QSFP28 transceiver module ( Figure 7) or the duplex LC connector to the SFP-DD transceiver module ( Figure 8).
- Step 5: Gently pull on the MPO or duplex LC connector housing of the cable to check if the fiber network cable is fully seated. If the network cable is disconnected, reinstall it and ensure that the cable connector is fully seated and that the connector latch is engaged.
Removing QSFP28 and SFP-DD Transceiver Modules
Caution: QSFP28 and SFP-DD transceiver modules are electrostatic-sensitive devices. Always wear an ESD wrist strap or a similar personal grounding device when handling QSFP28 or SFP-DD transceiver modules or coming into contact with them.
To remove the QSFP28 or SFP-DD transceiver, follow these steps:
- Step 1: For optical QSFP28 or SFP-DD transceivers, disconnect the network interface cable from the QSFP28 or SFP-DD transceiver connector.

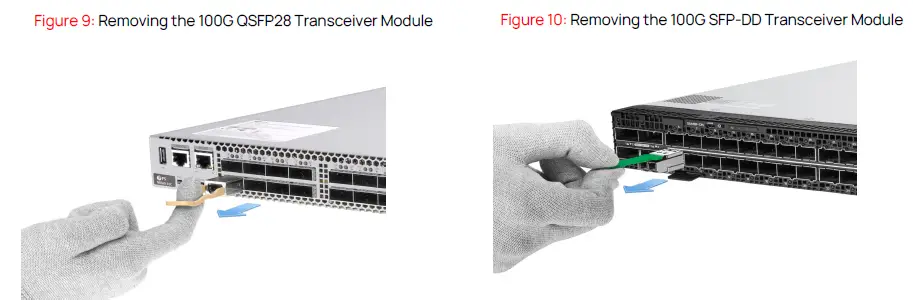

- Step 2: For QSFP28 or SFP-DD transceivers equipped with a pull-tab latch (see Figures 9 and 10, bottom view):
- Immediately install the dust plug into the transceiver’s optical port.
- Grasp the latch and gently pull to release the transceiver from the socket.
- Slide the transceiver out of the socket.
- Step 3: Place the QSFP28 or SFP-DD transceiver in an antistatic bag.
FS has invested resources in product R&D, quality control, intelligent manufacturing, industry-leading experts, professional technical support, and networking solutions. All is to provide customers with higher-performance, lower-power consumption, and the most costeffective products, promoting clients’ network upgrades.
For more information and technical support, welcome to contact us at www.fs.com/contact_us
Copyright © 2009-2023 FS.com Inc.All Rights Reserved.
Documents / Resources
 |
FS 100G QSFP28 and SFP-DD Transceiver Module [pdf] Installation Guide QSFP-SR4-100G, QSFP-BIDI-100G, Q28-40-100G-SM4, QSFP-ELR4-100GM, QSFP-LR4-100GM, QSFP-ER4-100GM, QSFP-PLR4-100G, Q28-100G-BX40, QSFP-eER4-100G, QSFP-ER-100G, QSFP-SL4-100G, QSFP-ZR4-100G-I, QSFP-LR-100G-29, QSFP-LR-100G-33, and more., 100G QSFP28 and SFP-DD Transceiver Module, 100G, QSFP28 and SFP-DD Transceiver Module, SFP-DD Transceiver Module, Transceiver Module, Module |
