8Bitdo Ultimate Wired Controller for Xbox

PRODUCT DESCRIPTION

connectivity

Xbox Series X / Xbox Series S / Xbox One

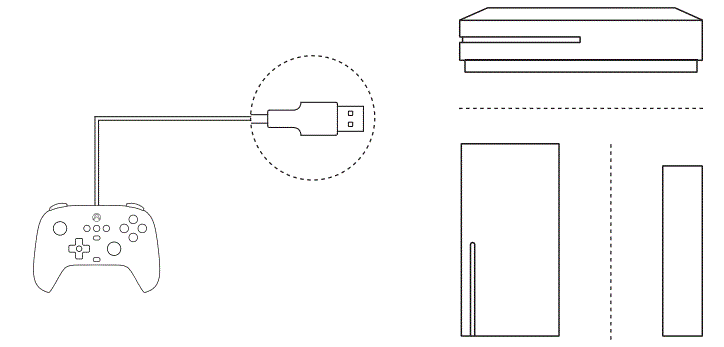

• Connectthe controllerto yourXboxSeries X/S and Xbox One via its USB cable, wait tillthe status LED becomes solid to play

Windows 10

• Connect the controller to your Windows device via its LISB cable, wait till the status LED becomes solid to play
• required system: Windows 101903 or above

Button swap

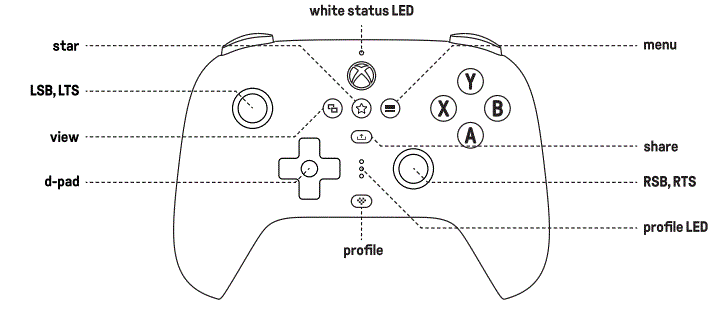

1. Press and hold any two of the AIB/X/Y/LB/RB/LSB/RSB buttons you would like to swap
2. Press the star button to Swap them, profile LED blinks to indicate the success Of the action
3. Press and hold any of the two buttons which have been swapped #d and press the star
   button to cancel it button mapping goes back to its default mode when the controller is turned off
   please visit support.8bitdo.com for further information and assistance

Volume Control

• Beeps when adjusted to maximum/minimum
• Vibration when adjusted to the middle value

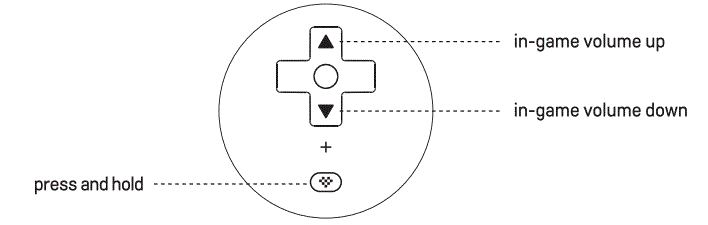

1. press and hold profile up/down to turn up/down in-game volume

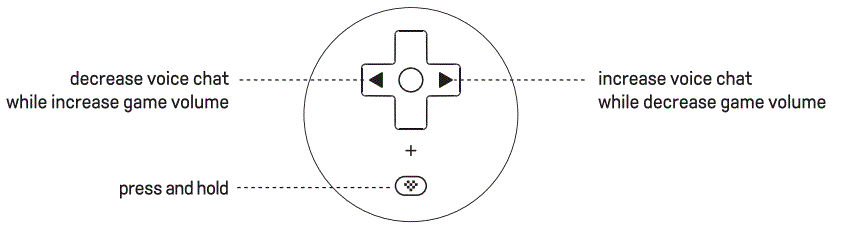

2. press and hold profile left/right to adjust the balance between voice and game volume

Ultimate Software

• 8BitDo Ultimate Software gives you elite control over every piece of your controller: customize button mapping, adjust stick & trigger sensitivity, and control vibration power
• please visit app.8bitdo.com for the application
• profile LED lights up when profile is enabled

support

please visit support.8bitdo.com for further information and additional support
