Enjoy Our Smart Life
Bluetooth
1 Dimension
2 Specification
Power supply: Battery CR2032 3V DC
Communication: Zigbee 3.0*, Bluetooth Low Energy*
Control distance: 50m open area
Ingress Protection: IP55
Dimensions: 45 X 45 X 12.5mm
Operating temperature: -10 °C~45 °C
Working Humidity: <90%RH
Life of battery: 1 years (General use)
*Available for selected model
3 Install the battery

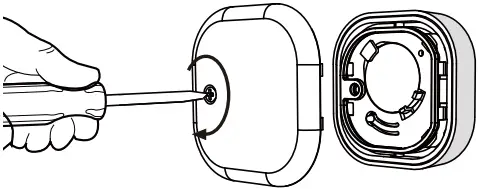

1. Remove the screw
2. Install the CR2032 battery
3. Install the cover
4 Connet to Network
Scan the QR code to download APP
Gateway is require to connect device
5 Reset / Paring
1. Remove the screw
2. Hold“RESET”to 6s
3. LED will start flashing
4. Install the cover

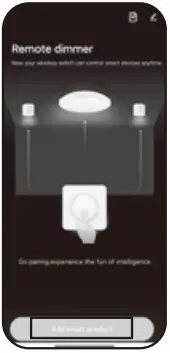

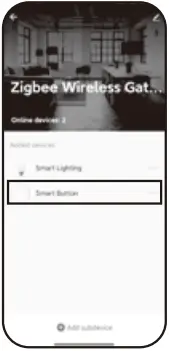

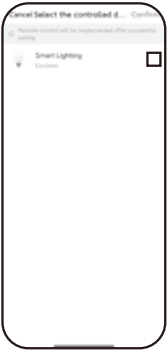

5.1 Remote mode
5.2 Remote mode
5.3 Remote mode
5.4 Remote mode
B. Control description under remote mode
Single Press OnSingle Press Set the color temperature
Dual Press Off
Long Press >3s Dimming
Note: The above functions may be different depending on the model of the smart bulb
5.5 Mode swap
Remote mode
Scenario mode

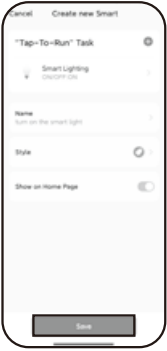

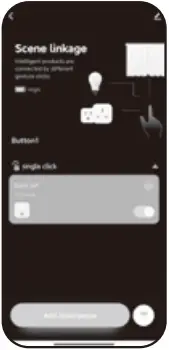

5.6 Scenario mode
5.7 Scenario mode
5.8 Scenario mode
SERVICE
- During the free warranty period, if the product breaks down during normal use, we will offer free maintenance for the product.
- Natural disasters/man-made equipment failures, disassembly and repair without the permission of our company, no warranty card, products beyond the free warranty period, etc., are not within the scope of free warranty
- Any commitment (oral or written) made by the third party (including the dealer/service provider) to the user beyond the warranty scope shall be executed by the third party
- Please keep this warranty card to ensure your rights
- Our company may update or change the products without notice. Please refer to the official website for the updates.
RECYCLING INFORMATION
All products marked with the symbol for separate collection of waste electrical and electronic equipment (WEEE Directive 2012/19 / EU) must be disposed of separately from unsorted municipal waste. To protect your health and the environment, this equipment must be disposed of at designated collection points for electrical and electronic equipment designated by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences for the environment and human health. To find out where these collection points are and how they work, contact the installer or your local authority.
WARRANTY CARD
Product Information
Product Name____________________________________
Product Type_____________________________________
Purchase Date____________________________________
Warranty Period__________________________________
Dealer Information________________________________
Customer’s Name_________________________________
Customer Phone__________________________________
Customer Address________________________________
_________________________________________________
Maintenance Records
| Failure date | Cause Of Issue | Fault Content | Principal |
Thank you for your support and purchase at we Moes, we are always here for your complete satisfaction, just feel free to share your great shopping experience with us.
If you have any other need,please do not hesitate to contact us first,we will try to meet your demand.
@moessmart
MOES.Official
@moes_smart
@moes_smart
@moes_smart
www.moeshouse.com
WENZHOU NOVA NEW ENERGY CO.,LTD
Address: Power Science and Technology
Innovation Center, NO.238, Wei 11 Road,
Yueqing Economic Development Zone,
Yueqing, Zhejiang, China
Tel:+86-577-57186815
Email: service@moeshouse.com
AMZLAB GmbH
Laubenhof 23, 45326 Essen
Made In China
BB14
