zigbee Human Body Sensor Installation Guide

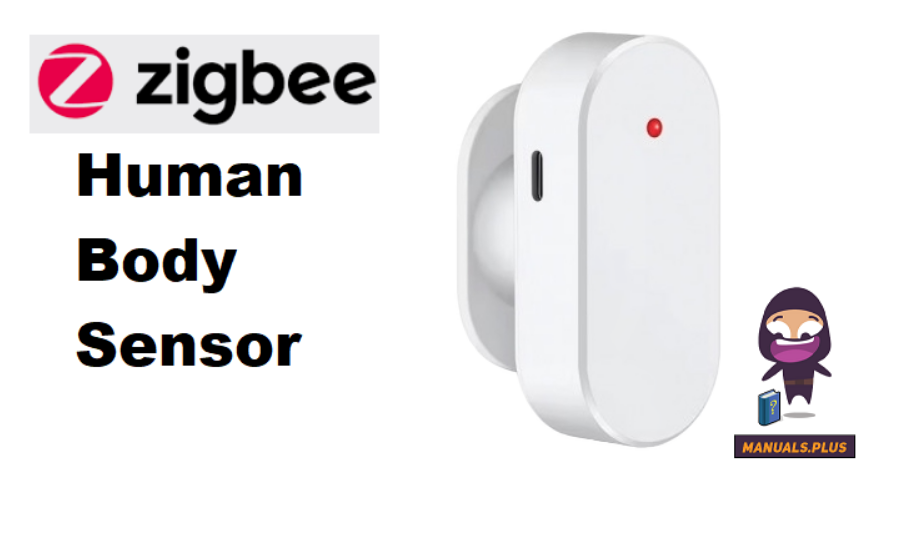

zigbee Human Body Sensor

Product Overview

Welcome to Radar Motion& Human Presence Sensor. This product, through a 1 0G/24GHz microwave radar, can detect moving human bodies or animals. The detection Angle is 110°±10°, and the detection distance is 0.5 to 10 meters, enabling real-time monitoring day and night. AAA•2 batteries are used for battery power supply, which lasts for u to 360 days (10 reports per day); Zigbee dual versions are available. Bring smarter, safer and more convenient solutions for the smart home. commercial space, elderly guardianship, and other scenarios.

Product Parameters

Product Name:

• Wireless Protocol: Zigbee 3.0
• Battery Type: AAA *2{not included)
• Detection angle: 110° ± 10°
• Detection distance: 0.5 – 10 meter (z axis) Transmission Frequency:1 0G/24G Operation.ng Temperature: -10°c-so0c
• Operating Humidity: 0%-95%RH

Product list

• Radar Motion Sensor X1 User manual X1
• Pins X1
• Double-sided adhesive X1

Device connection:
Need to be used with a Zigbee gateway.

zigbee connection

1. Prerequisite operation and compatibility with Zigbee Smart Gateway settings.  Zigb. Smart Gateway Open th app, click on Zigbee Gateway, click 1on Add Sub-device, then select Radar, Motion Sensor Other Sensor and follow the on-screen instructions to continue.
2. Make sure your phone is connected to a Wi-Fi network. The Human Presence Sensor is as close as possible to the ·Zigbee Smart Gateway, press the reset button on the Human Presence Sensor, the LED indicator will flash rapidly and then enter the automatic networking mode. Follow the instructions.

Installation Guide

Battery Installation
Push the back cover of the product upwards to remove it. Install the AAA •2 battery according to the positive and negative pole markings. When the indicator light flashes, close the back cover.

Fixing method
Use double-sided tape to fix the basein the position you want to install, and then the sensor corresponding to the base.

APP Control:
Through APP, a real-time view of the device status, adjust the parameter settings, linkage smart home and so on.

Frequent false triggering
Check whether the installation position is facing the interference sources such as fans, plants, etc., adjust the angle or mark the ·interference area.

Battery draining
If the average number of reports exceeds 1 O times per day, the battery life may be shortened, it is recommended to adjust the reporting frequency.

Device is offline

• a. Check whether the Zigbee network is normal, restart the router or gateway.
• b. Check if the battery is fully charged and replace it promptly.

Product Reset

Device connection

The device can not be connected to the network. Zigbee version needs to be close to the gateway (?10 me?ers). b. Reset the device· Press the reset switch. the lndi.cator Ught will blink, and reconnect to the network.
