LED pwm controller zc-pwm-iot-4ch-6a
Product range
| Order code | Description |
| zc-pwm-iot-4ch-6a | LED pwm controller |
Specifications
| Supply voltage | 12 – 24 Vdc |
| Self consumption | 150mW |
| Control system | Wireless IEC62386-104 over Thread |
| Radio support | IEEE 802.15.4 |
| Frequency band | 2.4 GHz |
| Max radio tx power | +8 dBm |
| Output load | 6A total 0 – 6A per channel |
| Output load type | LED only |
| Independant channels | 4 |
| Bus unit configurations | 4 x DT6, 2 x DT8-TC, DT8-RGBW (see bus unit configuration table) |
| Wiring | 0.2 – 1.5 mm² Strip 6 – 7 mm |
| Operating temperature | 0 to 55°C |
| Material | PC |
| Classification | Class III |
| Ingress protection | IP20 |
Safety information
- There are no user serviceable parts, attempting to service any part of the product will void the warranty
- As the installer, it is your responsibility to ensure you comply to all relevant building and safety codes. Refer to applicable standards for the relevant rules.
- When the installation is complete, leave this manual with the building’s owner for future reference.
Wiring diagram

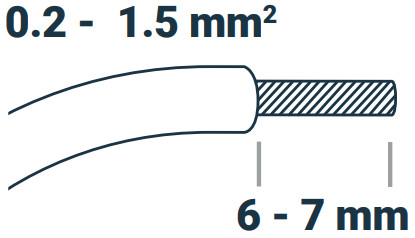

Wire preparation
Dimensions
| Mounting options | Inbuilt |
| Dimensions | 80 / 16 / 30 mm |
System overview: modes
104 mode is enabled after the device has been added to a 104 application controller such as zc-iot-fc.
Installation
Remove the product from the box and inspect it for any damage. If you believe the product to be damaged or otherwise unsound, do not install the product. Please pack it back into its box and return it to the place of purchase for replacement.
If the product is satisfactory, proceed with the installation:
- Ensure safety warnings are adhered to.
- Wire according to wiring diagram, as shown in fig 1.
- Optional: Break off back tab, and align front tab to case, to install inside field mount case, per fig 2.
- Optional: Mount inside mains rated enclosure, such as a luminaire, using mounting tabs, per fig 3.
Bus unit configurations
| Bus unit config. | No. of ECG | Channel 1 | Channel 2 | Channel 3 | Channel 4 |
| 192 (default) | 4-Jan | ECG index 0 DT6 (LED) |
ECG index 1 DT6 (LED) |
ECG index 2 DT6 (LED) |
ECG index 3 DT6 (LED) |
| 193 | 2-Jan | ECG index 0 DT8-TC (cool) |
ECG index 0 DT8-TC (warm) |
ECG index 1 DT8-TC (cool) |
ECG index 1 DT8-TC (warm) |
| 194 | 1 | ECG index 0 DT8-RGBW (red) |
ECG index 0 DT8-RGBW (green) |
ECG index 0 DT8-RGBW (blue) |
ECG index 0 DT8-RGBW (white) |
Note: Bus unit configuration RGBW can be set using the zencontrol commissioning application. See support.zencontrol.com for more information.
© zencontrol
zencontrol.com
