ZALMAN M3 PLUS, M3 PLUS RGB mATX Mini Tower Computer Case User Manual

Developed and designed by ZALMAN in Korea
This Product is protected by ZAMAN’S pending or registered patents
* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.

www.zalman.com

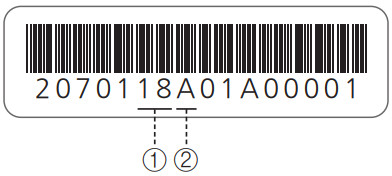

Precautions

Read this manual carefully before installing.
Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.

Wear gloves to prevent accidents when installing the product.
Severe damage may occur when mounting the system, so do not apply excessive force.

Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
Be careful not to block the ventilation hole of the product when using the system.

Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)

Do not insert your hand or another object into the product during operation, as this may injure your hand or damage the object.
Store and use the product out of children’s reach.

Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Model		M3 PLUS	M3 PLUS RGB
Case Form Factor		mATX Mini Tower
Dimensions		407(D) x 210(W) x 457(H)mm
Weight		6.0kg
Case Materials		Plastic, Steel, Tempered Glass
Motherboard Support		mATX / Mini-ITX
Maximum VGA Length		330mm
Maximum CPU Cooler Height		165mm
Maximum PSU Length		180mm
PCI Expansion Slots		4
Drive Bays		2 x 3.5″ / 4 x 2.5″
Fan Support	Top	2 x 120mm
	Front	3 x 120mm
	Rear	1 x 120mm
	Bottom	2 x 120mm
Pre-Installed Fan(s)	Front	3 x 120mm (with White LED Effect)	3 x 120mm (with RGB LED Effect)
	Rear	1 x 120mm (with White LED Effect)	1 x 120mm (with RGB LED Effect)
Radiator Support	Top	240mm
	Side	240mm
I/O Ports		1 x Headphone Jack, 1 x Mic, 1 x USB3.0, 2 x USB2.0, Power Button, Reset Button, Fan-LED Controller

I/O Ports

#	Part	#	Part	#	Part	#	Part
ⓐ	USB 2.0 Ports	ⓑ	USB 3.0 Port	ⓒ	Microphone Jack	ⓓ	HDD / Power LED
ⓔ	Headphone Jack	ⓕ	Fan-LED Controller	ⓖ	Reset Button	ⓗ	Power Button

ⓖ Fan & LED Control Button

Fan Speed: 100% / LED Bright: 100%
Fan Speed: 50% / LED Bright: 50%

Fan Speed: 50% / LED Bright: Off
Fan Speed: Off / LED Bright: Off

※ Caution:
Shutting off your system fans could cause an increase in system temperature.

Removing the side panels

Removing the front panel

Mounting the motherboard

3-1. Motherboard size

Mounting the PSU

Mounting the PCI-E(VGA) card

Mounting the 3.5″ HDD

Mounting the 2.5″ SSD / HDD

Mounting the radiator

Fans Included / Specifications

M3 PLUS
RPM : 1,100 ± 10%
Input : (Fan)12V

0.24A
(LED)12V

0.11A
Hydraulic Bearing

M3 PLUS RGB
RPM : 1,100 ± 10%
Input : (Fan)12V

0.24A
(LED)12V

96mA
Hydraulic Bearing

Mounting the fans

I/O Connectors
