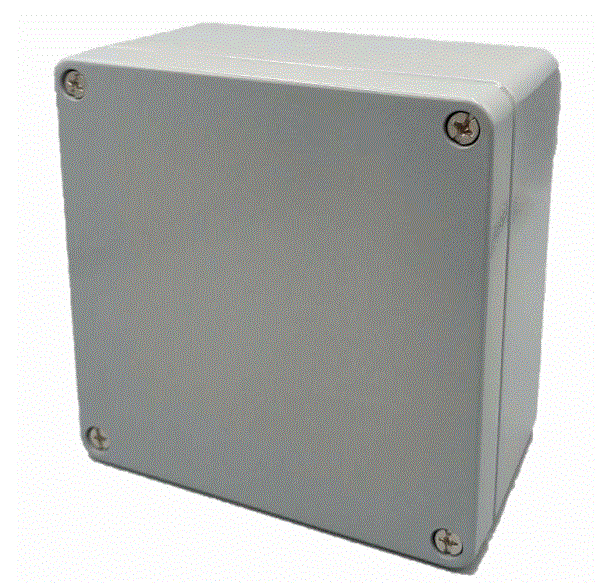

YOKOGAWA BA10 Extension Junction box

PREFACE

Introduction
Between the measuring plant and control room, especially when the distance between these places is greater than the length of the standard appropriate
sensor cables, the BA10 connecting equipment can be an expedient method for connecting sensor cables to an extension cable that is connected to
the measuring device. Although BA10 enables longer distance connection it is not advisable to use it in pH measuring loops. For pH loops with long-distance cable runs it is recommended to use a digital Suncom configuration.

Unpacking and Checking

Upon arrival of the purchased product, carefully unpack it and make sure the product has not been damaged during transportation.
Verify the model code on a name label adhered on the packaging box. For details of the model code, see subsection 6.

Warranty and Service

Yokogawa products and parts are guaranteed free from defects in workmanship and material under normal use and service for a period of (typically) 12
months from the date of shipment from the manufacturer. Individual sales organizations can deviate from the typical warranty period, and the conditions of sale relating to the original purchase order should be consulted. Damage caused by wear and tear, inadequate maintenance, corrosion, or by the effects of chemical processes are excluded from this warranty coverage. In the event of a warranty claim, the defective goods should be sent (freight paid) to the Service Department of the relevant sales Organization for repair or replacement (at Yokogawa’s discretion)

The following information must be included in the letter accompanying the returned goods:

  • Model Code and Serial Number.
  • Original Purchase Order and Date.
  • Length of time in service and description of the process.
  • Description of the fault and circumstances of the failure.
  • Process/environmental conditions that may be related to the failure of the connection box
  • Statement as to whether warranty or non-warranty service is requested.
  • Complete shipping and billing instructions for the return of material, plus the name and phone number of a contact person that can be reached for further information.
  • Clean Statement
    Returned goods that have been in contact with process fluids must be decontaminated and disinfected prior to shipment. Goods should carry a certificate to this effect, for the health and safety of our employees. Material Safety Data Sheets must be included for all components of the process to which the connection box has been exposed.

Serial number

The Serial number is defined by nine (9) alphanumeric characters:

  • X1,X2 Production location
  • X3, X4 Year/Month code
  • X5, X6, X7, X8, X9 Tracking number

Example: N3X300005

Table 1: Production Year code

Year Year code Year Year code
2014 P 2026 3
2015 R 2027 4
2016 S 2028 5
2017 T 2029 6
2018 U 2030 7
2019 V 2031 8
2020 W 2032 9
2021 X 2033 A
2022 Y 2034 B
2023 Z 2035 C
2024 1 2036 D
2025 2 2037 E

Table 2: Production Month code

Month Month code
January 1
February 2
March 3
April 4
May 5
June 6
July 7
August 8
September 9
October A
November B
December C

GENERAL SPECIFICATIONS

Junction box, type BA10

The junction box is an expedient method for connecting sensor cables to a measuring instrument using the extension cable

Note: The extension cable, type WF10/WE10 should be used to interconnect the junction box and the measuring instrument.
To have optimum measuring results the length of this cable may be max. 100 m.

Specifications

  • Material: Cast aluminum case with chemically resistant coating
  • Rain- and dust protection: Meets IP 65
  • Terminals: Screw-type wires up to 6 mm
  • Cable entries: 2 holes with screw thread
  • Weight: ca. 2 kg.
  • Dimensions: See Fig. 6 dimensional drawing
  • Fixing: 140 x 110 mm (indicated on the reverse side of the box)

NOTE: As delivered the box includes 2 cable glands PG 16 (Figure 3), a hose connection for a 19 mm I/D protection hose (Figure 4) and a grommet (Figure 5) for watertight cable input in a gland (3 electrode cables and the liquid earth cable).

Shipping details

  • Package size mm (LxWxH): 245x180x210
  • Package Weight (Approx.): 2 kg.

INSTALLATION

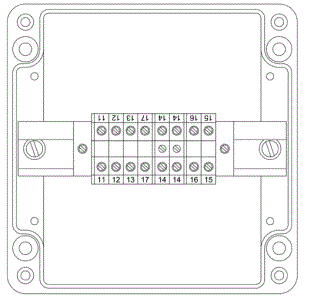

Figure 1. BA10 junction boxYOKOGAWA-BA10-Extension-Junction-box-1

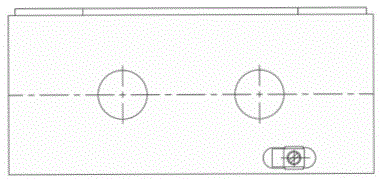

Figure 2. PG16 cable gland and grounding connectionYOKOGAWA-BA10-Extension-Junction-box-2

Figure 3. PG16 cable glandsYOKOGAWA-BA10-Extension-Junction-box-3
Figure 4. Hose connector for 19mm I/D protection hoseYOKOGAWA-BA10-Extension-Junction-box-4

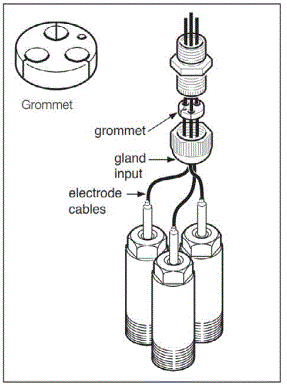

Figure 5. GrommetYOKOGAWA-BA10-Extension-Junction-box-5

DIMENSIONS

Figure 6. Dimensions BA10 in mmYOKOGAWA-BA10-Extension-Junction-box-6

WIRING

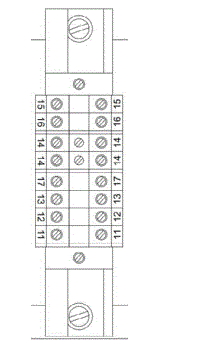

Figure 7. BA10 connection blockYOKOGAWA-BA10-Extension-Junction-box-7

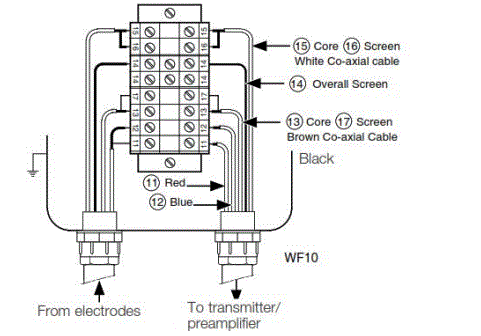

Figure 8. Example of a connection diagramYOKOGAWA-BA10-Extension-Junction-box-8

Note: For details on connection please refer to the respective analyzer/sensor Instruction manual.

MODEL AND SUFFIX CODES

Table 3: MS Code

Model Suffix code Description
BA10 Terminal box for normal use
