1. Ọja Ipariview
This manual provides detailed instructions for the installation, operation, and maintenance of your KES 10 Inches Rain Shower Head with Handheld Spray system. This pressure-balanced, wall-mounted shower system is designed to provide a consistent and comfortable showering experience.
Image 1.1: The KES 10 Inches Rain Shower Head with Handheld Spray system, available in matte black and brushed nickel finishes. Both systems feature a square rain shower head and a rectangular handheld spray, demonstrating water flow from both components.
Awọn ẹya pataki:
- Iṣẹ ṣiṣe meji: Both the rain shower head and handheld spray can operate simultaneously.
- Pressure-Balanced Valve: Prevents sudden temperature changes due to water pressure fluctuations, ensuring a stable shower temperature.
- Ṣiṣan omi ti o lagbara: Maintains a robust water flow even at 1.8 GPM (6.8 L/min) at 80 PSI, contributing to water efficiency.
- Anti-Backflow Function: Check valves and internal buffer device reduce water hammer noise and protect plumbing.
- cUPC Certified: The entire shower system is compliant with ASME A112.18.1/CSA B125.1 standards and meets California Energy Commission (CEC) regulations.
Image 1.2: Certification details for the KES shower system, highlighting its cUPC compliance and adherence to industry standards and California regulations.
2. Awọn pato
Wo tabili ni isalẹ fun alaye alaye nipa ọja naa.
| Iwa | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Ara | KES Matte Black & Brushed Nickel Shower Faucet Set |
| Pari | Brushed, Matte |
| Apẹrẹ | Round (for shower head spray pattern, head itself is square) |
| Mu Ohun elo | Idẹ |
| Iṣagbesori Iru | Ògiri Ògiri |
| Awọn irinše to wa | Shower Head, Valve |
| Ohun elo | Idẹ |
| ASIN | B0CSSRV9NZ |
| Ọjọ Akọkọ Wa | Oṣu Kẹta Ọjọ 19, Ọdun 2024 |
Awọn iwọn:
Image 2.1: Detailed dimensions of the shower head, arm, valve, and handheld spray components. The system uses U.S. Standard Connections, and parts customization options are available.
3. Eto ati fifi sori
Installation of this wall-mounted shower system requires professional plumbing knowledge. It is recommended to have a certified plumber perform the installation to ensure proper function and compliance with local building codes.
Awọn Igbesẹ Fifi sori ẹrọ Gbogbogbo (Kan si Ọjọgbọn kan):
- Igbaradi: Ensure all necessary tools and components are available. Turn off the main water supply to the installation area.
- Rough-in Valve Installation: Install the pressure-balanced valve body within the wall according to the manufacturer's specifications and local plumbing codes. Ensure proper depth for the finished wall surface.
- Awọn isopọ paipu: Connect hot and cold water supply lines to the valve. Connect the outlet pipes for the shower head and handheld spray.
- Wall Finishing: Complete wall finishing (e.g., tiling) around the installed valve.
- Fifi sori gige: Install the decorative trim plate, handle, shower arm, shower head, handheld spray holder, and hose.
- Ṣayẹwo Ṣayẹwo: Turn on the water supply and carefully check all connections for leaks.
- Idanwo Iṣẹ ṣiṣe: Test the operation of the shower head, handheld spray, and temperature control.
Note: This system utilizes U.S. Standard Connections. For specific details regarding rough-in dimensions and pipe sizing, refer to the detailed installation guide provided with the product packaging.
4. Awọn ilana Iṣiṣẹ
Your KES shower system offers versatile control for a personalized showering experience.
Iṣakoso iwọn otutu:
- The main handle controls both water flow and temperature. Rotate the handle to adjust the temperature from cold to hot.
- The pressure-balanced valve automatically maintains a consistent water temperature, preventing sudden changes even if other water fixtures in your home are used.
Water Outlet Selection and Spray Modes:
- The diverter knob allows you to switch between the rain shower head, the handheld spray, or use both simultaneously.
- The handheld spray features 3 distinct spray modes for varied water delivery. Rotate the spray face or press a button (depending on model variation) on the handheld unit to cycle through these modes.

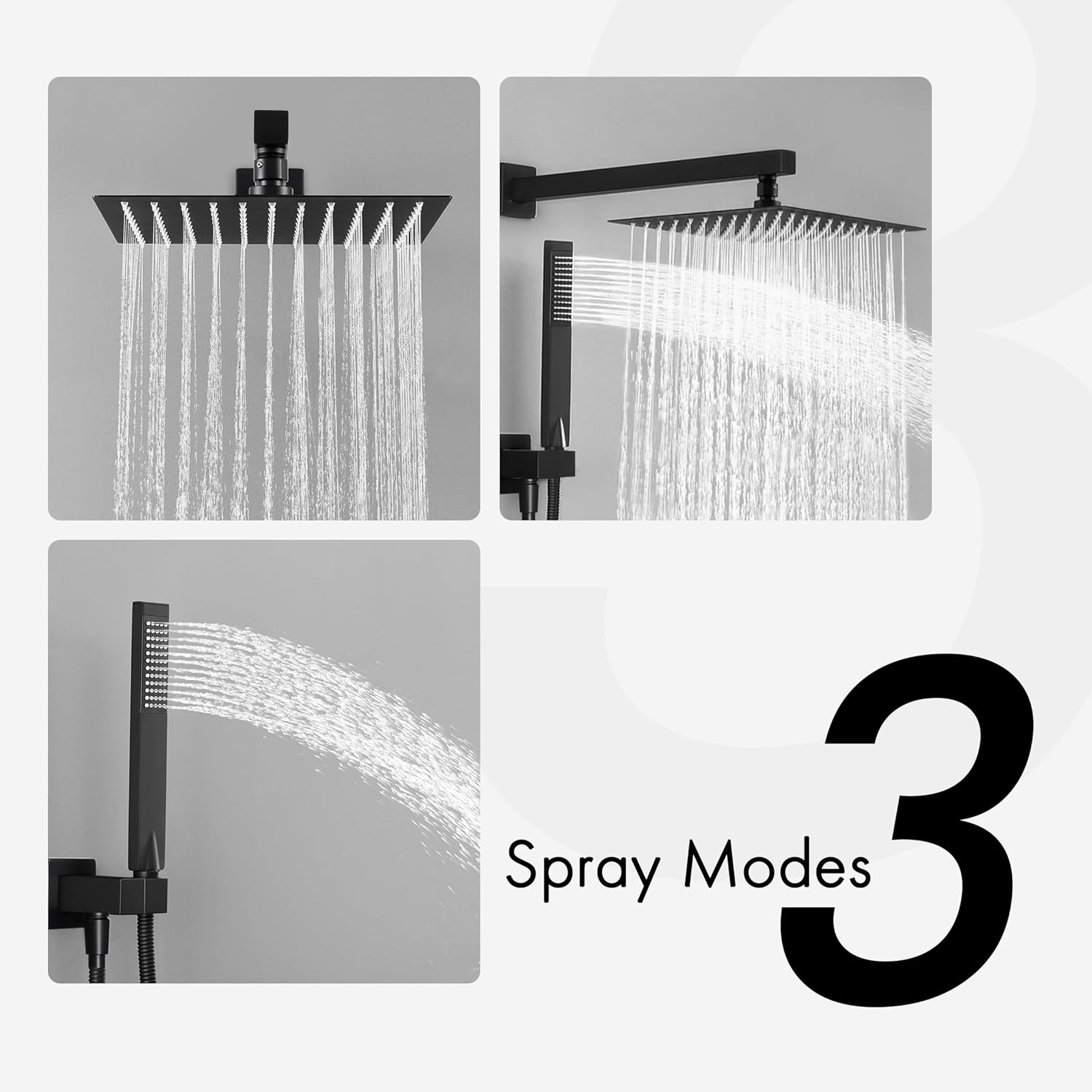

Image 4.1: Demonstration of the three spray modes available from the KES shower system, including the rain shower head, handheld spray, and simultaneous operation.
Image 4.2: The KES shower system in operation, demonstrating its high pressure and water-saving capabilities through its proprietary structural design.
5. Itọju
Regular cleaning and proper care will help maintain the appearance and functionality of your KES shower system.
Awọn ilana mimọ:
- Isọsọ gbogboogbo: Clean the surfaces regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for bathroom fixtures.
- Yago fun Awọn olutọpa lile: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or bleach, as these can damage the finish (Matte Black or Brushed Nickel).
- Awọn aaye omi: To prevent water spots, wipe the fixtures dry with a soft cloth after each use.
- Àwọn ihò orí ìwẹ̀: The silicone nozzles on the shower head and handheld spray are designed for easy cleaning. Gently rub them with your finger to dislodge any mineral buildup.
Awọn igbese idena:
- Water Hammer Protection: The built-in anti-backflow function and buffer device help protect your pipes from water hammer noise and impact force. No specific user maintenance is required for this feature.
- Ayẹwo igbagbogbo: Periodically check for any signs of leaks around connections or wear on the hose. Address any issues promptly to prevent further damage.
6. Laasigbotitusita
If you encounter issues with your KES shower system, refer to the following common troubleshooting steps. For persistent problems, contact customer support.
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Agbara Omi Kekere | Mineral buildup in shower head/handheld nozzles; partially closed shut-off valves; issues with home's main water supply. | Clean shower head and handheld nozzles by rubbing them. Ensure shut-off valves are fully open. Consult a plumber if the issue persists throughout the house. |
| Aisedeede Omi otutu | Pressure-balanced valve malfunction; hot/cold water supply issues. | Verify hot and cold water supply to the house. If the issue is specific to the shower, contact customer support as the valve may require service. |
| Leaking from Shower Head/Handheld | Loose connections; worn washers/gaskets; internal valve issue. | Ensure all connections are tight. If leaks persist, internal components may need replacement. Contact customer support. |
| Diverter Ko Yipada Dada | Mineral buildup in diverter mechanism; worn diverter cartridge. | Attempt to work the diverter back and forth to dislodge any debris. If it remains stiff or ineffective, the cartridge may need replacement. Contact customer support. |
7. Atilẹyin ọja ati Support
KES is committed to providing high-quality products and excellent customer service.
Atilẹyin ọja to Lopin:
Your KES shower system is backed by a S'aiye Atilẹyin ọja Limited. This warranty covers defects in material and manufacturing under normal use and service. Please retain your proof of purchase for warranty claims.
Atilẹyin Onibara:
For any questions, technical assistance, or to request free replacement parts, please contact KES Customer Support. Our team is available 24 hours to assist you.
For more information and to explore other KES products, visit the official KES Store on Amazon: KES Store
