Noritz MK-NRCB-1 Manifold Kit User Manual

Ọrọ Iṣaaju

The Noritz MK-NRCB-1 Manifold Kit is designed for use with Noritz NRCB Series Combi Boilers. This kit facilitates the proper connection and operation of the combi boiler system, ensuring efficient water and heating distribution. It is an essential component for integrating the boiler into a comprehensive heating and hot water system.

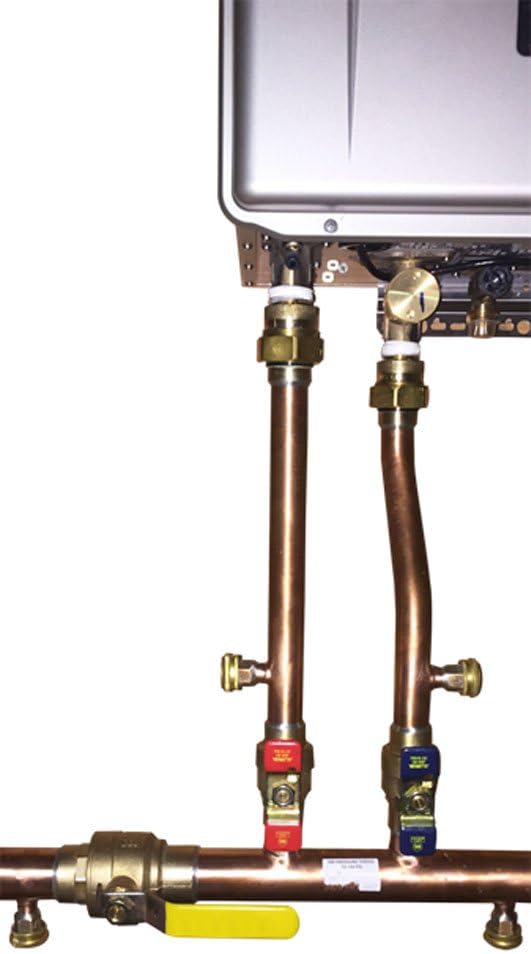

Aworan: The Noritz MK-NRCB-1 Manifold Kit shown connected to a combi boiler. The image displays copper piping, brass fittings, and red and blue handled valves, indicating hot and cold water lines, respectively. A larger yellow-handled valve is visible at the bottom, likely for system isolation or drainage.

Eto ati fifi sori

Proper installation of the Noritz MK-NRCB-1 Manifold Kit is crucial for the optimal performance of your Noritz NRCB series combi boiler. This kit is specifically designed for these models to ensure compatibility and efficiency.

Awọn ero fifi sori ẹrọ bọtini:

• Ibamu: Ensure the manifold kit is used exclusively with Noritz NRCB models (e.g., NRC CB199DV / CB180DV) as specified by the manufacturer.
• Secondary Pump: A secondary pump is required for the heating side of the system when using this manifold kit. This pump facilitates the circulation of heating fluid.
• Air and Debris Purge: The design of the manifold kit includes features for easy purging of air and debris from the primary loop. This step is vital during initial setup and subsequent maintenance to prevent system blockages and ensure efficient operation.
• Fifi sori Ọjọgbọn: It is highly recommended that installation be performed by a qualified and licensed HVAC professional to ensure compliance with local codes and proper system function.

Refer to the detailed installation guide provided with your Noritz NRCB series combi boiler and the manifold kit for specific plumbing diagrams and connection instructions.

Awọn Ilana Iṣiṣẹ

The Noritz MK-NRCB-1 Manifold Kit functions as an integral part of the combi boiler system, managing the flow of water for both domestic hot water and space heating. While the manifold itself does not have operational controls, its proper installation ensures the boiler operates efficiently.

System Functionality:

• Water Distribution: The manifold directs incoming cold water to the boiler and distributes heated water to the domestic hot water fixtures and the heating loop.
• Awọn àtọwọdá ipinya: Integrated valves allow for isolation of sections of the system for maintenance or repair without needing to shut down the entire water supply to the property.
• Purge Points: Dedicated purge points facilitate the removal of air and sediment from the system, which is critical for preventing noise, corrosion, and inefficient heat transfer.

Always ensure all valves are in the correct position for normal operation after any maintenance or installation procedures.

Itoju

Regular maintenance of the manifold kit, as part of your overall combi boiler system, helps ensure longevity and efficient performance. The primary maintenance task related to the manifold kit involves purging the system.

Purging Air and Debris:

• The manifold kit is designed with an easy purge mechanism for air and debris in the primary loop.
• Igbohunsafẹfẹ: Purging should be performed during initial system fill-up, after any system drainage, or if you notice gurgling noises, cold spots in radiators, or reduced heating efficiency, which can indicate air in the system.
• Ilana: Consult your combi boiler and manifold kit installation manuals for the exact procedure for purging air and debris. This typically involves opening specific valves to allow air and dirty water to escape until clear water flows.
• Sediment Removal: Periodically, the system may need to be flushed to remove accumulated sediment, especially if water quality is poor. The purge points on the manifold facilitate this process.

It is advisable to have a qualified technician perform annual maintenance on your entire heating system, including inspection of the manifold kit and its connections.

Laasigbotitusita

While the manifold kit itself is a passive component, issues with its installation or maintenance can manifest as problems with the overall combi boiler system. Here are some common issues and potential troubleshooting steps related to the manifold kit:

Awọn ọrọ to wọpọ:

• No Hot Water or Insufficient Heating:
  • Check Valve Positions: Ensure all isolation valves on the manifold are fully open for normal operation.
  • Air in System: Air trapped in the primary loop can prevent proper circulation. Perform the air purging procedure as described in the Maintenance section.
  • Secondary Pump: Verify that the secondary pump (required for the heating side) is operational and correctly wired.
• Gurgling Noises from Pipes:
  • Air Trapped: This is a strong indicator of air in the system. Purge the system thoroughly.
• Àwọn jíjò ní àwọn Connections:
  • Ṣe àyẹ̀wò àwọn ohun èlò ìṣiṣẹ́: Check all brass fittings and connections on the manifold for signs of drips or moisture.
  • Mu awọn isopọ pọ: If minor leaks are found, gently tighten the connections. Do not overtighten.
  • Sealant Issues: If tightening does not resolve the leak, the sealant (e.g., PTFE tape or pipe dope) may need to be reapplied, or a fitting may be damaged. This typically requires professional attention.
• Ṣiṣan omi ti o dinku:
  • Iṣagbepo Sedimenti: Sediment or debris can accumulate in the manifold or pipes, restricting flow. Flush the system using the purge points.
  • Partially Closed Valve: Ensure no valve is accidentally left partially closed.

For persistent issues or problems beyond basic troubleshooting, contact a certified HVAC technician or Noritz customer support.

Awọn pato

Alaye atilẹyin ọja

The Noritz MK-NRCB-1 Manifold Kit comes with a 1-odun olupese atilẹyin ọja. This warranty typically covers defects in materials and workmanship under normal use and service. For specific terms, conditions, and claim procedures, please refer to the warranty documentation included with your product or contact Noritz customer support directly.

Ṣe idaduro ẹri rira rẹ fun awọn iṣeduro atilẹyin ọja.

Onibara Support

For technical assistance, installation inquiries, or warranty claims regarding your Noritz MK-NRCB-1 Manifold Kit, please contact Noritz customer support. You can typically find contact information on the official Noritz webaaye tabi ninu iwe ti a pese pẹlu ọja rẹ.

Noritz Official Webojula: www.noritz.com

When contacting support, please have your product model number (MK-NRCB-1) and purchase date readily available.
