HC Beltless Smart Curtain System Instruction Manual

1. הקדמה

Thank you for choosing the HC Beltless Smart Curtain System. This system is designed for effortless installation and smart control, offering convenience and durability for your home or office. It features WiFi connectivity, voice assistant compatibility, and adjustable track lengths to suit various window sizes. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your smart curtain system.

בילד 1: איבערview of the HC Beltless Smart Curtain System, highlighting its effortless installation and heavy-duty design.

2. פּראָדוקט פֿעיִקייטן

• Heavy Duty & Durable: Crafted from thick aluminum, designed to support up to 60-80 lbs for long-lasting reliability.
• שטיל אָפּעראַציע: Motor operates at three speeds, backed by a three-year warranty for peace of mind.
• באַקוועם קאָנטראָלס: Hand-held remote, mobile app (TuyaSmart, SmartLife), voice assistant (Amazon Alexa, Google Home). No Hub is required.
• סמאַרט פאַנגקשאַנז: Time scheduling, opening position customization, sunset and sunrise automation, pull-to-open technology, and manual control when power is off.
• גרינג ינסטאַלירונג: Effortless setup in 5 minutes (no hassle of belt cutting), adjustable track length, central open, and ceiling/wall mounting options.
• Free Parts Supply: Free extra parts (e.g., runners and brackets) and replacements to ensure a worry-free installation (fast customer support via Amazon message).

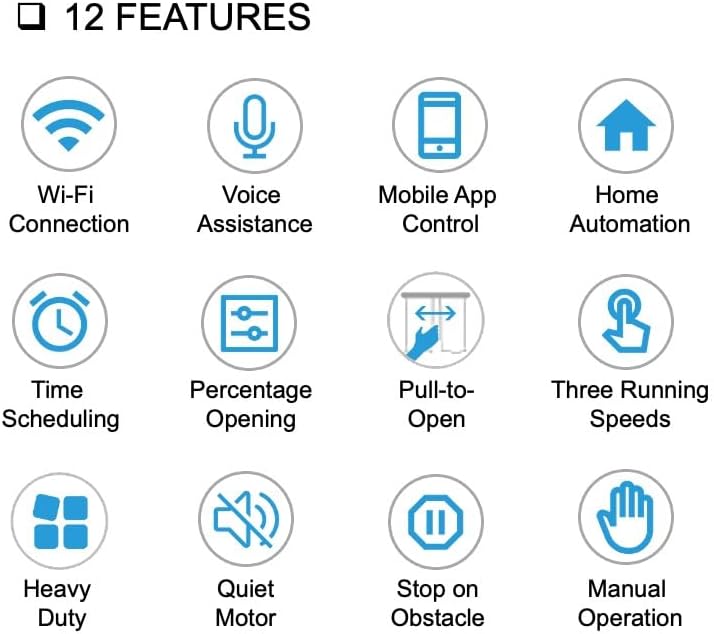

Image 2: Visual representation of the 12 key features of the smart curtain system, including Wi-Fi, voice assistance, mobile app control, and quiet motor operation.

3. פּעקל אינהאַלט

The HC Beltless Smart Curtain System package includes the following components:

• מאָטאָר
• Master Gearbox
• Sub Gearbox
• בעל קאַריער
• Sub Carrier
• שפּור קאַנעקטער
• Track Segments (various sizes for customization)
• ווייַט קאָנטראָל
• סטעליע בראַקאַץ
• Anchor Hooks
• ראַנערז
• מאַכט קאַבלע

בילד 3: דעטאַלירט view of all product components, including the motor, gearboxes, carriers, track segments, remote, and mounting hardware.

4. ספּעסאַפאַקיישאַנז

5. אויפשטעלן און אינסטאַלירן

The HC Beltless Smart Curtain System is designed for easy and quick installation. Follow these steps carefully:

5.1 רעלס פֿאַרזאַמלונג

The track system is modular and can be adjusted to your desired length. The kit includes a master track and several sub-tracks of varying lengths (50cm, 20cm, 10cm) for customization.

Image 4: Illustration of track length customization, showing a master track and various sub-track segments that can be combined to achieve the desired length.

1. Identify Track Components: Lay out all track segments. You will have one master track (43.3 inches/110cm) and several sub-tracks (39.3 inches/100cm), which may include pre-cut pieces (19.7 in, 7.8 in, 3.9 in).
2. פֿאַרבינדן שפּור סעגמענטן: Use the track buckles to securely connect the sub-tracks to the master track. Ensure all connections are firm.
3. Check Smoothness: Once assembled, manually slide the carriers along the track to ensure smooth movement without any snags.

5.2 מאָטאָר ינסטאַלירונג

4. Attach Motor: Insert the motor into the designated slot on the master track. Rotate it 90 degrees until it locks securely into place.
5. Adjust End Hooks: The end hooks on the motor are rotatable, allowing for fine adjustment of curtain position (0-5cm extension).

5.3 Mounting the Track

The system supports both ceiling and wall mounting. Choose the appropriate method for your installation.

Image 5: Diagrams illustrating wall-to-wall and window installation modes, with suggested track lengths for optimal fit.

Image 6: Visual guide to ceiling and wall mounting options, including considerations for single and dual rods, and detailed dimensions of the track components.

6. Attach Ceiling Brackets: Before fixing the track to the wall or ceiling, clip the ceiling brackets onto the track. You can adjust their position as needed.
7. זיכער שפּור: Mount the assembled track to your desired location using appropriate screws and anchors (not included, typically). Ensure the track is level and securely fastened.
8. Install Runners: Insert the appropriate number of runners into the track. For a 2-meter track, use 16 runners; for 3 meters, use 24 runners; for 4 meters, use 32 runners.
9. פאַרבינדן מאַכט: Plug the power cable into the motor and connect it to a power outlet.

6. אַפּערייטינג ינסטרוקטיאָנס

Your HC Smart Curtain System offers multiple convenient control options:

6.1 רימאָוט קאָנטראָל

Use the provided hand-held remote to open, close, or stop your curtains. The remote typically has buttons for Up (open), Down (close), and Stop.

6.2 Mobile App Control (TuyaSmart / SmartLife)

Download the TuyaSmart or SmartLife app from your smartphone's app store. Follow the in-app instructions to connect your smart curtain system to your home WiFi network. Once connected, you can control your curtains from anywhere.

6.3 Voice Assistant Integration (Alexa / Google Home)

Integrate your smart curtain system with Amazon Alexa or Google Home for hands-free voice control. Follow the instructions in your respective voice assistant app to link the TuyaSmart/SmartLife skill/service.

Image 7: Demonstrates the various wireless control options, including remote, mobile app (Tuya Smart, Smart Life), and voice assistants like Amazon Alexa and Google Assistant.

6.4 Smart Functions

• צייט סקעדזשולינג: Set schedules within the mobile app for your curtains to open or close automatically at specific times, such as sunrise or sunset.
• Opening Position Customization: Adjust and save preferred opening positions (e.g., fully open, 50% open, fully closed) via the app.
• Pull-to-Open Technology: Gently pull the curtain to trigger automatic opening or closing.
• מאַנואַל קאָנטראָל: The curtains can be operated manually even when power is off.

Image 8: Illustrates the ability to set open/close schedules and customize curtain positions (fully open, 60% open, fully closed) using the mobile app.

Image 9: Shows the three adjustable running speeds (Fast, Normal, Quiet) and the convenient pull-to-open feature of the smart curtain system.

7. וישאַלט

To ensure the longevity and optimal performance of your smart curtain system, follow these maintenance guidelines:

• רעגולער רייניקונג: Periodically wipe the track and motor housing with a soft, dry cloth to remove dust and debris. Avoid using abrasive cleaners or solvents.
• טשעק קאַנעקשאַנז: Occasionally inspect all track connections and mounting brackets to ensure they remain secure.
• גלאַט אָפּעראַציע: If you notice any resistance or unusual noise during operation, check the track for obstructions or misalignment.
• ווייכווארג דערהייַנטיקונגען: Keep the TuyaSmart/SmartLife app updated to the latest version to benefit from new features and performance improvements.

8. טראָובלעשאָאָטינג

If you encounter any issues with your HC Smart Curtain System, refer to the following common troubleshooting steps:

• Curtains Not Moving:
  • Check if the power cable is securely plugged in and the outlet is functional.
  • Ensure the motor is correctly installed and locked into the track.
  • וועריפיצירט אז די באַטעריע פון ​​דער ווײַטקאָנטראָל איז נישט אויסגעשעפּט.
  • If using the app, check your WiFi connection and ensure the device is online.
• ומגעוויינטלעך ראַש בעשאַס אָפּעראַציע:
  • Inspect the track for any foreign objects or debris that might be obstructing the runners.
  • Ensure all track segments are properly aligned and securely connected.
  • Verify that the curtains are not too heavy for the system (max load 60-80 lbs).
• רימאָוט קאָנטראָל ניט ריספּאַנדינג:
  • Replace the remote control battery (3V Coin Battery CR2032).
  • Ensure you are within the operating range (160 ft).
  • Re-pair the remote with the motor if necessary (refer to specific pairing instructions in the full manual).
• אַפּ קאַנעקטיוויטי ישוז:
  • זיכער מאַכן אַז אייער סמאַרטפאָון איז פארבונדן צו אַ 2.4GHz WiFi נעץ בעת סעטאַפּ.
  • Restart your router and the smart curtain motor.
  • Follow the app's troubleshooting steps for device pairing.

9. וואָראַנטי & שטיצן

The HC Beltless Smart Curtain System motor comes with a דריי־יאָריקע גאַראַנטיע, זיכער מאַכנדיק רואיגקייט וועגן זיין פאָרשטעלונג און האַרטקייט.

For any questions, technical assistance, or to request free extra parts and replacements, please contact customer support via Amazon message. Our team is dedicated to providing fast and helpful support to ensure your satisfaction.
