Tectake® Gaming Office Chair User Manual

1. פּראָדוקט איבערview

The Tectake® Gaming Office Chair is designed to provide exceptional comfort and ergonomic support for extended periods of sitting, whether for office work or gaming. It features a robust integrated steel frame, extra thick padding, and a sporty bucket seat design. Key elements include continuous seat height adjustment, a reclining backrest, height-adjustable armrests, and 360-degree swivel capability. The chair comes with additional neck and lumbar cushions for enhanced comfort and posture support.

פיגורע 1.1: פראָנט view of the Tectake Gaming Office Chair, highlighting its ergonomic design and included cushions.

Figure 1.2: The Tectake Gaming Office Chair integrated into a typical gaming environment, showcasinג זײַן עסטעטישע אַפּיל.

2. שליסל פֿעיִקייטן

• Extra Thick Padding: Provides soft and comfortable seating for prolonged use.
• Integrated Steel Frame: Ensures superior quality design and durability.
• Continuous Seat Height Adjustment: Utilizes a high-quality gas pressure spring for smooth height changes.
• אַדזשאַסטאַבאַל רוקן: Can be reclined to a 105° position for relaxation.
• 360° Swivel Functionality: Allows for full rotation, enhancing mobility and access.
• Adjustable Tilt Mechanism: Can be individually adjusted to suit user's body weight.
• הייך-אַדזשאַסטאַבאַל אָרעם-שטיצעס: Designed for optimal body positioning and comfort.
• Included Neck and Lumbar Cushions: Provide additional support for the neck and lower back.
• דוראַבאַל מאַטעריאַלס: Constructed with two-tone 100% polyurethane synthetic leather.
• סטאַביל באַזע: Features a glossy finished cross base with 5 double casters for stability and smooth movement.

Figure 2.1: Illustration of the backrest's 105-degree recline capability.

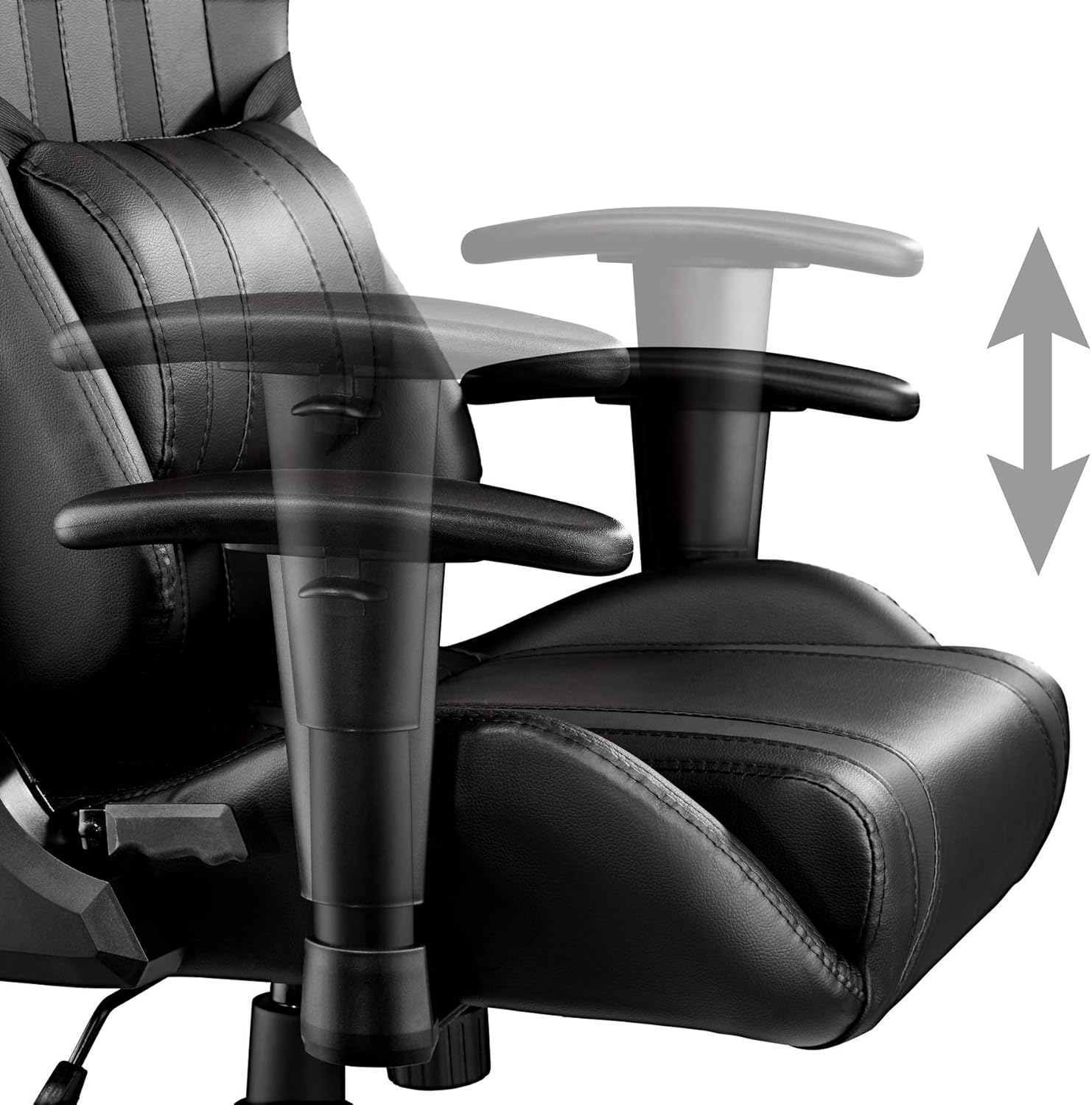

Figure 2.2: Demonstration of the height-adjustable armrests for personalized comfort.

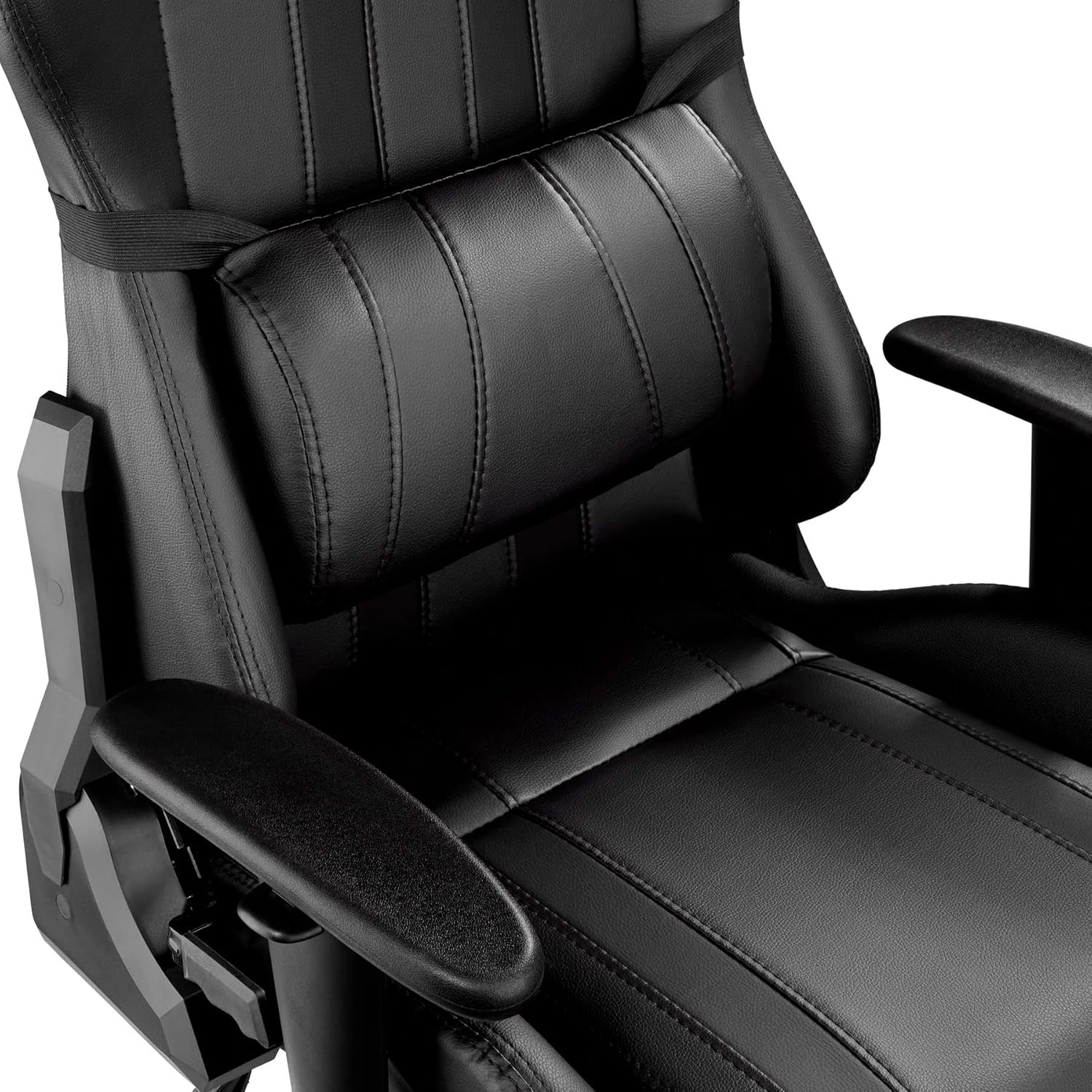

פיגורע 2.3: נאָענט-אַרויף view of the adjustable lumbar support cushion.

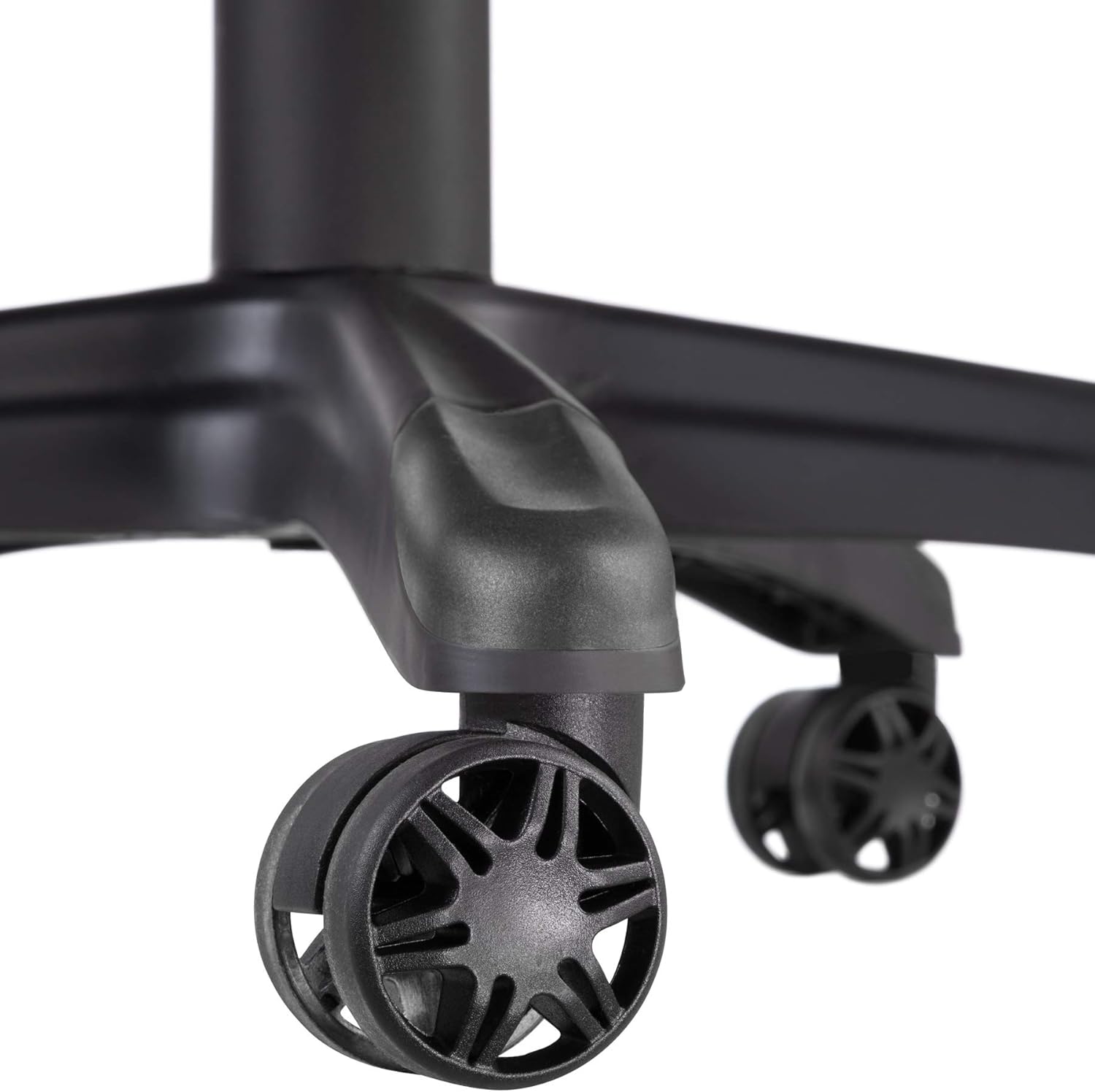

Figure 2.4: Detail of the stable cross base and durable double casters.

3. טעכניש ספּעסאַפאַקיישאַנז

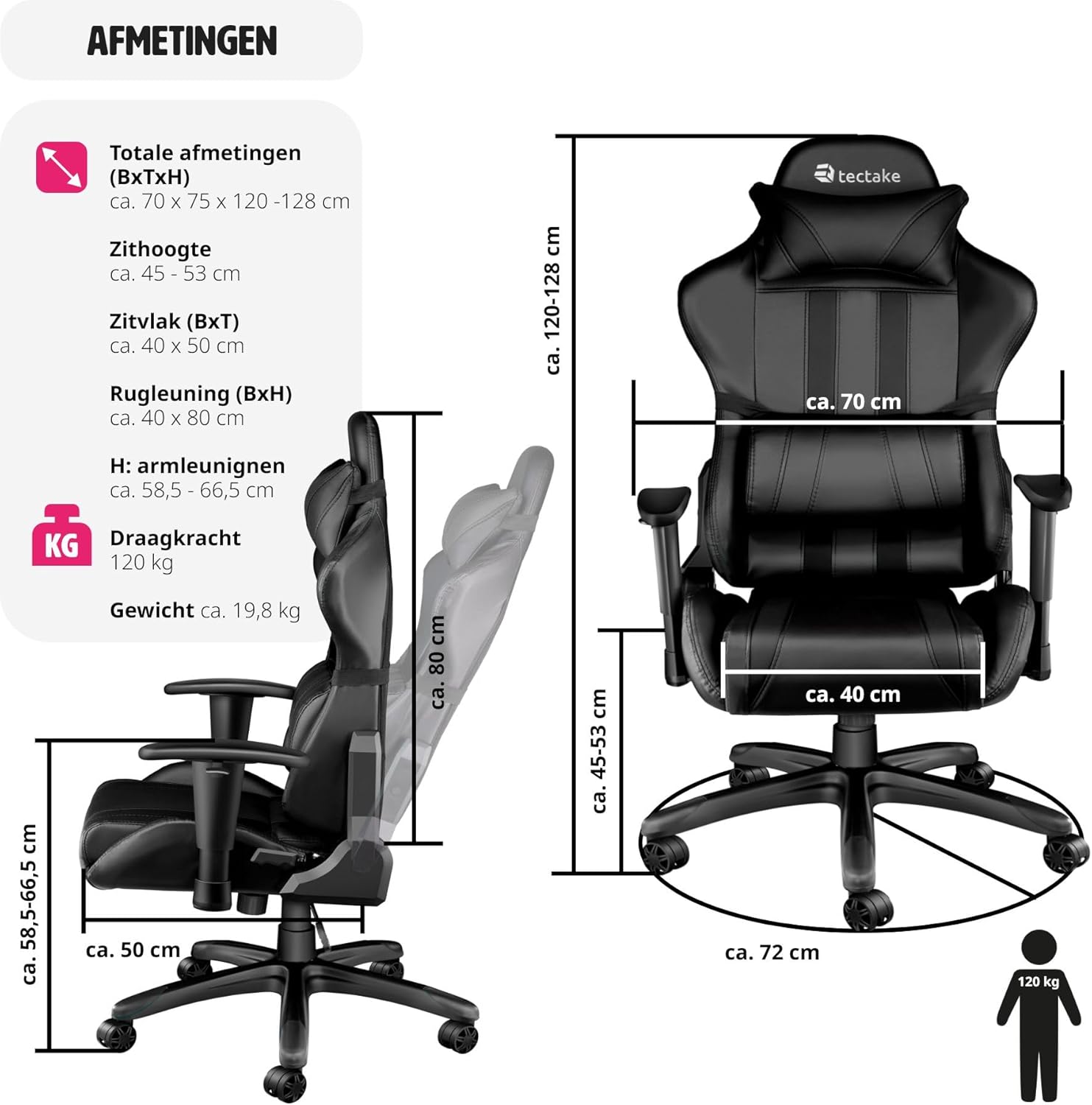

Figure 3.1: Detailed diagram illustrating the chair's various dimensions.

4. אַסעמבלי אינסטרוקציעס

The Tectake Gaming Office Chair is designed for easy assembly. Please follow the included assembly guide for detailed, step-by-step instructions. Ensure all components are present before beginning assembly.

אַלגעמיינע פֿאַרזאַמלונג טריט:

1. אויספּאַקן אַלע קאָמפּאָנענטן און קאָנטראָלירן קעגן דער טיילן־ליסטע אין אייער פֿאַרזאַמלונג־פירער.
2. באַפעסטיקט די ראָדלעך צו דער שטערן באַזע.
3. שטעקט אריין דעם גאז ליפט צילינדער אין צענטער פון דער שטערן באזע.
4. Assemble the seat and backrest components, attaching the armrests and mechanism.
5. לייגט דעם צוזאמענגעשטעלטן זיץ און רוקן־שטיצע אויף דעם גאז־ליפט־צילינדער.
6. Attach the neck and lumbar cushions.
7. Test all adjustment functions to ensure proper operation.

For specific screw types and fastening methods, refer to the visual diagrams in your printed assembly manual.

5. אַפּערייטינג ינסטרוקטיאָנס

5.1. אַוועקזעצן הייך אַדזשאַסטמאַנט

To adjust the seat height, locate the lever on the right side, beneath the seat. To raise the seat, lift the lever while taking your weight off the chair. To lower the seat, lift the lever while remaining seated.

5.2. צוריקלייגן

The backrest can be reclined up to 105 degrees. Locate the recline lever on the left side of the chair. Pull the lever upwards to unlock the backrest, adjust to your desired angle, and then push the lever downwards to lock it in place.

Figure 5.1: Close-up of the tilt and height adjustment levers located beneath the seat.

5.3. Armrest Height Adjustment

To adjust the height of the armrests, press the button located on the side of each armrest support. While holding the button, move the armrest up or down to your preferred height. Release the button to lock the armrest in position.

5.4. Tilt Mechanism Adjustment

The tilt tension can be adjusted to match your body weight. Rotate the round knob located underneath the front of the seat. Turn clockwise to increase tension (making it harder to recline) and counter-clockwise to decrease tension (making it easier to recline).

5.5. 360° דריי

The chair is designed to swivel 360 degrees freely on its base. Simply rotate the chair in any direction as needed.

6. קער און וישאַלט

Proper care and maintenance will extend the life and appearance of your Tectake Gaming Office Chair.

• רייניקונג: For the synthetic leather surfaces, wipe regularly with a soft, damp cloth. For stubborn stains, use a mild soap solution and wipe dry immediately. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the material.
• קאַסטערז: Periodically check the casters for hair, dust, or debris that may impede smooth rolling. Clean them as necessary.
• ייַזנוואַרג: Occasionally check all screws and bolts to ensure they are tight. Retighten if necessary to maintain stability and prevent squeaking.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause the synthetic leather to fade or crack over time.
• וואָג לימיט: Do not exceed the maximum load capacity of 120 kg to prevent damage to the chair and ensure safety.

7. טראָובלעשאָאָטינג

If you encounter any issues with your Tectake Gaming Office Chair, refer to the following common troubleshooting tips:

• שטול קוויטשט:
  • Check and tighten all assembly screws, especially those connecting the seat to the mechanism and the backrest.
  • Apply a small amount of silicone spray to moving parts of the mechanism or where metal components rub.
• שוועריקייט צו סטרויערן הייך:
  • זיכער מאַכן אַז דער גאַז ליפט הייבער איז גאָר איינגעאַקט.
  • If the chair does not go up, ensure you are standing up and taking your weight off the seat when lifting the lever.
  • If the chair does not go down, ensure you are fully seated and applying weight when lifting the lever.
• ראָדלעך דרייען זיך נישט גלאַט:
  • Inspect casters for tangled hair, lint, or debris. Clean them thoroughly.
  • Ensure the casters are securely inserted into the base.
• Backrest Does Not Lock:
  • Ensure the recline lever is pushed down completely to lock the backrest in position.
  • Check for any obstructions in the recline mechanism.

אויב די פראבלעם בלייבט נאך פרובירן די לייזונגען, ביטע קאנטאקטירט קאסטומער סופארט.

8. וואָראַנטי און שטיצן

This Tectake Gaming Office Chair comes with a standard return policy. Customers are eligible for a refund or replacement within 30 days of purchase, subject to the terms and conditions of the retailer.

For any questions regarding assembly, operation, maintenance, or to report a defect, please contact the seller directly through your purchase platform. Please have your model number (402229-NL) and proof of purchase ready when contacting support.

Information regarding spare parts availability is not provided in the product details. Please inquire with the seller for any specific spare part needs.
