tectake TV Wall Mount Instruction Manual

1. הקדמה און סאַפעטי אינפֿאָרמאַציע

This manual provides detailed instructions for the safe installation, operation, and maintenance of your tectake TV Wall Mount, Model 401288. Please read all instructions carefully before beginning installation. Retain this manual for future reference.

וויכטיק זיכערהייט וואָרנינגז:

• זייט זיכער אז די וואַנט סטרוקטור קען זיכער שטיצן דאָס קאָמבינירטע וואָג פון די מאַונט און אייער טעלעוויזיע.
• דו זאלסט נישט יקסיד די מאַקסימום מאַסע קאַפּאַציטעט פון 100 קג (220 לבס).
• This mount is designed for flat screens from 26 to 75 inches. Verify your TV's VESA pattern is compatible (50x50 to 400x400 mm).
• Use appropriate wall anchors and screws for your specific wall type (e.g., concrete, brick, wood studs, drywall). Consult a professional if unsure.
• Always use two people for installation to prevent injury or damage.
• האַלטן קינדער און פּעץ אַוועק בעשאַס ינסטאַלירונג.
• Check all connections are secure before mounting the TV.

פּעקל אינהאַלט:

• TV Wall Mount Assembly
• מאָנטירונג האַרדווער (שרויף, אַנקערס, וואַשערס)
• Integrated Spirit Level
• Detailed Instruction Manual (this document)

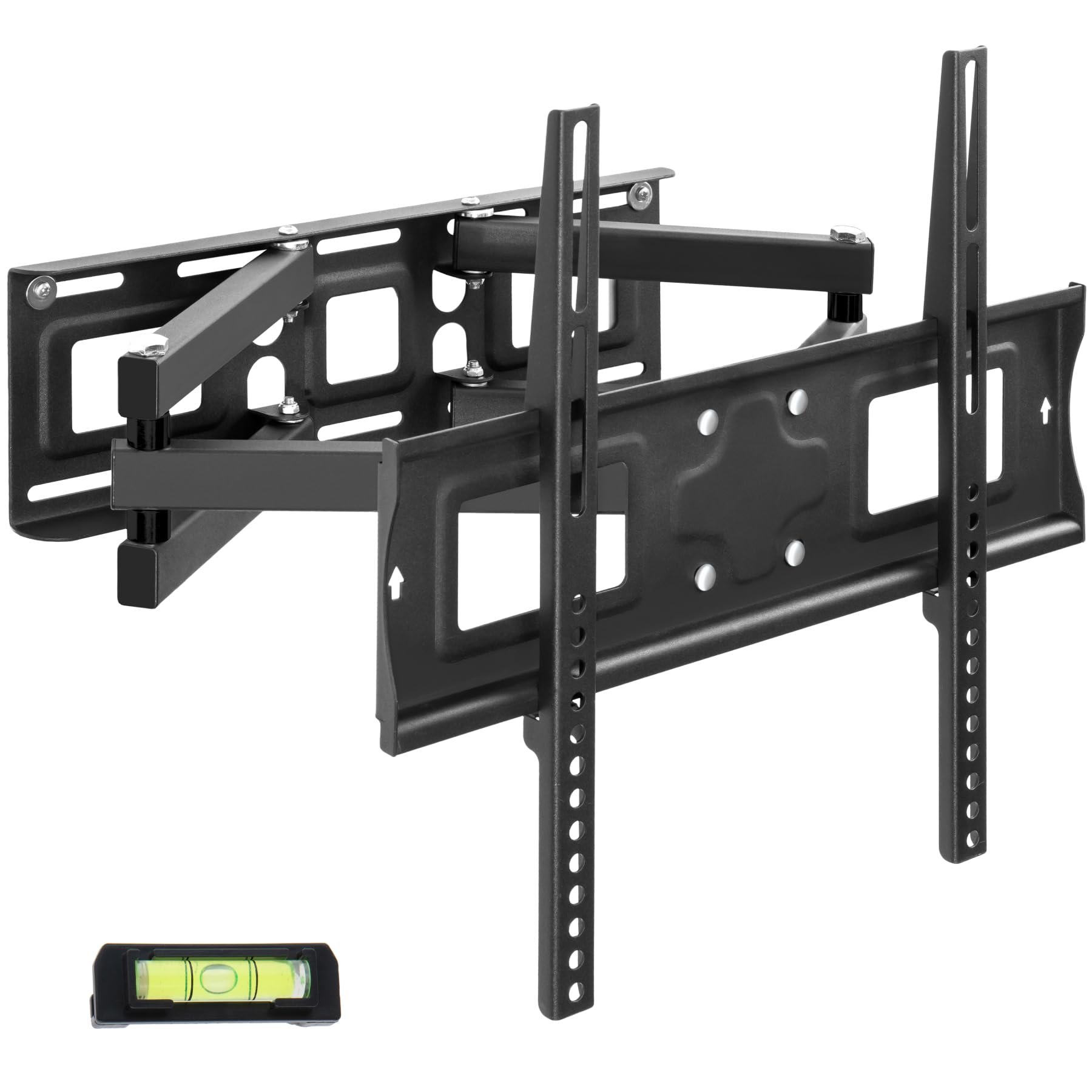

Image 1.1: tectake TV Wall Mount, Model 401288. This image shows the complete wall mount assembly.

2. סעטאַפּ און ייַנמאָנטירונג

Follow these steps for a secure installation. It is recommended to have a second person assist with the installation process.

1. צוטשעפּען טעלעוויזיע קלאַמערן: Secure the two pre-assembled vertical brackets to the back of your television using the provided screws. Ensure the VESA mounting holes on your TV align with the holes on the brackets.

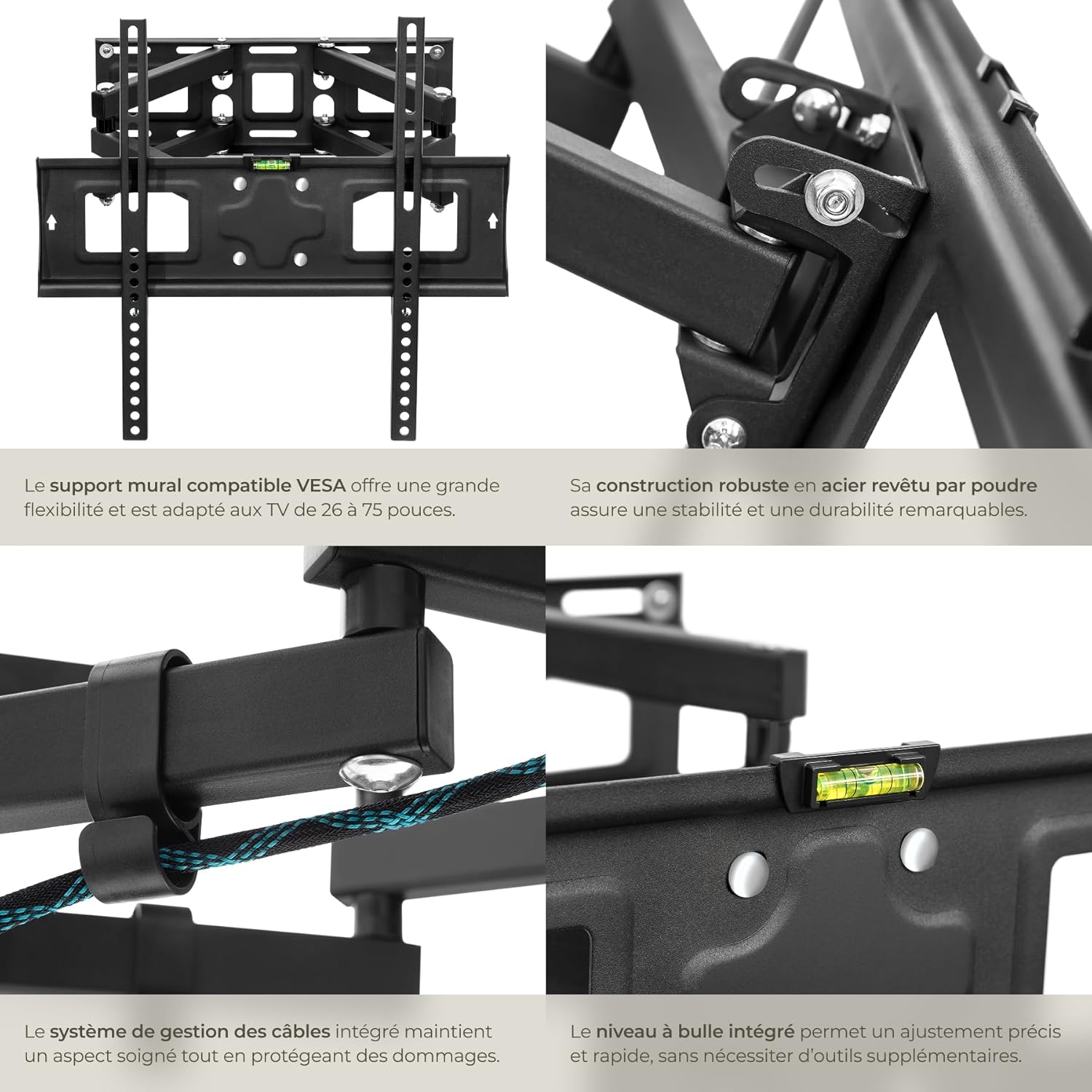

   בילד 2.1: נאָענט־אַרויף view of the VESA compatible TV brackets and integrated cable management system. This image highlights the robust construction and the spirit level for precise installation.
2. Mark Wall Drilling Points: Hold the wall plate against the desired mounting location on your wall. Use the integrated spirit level to ensure it is perfectly horizontal. Mark the drilling points through the holes on the wall plate.


   Image 2.2: Diagram illustrating the TV size compatibility (26-75 inches) and the use of the integrated spirit level for accurate wall mounting.

3. דריל לעכער און אַריינשטעלן אַנקערס: Drill holes at the marked points using an appropriate drill bit size for the provided wall anchors. Insert the wall anchors flush with the wall surface.

   באַמערקונג: The quality of wall anchors is crucial for safety. For optimal security, especially on less solid walls, consider using high-quality anchors suitable for your specific wall material.

4. בארג וואנט טעלער: Securely attach the wall plate to the wall using the appropriate screws and washers. Ensure all screws are tightened firmly.
5. Hang Television: Carefully lift the television (with the attached brackets) and hook it onto the wall plate. Ensure the brackets are properly seated on the wall plate.
6. Secure TV to Mount: Tighten the safety screws located at the bottom of the TV brackets to prevent accidental dislodgement.

3. אַפּערייטינג ינסטרוקטיאָנס

Your tectake TV Wall Mount offers flexible viewאָפּציעס.

• טילט אַדזשאַסטמאַנט: The mount allows for vertical tilt adjustment up to 15° downwards and 5° upwards. Loosen the tilt adjustment screws on the side of the TV brackets, adjust to your desired angle, and then re-tighten the screws to secure the position.
• Swivel/Pivot Adjustment: The articulated arms allow you to swivel your TV horizontally. Gently pull the TV away from the wall and pivot it to the left or right for optimal viewing from different positions in the room. The arms are designed to be firm to hold the TV's position.
• Adjustable Wall Distance: The distance of your TV from the wall can be adjusted from 8 cm to 52 cm by extending or retracting the articulated arms. This feature helps optimize viewing distance and improve TV ventilation.

בילד 3.1: איבערview of the wall mount's key features, including VESA compatibility, tilt and rotation, adjustable wall distance, robust construction, and load capacity.

בילד 3.2: עקס.ample of an optimal viewing angle achieved with the adjustable wall mount.

4. וישאַלט

רעגולערע אויפהאלטונג גאראנטירט די לאנגעוויטי און זיכערע אפעראציע פון ​​אייער טעלעוויזיע וואנט מאונט.

• פּעריאָדיש טשעקס: קאָנטראָלירט פּעריִאָדיש אַלע שרויפן און באָלטן צו זיכער מאַכן אַז זיי בלייבן פעסט. מיט דער צייט קענען וויבראַציעס אָדער אַדזשאַסטמאַנץ פאַראורזאַכן אַז פאַסטנערס זאָלן זיך לאָזן.
• רייניקונג: רייניקט דעם מאָונט מיט אַ ווייכן, טרוקענעם שטאָף. פֿאַרמייַדט אַברייסיוו רייניגער אָדער סאָלווענטן וואָס קענען שאַטן די ענדיקונג.
• שמירן: If the articulated arms become stiff over time, a small amount of silicone-based lubricant can be applied to the pivot points.

5. טראָובלעשאָאָטינג

If you encounter issues with your TV wall mount, refer to the following common solutions:

• טעלעוויזיע איז נישט גלייך:
  • Ensure the wall plate was installed perfectly level using the integrated spirit level.
  • Check if the TV brackets are securely tightened to the TV and the wall plate.
  • Some mounts allow for minor post-installation leveling adjustments; consult the specific mechanism if available.
• Mount feels loose on the wall:
  • Verify that all wall screws are fully tightened.
  • Confirm that the correct type and size of wall anchors were used for your wall material. If the anchors are failing, they may need to be replaced with more robust options.
  • Ensure the wall material itself is strong enough to support the load.
• Difficulty moving/adjusting the TV:
  • The articulated arms are designed to be firm to maintain position. Apply gentle, steady force.
  • Check if any cables are snagged or preventing movement.
  • Apply a small amount of silicone lubricant to the pivot points if movement is excessively stiff.
• TV not securely attached to the mount:
  • Ensure the TV brackets are correctly hooked onto the wall plate.
  • Verify that the safety screws at the bottom of the TV brackets are tightened.

6. ספּעסאַפאַקיישאַנז

Image 6.1: Detailed technical drawing showing the dimensions and adjustable ranges of the wall mount.

7. וואָראַנטי און שטיצן

For warranty information and customer support, please refer to the purchase documentation or contact your retailer.
