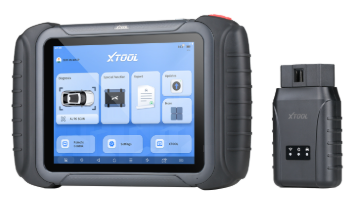

XTOOL V01W Series Wireless Diagnostics Module / Vehicle Communication Interface
Trademarks
XTOOL is trademark of Shenzhen Xtooltech Intelligent CO., LTD. Copyright, registered in China, the United States, and other countries. All other marks are trademarks or registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or transmitted in any form or by any means electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Xtool.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the latest information available at the time of printing.
Xtool reserves the right to make changes at any time without notice. While information of this manual has been carefully checked for accuracy, no guarantee is given for the completeness and correctness of the contents, including but not limited to the product specifications, functions, and illustrations.
Xtool will not be liable for any direct, special, incidental, or indirect damages, or for any economic consequential damages (including the loss of profits) as a result of using this product.
* Before operating or maintaining this unit, please read this manual carefully, paying extra attention to the safety warnings and precautions.
Safety
For safe operation, please follow the instructions below:
- The manual is only for Professional Use
- The exhaust gas of the vehicle contains harmful chemicals, please ensure adequate ventilation when the engine is running.
- Wear goggles that comply with ANSI standards during operation, please keep your cloth, hair, hands, tools and diagnosis system away from the running engine.

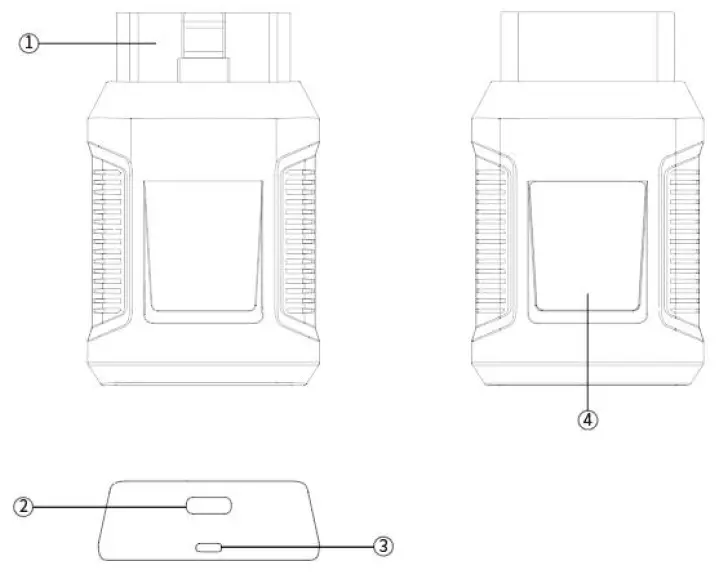

Outlook & Ports
- OBD Port
- Type-C Port
- Indicator light
- Product identification Tag
Function Description
- OBDII-16 Port: Connect to vehicle’s DLC port.
- Type-C Port: Connect the diagnostic tablet.
- Indicator light:
- Green light on: Power on
- Green light flashing: Firmware updating
- Blue light on: Device paired
- Blue light flashing: Device communicating
- Red light: Device error
Specifications
Processor: ARM Cortex-M4
Dimensions: 86.83*51.30*25.00mm

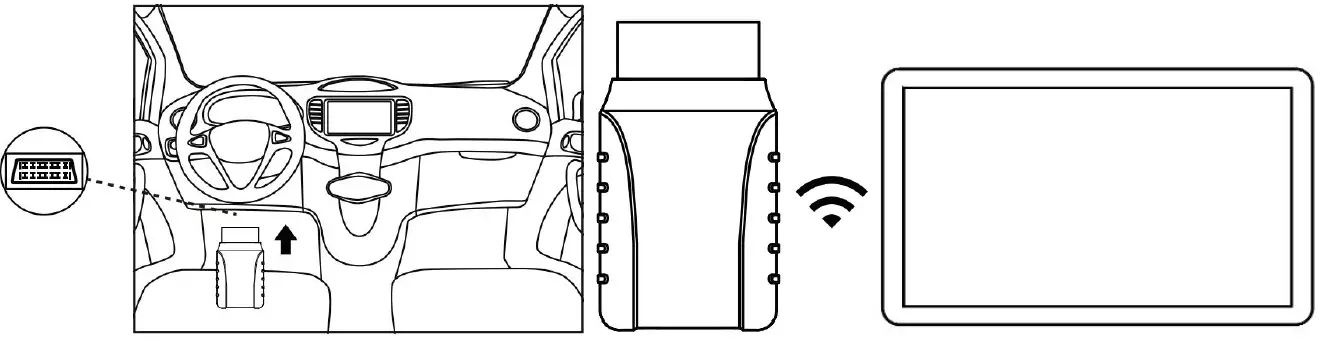

Connection
Plug the Wireless Diagnostics Module to vehicle’s DLC port first, then connect the device via Wi-Fi.
Operation Instructions
- Please plug the Wireless Diagnostics Module carefully, avoid damaging the vehicle’s DLC port.
- To prolong battery life, do not charge the tablet with a third-party charger.
- If updates are available, complete the software update before testing.
- Avoid shaking, dropping or dismantling the Wireless Diagnostics Module as it may damage the internal components.
- Please keep the Wireless Diagnostics Module away from water and moisture.
- Keep the Wireless Diagnostics Module away from strong magnetic fields.
FCC
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
RF Exposure Warning Statements:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.
IC
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Radio Frequency Exposure Statement for IC
This equipment complies with IC exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.
Contact us
Shenzhen Xtooltech Intelligent Co., Ltd.
E-Mail: supporting@xtooltech.com
Tel: +86 755 21670995 or +86 755 86267858 (China)
Official Website: www.xtooltech.com
