Quick Start Guide
SMART BARRIER MONITOR NODE
- MOUNT
Use a tension device to compress both the top and bottom wires on wire rope barrier. Wrap and secure the Strain band onto the compressed section. Remove the tensioning device from the barrier.
Attach the SMART Barrier device to the two wires on the barrier with steel cable ties.
- USING THE MAGNET

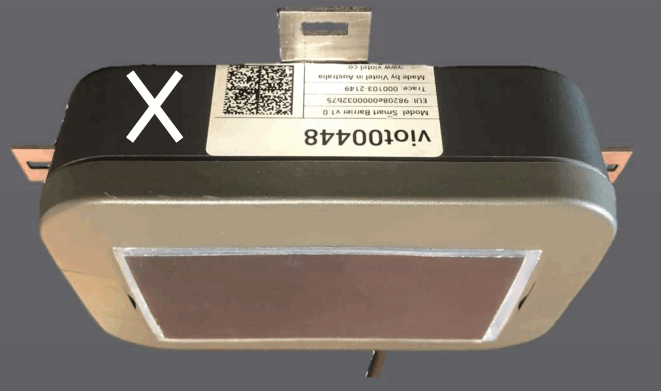

Wherever instructed to tap the node using the magnet, do so at the spot indicated “X”. Sequential taps must be performed within 3 seconds before the device count resets. - CONFIRM STATUS
Tap Once
– If the device is off, a solid blue light will appear from the status LED. Proceed to step 4.
– If the device is on, a solid green light will appear from the status LED. Proceed to step 5. - TOGGLE DEVICE ON
Tap Twice
– This will turn the device on followed quickly by 2 green LED flashes. The device may take serval minutes to update. - VIEW DATA

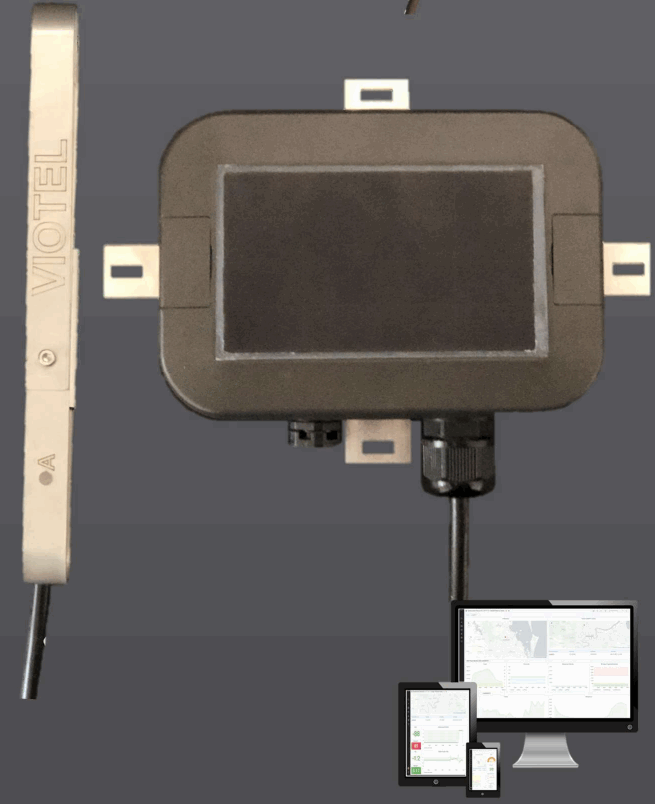

Please head over to your nodes Dashboard to begin seeing the data.
Please refer to the User Manual for more information and a full guide on this device.
For queries, email support@viotel.co
| STATUS | |
| GREEN | On |
| BLUE | Off |
| RED | Device is Busy |
| COMMS | |
| BLUE | Communicating with server |
| YELLOW | Collecting GPS Coordinates |
| RED | Unable to Communicate |
RECOMMENDED INSTALLATION LOCATION
It is highly recommended that the Viotel SMARTBarrier Node be installed on the last full barrier section before the anchor block downstream of the flow of traffic. The device can efficiently detect strain and crashes along the entire length of the barrier from this position.
