VLDT-AA2D
Dante 2CH Analog Audio Decoder with PoE
VER 1.02
User Manual

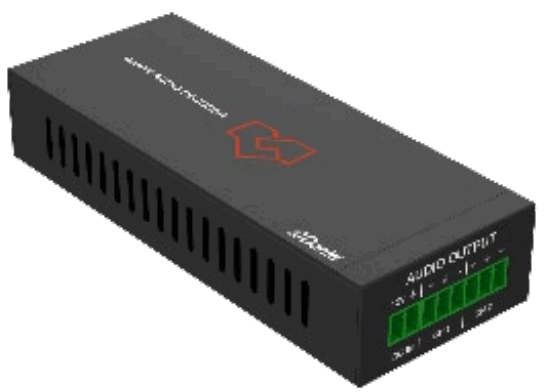

VLDT-AA2D Dante 2CH Analog Audio Decoder with PoE
Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that electrical spikes may damage, surges, electric shock, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.
Introduction
This Dante 2CH Analog Audio Decoder is an audio receiver based on the Dante Ultimo solution. It supports balanced/unbalanced audio output and 3- level gain adjustment. It receives audio signals from the transmitting end through a network (Dante), then decodes and outputs the audio as analog audio. It supports the PoE function.
Features
☆ Analog audio output supports balanced/unbalanced audio output (unbalanced access to “+” and “GND”)
☆ Audio sampling rate supports 44.1kHz, 48kHz, and 96kHz (24bit)
☆ Dante solution supports AES67 RTP audio transmission
☆ Audio output supports 3-level gain adjustment ：+18dBu, 0dBu (default) and -10dBV
☆ Supports DC 12V power supply and PoEfunction (IEEE802.3af Class 0)
Package Contents
- 1× Dante 2CH Analog Audio Decoder
- 1× 6pin-3.81mm Phoenix Connector (male)
- 1× 2pin-3.81mm Phoenix Connector (male)
- 1× User Manual
Specifications
| Technical | |
| Video Network Bandwidth 100M |
|
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (Cat 6/6A) |
| Control Method | Dante Controller |
| Connection | |
| Inputs | lx DANTE [RJ45 connector, PoE] lx PWR [2-pin phoenix, 3.81mm] |
| Output | 1x AUD [6-pin phoenix, 3.81 mm] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm[W] x 47mm[D] x 26mm[H] |
| Weight | 186g |
| Power Supply | DC input: 12V PoE input: IEEE802.3af Class 0 |
| Power Consumption | 1.32W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (Non-Condensation) |

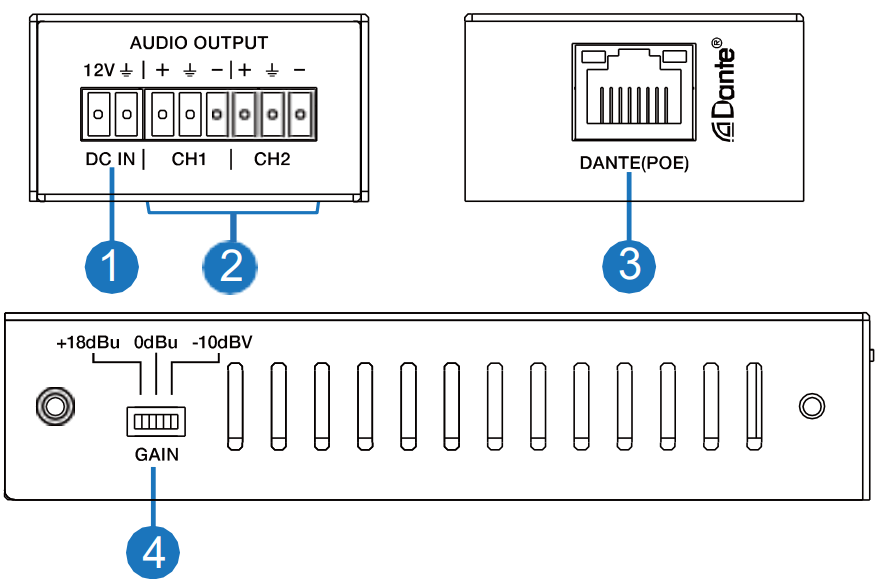

Operation Controls and Functions
| No. | Name | Function Description |
| 1 | DC IN | DC 12V power input port. |
| 2 | AUDIO OUTPUT (CH1/CH2) | Two-channel analog audio output ports, supporting balanced and unbalanced audio. |
| 3 | DANTE (PoE) | Dante digital audio input port. Connect to the Network Switch through the RJ45 line, supporting the PDpower supply. The green LINK LED is always on after a standard connection. The yellow DATA LED flashes when there is data transmission. |
| 4 | GAIN switch | Used for audio output gain adjustment, respectively +18dBu, OdBu (default), -10dBV. |

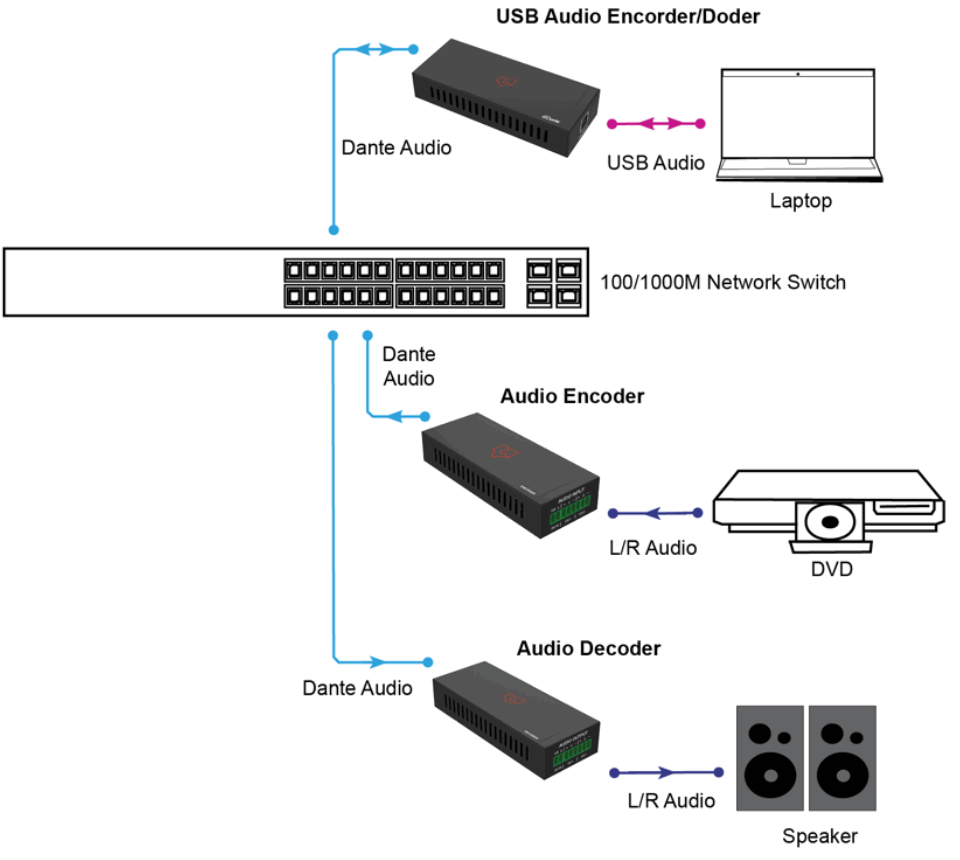

Application Example
Trademarks
Dante® is a registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
