vifa 21AF Molleaen Line Array System
Mslleaen 21AF
Line Array System
M0lleaen 21AF is a single 21″subwoofer. It features 1×21″115mm voice coil woofer, bass-reflex design, can be used with line array and point source full range speakers to improve the low frequency performance.
The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
Technical specifications
- SKU VIFA-ASS-W121-135-F-W-B
- FREQUENCY RESPONSE 35Hz-300Hz
- DRIVERS 1×21″(530mm)/4.5″voice coil LF
- RATED POWER 1800W/4Q
- MAXIMUM SPL 129dB continuous, 135dB peak
- INPUT CONNECTORS INPUT TYPE: Balanced Differential Line
- DIMENSIONS (W)600mmx(D )780mmx( H )600mm
- NET WEIGHT 59kg/pc
Features
- High quality components, bass-reflex design, full and powerful sound
- Applications: meet a variety of occasions, can be combined with line array and point source full range speaker freely

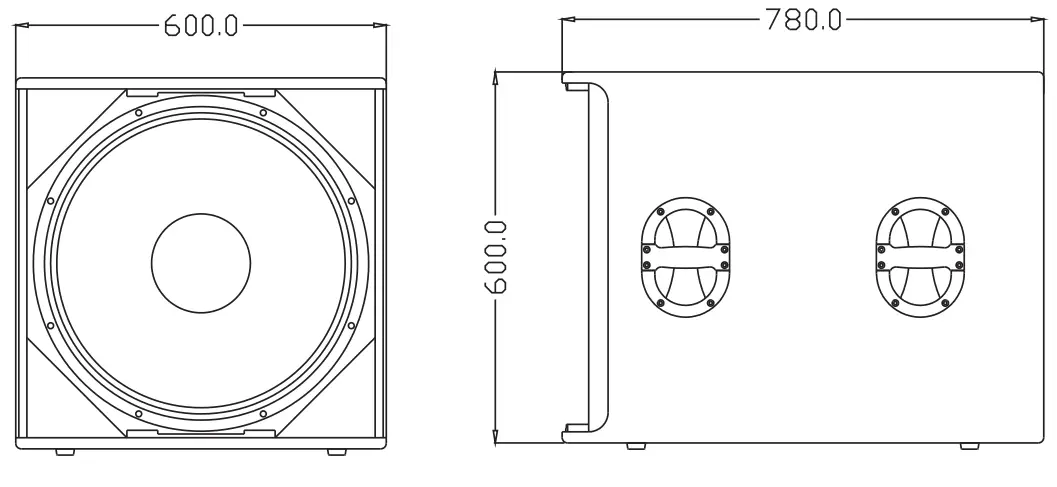

Overall dimensions
Vita Denmark APS
Jukkerupvrenge 1, 4420 Regstrup, Denmark
FAQ
- What is the frequency response of the Mølleåen 21AF?
The frequency response is 35Hz-300Hz. - What is the rated power of the subwoofer?
The rated power is 1800W at 4Ω. - How heavy is the Mølleåen 21AF?
The net weight is 59kg per piece.
Documents / Resources
 |
vifa 21AF Molleaen Line Array System [pdf] Owner's Manual ASS-W121-F, 250122, 21AF Molleaen Line Array System, 21AF, Molleaen Line Array System, Line Array System |
