velleman WST111 Adjustable Interval Timer Kit User Manual
Soldering
1 Resistor
Brown, Black, Red
2 DIODE
Watch the polarity
3 Trim potentiometer
4 Capacitor

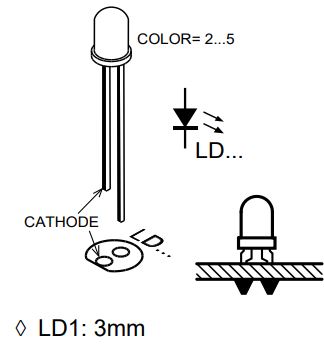

5 LED
6 IC-sockets
Watch the notch

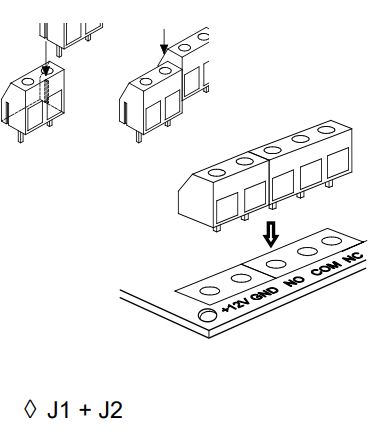

7 Terminal blocks
8 Electrolytic capacitor
9 Relay
10 IC – CI
