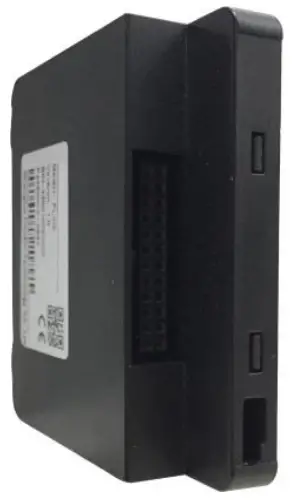

VEICHI IOT-BS4.0-FLink IOT Expansion Module

IOT-BS4.0-FLink IOT Expansion Module

Introduction

  • 350+ Industrial protocol access, support most of the industrial equipment connection
  • Complete data parsing locally and push data to the cloud server
  • Support VEICHI remote management tool, support remote configuration, diagnosis
  • Supports local caching of historical data

Product Specification

Hardware Parameter Network Access Ethernet Mobile2G/Unicom2G/Telecom2G Mobile3G/Unicom3G/Telecom3G Mobile4G/Unicom4G/Telecom4G
Network Band LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA:
B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz




Environ entail require me nit

Operating Temperature -10~60℃
Storage Temperature -20~70℃
Environmental Humidity 10~90%RH(Non-condensing)
Seismic Resistance 10~25Hz(X、Y、Z Direction2G/30 minutes)
Cooling Method Natural air cooling
Mechanic al indicator Size 67.9mm×74.2mm×19.5mm(Antenna not included)
Weight About 55g
Material ABS Engineering Plastics




Software Parameter

VPN Pass-through Support (only for the 6000 series with its own network port)
Data Monitoring 300 points, support timed upload or change upload
Alarm Push 100 points, support client push, SMS push (20 free messages per day), WeChat public number push
Historical Data 30 points, support offline renewal, offline each point can store 5w bars, cloud retention 90 days
Edge Computing Support for script programming
Network Protocols Supports over a hundred industrial device protocols
Management and
Maintenance
Support remote firmware upgrade, support configuration file import and export

Size

Size

Installation method

Installation method

Complete the installation of Flank
Installation method
Along the direction of force can be advanced, you can install a good snap

Installation method

Aluminum structure HMI back open the cover in the direction shown

Complete the Flinch installation as shown in the diagram

Install the cover to reset and lock the screws

Contact us

Suzhou Headquarters
Address: NO.1000 Songjia Avenue,Guoxiang
Street,Wuzhong District,Suzhou,China
Phone: 0512-66171988
Fax: 0512-66173610

Shenzhen Branch
Address: No.1 Factory Building (Chunsheng Building),
No.1 Road, Leading Asia Industrial Park,
Tangtou Community, Shiyan Street, Baoan
District, Shenzhen, China
Phone: 0755-36861688
