VACON® NX
AC DRIVES
OPTCI
MODBUS TCP OPTION
USER MANUAL
INTRODUCTION
Vacon NX AC drives can be connected to Ethernet using an Ethernet fieldbus board OPTCI.
The OPTCI can be installed in the card slots D or E.
Every appliance connected to an Ethernet network has two identifiers; a MAC address and an IP address. The MAC address (Address format: xx:xx:xx:xx:xx:xx) is unique to the appliance and cannot be changed. The Ethernet board’s MAC address can be found on the sticker attached to the board or by using the Vacon IP tool software NCIPConfig. Please find the software installation at www.vacon.com
In a local network, IP addresses can be defined by the user as long as all units connected to the network are given the same network portion of the address. For more information about IP addresses, contact your Network Administrator. Overlapping IP addresses cause conflicts between appliances. For more information about setting IP addresses, see Section 3, Installation.
WARNING!
Internal components and circuit boards are at high potential when the AC drive is connected to the power source. This voltage is extremely dangerous and may cause death or severe injury if you come into contact with it.
If you need further information related to Modbus TCP, please contact ServiceSupportVDF@vacon.com.
NOTE! You can download the English and French product manuals with applicable safety, warning and caution information from www.vacon.com/downloads.
ETHERNET BOARD TECHNICAL DATA
2.1 Overview
| General | Card Name | OPTCI |
| Ethernet cinnections | Interface | RJ-45 connector |
| Communications | Transfer cable | Shielded Twisted Pair |
| Speed | 10/ 100 Mb | |
| Duplex | half / full | |
| Default IP-address | 192.168.0.10 | |
| Protocols | Modbus TCP, UDP | |
| Environment | Ambient operating temperature | -10°C…50°C |
| Environment | ||
| Storing temperature | -40°C 70°C | |
| Humidity | <95%, no condensation allowed | |
| Altitude | Max. 1000 m | |
| Vibration | 0.5 G at 9…200 Hz | |
| Safety | Fulfils EN50178 standard | |
Table 2-1. Modbus TCP board technical data
2.2 LED indications
| LED: | Meaning: |
| H4 | LED in ON when board is powered |
| H1 | Blinking 0.25s ON / 0.25s OFF when board firmware is corrupted [chapter 3.2.1 NOTE). OFF when board is operational. |
| H2 | Blinking 2.5s ON / 2.5s OFF when board is ready for external communication. OFF when board is not operational. |
2.3 Ethernet
Common use-cases of Ethernet devices are ‘human to machine’ and ‘machine to machine”.
Basic features of these two use-cases are presented in the pictures below.
1. Human to machine (Graphical User interface, relatively slow communication)
Note! NCDrive can be used in NXS and NXP drives via Ethernet. In NXL drives this is not possible.
2. Machine to machine (Industrial environment, fast communication)
2.4 Connections and Wiring
The Ethernet board supports 10/100Mb speeds in both Full and Half-duplex modes. The boards must be connected to the Ethernet network with a shielded CAT-5e cable. The board will connect the shield to its ground. Use a so-called crossover cable (at least CAT-5e cable with STP, Shielded Twisted Pairl if you want to connect the Ethernet option board directly to the master appliance.
Use only industrial standard components in the network and avoid complex structures to minimize the length of response time and the amount of incorrect dispatches.
INSTALLATION
3.1 Installing the Ethernet Option Board in a Vacon NX Unit
NOTE
MAKE SURE THAT THE AC DRIVE IS SWITCHED OFF BEFORE AN OPTION OR FIELDBUS BOARD IS CHANGED OR ADDED!
A. Vacon NX AC drive.
B. Remove the cable cover.
C.Open the cover of the control unit.
D. Install EtherNET option board in slot D or E on the control board of the AC drive.
Make sure that the grounding plate (see below) fits tightly in the clamp.
E. Make a sufficiently wide opening for your cable by cutting the grid as wide as necessary.
F. Close the cover of the control unit and the cable cover.
3.2 NCDrive
NCDrive software can be used with the Ethernet board in NXS and NXP drives.
NOTE! Does not work with NXL
NCDrive software is recommended to be used in LAN (Local Area Network) only.
NOTE! If OPTCI Ethernet Option board is used for NC Tools connection, like NCDrive, the OPTD3 board cannot be used.
NOTE! NCLoad does not work via Ethernet. See NCDrive help for further information.
3.3 IP Tool NCIPConfig
To begin using the Vacon Ethernet board, you need to set an IP address. The factory default IP address is 192.168.0.10. Before connecting the board to the network, its IP addresses must be set according to the network. For more information about IP addresses, contact your network administrator.
You need a PC with an Ethernet connection and the NCIPConfig tool installed to set the Ethernet board’s IP addresses. To install the NCIPConfig tool, start the installation program from CD or download it from www.vacon.com website. After starting the installation program, follow the on-screen instructions.
Once the program is installed successfully, you can launch it by selecting it in the Windows Start menu. Follow these instructions to set the IP addresses. Select Help –> Manual if you want more information about the software features.
Step 1. Connect your PC to the Ethernet network with an Ethernet cable. You can also connect the PC directly to the device using a crossover cable. This option may be needed if your PC does not support Automatic crossover function.
Step 2. Scan network nodes. Select Configuration –> Scan and wait until the devices connected to the bus in the tree structure are displayed to the left of the screen.
NOTE!
Some switches block broadcast messages. In this case, each network node must be scanned separately. Read the manual under Help menu!
Step 3. Set IP adresses. Change the node’s IP settings according to the network IP settings. The program will report conflicts with a red color in a table cell. Read the manual under Help menu!
Step 4. Send configuration to boards. In the table view, check the boxes for boards whose configuration you want to send and select Configuration, then Configure. Your changes are sent to the network and will be valid immediately.
NOTE! Only A-Z, a-z and 0-9 symbols can be used in the drive name, no special characters, or Scandinavian letters (ä, ö, etc.)! The drive name can be freely formed using the allowed characters.
3.3.1 Update OPTCI Option Board program with the NCIPConfig Tool
In some cases it may be necessary to update the option board’s firmware. Differing from other Vacon option boards, the Ethernet option board’s firmware is updated with the NCIPConfig tool.
NOTE! The IP addresses of the PC and the option board must be in the same area when the software is loaded.
To start the firmware update, scan the nodes in the network according to the instructions in section Error! Reference source not found.. Once you can see all nodes in the view, you can update the new firmware by clicking the VCN packet field in NCIPCONFIG ‘s table view on the right.
After clicking the VCN packet field, a file open window where you can choose a new firmware packet is displayed.
Send the new firmware packet to the option board by checking its box in the ‘VCN Packet’ field at the right corner of the table view. After selecting all nodes to be updated by checking the boxes, send the new firmware to the board by selecting ‘Software’ then ‘Download’.
NOTE!
Do not do a power up cycle within 1 minute after downloading the option board software. This may cause the option board to go to “Safe Mode”. This situation can only be solved by re-downloading the software. The Safe Mode triggers a fault code (F54). The Board slot error F54 may also appear due to a faulty board, a temporary malfunction of the board or disturbance in the environment.
3.4. Configure Option board parameters
These features are available from NCIPConfig tool version 1.6.
In the tree-view, expand the folders until you reach the board parameters. Slowly double-click the parameter (Comm. Time-out in figure below) and enter new value. New parameter values are automatically sent to the option board after the modification is complete.
NOTE! If the fieldbus cable is broken at the Ethernet board end or removed, a fieldbus error is immediately generated.
COMMISSIONING
The Vacon Ethernet board is commissioned with the control keypad by giving values to appropriate parameters in menu M7 (or with NCIPConfig tool, read chapter IP Tool NCIPConfig). Keypad commissioning is only possible with NXP- and NXS-type AC drives, not possible with NXL-type AC drives.
Expander board menu (M7)
The Expander board menu makes it possible for the user to see what expander boards are connected to the control board and to reach and edit the parameters associated with the expander board.
Enter the following menu level (G#) with the Menu button right. At this level, you can browse through slots A to E with the Browser buttons to see what expander boards are connected. On the lowermost line of the display you see the number of parameter groups associated with the board. If you still press the Menu button right once you will reach the parameter group level where there are one group in the Ethernet board case: Parameters. A further press on the Menu button right takes you to Parameter group.
Modbus TCP parameters
| # | Name | Default | Range | Description |
| 1 | Comm. Timeout | 10 | 0…255 s | 0 = Not used |
| 2 | IP Part 1 | 192 | 1…223 | IP Address Part 1 |
| 3 | IP Part 2 | 168 | 0…255 | IP Address Part 2 |
| 4 | IP Part 3 | 0 | 0…255 | IP Address Part 3 |
| 5 | IP Part 4 | 10 | 0…255 | IP Address Part 4 |
| 6 | SubNet Part 1 | 255 | 0…255 | Subnet Mask Part 1 |
| 7 | SubNet Part 2 | 255 | 0…255 | Subnet Mask Part 2 |
| 8 | SubNet Part 3 | 0 | 0…255 | Subnet Mask Part 3 |
| 9 | SubNet Part 4 | 0 | 0…255 | Subnet Mask Part 4 |
| 10 | DefGW Part 1 | 192 | 0…255 | Default Gateway Part 1 |
| 11 | DefGW Part 2 | 168 | 0…255 | Default Gateway Part 2 |
| 12 | DefGW Part 3 | 0 | 0…255 | Default Gateway Part 3 |
| 13 | DefGW Part 4 | 1 | 0…255 | Default Gateway Part 4 |
| 14 | InputAssembly | – | NOT USED in Modbus TCP | |
| 15 | OutputAssembly | – | – | NOT USED in Modbus TCP |
Table 4-1. Ethernet parameters
IP Address
IP is divided to 4 parts. (Part – Octet) Default IP Address is 192.168.0.10.
Communication timeout
Defines how much time can pass from the last received message from the Client Device before fieldbus fault is generated. Communication time out is disabled when given the value 0. Communication timeout value can be changed from the keypad or with NCIPConfig tool (read chapter IP Tool NCIPConfig).
NOTE!
If fieldbus cable is broken from Ethernet board end, fieldbus error is generated immediately.
All Ethernet parameters are saved to the Ethernet board (not to the control board). If new Ethernet board is changed to control board you must configure the new Ethernet board. Option board parameters are possible to save to the keypad, with NCIPConfig tool or with NCDrive.
Unit Identifier
Modbus Unit Identifier is used to identify multiple endpoints at the Modbus server (i.e. gateway to serial line devices). As there is only one endpoint the Unit Identifier default is set to its non-significant value of 255 (0xFF). The IP address is used to identify the individual boards. It is however possible to change it with the NCIPConfig tool. When OxFF value is selected, also 0 is accepted. If unit identifier parameter has different value than 0xFF, only this value is accepted.
– Default Unit Identifier changed from 0x01 to 0xFF in software version 10521V005.
– Added possibility to change Unit Identifier with NCIPConfig (V1.5) tool in software version 10521V006.
MODBUS TCP
5.1 Overview
Modbus TCP is a variant of the MODBUS family. It is a manufacturer-independent protocol for monitoring and controlling automatic devices.
Modbus TCP is a client server protocol. The client makes queries to the server by sending “request” messages to the server’s TCP port 502. The server answers client queries with “response” messages.
The term ‘client’ can refer to a master device that runs queries. Correspondingly, the term ‘server’ refers to a slave device that serves the master device by answering its queries.
Both the request and response messages are composed as follows:
Byte 0: Transaction ID
Byte 1: Transaction ID
Byte 2: Protocol ID
Byte 3: Protocol ID
Byte 4: Length field, upper byte
Byte 5: Length field, lower byte
Byte 6: Unit identifier
Byte 7: Modbus function code
Byte 8: Data (of variable length)
5.2 MODBUS TCP vs. MODBUS RTU
Compared to the MODBUS RTU protocol, the MODBUS TCP differs mostly in error checking and slave addresses. As the TCP already includes an efficient error checking function, the MODBUS TCP protocol does not include a separate CRC field. In addition to the error checking functionality, the TCP is responsible for resending packets and for splitting long messages so that they fit the TCP frames.
The slave address field of the MODBUS/RTU is called unit identifier field in MODBUS TCP.
5.3 Modbus UDP
In addition to TCP, OPTCI option board supports also UDP (since option board firmware version V018). It is recommended that UDP would be used when reading and writing rapidly and repetitively (cyclically) same data, like in case of process data. TCP should be used for single operations, like service data (e.g. reading or writing parameter values). Key difference between UDP and TCP is that when using TCP each and every Modbus frame needs to be acknowledged by the receiver (see figure below). This adds extra traffic to the network and bit more load to the system (PLC and drives) because software needs to keep track of sent frames to make sure that they have reached their destination.
Another difference between TCP and UDP is that UDP is connectionless. TCP connections are always opened with TCP SYN messages and closed with TCP FIN or TCP RST. With UDP first packet is already a Modbus query. OPTCI treats senders IP address and port combination as a connection. If port changes then it is considered as new connection or as second connection if both stay active.
When using UDP it is not guaranteed that the sent frame reaches its destination. PLC must keep track of the Modbus requests by using the Modbus transaction id-field. It actually must do this also when using TCP. If PLC does not receive response in time from drive in UDP connection, it needs to send the query again. When using TCP, the TCP/IP stack will keep resending the request until it has been acknowledged by the receiver (see Figure 5-3. Modbus TCP and UDP communication errors comparison). If PLC sends new queries during this time, some of those may not be sent to network (by TCP/IP stack) until previously sent package(s) has been acknowledged. This can cause small packet storms when the connection is resumed between PLC and drive (see Figure 5-4. TCP retransmissions).
Losing one packet should not be a big issue because the same request can be sent again after timeout. In TCP packages always reach their destination but if network congestions cause retrans-missions those packages will most likely contain old data or instructions when they reach their destination.
5.4 Ethernet Option Board’s Modbus Addresses
A Modbus TCP class 1 functionality has been implemented in OPTCI board. The following table lists supported MODBUS registers.
| Name | Size | Modbus address | Type |
| Input Registers | 16bit | 30001-3FFFF | Read |
| Holding Register | 16bit | 40001-4FFFF | Read / Write |
| Coils | 1bit | 00001-OFFFF | Read / Write |
| Input discretes | 1bit | 10001-1FFFF | Read |
5.5 Supported Modbus Functions
Following table lists supporter MODBUS functions.
| Function Code | Name | Access Type | Address Range |
| 1 (0x011 | Read Coils | Discrete | 00000-OFFFF |
| 2 (0x021 | Read Input Discrete | Discrete | 10000-1FFFF |
| 3 (0x031 | Read Holding Registers | 16 Bit | 40000-4FFFF |
| 4 (0x041 | Read Input Registers | 16 Bit | 30000-3FFFF |
| 5 (0x051 | Force Single Coil | Discrete | 00000-OFFFF |
| 6 10×061 | Write Single Register | 16 Bit | 40000-4FFFF |
| 15 (0x0F) | Force Multiple Coils | Discrete | 00000-OFFFF |
| 16 (0x10) | Write Multiple Registers |
16 Bit | 40000-4FFFF |
| 23 (0x17) | Read/Write Multiple Registers | 16 Bit | 40000-4FFFF |
Table 5-2. Supported Function Codes
5.6 Coil Register
The Coil register represents data in a binary form. Thus, each coil can only be in mode “1” or mode “0”. Coil registers can be written using the MODBUS function ‘Write coil’ (51 or the MODBUS function ‘Force multiple coils’ (16). The following tables include examples of both functions.
5.6.1 Control Word (Read/Write/
See chanter 5.6.4.
| Address | Function | Purpose |
| 1 | RUN/STOP | Control word, bit 1 |
| 2 | DIRECTION | Control word, bit 2 |
| 3 | Fault reset | Control word, bit 3 |
| 4 | FBDIN1 | Control word, bit 4 |
| 5 | FBDIN2 | Control word, bit 5 |
| 6 | FBDIN3 | Control word, bit 6 |
| 7 | FBDIN4 | Control word, bit 7 |
| 8 | FBD I N5 | Control word, bit 8 |
| 9 | Not used | Control word, bit 9 |
| 10 | Not used | Control word, bit 10 |
| 11 | FBDIN6 | Control word, bit 11 |
| 12 | FBDIN7 | Control word, bit 12 |
| 13 | FBDIN8 | Control word, bit 13 |
| 14 | FBDIN9 | Control word, bit 14 |
| 15 | FBDIN10 | Control word, bit 15 |
| 16 | Not used | Control word, bit 16 |
Table 5-3. Control Word Structure
The following table shows a MODBUS query that changes the engine’s rotation direction by entering “1” for control-word bit 1 value. This example uses the ‘Write Coil’ MODBUS function. Note that Control word is application specific and use of bits may vary depending on it.
Query:
0x00, 0x00, 0x00, 0x00, 0x00, 0x06, 0xFF, 0x05, 0x00, 0x01, 0xFF, 0x00
| Data | Purpose |
| Ox00 | Transaction ID |
| Ox00 | Transaction ID |
| Ox00 | Protocol ID |
| Ox00 | Protocol ID |
| Ox00 | Length |
| 0x06 | Length |
| OxFF | Unit identifier |
| 0x05 | Write coil |
| 0x00 | Reference number |
| Ox01 | Reference number |
| OxFF | Data |
| Ox00 | Padding |
Table 5-4. Writing a Single Control Word Bit
5.6.2 Clearing trip counters
The AC drive’s operation day trip counter and energy trip counter can be reset by entering “1” as the value of the coil in request. When the value “1” is entered, the device resets the counter. However, the device does not change the Coil value after reset but maintains the “0” mode.
Address Function Purpose 0017 ClearOpDay Clears resettable operation days counter 0018 ClearMWh Clears resettable energy counter
| Address | Function | Purpose |
| 17 | ClearOpDay | Clears resettable operation days counter |
| 18 | ClearMWh | Clears resettable energy counter |
Table 5-5. Counters
The following table represents a MODBUS query that resets both counters simultaneously. This example applies the ‘Force Multiple Coils’ function. The reference number indicates the address after which the amount of data defined by the ‘Bit Count’ is written. This data is the last block in the MODBUS TCP message.
| Data | Purpose |
| Ox00 | Transaction ID |
| Ox00 | Transaction ID |
| Ox00 | Protocol ID |
| Ox00 | Protocol ID |
| Ox00 | Length |
| 0x08 | Length |
| OxFF | Unit identifier |
| OxOF | Force multiple coils |
| Ox00 | Reference number |
| Ox10 | Reference number |
| Ox00 | Bit count |
| 0x02 | Bit count |
| Ox01 | ByteCount |
| 0x03 | Data |
Table 5-6. Force Multiple Coils Query
5.7 Input Discrete
Both the ‘Coil register and the ‘Input discrete register’ contain binary data. However, the difference between the two registers is that the Input register’s data can only be read. The Vacon Ethernet board’s MODBUS TCP implementation uses the following Input discrete addresses.
5.7.1 Status Word (Read Only)
See chapter 5.6.3.
| Address | Name | Purpose |
| 10001 | Ready | Status word, bit 0 |
| 10002 | Run | Status word, bit 1 |
| 10003 | Direction | Status word, bit 2 |
| 10004 | Fault | Status word, bit 3 |
| 10005 | Alarm | Status word, bit 4 |
| 10006 | AtReference | Status word, bit 5 |
| 10007 | ZeroSpeed | Status word, bit 6 |
| 10008 | FluxReady | Status word, bit 7 |
| 10009- | Manufacturer reserved | |
Table 5-7. Status Word Structure
The following tables show a MODBUS query that reads the entire status word (8 input discretes) and the query response.
Query: Ox00, Ox00, Ox00, Ox00, Ox00, 0x06, OxFF, 0x02, Ox00, Ox00, Ox00, 0x08
| Data | Purpose |
| Ox00 | Transaction ID |
| Ox00 | Transaction ID |
| Ox00 | Protocol ID |
| Ox00 | Protocol ID |
| Ox00 | Length |
| Ox06 | Length |
| OxFF | Unit identifier |
| 0x02 | Read input discretes |
| Ox00 | Reference number |
| Ox00 | Reference number |
| Ox00 | Bit count |
| 0x08 | Bit count |
Table 5-8. Status Word Read – Query
Response: Ox00, Ox00, Ox00, 0x00, Ox00, 0x04, OxFF, 0x02, Ox01, 0x41
| Data | Purpose |
| Ox00 | Transaction ID |
| Ox00 | Transaction ID |
| Ox00 | Protocol ID |
| Ox00 | Protocol ID |
| Ox00 | Length |
| 0x04 | Length |
| OxFF | Unit identifier |
| 0x02 | Read input discretes |
| Ox01 | Byte count |
| 0x41 | Data |
Table 5-9. Status Word Read – Response
In the responses’ data field, you can read the bit mask 10×41) that corresponds to the read discrete status after shifting with the ‘Reference number’ field value (0x00, Ox00).
| LSB Ox1 | MSB Ox4 | ||||||
| 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| 1 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
Table 5-10. Response’s Data Block Broken into Bits
In this example, the AC drive is in the ‘ready’ mode because the first 0 bit is set. The motor does not run because the 6 bit is set.
5.8 Holding Registers
You can both read and write data from the MODBUS holding registers. The Ethernet board’s MODBUS TCP implementation uses the following address map.
| Address range | Purpose | R/W | Max R/W size |
| 0001 – 2000 | Vacon Application ID’s | RW | 12/12 |
| 2001 – 2099 | FBProcessDatalN | RW | 11/11 |
| 2101 – 2199 | FBProcessDataOUT | RO | 11/0 |
| 2200 – 10000 | Vacon Application ID’s | RW | 12/12 |
| 10301 – 10333 | MeasureTable | RO | 30/0 |
| 10501 – 10530 | IDMap | RW | 30/30 |
| 10601 – 10630 | IDMap Read/Write | RW | 30/30* |
| 10634 – 65535 | Not Used |
Table 5-11. Holding Registers
*Changed from 12 to 30 in firmware version V017.
5.8.1 Application ID
Application ID’s are parameters that depend on the frequency converter’s application. These parameters can be read and written by pointing the corresponding memory range directly or by using a so-called ID map [more information below). It is easiest to use a straight address if you want to read a single parameter value or parameters with consecutive ID numbers. Read restrictions, possible to read 12 consecutive ID address.
| Address range | Purpose | ID |
| 0001 – 2000 | Application parameters | 1 – 2000 |
| 2200 – 10000 | Application parameters | 2200 – 10000 |
Table 5-12. Parameter ID’s
5.8.2 ID MAP
Using the ID map, you can read consecutive memory blocks that contain parameters whose ID’s are not in a consecutive order. The address range 10501-10530 is called ‘IDMap’, and it includes an address map in which you can write your parameter ID’s in any order. The address range 10601 to 10630 is called ‘IDMap Read/Write,’ and it includes values for parameters written in the IDMap. As soon as one ID number has been written in the map cell 10501, the corresponding parameter value can be read and written in the address 10601, and so on.
Once the IDMap address range has been initialized with any parameter ID number, the parameter value can be read and written in the IDMap Read/Write address range address IDMap address + 100.
| Address | Data |
| 410601 | Data included in the parameter ID 700 |
| 410602 | Data included in the parameter ID 702 |
| 410603 | Data included in the parameter ID 707 |
| 410604 | Data included in the parameter ID 704 |
Table 5-13. Parameter Values in IDMap Read / Write Registers
If the IDMap table has not been initialized, all fields show the index ‘0’. If the IDMap has been initialized, the parameter ID’s included in it are stored in the OPTCI board’s FLASH memory.
5.8.3 FB Process Data Out /Read)
The ‘Process data out’ registers are mainly used for controlling AC drives. You can read temporary values, such as frequency, voltage and moment, using the process data. The table values are updated every 10ms.
| Address | Purpose | Range/Type |
| 2101 | FB Status Word | See chapter 5.6.3.1 |
| 2102 | FB General Status Word | See chapter 5.6.3.1 |
| 2103 | FB Actual Speed | 0 .. 10 000 |
| 2104 | FB Process Data out 1 | See Appendix 1 |
| 2105 | FB Process Data out 2 | See Appendix 1 |
| 2106 | FB Process Data out 3 | See Appendix 1 |
| 2107 | FB Process Data out 4 | See Appendix 1 |
| 2108 | FB Process Data out 5 | See Appendix 1 |
| 2109 | FB Process Data out 6 | See Appendix 1 |
| 2110 | FB Process Data out 7 | See Appendix 1 |
| 2111 | FB Process Data out 8 | See Appendix 1 |
Table 5-14. Process Data Out
5.8.3.1 FB Status Word
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| – | FR | Z | AREF | W | FLT | DIR | RUN | RDY |
Meaning of the FB Status Word bits are explained in the next table
| Bits | Description | |
| Value = 0 | Value = 1 | |
| 0 | Not Ready | Ready |
| 1 | Stop | Run |
| 2 | Clockwise | Counterclockwise |
| 3 | No Fault | Faulted |
| 4 | No Alarm | Alarm |
| 5 | Ref. Freq. not reached | Ref. Freq. reached |
| 6 | Motor not running at zero speed | Motor running at zero speed |
| 7 | Flux Ready | Flux Not Ready |
| 8…15 | Not In Use | Not In Use |
Table 5-15. Status Word bit description
5.8.4 FB Process Data In (Read I Write) The use of process data depends on the application. Typically, the motor is started and stopped using the ‘Control Word’ and the speed is set by writing a ‘Reference’ value. Through using other process data fields, the device can give other required information to the MASTER device, depending on the application.
| Address | Purpose | Range/Type |
| 2001 | FB Control Word | See chapter 5.6.4.1 |
| 2002 | FB General Control Word | See chapter 5.6.4.1 |
| 2003 | FB Speed Reference | 0 .. 10 000 |
| 2004 | FB Process Data in 1 | See Appendix 1 |
| 2005 | FB Process Data in 2 | See Appendix 1 |
| 2006 | FB Process Data in 3 | See Appendix 1 |
| 2007 | FB Process Data in 4 | See Appendix 1 |
| 2008 | FB Process Data in 5 | See Appendix 1 |
| 2009 | FB Process Data in 6 | See Appendix 1 |
| 2010 | FB Process Data in 7 | See Appendix 1 |
| 2011 | FB Process Data in 8 | See Appendix 1 |
Table 5-16. Process Data In
5.8.4.1 FB Control Word
| 15 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
| – | FBD1 0 | FBD9 | FBD8 | FBD7 | FBD6 | – | – | FBD5 | F1,304 | FBD3 | FBD2 | FBD1 | RST | DIR | RUN |
Meaning of the FB Control Word bits are explained in the next table
| Bits | Description | |
| Value = 0 | Value = 1 | |
| 0 | Stop | Run |
| 1 | Clockwise | Counterclockwise |
| 2 | Fault Reset | |
| 3 | Fieldbus Din 1 OFF | Fieldbus Din 1 ON |
| 4 | Fieldbus Din 2 OFF | Fieldbus Din 2 ON |
| 5 | Fieldbus Din 3 OFF | Fieldbus Din 3 ON |
| 6 | Fieldbus Din 4 OFF | Fieldbus Din 4 ON |
| 7 | Fieldbus Din 5 OFF | Fieldbus Din 5 ON |
| 8 | No meaning | No meaning (Control from FBI |
| 9 | No meaning | No meaning (Reference from FBI |
| 10 | Fieldbus Din 6 OFF | Fieldbus Din 6 ON |
| 11 | Fieldbus Din 7 OFF | Fieldbus Din 7 ON |
| 12 | Fieldbus Din 8 OFF | Fieldbus Din 8 ON |
| 13 | Fieldbus Din 9 OFF | Fieldbus Din 9 ON |
| 14 | Fieldbus Din 10 OFF | Fieldbus Din 10 ON |
| 15 | Not in use | Not in use |
Table 5-17. Control Word bit description
5.8.5 Measurement Table
The measurement table provides 25 readable values as listed in the following table. The table values are updated every 100ms. Read restrictions, possible to read 25 consecutive ID address.
| Address | Purpose | Type |
| 10301 | MotorTorque | Integer |
| 10302 | MotorPower | Integer |
| 10303 | MotorSpeed | Integer |
| 10304 | FreqOut | Integer |
| 10305 | FregRef | Integer |
| 10306 | REMOTEIndication | Unsigned short |
| 10307 | MotorControtMode | Unsigned short |
| 10308 | ActiveFault | Unsigned short |
| 10309 | MotorCurrent | Unsigned integer |
| 10310 | MotorVoltage | Unsigned integer |
| 10311 | FreqMin | Unsigned integer |
| 10312 | FreqScate | Unsigned integer |
| 10313 | DCVottage | Unsigned integer |
| 10314 | MotorNomCurrent | Unsigned integer |
| 10315 | MotorNomVottage | Unsigned integer |
| 10316 | MotorNomFreq | Unsigned integer |
| 10317 | MotorNomSpeed | Unsigned integer |
| 10318 | CurrentScale | Unsigned integer |
| 10319 | MotorCurrentLimit | Unsigned integer |
| 10320 | DecelerationTime | Unsigned integer |
| 10321 | AccelerationTime | Unsigned integer |
| 10322 | FreqMax | Unsigned integer |
| 10323 | PolePairNumber | Unsigned integer |
| 10324 | RampTimeScale | Unsigned integer |
| 10325 | MsCounter | Unsigned integer |
Table 5-18. Measurement Table
5.9 Input Registers
The Input Registers include read only data. See below for a more specific description of the registers.
| Address range | Purpose | R/W | Max R/W size |
| 1 – 5 | Operation day counter | RO | 5/0 |
| 101 – 105 | Resettable operation day counter | R, Cleared using coils | 5/0• |
| 201 – 203 | Energy counter | RO | 5/0 |
| 301 – 303 | Resettable energy counter | R, Cleared using coils |
5/0 |
| 401 – 430 | Fault History | RO | 30/0 |
Table 5-19 Input Registers
5.9.1 Operation Day Counter 1 – 5
| Address | Purpose |
| 1 | Years |
| 2 | Days |
| 3 | Hours |
| 4 | Minutes |
| 5 | Seconds |
Table 5-20. Operation Day Counter
5.9.2 Resettable Operation Day Counter 101 – 105
| Address | Purpose |
| 101 | Years |
| 102 | Days |
| 103 | Hours |
| 104 | Minutes |
| 105 | Seconds |
Table 5-21. Resettab e Operation Day Counter
5.9.3 Energy Counter 201 – 203
The last number of the ‘Format’ field indicates the decimal point place in the ‘Energy’ field. If the number is bigger than 0, move the decimal point to the left by the number indicated. For example, Energy = 1200 Format = 52. Unit = 1. Energy = 12.00kWh
| Address | Purpose |
| 201 | Energy |
| 202 | Format |
| 203 | Unit |
| 1 = kWh | |
| 2 = MWh | |
| 3 = GWh | |
| 4 = TWh |
Table 5-22. Energy Counter
5.9.4 Resettable Energy Counter 301 — 303
| Address | Purpose |
| 301 | Energy |
| 302 | Format |
| 303 | Unit |
| 1 = kWh | |
| 2 = MWh | |
| 3 = GWh | |
| 4 = TWh |
Table 5-23. Resettable Energy Counter
5.9.5 Fault History 401 — 430
The fault history can be viewed by reading from the address 401 onward. The faults are listed in chronological order so that the latest fault is mentioned first and the oldest is mentioned last. The fault history can contain 29 faults at any time. The fault history contents are represented as follows.
| Fault code | Sub-code |
| Value as a hexadecimal | Value as a hexadecimal |
Table 5-24. Fault Coding
For example, the IGBT temperature fault code 41, sub-code 00: 2900Hex -> 4100Dec. For complete list of fault codes please see AC drive’s manual
Note!
It is very slow to read whole fault history (401-430) at a time. It is recommended to read only parts of the fault history at a time.
START-UP TEST
Once the option board has been installed and configured, its operation can be verified by writing a frequency instruction and giving a run command to the AC drive via fieldbus.
6.1 AC drive Settings
Select fieldbus as the active control bus. (For more information see the Vacon NX User’s Manual, section 7.3.3).
6.2 Master Unit Programming
- Write a FB ‘Control Word’ (Holding register address: 2001) of value 1Hex
- The AC drive is now in the RUN mode.
- Set the FB ‘Speed Reference’ (Holding register address: 2003) value of 5000 ( = 50.00%).
- The engine is now running at a 50% speed.
- Write a ‘FB Control Word’ (Holding register address: 2001) value of OHex’
- Following this, the engine stops.
ERROR CODES AND ERRORS
7.1 AC drive Error Codes
To make sure that the board functions are correctly in all circumstances and that no errors occur, the board set the fieldbus error 53 if it doesn’t have a functional connection to the Ethernet network or if the connection is faulty.
In addition, the board assumes that there is always at least one functional connection after the first Modbus TCP connection. If this is not true, the board will set the fieldbus error 53 in the AC drive. Confirm the error by pressing the ‘reset’ button.
Card slot error 54 may be due to a faulty board, a temporary malfunction of the board or a disturbance in the environment.
7.2 Modbus TCP
This section discusses Modbus TCP error codes used by the OPTCI board and possible causes of the errors.
| Code | Modbus exception | Possible cause |
| Ox01 | Illegal function | The appliance does not support the function |
| 0x02 | Illegal data address | Attempt to read the query over the memory range |
| 0x03 | Illegal data value | Register or amount of values out of range. |
| 0x04 | Slave device failure | The appliance or connections are faulty |
| Ox06 | Slave device busy | Simultaneous query from two different masters to the same memory range |
| 0x08 | Memory parity error | Drive returned fatal response. |
| Ox0B | No response from slave | No such slave connected with this Unit Identifier. |
Table 7-1. Error Codes
APPENDIX
Process Data OUT (Slave to Master)
The Fieldbus Master can read the AC drive’s actual values using process data variables. Basic, Standard, Local/Remote Control, Multi-Step Speed Control, P1D control and Pump and Fan Control applications use process data as follows:
| ID | Data | Value | Unit | Scale |
| 2104 | Process data OUT 1 | Output Frequency | Hz | 0,01 Hz |
| 2105 | Process data OUT 2 | Motor Speed | rpm | 1 rpm |
| 2106 | Process data OUT 3 | Motor Current | A | 0,1 A |
| 2107 | Process data OUT 4 | Motor Torque | % | 0,1 % |
| 2108 | Process data OUT 5 | Motor Power | % | 0,1 % |
| 2109 | Process data OUT 6 | Motor Voltage | V | 0,1 V |
| 2110 | Process data OUT 7 | DC link voltage | V | 1 V |
| 2111 | Process data OUT 8 | Active Fault Code | – | – |
Table 8-1. Process data OUT variables
The Multipurpose Control application has a selector parameter for every Process Data. The monitor-ing values and drive parameters can be selected using the ID number (see NX All in One Application Manual, Tables for monitoring values and parameters). Default selections are as in the table above.
Process Data IN (Master to Slave)
ControlWord, Reference and Process Data are used with All in One applications as follows.
Basic, Standard, Local/Remote Control and Multi-Step Speed Control applications
| ID | Data | Value | Unit | Scale |
| 2003 | Reference | Speed Reference | % | 0.01% |
| 2001 | ControlWord | Start/Stop Command Fault reset Command | – | – |
| 2004-2011 | _ PD1 – PD8 | Not used | – | – |
Table 8-2.
Multipurpose Control application
| ID | Data | Value | Unit | Scale |
| 2003 | Reference | Speed Reference | % | 0.01% |
| 2001 | ControlWord | Start/Stop Command Fault reset Command | – | – |
| 2004 | Process Data IN1 | Torque Reference | % | 0.1% |
| 2005 | Process Data IN2 | Free Analogia INPUT | % | 0.01% |
| 2006-2011 | PD3 – PD8 | Not Used | – | – |
Table 8-3.
PlD control and Pump and fan control applications
| ID | Data | Value | Unit | Scale |
| 2003 | Reference | Speed Reference | % | 0.01% |
| 2001 | ControlWord | Start/Stop Command Fault reset Command | – | – |
| 2004 | Process Data IN1 | Reference for PID controller | % | 0.01% |
| 2005 | Process Data IN2 | Actual Value 1 to PID controller | % | 0.01% |
| 2006 | Process Data IN3 | Actual Value 2 to PID controller | % | 0.01% |
| 2007-2011 | PD4-PD8 | Not Used | _ – | – |
Table 8-4.
License for LWIP
Copyright (c) 2001, 2002 Swedish Institute of Computer Science.
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE AUTHOR “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Find your nearest Vacon office on the Internet at: www.vacon.com
Manual authoring: documentation@vacon.com
Vacon Plc. Runsorintie 7 65380 Vaasa Finland
Subject to change without prior notice
2015 Vacon Plc.
Document ID:
Rev. B
Sales code: DOC-OPTCI+DLUK
Documents / Resources
 |

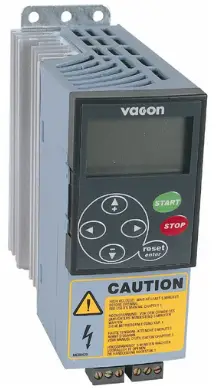

VACON NX Modbus Communication Interface [pdf] User Manual BC436721623759es-000101, NX Modbus Communication Interface, Modbus Communication Interface, Communication Interface |
