US FLEET TF-V4 Status LED Lights Installation Guide
The USFT TF-V4 Install Guide
Wiring and Installation:
- We recommend installation of your device by a professional installer.
- Please verify that your device is activated prior to installation. When activating a unit, refer to the device serial number on the underside of the tracking device.
- The TF-V4 requires a standard 3-wire installation to operate effectively. Please familiarize yourself with the following wire colors and functions.
Note: Do not cut the wiring harness to shorten the length of the cable as this will void the product warranty.
- The red wire should be directly wired to a constant 7V – 60V power source found at the key source or fuse panel.
- The black wires DGND, PGND, AGND should be securely fastened to a grounded screw or chassis ground.
- The orange wire is the ignition event wire that is installed directly to the ignition wire. Ensure that power to the ignition wire is available ONLY when the vehicle ignition is turned on. All makes and models of vehicles are different – we recommend you make sure that you know your particular vehicles Constant and Ignition wires and their specific color(s) prior to installation.
- The white, gray, green, and blue wires are input wires. These can be used to monitor PTO activity (Power Take Off) such as emergency lights, flat-bed operation, buckets, etc.
- The yellow wire is a pulsed ground signal typically used for horn honk, door lock or unlock.
- The brown wire is a constant ground signal typically used to disable the starter.

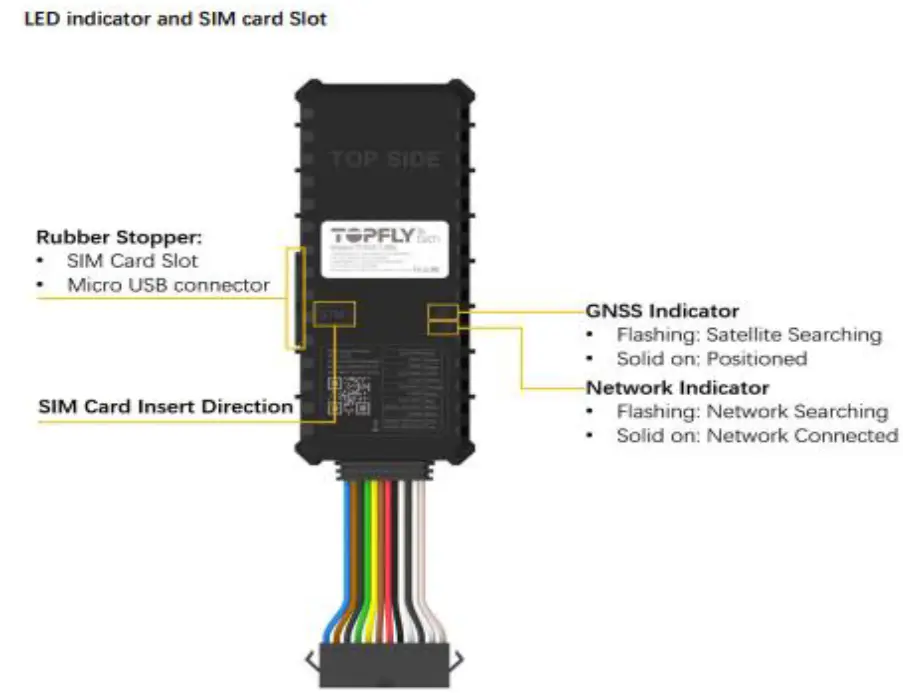

Status LED Lights
Ideal placement of TF-V4 device.
