1. تعارف
This manual provides detailed instructions for the safe and efficient use of your ThruNite Ti Mini Keychain Flashlight. Designed for everyday carry, this compact and powerful USB-C rechargeable flashlight offers multiple lighting modes and a magnetic tailcap for versatile use in various indoor and outdoor scenarios.
Image: The ThruNite Ti Mini Keychain Flashlight, demonstrating its small form factor when held in a hand.
2. باکس میں کیا ہے۔
براہ کرم وصولی کے بعد پیکیج کے مواد کو چیک کریں:
- ThruNite Ti Mini Flashlight (with built-in battery)
- USB-C چارجنگ کیبل
- Pocket Clip (pre-installed or included separately)
- Keychain Ring
- Spare USB-C Port Cover
- صارف دستی
3. پروڈکٹ ختمview
تصویر: پھٹا view diagram of the ThruNite Ti Mini, highlighting its key components such as the switch button, charging indicator, keychain, LED, magnetic cap, USB-C port, and two-way clip.
- سوئچ بٹن: Controls power and mode selection.
- چارجنگ انڈیکیٹر: Displays charging status (red for charging, green for fully charged).
- Keychain: Attachment point for keys or lanyards.
- High Performance LED: روشنی فراہم کرتا ہے۔
- مقناطیسی ٹوپی: Allows attachment to metal surfaces for hands-free use.
- USB-C Charging Interface: بلٹ ان بیٹری کو ری چارج کرنے کے لیے۔
- Two-way Clip: For securing the flashlight to pockets, hats, or gear.
4. وضاحتیں
| فیچر | تفصیل |
|---|---|
| زیادہ سے زیادہ آؤٹ پٹ | 650 Lumens |
| زیادہ سے زیادہ پھینکنا | 105 میٹر |
| زیادہ سے زیادہ رن ٹائم | 51 days (Firefly mode) |
| طاقت کا منبع | Built-in 350mAh Lithium-Ion Battery |
| چارج ہو رہا ہے۔ | USB-C ریچارج ایبل |
| مواد | Aerospace-grade 6061-T6 Aluminum |
| ختم کرنا | Type III Hard-Anodized |
| پانی کی مزاحمت | IPX-8 (Waterproof to 2 meters) |
| اثر مزاحمت | 1.5 میٹر |
| طول و عرض | 60.8 ملی میٹر (لمبائی) x 16.5 ملی میٹر (قطر) |
| وزن | 26.5 گرام (0.93 آانس) |
Image: Dimensions of the ThruNite Ti Mini, illustrating its compact size relative to a common earbud case.
5. سیٹ اپ
5.1 ابتدائی چارجنگ
Before first use, fully charge the flashlight. Open the USB-C port cover and connect the included USB-C cable to the flashlight and a power source (e.g., computer, USB wall adapter).
- The charging indicator will glow سرخ چارج کرنے کے دوران.
- The indicator will turn سبز جب چارجنگ مکمل ہو جائے۔

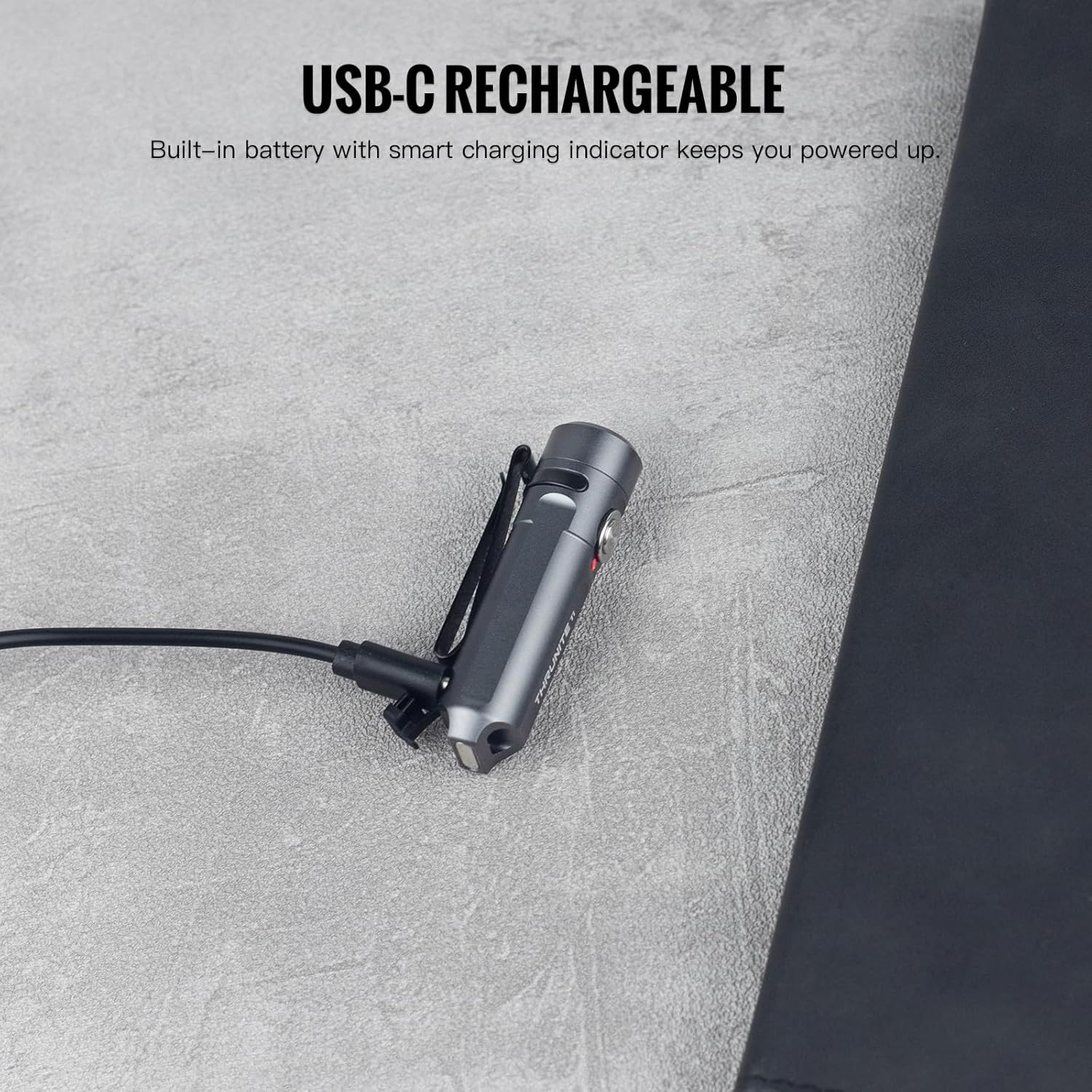

Image: The ThruNite Ti Mini connected to its USB-C charging cable, showing the charging port and indicator light.
5.2 لوازمات منسلک کرنا
The flashlight comes with a keychain ring and a two-way pocket clip for various carrying options.
- Keychain: Attach the included keychain ring to the designated loop at the tail of the flashlight.
- جیبی کلپ: The two-way clip can be used to secure the flashlight to a pocket, belt, or the brim of a hat. It can be reversed for different carrying preferences.
تصویر: سابقamples of the ThruNite Ti Mini being used as an EDC companion, clipped to a backpack and attached to a keychain.
6. آپریٹنگ ہدایات
6.1 بنیادی آپریشن
- آن/آف کریں: Double-click the side switch to turn the light ON. Press and hold the switch to turn it OFF.
- موڈز کو تبدیل کریں: When the light is ON, single-click the switch to cycle through Firefly, Low, Medium, and High modes. The light will remember the last used mode (except Strobe).
- Momentary High: From OFF, press and hold the switch to activate the highest mode (650 lumens) temporarily. Release the switch to turn OFF.
- اسٹروب موڈ: Triple-click the switch from any state (ON or OFF) to activate Strobe mode. Single-click to return to the previously used mode.
6.2 Mode Details and Runtimes
| موڈ | آؤٹ پٹ | رن ٹائم |
|---|---|---|
| اعلی | 650 لیمن | 1 گھنٹہ 35 منٹ |
| درمیانہ | 200 لیمن | 2 گھنٹے 20 منٹ |
| کم | 30 لیمن | 9.5 گھنٹے |
| فائر فلائی | 0.2 لیمن | 51 گھنٹے |
| سٹروب | 650 لیمن | - |
Image: Detailed table outlining the output and runtime for each lighting mode of the ThruNite Ti Mini.
6.3 Hands-Free Operation
The magnetic tailcap allows the flashlight to be securely attached to most metal surfaces, providing convenient hands-free illumination. This is ideal for tasks requiring both hands, such as vehicle maintenance or working in dimly lit areas.
Image: The ThruNite Ti Mini utilizing its magnetic tailcap for hands-free lighting, attached to different metal objects.
7 دیکھ بھال
- صفائی: باقاعدگی سے ٹارچ کے جسم کو نرم سے صاف کریں، ڈیamp کپڑا سخت کیمیکلز یا کھرچنے والے مواد کے استعمال سے پرہیز کریں۔
- USB-C پورٹ: Ensure the USB-C charging port cover is properly sealed when not charging to maintain its waterproof rating. If the cover is damaged or lost, use the provided spare.
- ذخیرہ: Store the flashlight in a cool, dry place when not in use for extended periods.
8 خرابیوں کا سراغ لگانا
8.1 لائٹ آن نہیں ہو رہی ہے۔
- بیٹری چارج: Ensure the battery is sufficiently charged. Connect the flashlight to a USB-C power source and check the charging indicator.
- آپریشن کی ترتیب: Confirm you are using the correct operation sequence: double-click to turn ON, press and hold to turn OFF.
8.2 چارجنگ کے مسائل
- کیبل کنکشن: تصدیق کریں کہ USB-C کیبل فلیش لائٹ اور پاور سورس دونوں سے محفوظ طریقے سے منسلک ہے۔
- Port Condition: Check the USB-C port for any debris or damage. Clean gently if necessary.
- طاقت کا منبع: Try a different USB power source or cable to rule out issues with the charging equipment.
9. وارنٹی اور سپورٹ
9.1 وارنٹی کی معلومات
The ThruNite Ti Mini Keychain Flashlight comes with a limited warranty. Please refer to the warranty card included in your package for specific terms and conditions. This typically covers manufacturing defects under normal use.
9.2 کسٹمر سپورٹ
For further assistance, technical support, or warranty claims, please contact ThruNite customer service. You can usually find contact information on the official ThruNite webسائٹ یا آپ کے خریداری کے پلیٹ فارم کے ذریعے۔
Note: Always refer to the official ThruNite webتازہ ترین معاون معلومات کے لیے سائٹ یا آپ کی مصنوعات کی پیکیجنگ۔
