Fafrees F20 PRO الیکٹرک بائک صارف دستی

تعارف

Thank you for choosing the Fafrees F20 PRO Electric Bike. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your bike.

Image: The Fafrees F20 PRO Electric Bike, black in color, shown from a three-quarter front view, highlighting its foldable frame, fat tires, and included storage bag.

حفاظتی معلومات

Always prioritize safety when operating your electric bike. Failure to follow safety guidelines can result in serious injury or damage to the bike.

• Always wear a helmet that meets local safety standards.
• یقینی بنائیں کہ ہر سواری سے پہلے تمام اجزاء کو محفوظ طریقے سے باندھ دیا گیا ہے۔
• برقی سائیکلوں کے حوالے سے مقامی ٹریفک قوانین اور ضوابط سے خود کو واقف کروائیں۔
• شراب یا منشیات کے زیر اثر سواری نہ کریں۔
• اپنے اردگرد اور دیگر سڑک استعمال کرنے والوں سے آگاہ رہیں۔
• Avoid riding in adverse weather conditions, such as heavy rain or snow, if possible.
• ٹائر پریشر، بریک فنکشن اور بیٹری چارج لیول کو باقاعدگی سے چیک کریں۔

پیکیج کے مشمولات

پیکیج کھولنے پر، براہ کرم تصدیق کریں کہ درج ذیل تمام اشیاء شامل ہیں:

• 1 x Fafrees F20 PRO Electric Bike (partially assembled)
• 1 x بیٹری چارجر
• 1 x Gift Box (contents may vary)
• 1 ایکس یوزر مینوئل (یہ دستاویز)

سیٹ اپ اور اسمبلی

The Fafrees F20 PRO Electric Bike comes partially assembled. Follow these steps to complete the assembly:

1. فریم کو کھولنا: Carefully unfold the main frame of the bike until it locks into place. Ensure the folding mechanism is securely latched.
2. ہینڈل بار کو انسٹال کرنا: Insert the handlebar stem into the fork tube and tighten the quick-release lever or bolts as instructed. Ensure the handlebar is aligned with the front wheel.
3. پیڈل منسلک کرنا: Identify the left (L) and right (R) pedals. Screw them into the corresponding crank arms. Note that the left pedal has a reverse thread. Tighten firmly with a wrench.
4. Installing the Seat Post and Saddle: Insert the seat post with the saddle attached into the seat tube. Adjust the height to a comfortable riding position and secure it with the quick-release clamp. Important: Do not install the seat tube below the safe line marked on the post.
5. ہیڈلائٹ لگانا: Attach the LED headlight to the designated mounting point on the front of the bike, usually on the fork or handlebar stem. Connect any necessary wiring.
6. بیٹری کی تنصیب: The battery may come pre-installed or require insertion. If not installed, slide the battery into its compartment (often within the frame or behind the seat tube) until it clicks into place. Ensure it is locked with the key if applicable.
7. ابتدائی بیٹری چارج: Before your first ride, fully charge the battery using the provided charger. Connect the charger to the bike's charging port and then to a power outlet. The indicator light on the charger will show charging status.
8. سواری سے پہلے کی جانچ پڑتال: Before riding, check tire pressure, brake functionality (front and rear), and ensure all bolts and quick releases are tight.

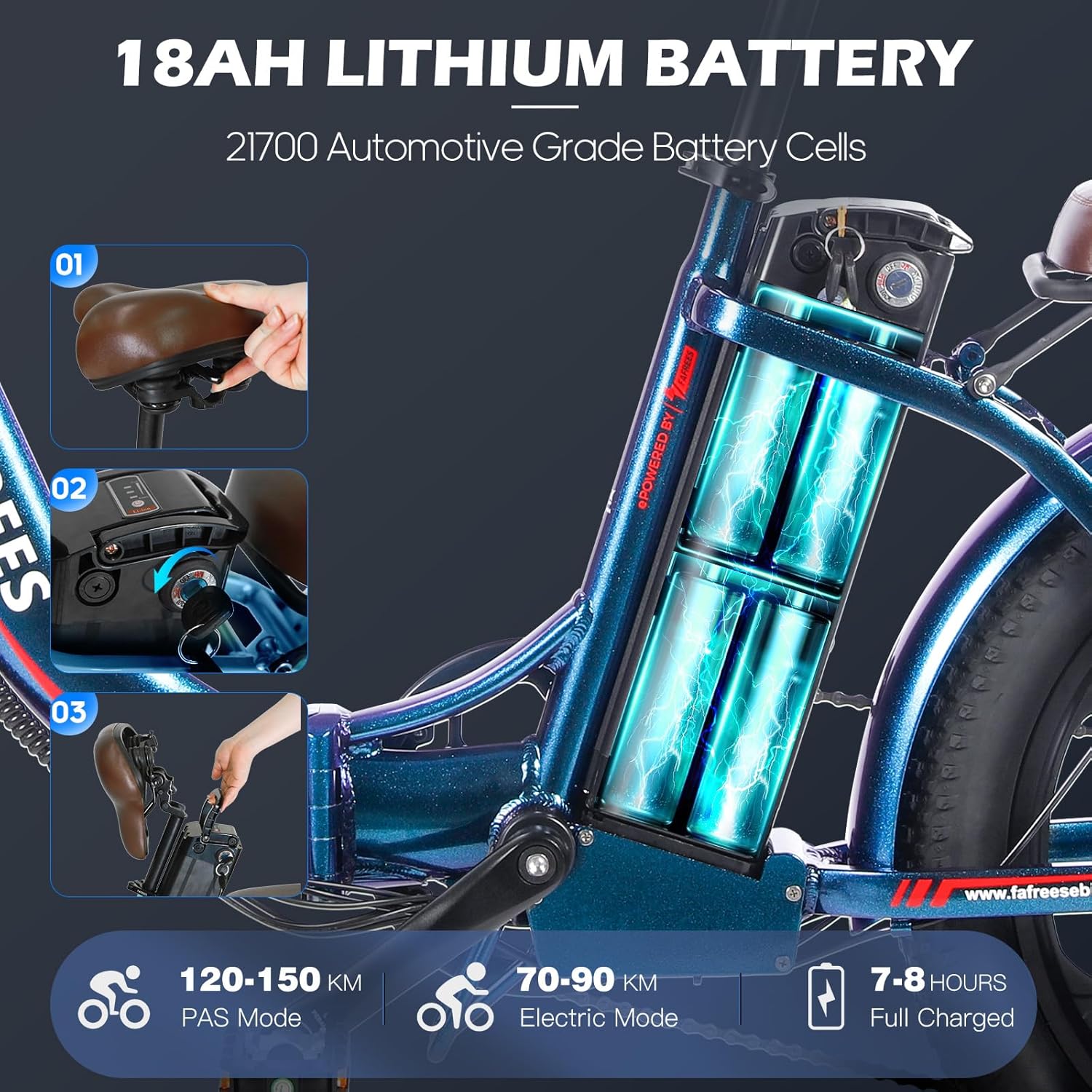

تصویر: ایک قریبی اپ view of the Fafrees F20 PRO's frame, illustrating the removable 18AH lithium battery compartment and the process of inserting and removing the battery.

آپریٹنگ ہدایات

پاورنگ آن/آف

To power on the bike, press and hold the power button on the LCD display. To power off, press and hold the same button until the display turns off.

LCD ڈسپلے کے افعال

The smart LCD display provides real-time information about your ride:

• رفتار: موجودہ سواری کی رفتار۔
• بیٹری کی سطح: باقی بیٹری چارج کی نشاندہی کرتا ہے۔
• مائلیج: Displays trip distance or total odometer reading.
• Gear/PAS Level: Shows the current pedal assist level (PAS).
• Walk Assistance Mode: موٹر سائیکل کو چلنے کے لیے کم رفتار اسسٹ کو چالو کرتا ہے۔
• کروز کنٹرول: Maintains a set speed without continuous throttle input.

تصویر: ایک تفصیلی view of the Fafrees F20 PRO's handlebar, showcasing the smart color LCD display, bell, gear shift lever, power-off brake levers, and thumb throttle.

سواری کے موڈز

• پیڈل اسسٹ موڈ (PAS): The motor provides assistance as you pedal. Adjust the assist level using the display controls (usually '+' and '-' buttons). Higher levels provide more assistance.
• مکمل الیکٹرک موڈ: Use the thumb throttle to propel the bike without pedaling. This mode consumes battery faster.
• دستی موڈ: موٹر سائیکل کو روایتی سائیکل کی طرح بغیر کسی موٹر کی مدد کے چلائیں۔

Gears and Shifting

The F20 PRO is equipped with a 7-speed derailleur system. Use the gear shifter on the handlebar to change gears according to terrain and desired pedaling effort. Shift gears smoothly by easing off the pedals slightly during the shift.

بریکنگ سسٹم

The bike features front and rear mechanical 160mm disc brakes with power-off brake levers. Squeeze both brake levers simultaneously for effective and safe stopping. The power-off feature cuts motor power when brakes are applied.

Image: A close-up of the Fafrees F20 PRO's front wheel, highlighting the mechanical disc brake system, including the rotor, caliper, and power-off brake lever, emphasizing its stopping capabilities.

دیکھ بھال

Regular maintenance is crucial for the longevity and safe operation of your Fafrees F20 PRO Electric Bike.

• صفائی: اشتہار کے ساتھ موٹر سائیکل کو باقاعدگی سے صاف کریں۔amp کپڑا ہائی پریشر واشرز کو براہ راست بجلی کے اجزاء پر استعمال کرنے سے گریز کریں۔
• چکنا: Lubricate the chain and other moving parts (e.g., derailleur pivots) periodically with bicycle-specific lubricant.
• ٹائر: Check tire pressure before each ride. The recommended pressure is usually indicated on the tire sidewall. Inspect tires for wear and damage.
• بریک: Regularly check brake pads for wear and ensure brake levers provide firm and responsive stopping power. Adjust brake cables as needed.
• بیٹری کی دیکھ بھال:
  • Charge the battery fully after each ride, especially if it's been significantly discharged.
  • بیٹری کو ٹھنڈی، خشک جگہ پر، براہ راست سورج کی روشنی اور انتہائی درجہ حرارت سے دور رکھیں۔
  • If storing the bike for an extended period, charge the battery to 50-70% every 1-2 months.
• بندھن: وقتاً فوقتاً تمام بولٹ، گری دار میوے اور فوری ریلیز کو سختی کے لیے چیک کریں۔

خرابی کا سراغ لگانا

This section addresses common issues you might encounter with your Fafrees F20 PRO Electric Bike.

وضاحتیں

Image: An illustration of the Fafrees F20 PRO's 250W brushless rear hub motor, detailing its internal components, along with icons indicating 40 Nm motor torque, 25 km/h max speed, and 7-speed Shimano gearing.

Image: A close-up of the Fafrees F20 PRO's front suspension fork and 20x3.0 inch fat tire, with an inset showing the suspension lock/open mechanism. Below are illustrations of various terrains (sand, mud, gravel, flat road) the fat tires can handle.

وارنٹی اور سپورٹ

Fafrees provides a limited warranty for the F20 PRO Electric Bike. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact the official Fafrees customer service or the authorized seller from whom you purchased the product.

بیچنے والا: Fafrees_Official Ebike Store

Keep your purchase receipt and the bike's serial number (usually located on the frame) readily available when contacting support.
