Fafrees F20 الیکٹرک فولڈنگ بائیسکل صارف دستی

تعارف

Thank you for choosing the Fafrees F20 Electric Folding Bicycle. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new e-bike. The Fafrees F20 is designed for urban commuting and recreational riding, featuring a powerful 250W motor, a 16Ah battery for extended range, 20-inch fat tires for various terrains, and a convenient folding design. Please read this manual thoroughly before your first ride to ensure proper use and to maximize your riding experience.

Image: The Fafrees F20 Electric Folding Bicycle, showcasing its compact and robust design with fat tires and integrated battery.

حفاظتی معلومات

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to local traffic laws and regulations.

• فریم نمبر: The frame number of your F20 is printed on the bottom bracket (central axle) of the bicycle. It is crucial to record this number as it serves as the identification number for your bike. This information is vital in case of theft or for warranty claims.
• مرئیت: The Fafrees F20 is equipped with a bright LED headlight and a rear reflector for enhanced safety, especially during night rides. Ensure they are clean and functional before each use.
• بریک لگانا: The bike features front and rear disc brakes, providing reliable stopping power. Regularly check brake pads and cables for wear and proper adjustment.
• Rider Height & Load: The adjustable seat and handlebar accommodate users between 160-198 cm (5'3" - 6'6"). The maximum load capacity is 150 kg (330 lbs). Do not exceed these limits.

Image: Diagram illustrating the dimensions of the Fafrees F20 and its rider height and load capacity specifications.

پیکیج کے مشمولات

پیکج کو کھولنے پر، براہ کرم تصدیق کریں کہ تمام اجزاء موجود ہیں اور بغیر کسی نقصان کے۔

• 1 x Fafrees F20 Electric Folding Bicycle
• 1 ایکس چارجر
• 1 x Battery (integrated or separate, depending on model variant)
• 1 ایکس یوزر مینوئل (یہ دستاویز)
• 1 x Gift Set (may include tools or accessories)

Image: The Fafrees branded packaging box, indicating the product's origin.

سیٹ اپ اور اسمبلی

Your Fafrees F20 comes mostly pre-assembled. Follow these steps for final setup.

1. پیک کھولنا: Carefully remove the bicycle and all components from the packaging. Retain packaging for 30 days in case of return or shipping needs.
2. Unfolding the Bicycle:
   • Release the frame latch and unfold the main frame until it locks into place.
   • Raise the handlebar stem and secure its latch.
   • Adjust the seat post to your desired height and secure the quick-release lever.
   • Unfold the pedals if they are foldable.


   تصویر: کلوز اپ view of the aluminum alloy folding frame, highlighting the folding mechanism for compact storage.

3. بیٹری کی تنصیب اور چارجنگ:
   • Ensure the battery is securely inserted into its compartment. The F20 features a removable 16Ah / 36V Lithium-ion battery.
   • Before first use, fully charge the battery using the provided charger. Connect the charger to the bike's charging port, then plug it into a power outlet. The indicator light on the charger will change when fully charged.


   Image: Illustration of the 16Ah lithium battery, showing its placement within the frame and the easy removal process.

4. ٹائر پریشر: Check and adjust tire pressure to the recommended PSI (usually found on the tire sidewall) for optimal performance and safety. The 20*3.0 inch fat tires are suitable for various terrains.
5. بریک چیک: آگے اور پیچھے دونوں بریکوں کی جانچ کریں تاکہ یہ یقینی بنایا جا سکے کہ وہ مناسب طریقے سے مشغول ہیں اور موٹر سائیکل کو مؤثر طریقے سے روکتے ہیں۔ اگر ضروری ہو تو ایڈجسٹ کریں۔

آپریٹنگ ہدایات

سواری سے پہلے اپنے آپ کو کنٹرولز سے آشنا کریں۔

1. پاور آن/آف: Press and hold the power button on the intelligent display to turn the bike on or off.
2. Intelligent Multifunction Display: The display provides real-time information.
   • سپیڈ ڈسپلے: موجودہ سواری کی رفتار دکھاتا ہے۔
   • پی اے ایس کی سطح: Indicates the current pedal assist level (3 levels). Use '+' and '-' buttons to adjust.
   • پاور ڈسپلے: Shows remaining battery charge.
   • Driving Distance: Tracks trip distance.
   • ہیڈلائٹ کنٹرول: Often integrated with the display controls.


   Image: Close-up of the intelligent multifunction display on the handlebar, showing speed, battery, and PAS level indicators, along with control buttons.

3. سواری کے طریقے: The F20 offers three riding modes:
   • Electric Assist Mode (PAS): The motor provides assistance as you pedal. Range: 90-120 km.
   • مکمل الیکٹرک موڈ: Use the thumb throttle for propulsion without pedaling. Range: 55-60 km.
   • Pure Electric Mode (Pedal Only): Ride like a traditional bicycle with no motor assistance.


   تصویر: ختمview of key components including the rear rack, headlight, fender, and thumb throttle, which controls the full electric mode.

4. گیئرز: The 7-speed Shimano gear system allows you to adjust pedaling effort for different terrains and speeds. Shift gears smoothly while pedaling.
5. بریک لگانا: Apply both front and rear brakes simultaneously for effective and controlled stopping. Avoid sudden, hard braking, especially at high speeds.

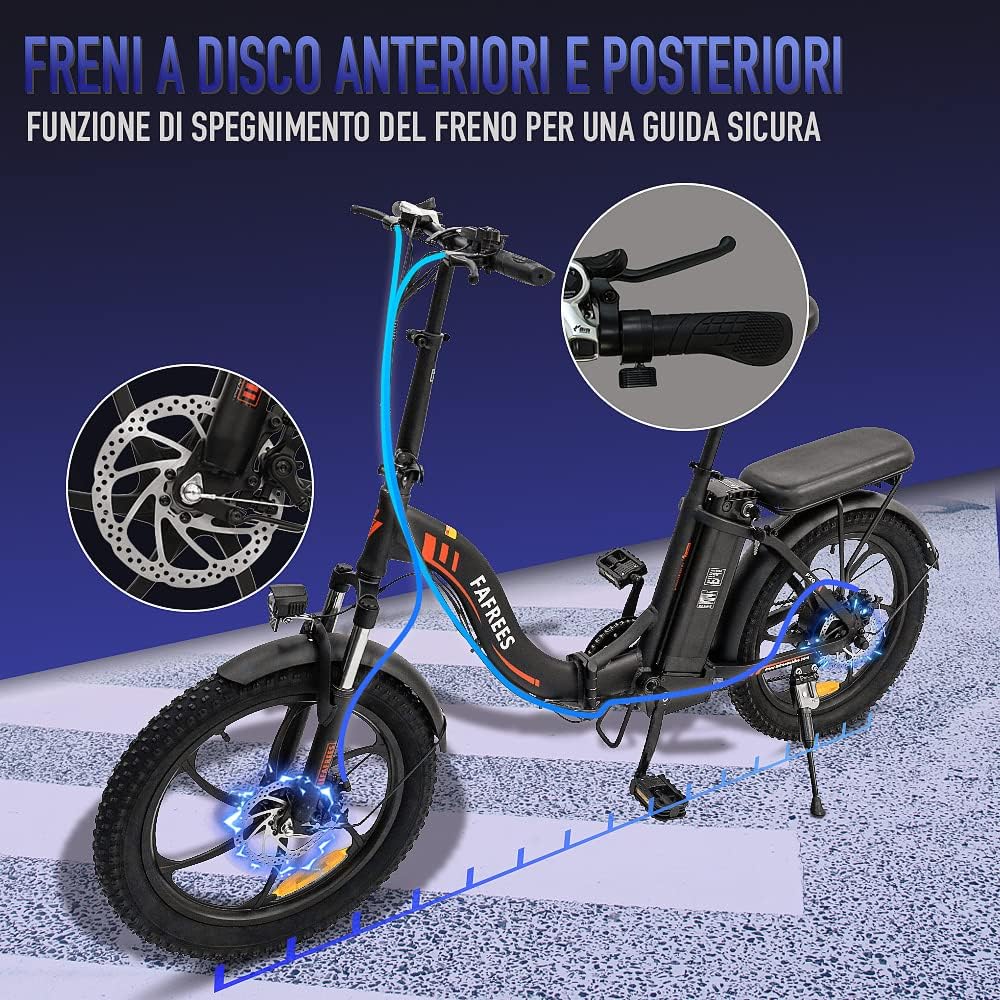

Image: Diagram illustrating the front and rear disc brake system, emphasizing the safety shutdown function for reliable stopping.

دیکھ بھال

Regular maintenance ensures the longevity and safe operation of your Fafrees F20.

• بیٹری کی دیکھ بھال:
  • بیٹری کو باقاعدگی سے چارج کریں، چاہے استعمال میں نہ ہو، اس کی صحت برقرار رکھنے کے لیے۔
  • بیٹری کو مکمل طور پر ختم کرنے سے گریز کریں۔
  • Store the battery in a cool, dry place when not in use, ideally at 50-70% charge.
• ٹائر: Check tire pressure before each ride. Inspect tires for wear, punctures, or damage. The 20*3.0 inch fat tires are designed for durability.
• بریک: Regularly inspect brake pads for wear and replace them when necessary. Check brake levers and cables for proper tension and smooth operation.
• سلسلہ: ہموار گیئر کی تبدیلیوں کو یقینی بنانے اور زنگ کو روکنے کے لیے زنجیر کو صاف اور چکنا رکھیں۔
• عمومی صفائی: اشتہار کے ساتھ موٹر سائیکل کو باقاعدگی سے صاف کریں۔amp کپڑا بجلی کے اجزاء پر براہ راست ہائی پریشر واٹر جیٹ استعمال کرنے سے گریز کریں۔
• بندھن: وقتاً فوقتاً تمام بولٹ، نٹ اور فوری ریلیز لیورز کو چیک کریں تاکہ یہ یقینی بنایا جا سکے کہ وہ محفوظ طریقے سے سخت ہیں۔

خرابی کا سراغ لگانا

This section addresses common issues you might encounter. For more complex problems, please contact Fafrees customer support.

وضاحتیں

تصویر: تفصیلی view of the 250W brushless motor, highlighting its torque, gradeability, and IP54 waterproof rating.

Image: Close-up of the 20*3.0 inch fat tire, showing its anti-puncture design and integrated wheel, suitable for various road conditions.

وارنٹی اور سپورٹ

For detailed warranty information, please refer to the specific warranty card or documentation included with your Fafrees F20 Electric Folding Bicycle. Fafrees is committed to customer satisfaction and provides support for product inquiries and issues.

If you encounter any problems not covered in this manual or require further assistance, please contact Fafrees customer service through their official webسائٹ یا خوردہ فروش جہاں آپ نے پروڈکٹ خریدی ہے۔

اہم: Always provide your frame number (located on the bottom bracket) when contacting support for faster service.
