Marcy MP3100 Smith Machine Multipress with Weight Bench User Manual

تعارف

Thank you for choosing the Marcy MP3100 Smith Machine Multipress. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read all instructions carefully before use to ensure your safety and to maximize the lifespan of your machine.

The MP3100 is designed to provide a comprehensive full-body workout, combining a Smith machine, an adjustable weight bench, and a cable pulley system. Its robust construction is suitable for home gym environments.

حفاظتی معلومات

Before beginning any exercise program, consult with your physician. It is imperative to follow these safety guidelines to prevent injury and ensure proper use of the equipment.

• Always inspect the machine for loose parts, worn cables, or damaged components before each use. Do not use the equipment if any damage is found.
• Ensure all bolts and nuts are securely tightened before and during use.
• Maintain a clear area of at least 2 meters (6.5 feet) around the machine during operation.
• Do not allow children or pets near the equipment while it is in use.
• Use the safety catches on the Smith machine bar to prevent injury during heavy lifts.
• زیادہ سے زیادہ وزن کی صلاحیتوں سے تجاوز نہ کریں:
  • User weight on bench: 135 kg (297 lbs)
  • Smith press load: 135 kg (297 lbs)
  • Cable systems (upper and lower): 90 kg (198 lbs)
• مناسب ایتھلیٹک جوتے اور لباس پہنیں۔
• Perform warm-up exercises before your workout and cool-down exercises afterward.
• اگر آپ کو درد، چکر آنا، یا سانس کی قلت کا سامنا ہو تو فوری طور پر ورزش بند کریں اور ڈاکٹر سے رجوع کریں۔

سیٹ اپ اور اسمبلی

The Marcy MP3100 requires assembly. It is recommended that two or more people assemble this equipment due to its size and weight. Ensure you have sufficient space and all components before starting.

پیک کھولنا اور انوینٹری

• پیکیجنگ سے تمام اجزاء کو احتیاط سے ہٹا دیں۔
• Verify that all parts listed in the assembly manual (included with the product) are present. If any parts are missing or damaged, do not proceed with assembly. Contact customer support.

اسمبلی کے اقدامات

Refer to the detailed assembly instructions provided in the separate assembly manual. General steps include:

1. Assemble the main frame of the Smith machine.
2. Attach the Smith bar and its safety catches.
3. Install the cable pulley system, ensuring all cables are correctly routed and secured.
4. Assemble the independent weight bench, including the preacher curl pad and leg developer.
5. Attach all accessories such as the lat bar, triceps rope, and single-hand grip.
6. Once assembled, double-check all connections and ensure the machine is stable on a level surface.

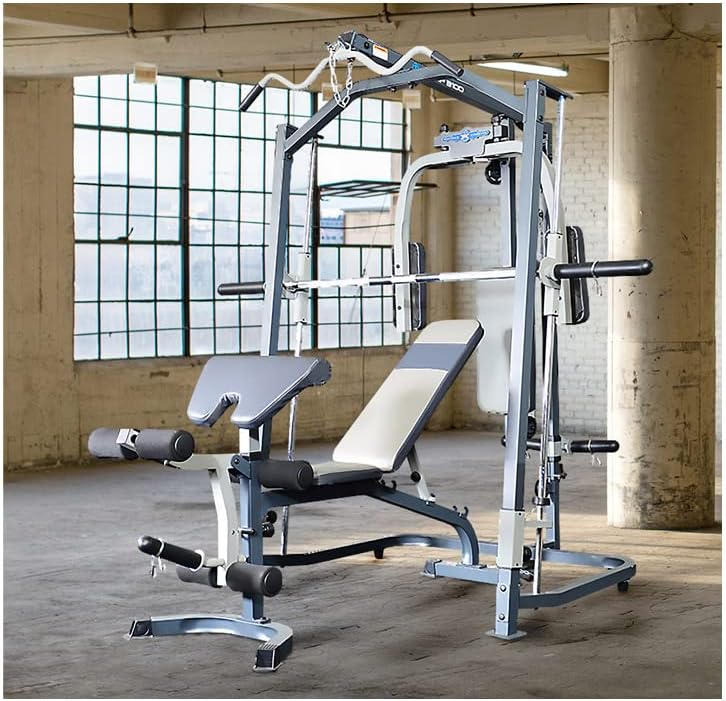

Image: The fully assembled Marcy MP3100 Smith Machine Multipress, showcasing its robust frame, adjustable bench, and integrated cable system.

آپریٹنگ ہدایات

The Marcy MP3100 offers a variety of exercises targeting different muscle groups. Familiarize yourself with each component before use.

Smith Machine Operation

• Bar Engagement: The Smith bar moves smoothly on linear bearings. To engage or disengage the bar from the safety hooks, rotate the bar slightly.
• Safety Catches: Always set the adjustable safety catches to a height that prevents the bar from descending too low during an exercise, especially when lifting heavy weights or training alone. There are 10 "hook-in" holes for precise adjustment.
• وزن لوڈ کرنا: Load weight plates evenly on both sides of the Smith bar. The maximum load capacity for the Smith press is 135 kg.

تصویر: کلوز اپ view of the Marcy MP3100 Smith Machine, highlighting the 7-degree slanted frame for biomechanics, the 10kg Smith bar with 10 hook-in holes, and the height-adjustable safety catches.

سایڈست وزن بینچ

• The standalone weight bench offers 5 levels of adjustment, allowing for incline, flat, and decline positions.
• Adjust the bench angle by pulling the adjustment pin and moving the backrest to the desired position. Ensure the pin is fully re-engaged before use.
• The bench can be used independently or positioned within the Smith machine frame.

تصویر: تفصیلی view of the Marcy MP3100 weight bench, showing the bar holder for biceps exercises, the leg extension and leg curl attachment, and the mechanism for adjusting the bench to 5 different angles, supporting up to 270kg capacity.

Cable Pulley System

• The MP3100 includes both upper and lower cable pulley stations.
• Upper Pulley: Use with the lat bar for exercises like lat pulldowns and triceps pushdowns.
• Lower Pulley: Use with the single-hand grip or ankle strap for exercises like cable rows, bicep curls, and leg adductions/abductions.
• Pec Dec Station: The independent arms of the pec dec allow for chest fly exercises.
• Load weight plates onto the cable loading tray. Maximum load capacity for cable systems is 90 kg.

تصویر: ختمview of the Marcy MP3100's cable system, detailing the EZ Latissimus bar and Abs Crunch Station, the Pec Dec Station with independent arms, the versatile Low Pulley Station with various gym attachments, and the cable loading tray with a capacity of up to 90kg.

لیگ ڈیولپر اور مبلغ سیurl

• Attach the leg developer to the front of the bench for leg extensions and leg curls.
• The preacher curl pad can be attached to the bench for isolated bicep exercises.

مشق چارٹ

Refer to the included exercise chart for a visual guide on various exercises that can be performed with the Marcy MP3100. This chart illustrates proper form and target muscle groups for a comprehensive workout.

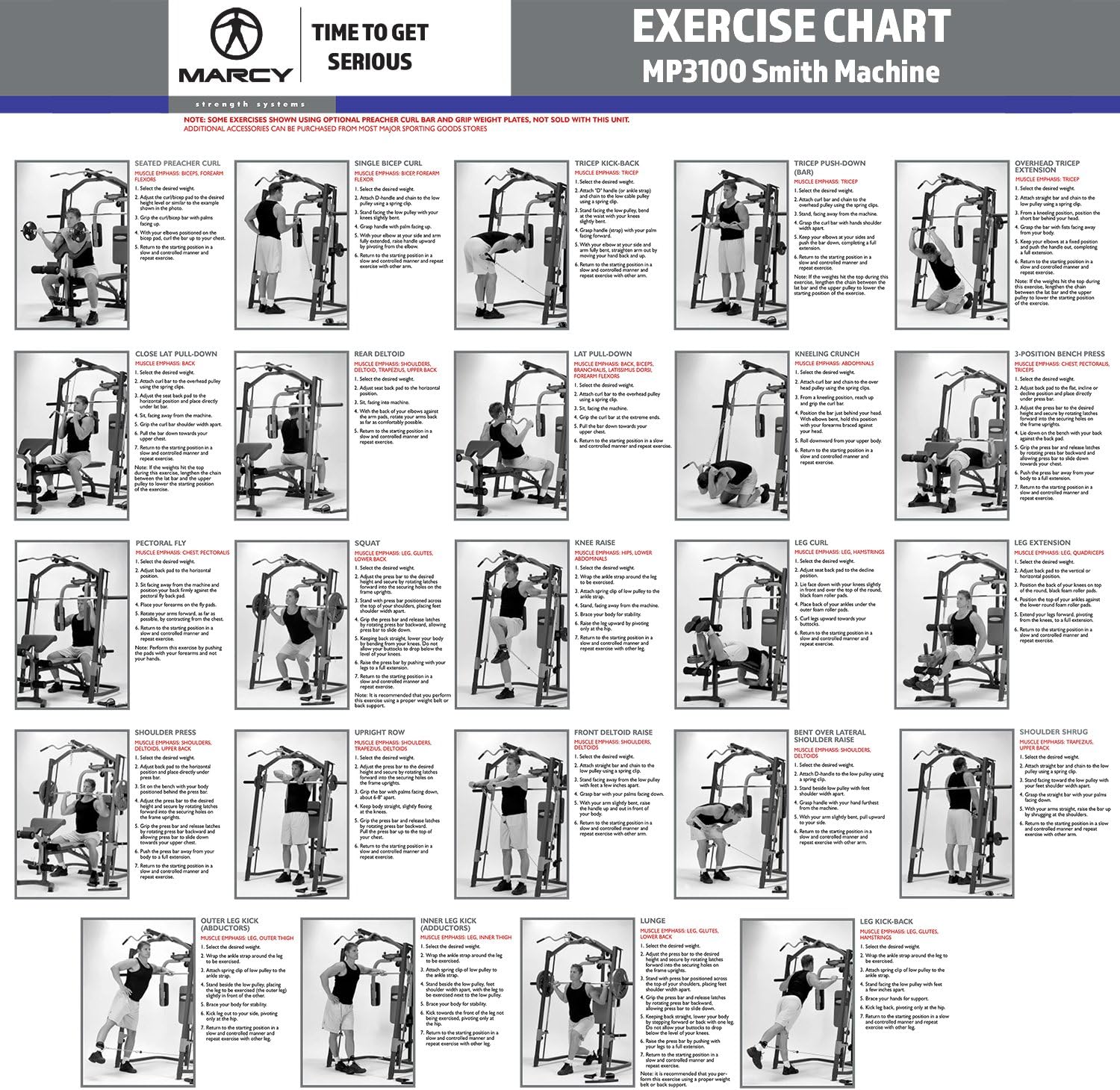

Image: A detailed exercise chart for the Marcy MP3100 Smith Machine, illustrating various exercises such as seated preacher curl, tricep push-down, lat pull-down, squat, leg curl, and shoulder press, with step-by-step instructions and muscle group targeting.

دیکھ بھال

Regular maintenance is crucial for the longevity and safe operation of your Marcy MP3100.

• صفائی: اشتہار کے ساتھ مشین کو صاف کریں۔amp پسینے اور دھول کو دور کرنے کے لیے ہر استعمال کے بعد کپڑا۔ کھرچنے والے کلینر سے پرہیز کریں۔
• چکنا: Periodically apply a silicone-based lubricant (e.g., WD-40 or similar) to the guide rods of the Smith machine bar to ensure smooth movement. Lubricate pivot points on the bench and cable pulleys as needed.
• کیبل معائنہ: Regularly check all cables for fraying, kinks, or wear. Replace damaged cables immediately.
• بولٹ کی سختی: Periodically check and tighten all nuts and bolts. Over time, vibrations from use can cause fasteners to loosen.
• افولسٹری: Inspect the upholstery for tears or excessive wear. Clean with a mild soap and water solution if necessary.

خرابی کا سراغ لگانا

This section addresses common issues you might encounter with your Marcy MP3100.

وضاحتیں

Below are the key specifications for the Marcy MP3100 Smith Machine Multipress:

• ماڈل نمبر: MP3100
• مواد: مرکب سٹیل
• رنگ: سیاہ
• طول و عرض (L x W x H): 230 سینٹی میٹر x 200 سینٹی میٹر x 210 سینٹی میٹر (90.5 x 78.7 x 82.7 انچ)
• مصنوعات کا خالص وزن: 97 کلوگرام (213.8 پونڈ)
• Maximum User Weight on Bench: 135 کلوگرام (297 پونڈ)
• Maximum Smith Press Load: 135 کلوگرام (297 پونڈ)
• Maximum Cable System Load (Upper & Lower): 90 کلوگرام (198 پونڈ)
• Bench Adjustment: 5 levels (Incline, Flat, Decline)
• سمتھ بار وزن: تقریباً 10 کلوگرام (22 پونڈ)
• شامل اجزاء: 1 Marcy MP3100 Smith Multipress Station, 1 Weight Bench, Assembly and User Manual.

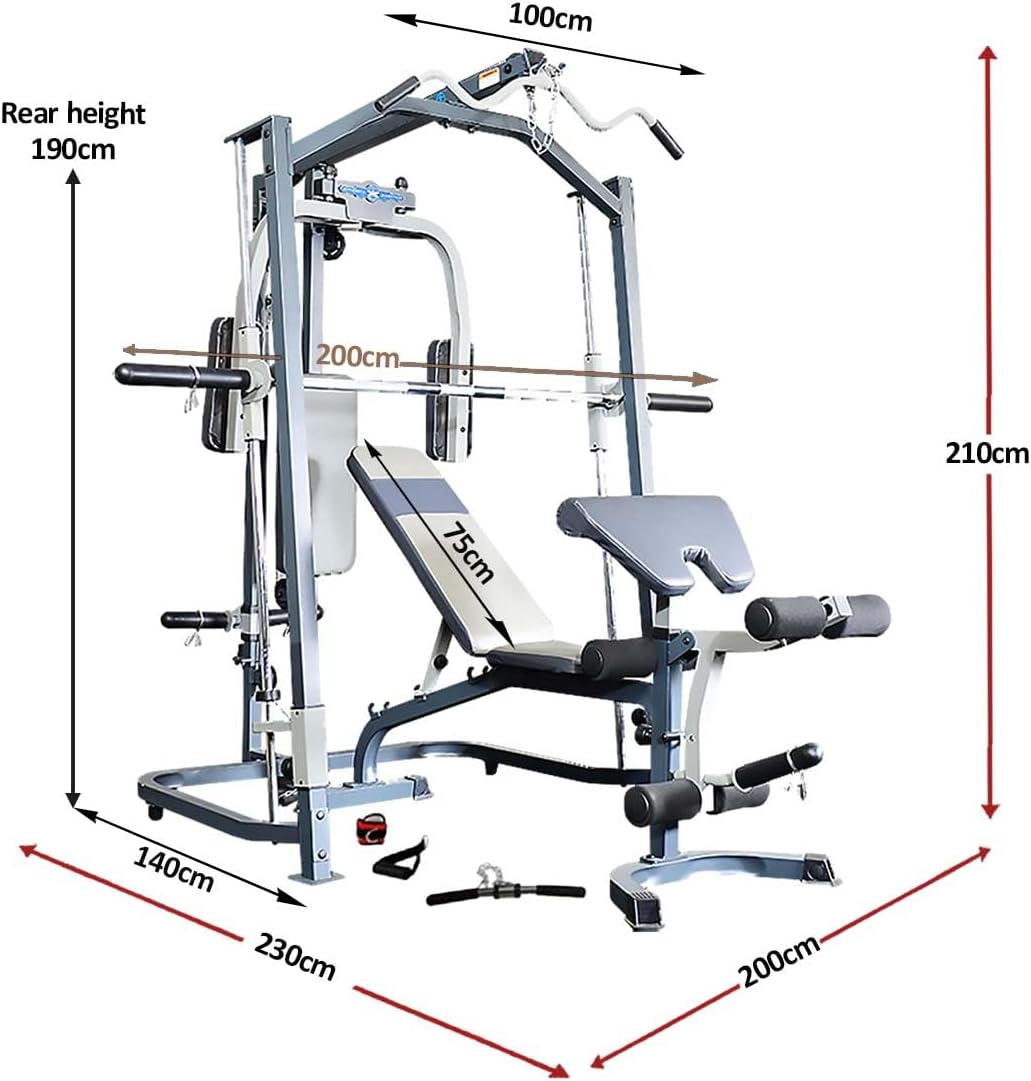

Image: Diagram illustrating the dimensions of the Marcy MP3100 Smith Machine, showing a length of 230cm, width of 200cm, and height of 210cm, with specific measurements for the bench and rear height.

وارنٹی اور سپورٹ

Marcy products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Marcy webسائٹ وارنٹی کے دعووں کے لیے اپنی خریداری کا ثبوت رکھیں۔

کسٹمر سپورٹ

If you have any questions regarding the assembly, operation, maintenance, or troubleshooting of your Marcy MP3100, please contact Marcy customer support. Contact information can typically be found in your product packaging or on the official Marcy webسائٹ

When contacting support, please have your model number (MP3100) and purchase date available.
