Посібник користувача адаптера Comsol CMMP09 USB-C на HDMI

1. Вступ

Thank you for choosing the Comsol CMMP09 USB-C to HDMI Adapter. This device is designed to expand the connectivity of your USB-C enabled computer, allowing you to connect to multiple displays, network, USB peripherals, and memory cards, all while providing power pass-through charging.

This manual provides detailed instructions for the setup, operation, and maintenance of your CMMP09 adapter to ensure optimal performance and longevity.

2. Продукт закінчивсяview

The Comsol CMMP09 adapter features a comprehensive array of ports to enhance your productivity. Below is a visual representation and description of the adapter's components.

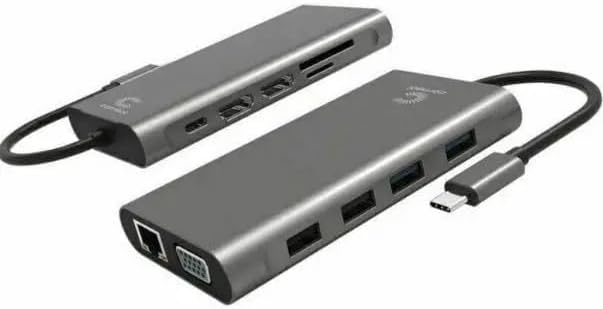

малюнок 2.1: Загальний view of the Comsol CMMP09 USB-C to HDMI Adapter, showcasinзавдяки компактному дизайну та різноманітним портам.

малюнок 2.2: Детальний view of the Comsol CMMP09 adapter with all ports clearly labeled for easy identification.

Описи портів:

• 1 x USB-C Male Connector: Connects to your computer's USB-C port.
• 2 x HDMI Female Connectors: Supports 4K Ultra HD 2160p (3840 x 2160) at 30Hz for a single monitor.
• 1 x VGA Female Connector: Supports 1920 x 1080 at 60Hz.
• 2 x USB 3.0 Type-A Female Connectors: Supports data transfer speeds up to 5Gbps.
• 2 x USB 2.0 Type-A Female Connectors: Supports data transfer speeds up to 480Mbps.
• 1 x RJ45 Female Connector: For Gigabit Ethernet LAN connection.
• 1 x SD Card Reader Female Port: For data transfer, supports SD/SDHC/SDXC V3.0 UHS-I cards up to 2TB.
• 1 x Micro SD Card Reader Female Port: For data transfer, supports Micro SD/SDHC/SDXC V3.0 UHS-I cards up to 2TB.
• 1 x USB-C Female Connector (Power Pass-Through): Supports 100W (20V 5A) power delivery to charge your host device.

3. Інструкції з налаштування

Follow these steps to set up your Comsol CMMP09 adapter:

1. Підключення до хост-пристрою: Plug the male USB-C connector of the CMMP09 adapter into an available USB-C port on your computer. Ensure the USB-C port on your computer supports video output (DisplayPort Alternate Mode) and power delivery if you intend to use these features.
2. Підключення дисплеїв:
   • For HDMI displays, connect HDMI cables from your monitors to the HDMI ports on the adapter.
   • For VGA displays, connect a VGA cable from your monitor to the VGA port on the adapter.
   • Your computer should automatically detect the connected displays. You may need to adjust display settings in your operating system (e.g., Windows Display Settings) to configure mirror or extend modes.
3. Підключення периферійних USB-пристроїв: Plug your USB devices (e.g., keyboard, mouse, external hard drive, USB flash drive) into the USB 3.0 or USB 2.0 Type-A ports on the adapter.
4. Підключення до мережі: For a wired internet connection, connect an Ethernet cable from your router or modem to the RJ45 port on the adapter.
5. Вставте карти пам'яті: Insert your SD or Micro SD cards into the corresponding card reader slots for data access.
6. Підключення живлення (необов'язково): If your computer supports USB-C Power Delivery and you wish to charge it through the adapter, connect your computer's original USB-C power adapter to the USB-C female port on the CMMP09 adapter. This port supports up to 100W power pass-through.

4. Інструкція з експлуатації

Once the adapter is set up, you can utilize its various functions:

• Вихід дисплея:
  • The adapter supports mirror or extend mode for Windows operating systems. Access your display settings (e.g., right-click on desktop > Display settings) to configure your preferred display arrangement.
  • Ensure your monitors are set to the correct input source (HDMI or VGA).
• Передача даних USB:
  • Connect USB 3.0 devices to the blue USB-A ports for maximum data transfer speeds (up to 5Gbps).
  • Connect USB 2.0 devices to the black USB-A ports for standard data transfer speeds (up to 480Mbps).
• Підключення до мережі:
  • Once connected via the RJ45 port, your computer should automatically detect the wired network connection. Verify network status in your operating system's network settings.
• Card Reader Functionality:
  • Insert SD or Micro SD cards into their respective slots. The cards will appear as removable drives in your computer's file explorer, allowing you to transfer files.
• Потужність:
  • If a power adapter is connected to the USB-C power pass-through port, your host computer will begin charging. The adapter itself does not require external power to function, but it is necessary for charging the host device.

5. Технічне обслуговування та догляд

To ensure the longevity and proper functioning of your Comsol CMMP09 adapter, please observe the following care guidelines:

• Keep the adapter dry. Avoid exposure to moisture, rain, or liquids.
• Не піддавайте адаптер впливу екстремальних температур (гарячих або холодних).
• Протирайте адаптер м’якою сухою тканиною. Не використовуйте агресивні хімікати або абразивні засоби для чищення.
• Уникайте падіння адаптера та сильних ударів.
• Do not attempt to disassemble or modify the adapter. This will void the warranty.
• Store the adapter in a clean, dust-free environment when not in use.

6. Вирішення проблем

If you encounter issues with your CMMP09 adapter, please refer to the following common problems and solutions:

• Немає виводу на дисплей:
  • Ensure the USB-C connector is fully inserted into your computer's port.
  • Verify that your computer's USB-C port supports DisplayPort Alternate Mode (video output).
  • Check that the HDMI/VGA cables are securely connected to both the adapter and the monitor.
  • Confirm that your monitor is set to the correct input source (HDMI/VGA).
  • Adjust display settings in your operating system (e.g., extend, duplicate).
• USB-пристрої не розпізнані:
  • Ensure the USB device is properly connected to the adapter's USB-A port.
  • Try connecting the USB device to a different USB port on the adapter or directly to your computer to rule out device issues.
  • If using a high-power USB device, ensure the adapter is connected to external power via its USB-C PD port.
• No Network Connection via RJ45:
  • Check that the Ethernet cable is securely connected to both the adapter and your router/modem.
  • Перевірте мережеві налаштування на вашому комп’ютері.
  • Переконайтеся, що ваш маршрутизатор/модем працює належним чином.
• SD/Micro SD Card Not Detected:
  • Переконайтеся, що картка повністю вставлена ​​у правильний слот.
  • Check if the card is damaged or corrupted by trying it in another device.
• Host Device Not Charging (Power Pass-Through):
  • Ensure your computer's original USB-C power adapter is connected to the adapter's USB-C PD port.
  • Verify that your computer's USB-C port supports Power Delivery.
  • Check the power adapter and cable for any damage.

7. Технічні характеристики

8. Гарантія та підтримка

Comsol products are designed and manufactured to the highest quality standards. For information regarding warranty terms and conditions, or for technical support, please refer to the warranty card included with your purchase or visit the official Comsol webсайт.

Зберігайте підтвердження покупки для гарантійних претензій.
