ARCHISHAPE® 2.0 Dot S/M/L
Mounting Guide
ARCHISHAPE Dot 2.0 Daisy Chain with Power Injection
Dimension (Unit: mm)

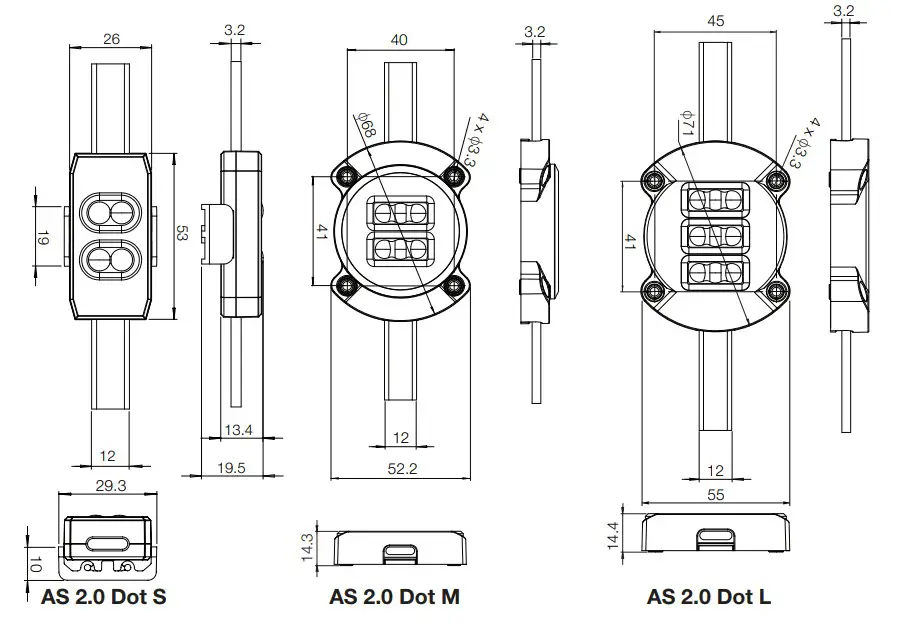

Open Beam View

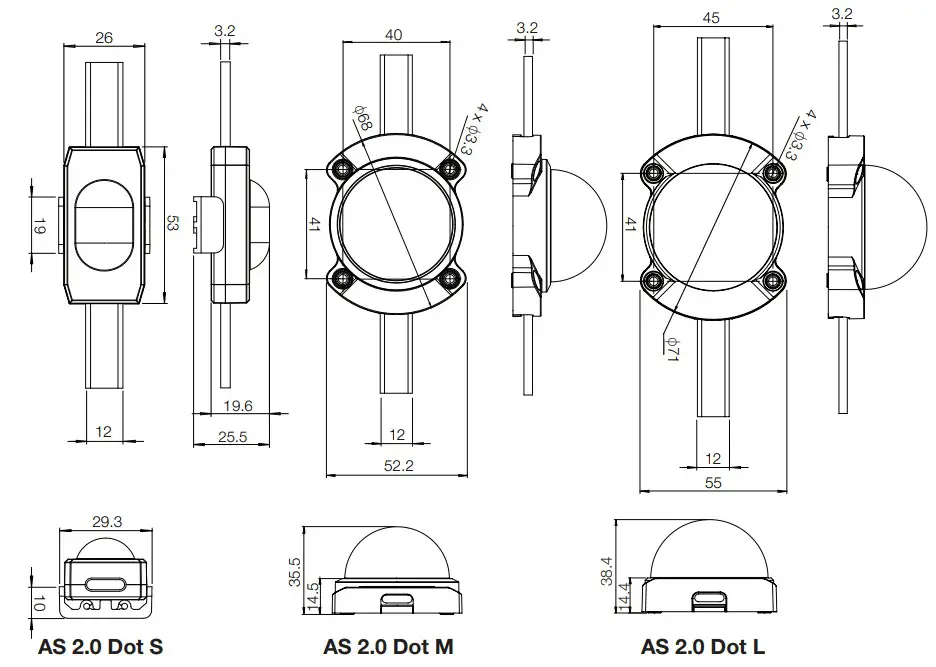

Diffused Beam View
Mounting AS 2.0 Dot S/M/L
- CONNECT TO THE POWER SUPPLY IN ACCORDANCE WITH NATIONAL REGULATIONS.
- IF THE EXTERNAL FLEXIBLE CABLE OF THIS LUMINAIRE IS DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE MANUFACTURER OR A SIMILAR QUALIFIED PERSON IN ORDER TO AVOID ANY HAZARD.
- INSTALLATION/MAINTENANCE ONLY BY SKILLED PERSONNEL.
- DURING OVERHAUL/MAINTENANCE ONLY USE ORIGINAL PARTS.
- IF ANY LUMINAIRE IS SUBSEQUENTLY MODIFIED, THE PERSON RESPONSIBLE FOR THE MODIFICATION SHALL BE CONSIDERED THE MANUFACTURER.
- THE MANUFACTURER BEARS NO LIABILITY FOR DAMAGE CAUSED BY INAPPROPRIATE USE OR APPLICATION.
