Traceable 5665TR Three Channel Alarm Timer User Guide

5665TR Three Channel Alarm Timer
User Guide

Contents hide

5665TR Three Channel Alarm Timer

Traceable® Products are ISO 9001:2018 Quality- Certified by DNV and ISO/IEC 17025:2017 accredited as a Calibration Laboratory by A2LA. Item No. 56000-13 Model No. 5665 ©2022 1065T8_M_92-5665-00 Rev. 0 09022022

INITIAL SETUP

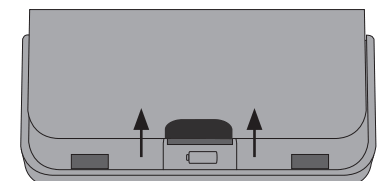

Remove battery cober and install batteries.

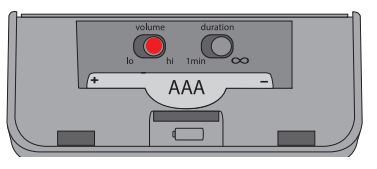

Use the volume slider to adjust buzzer volume.
Use the duration slider to adjust alarm duration.

Replace battery cover.

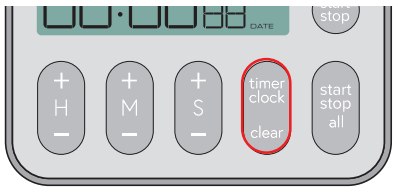

Press TIMER/CLOCK until time appears on screen.

Hold TIMER/CLOCK until there is an audible beep.

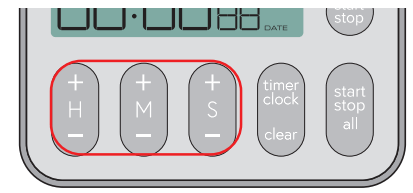

Use H/M/S buttons to set time; press TIMER/CLOCK when done.

Use H/M/S buttons to configure alarm and date.

Note: To activate alarm, press START/ STOP ALL button when ALARM is lashing. ALARM will appear on display if alarm is active.
SETTING A TIMER

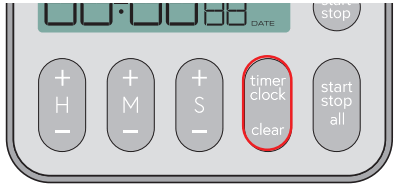

Press TIMER/CLOCK until timer is displayed.
Press and hold START/STOP on the timing channel to be configured.

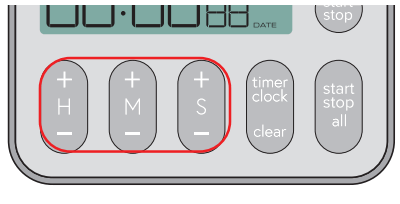

Use H/M/S buttons to configure timer.
Press START/STOP on timing channel to set timer.

Note: To recall memory, simply press START/STOP button after the timer has alarmed.
STARTING A TIMER

To start/stop an individual channel, press the START/STOP button for that channel. To start/stop all channels, press the START/STOP ALL button
Note: If a channel has not been configured with a set time, pressing START/ STOP on that channel or START/STOPALL will start a count up and TIME UP will flash on that channel.
