Vehicle positioning terminal
Safe use guide
G17H&G17S

G17H Vehicle Positioning Terminal

Please read the installation and use guide carefully before use to install correctly.If there is any change in the appearance of the product, please refer to the real object!

Product Featured

Product appearance

Terminal definition

Note: the product is divided into 4-wire and 8-wire. Mic and SOS keys are optional and can be selected according to customer needs.
3.1 Definition of terminal outgoing line

3.2 Red LED (power / working status)

Yellow LED (GSM signal light)

3.4 Blue LED (GPS signal light)

3.5 WiFi assisted positioning

Terminal Connection

Connection method：
①Connecting the lock motor
②Connecting the relay

• The red positive pole is connected to the battery positive pole (+), and the black negative pole is connected to the battery negative pole (-).
• The power input line interface is connected to the positive and negative pole interface of the power supply (the positive and negative poles cannot be reversed)
• ACC line connected to ACC line on vehicle
• Yellow wire connected relay cuts off oil power or locks motor

Oil and electricity disconnection wiring method 1:

1. Find out the “speed control handle control line”. The method: “speed control handle control line” is generally green or white, on the 4Pin connector of the controller.
2. Measure the voltage of the speed control handle line with a multimeter. The voltage of the control line of the speed control handle is 0.8V by default (in the static positive state when ACC is on). When the speed control handle is adjusted to the highest speed,it is about 4.3v-5v.
3. Change the speed control line into 2 lines.
4. Connect the two lines of the cut speed control line to the two lines of the normally closed end of the relay.

Remarks: the oil and electricity cut-off function must be equipped with a relay specified by the manufacturer (it is recommended that electric vehicles use a 5V relay specified by the manufacturer, and automobiles use a 12V relay specified by the manufacturer)
Lock motor wiring method 2:
Adjust the multimeter to the DC voltage of 200V, connect the black pen to the negative pole of the battery, and the red pen to the controller line one by one. If the voltage is displayed as a line of 3~5v, it is judged to be a locked motor line, which can be connected with the yellow line.

Equipment Operation

5.1 Login location service platform
Please log in to the service platform designated by the dealer for corresponding settings and function operations.
Default login account: IMEI number (see sticker) default login password: 123456
5.2 Downloading Mobile Application
Please log in to the website designated by the dealer to download the mobile applicationsoftware for installation.

5.3 SMS command operation

• Status query
  Format: Status#
• Set SOS number
  Format: SOS, a, number#
• Address query
  Format DW or 123

Switch ON/OFF

• card installation: install the SIM card in the correct direction when the external power is not connected. After fastening the
  SIM card, turn the switch to 0n, and then cover the surface.
• card retrieval: disconnect the external power and turn the switch to 0ff before removing the SIM card.

1. The SIM card needs to be enabled with data traffic, SIM and voice functions.

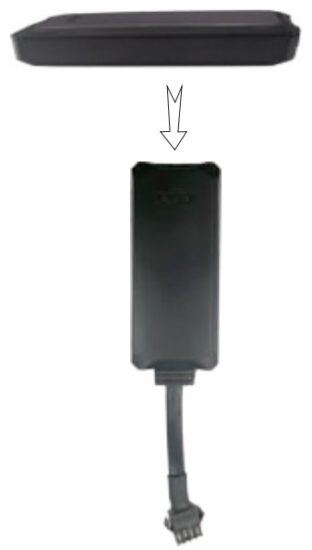

2. Close the upper cover

Installation Instructions

• Concealed installation, pay attention to waterproof.
• Please turn on the device terminal battery switch before use.During installation, ensure that (indicator light) is upward and there is no metal shield above.
• It can be fixed with tie or sponge double-sided adhesive tape.

Working Description

1. the external power equipment starts automatically, and the power indicator (red) is always on
2. use the backup battery independently without external power, and the power indicator (red) flashes slowly
3. search network signal (yellow indicator) and GPS signal (blue indicator )flash quickly
4. after normal operation, the network signal (yellow indicator) and GPS signal (blue indicator) flash slowly
5. SOS alarm:long press sos for 3 seconds, the device dials the SOS number, and the other party can realize the listening function after answering.

Battery use safety

• Do not let metal objects cause short circuit of battery contactor
• Do not bend or forcibly open the battery
• Do not immerse the battery in water or put it on fire
• The battery must be charged near room temperature, if the temperature is low 0℃ or above 45℃, the battery may not work
• It is forbidden to use batteries with deformed appearance, discoloration, liquid leakage or damaged outer packaging
• It is forbidden to disassemble and transform the battery

Troubleshooting
