Standard Microsystem ETHERNET 3016 Network Interface Card
Specifications
- NIC Type: Ethernet 3016
- Transfer Rate: 10Mbps
- Data Bus: 16-bit ISA
- Topology: Linear Bus
- Wiring Type: RG-58A/U 50ohm coaxial
- Boot ROM: Available
Product Usage Instructions
Jumper Settings:
Refer to the jumper settings on SW1 and SW2 for configuring the NIC:
- SW1/1: On, On, Off, On, Off, On, Off, On, Off, Off, On, Off, On, Off, On, Off
- SW1/2: On, On, On, Off, Off, On, On, Off, Off, On, Off, Off, v On, On, Off, Off
Boot ROM Address:
Configure the Boot ROM address using SW2/1 – SW2/8: SW2/1: On, On, Off, On, Off, Off, On, Off
Data Bus Size:
Set the data bus size using jumper settings JP1A-D: JP1A: Open, Closed
Pulse Transformer T1:
Ensure to check if Pulse Transformer T1 is installed as per JP5 setting. JP5: Closed (installed), Open (not installed)
FAQ:
Q: How do I know if the Boot ROM is enabled?
A: Check the jumper settings on SW1/8. If it is set to ‘On’, the Boot ROM is enabled.

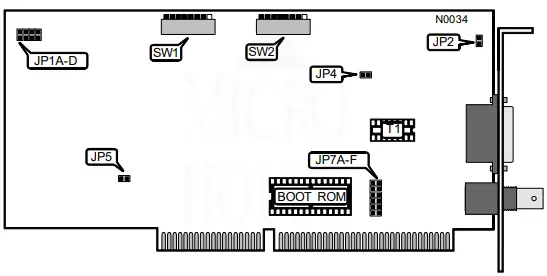

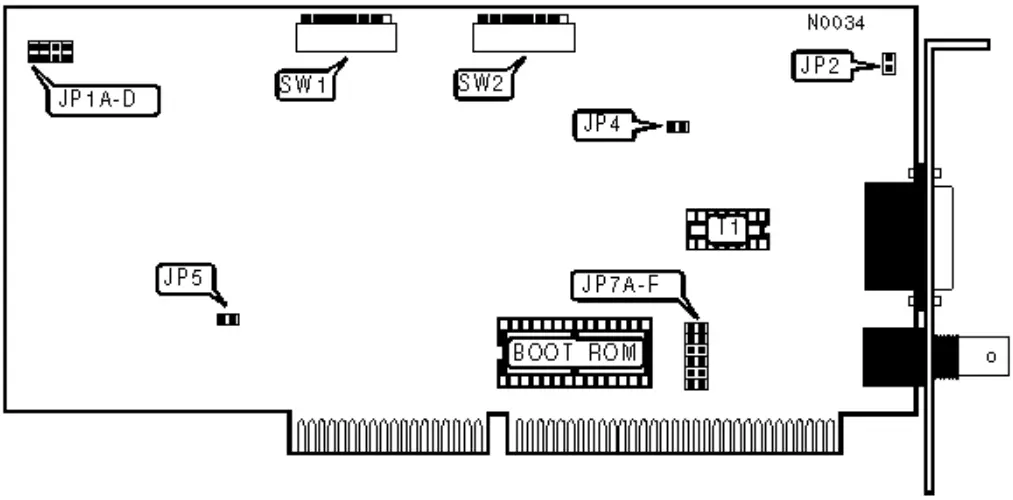

THE NETWORK INTERFACE CARD TECHNICAL GUIDE
STANDARD MICROSYSTEMS CORPORATION E T H E R N E T 3 0 1 6
- NIC Type Ethernet
- Transfer Rate 10Mbps
- Data Bus 16-bit ISA
- Topology Linear Bus
- Wiring Type RG-58A/U 50ohm coaxial
- AUI transceiver via DB-15 port
- Boot ROM Available
| I/O BASE ADDRESS | |||||||||
| Address | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 | SW1/7 | ||
| í300h | On | On | On | Off | Off | On | On | ||
| 200h | On | On | On | On | Off | On | On | ||
| 220h | Off | On | On | On | Off | On | On | ||
| 240h | On | Off | On | On | Off | On | On | ||
| 260h | Off | Off | On | On | Off | On | On | ||
| 280h | On | On | Off | On | Off | On | On | ||
| 2A0h | Off | On | Off | On | Off | On | On | ||
| 2C0h | On | Off | Off | On | Off | On | On | ||
| 2E0h | Off | Off | Off | On | Off | On | On | ||
| 320h | Off | On | On | Off | Off | On | On | ||
| 340h | On | Off | On | Off | Off | On | On | ||
| 360h | Off | Off | On | Off | Off | On | On | ||
| 380h | On | On | Off | Off | Off | On | On | ||
| 3A0h | Off | On | Off | Off | Off | On | On | ||
| 3C0h | On | Off | Off | Off | Off | On | On | ||
| 3E0h | Off | Off | Off | Off | Off | On | On | ||
| BOOT ROM | |||
| Setting SW1/8 | |||
| íDisabled | Off | ||
| Enabled | On | ||
| BOOT ROM ADDRESS | ||||||||
| Address | SW2/1 | SW2/2 | SW2/3 | SW2/4 | SW2/5 | SW2/6 | ||
| íD0000h | On | On | Off | On | Off | Off | ||
| C0000h | On | On | On | On | Off | Off | ||
| C4000h | Off | On | On | On | Off | Off | ||
| C8000h | On | Off | On | On | Off | Off | ||
| CC000h | Off | Off | On | On | Off | Off | ||
| D4000h | Off | On | Off | On | Off | Off | ||
| D8000h | On | Off | Off | On | Off | Off | ||
| DC000h | Off | Off | Off | On | Off | Off | ||
| E0000h | On | On | On | Off | Off | Off | ||
| E4000h | Off | On | On | Off | Off | Off | ||
| E8000h | On | Off | On | Off | Off | Off | ||
| EC000h | Off | Off | On | Off | Off | Off | ||
| DATA BUS SIZE | |||||||||
| Size | JP1A | JP1B | JP1C | JP1D | JP5 | SW2/7 | SW2/8 | ||
| 16-bit | Open | Open | Closed | Closed | Closed | Off | On | ||
| 8-bit | Closed | Closed | Open | Open | Open | On | On | ||
| CABLE TYPE | |||||
| Type JP2 JP4 Pulse Transformer T1 | |||||
| íRG-58A/U 50ohm coaxial | Open | Open | installed | ||
| AUI transceiver via DB-15 port | Open | Closed | not installed | ||
| INTERRUPT REQUEST | ||||||||
| IRQ | JP7A | JP7B | JP7C | JP7D | JP7E | JP7F | ||
| í3 | Closed | Open | Open | Open | Open | Open | ||
| 4 | Open | Closed | Open | Open | Open | Open | ||
| 5 | Open | Open | Closed | Open | Open | Open | ||
| 7 | Open | Open | Open | Closed | Open | Open | ||
| 9 | Open | Open | Open | Open | Closed | Open | ||
| 10 | Open | Open | Open | Open | Open | Closed | ||
