หญิงดา Voltage Regulator Rectifier Instruction Manual

1. บทนำ

This manual provides essential information for the installation, operation, and maintenance of the Yingda Voltage Regulator Rectifier, models 8M0088351 and 8M0133642. This component is designed to regulate the voltage output from the alternator and convert AC current to DC current, ensuring stable electrical power for your Mercury Outboard Motor's systems and battery charging.

Proper installation and adherence to these instructions are crucial for the optimal performance and longevity of the unit and your outboard motor's electrical system.

2. สินค้าหมดview

2.1 อะไรอยู่ในกล่อง

• One (1) Yingda Voltage Regulator Rectifier (Model 8M0088351 or 8M0133642)

2.2 คุณสมบัติหลัก

• Constructed from durable, wear-resistant plastic for long-term stability.
• Designed for anti-aging performance in marine environments.
• Utilizes high-grade electronic components for reliable voltage regulation and rectification.
• Direct replacement for specified Mercury Outboard Motor models.

3. ความเข้ากันได้

This Voltage Regulator Rectifier is compatible with the following Mercury Outboard Motor models:

• Mercury Outboard F65 65HP (EFI 2B095049 & Up)
• Mercury Outboard F75 75HP (EFI 2B095049 & Up)
• Mercury Outboard F80 80HP (EFI 2B095049 & Up)
• Mercury Outboard F90 90HP (EFI 2B095049 & Up)
• Mercury Outboard F100 100HP (EFI 2B095049 & Up)
• Mercury Outboard F115 115HP (EFI 2B095049 & Up)
• Mercury Outboard F115 115HP (EFI Pro XS 2B225488 & Up)
• Mercury Outboard F115 115HP (EFI Sea Pro 2B095049 & Up)

Replacement Part Numbers: 8M0088351, 8M0133642.

Note: Always confirm the part number and check product details carefully before purchase to ensure compatibility with your specific equipment.

4. การติดตั้ง

Installation of the voltage regulator rectifier typically involves replacing the existing unit. It is recommended that installation be performed by a qualified marine technician to ensure proper electrical connections and system integrity. Always disconnect the battery before beginning any electrical work.

4.1 ขั้นตอนการติดตั้งทั่วไป

1. ความปลอดภัยเป็นสิ่งสำคัญที่สุด: Disconnect the negative terminal of the boat's battery to prevent accidental electrical shorts.
2. Locate the Existing Unit: Identify the current voltage regulator rectifier on your Mercury Outboard Motor. Refer to your motor's service manual for its exact location.
3. การตัดสายไฟ: Carefully disconnect all electrical connectors and wires attached to the old rectifier. Note the position and color coding of each wire for correct reinstallation.
4. ถอดหน่วยเก่าออก: Unbolt or unmount the old rectifier from its mounting point.
5. หน่วยภูเขาใหม่: Secure the new Yingda Voltage Regulator Rectifier in the same location using the existing hardware. Ensure it is firmly mounted.
6. การเชื่อมต่อสายไฟ: Reconnect all electrical connectors and wires to the new rectifier, matching them to their original positions. Double-check all connections for tightness and proper seating.
7. เชื่อมต่อแบตเตอรี่อีกครั้ง: Reconnect the negative terminal of the boat's battery.
8. ระบบทดสอบ: Start the outboard motor and verify that the charging system is functioning correctly. Monitor battery voltage to ensure it is within the manufacturer's specified range (typically 13.5V to 14.5V when running).

รูปที่ 1: เกินview of the Yingda Voltage Regulator Rectifier with its integrated wiring harness and connectors.

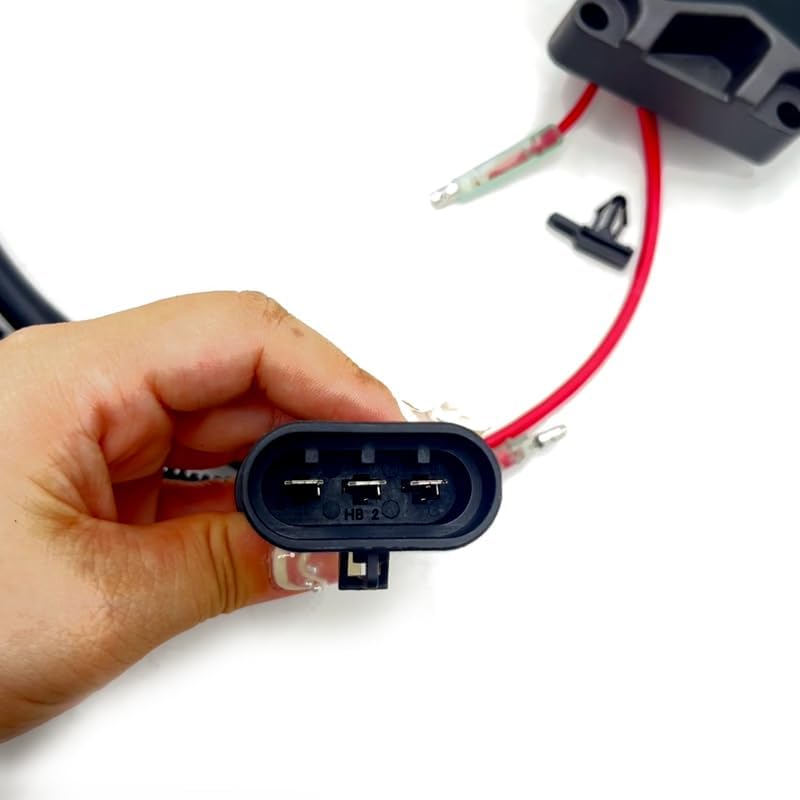

รูปที่ 2: รายละเอียด view of one of the electrical connectors, showing the three pins for connection to the outboard motor's electrical system.

Figure 3: An alternative perspective of the rectifier, highlighting the heat sink fins and overall construction.

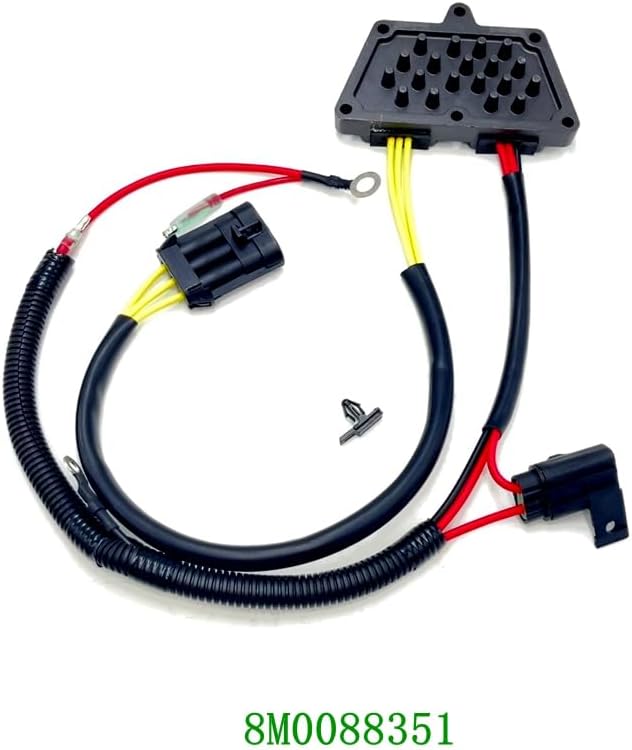

Figure 4: The voltage regulator rectifier unit, clearly displaying the part number 8M0088351 for identification.

5. การดำเนินการ

ฉบับที่tage regulator rectifier is a critical component in your outboard motor's electrical system. Its primary functions are:

• เล่มที่tage ระเบียบข้อบังคับ: It maintains a stable output voltage from the alternator, preventing overcharging or undercharging of the battery. This protects the battery and other electrical components from damage due to voltagความผันผวนของอี
• AC to DC Conversion: The alternator generates alternating current (AC). The rectifier converts this AC into direct current (DC), which is required to charge the battery and power the motor's electrical accessories.

Once correctly installed, the unit operates automatically whenever the engine is running, continuously monitoring and adjusting the electrical output to ensure optimal performance of the charging system.

6. การบำรุงรักษา

The Yingda Voltage Regulator Rectifier is designed for durability and minimal maintenance. However, periodic inspection can help ensure its continued reliable operation:

• การตรวจสอบภาพ: Periodically check the unit and its wiring for any signs of corrosion, fraying, or damage. Ensure all connections are secure.
• ความสะอาด : Keep the rectifier free from excessive dirt, salt, or debris, which can impede heat dissipation.
• การกระจายความร้อน: Ensure that the area around the rectifier allows for adequate airflow to prevent overheating, especially during prolonged operation.

Warning: Do not attempt to open or repair the unit. Tampering with the sealed unit may void any applicable warranty and can lead to electrical hazards.

7 การแก้ไขปัญหา

If you experience issues with your outboard motor's electrical system, the voltage regulator rectifier may be a contributing factor. Common symptoms of a faulty rectifier include:

• แบตเตอรี่ไม่ชาร์จ: The battery consistently drains or does not hold a charge, even after extended engine operation.
• การชาร์จไฟเกิน: The battery becomes excessively hot, boils, or shows signs of swelling, indicating too much voltagกำลังจัดหา e
• Erratic Electrical Behavior: Lights dim, electronics malfunction, or the engine experiences intermittent electrical issues.
• Blown Fuses: Repeatedly blown fuses in the charging circuit.

7.1 การตรวจสอบพื้นฐาน

1. ตรวจสอบแบตเตอรี่: Ensure the battery itself is in good condition and fully charged.
2. ตรวจสอบสายไฟ: Verify all connections to the rectifier are clean, tight, and free from corrosion or damage.
3. Test Alternator Output: If possible, test the AC output from the alternator to ensure it is generating power.
4. เล่มที่tagอี ทดสอบ: With the engine running, use a multimeter to check the voltage at the battery terminals. It should typically be between 13.5V and 14.5V. Readings significantly outside this range may indicate a rectifier issue.

If these basic checks do not resolve the issue, or if you are unsure about performing electrical diagnostics, consult a qualified marine technician.

8. ข้อมูลจำเพาะ

9. การรับประกันและการสนับสนุน

Yingda products undergo quality testing before shipment to ensure reliability. This product is supported by a 30-day refund policy from the date of purchase.

For technical assistance, warranty claims, or further inquiries, please contact your retailer or the manufacturer directly. When contacting support, please have your product model number (8M0088351 or 8M0133642) and purchase information available.
