คู่มือผู้ใช้ไฟฉาย UV กำลังสูง NICRON B75

1. บทนำ

This manual provides comprehensive instructions for the safe and effective use of your NICRON B75 High Power UV Flashlight. Please read this manual thoroughly before operating the device and retain it for future reference. The NICRON B75 is a versatile, rechargeable LED flashlight featuring a 90-degree rotatable head, a magnetic base, and both white light (up to 1000 lumens) and 395nm ultraviolet (UV) light modes.

2. สินค้าหมดview

2.1 คุณสมบัติหลัก

• การหมุนเวียนอเนกประสงค์: 90-degree rotatable head for adjustable light angle.
• High Illumination: Up to 1000 lumens of white light with a beam distance exceeding 100 meters.
• การตรวจจับรังสียูวี: Integrated 395nm UV light for various detection purposes.
• ฐานแม่เหล็ก: Allows attachment to metal surfaces for hands-free operation.
• โครงสร้างทนทาน: IP65 waterproof rating and 1-meter drop resistance.
• ชาร์จไฟได้: Convenient USB charging.

2.2 เนื้อหาบรรจุภัณฑ์

• ไฟฉาย NICRON B75
• Rechargeable Battery (pre-installed or included separately)
• สายชาร์จ

Figure 1: NICRON B75 Flashlight with its components, including the UV light function, magnetic base, and charging cable.

3. การตั้งค่า

3.1 การชาร์จเริ่มต้น

Before first use, fully charge the flashlight. Connect the provided charging cable to the flashlight's charging port and to a USB power source (e.g., computer, wall adapter). The power indicator light will show charging status.

4. คู่มือการใช้งาน

4.1 การเปิด/ปิดเครื่องและการเลือกโหมด

The flashlight features four modes: High, Medium, Low (white light), and UV light.

• เปิด: Press the power button once. The flashlight will turn on in the last used white light mode.
• To Cycle White Light Modes: While the white light is on, press the power button repeatedly to cycle through High → Medium → Low.
• To Activate UV Mode: From any state (on or off), press and hold the power button for approximately 1 second. The flashlight will switch to UV mode.
• วิธีปิด: Press the power button once when the flashlight is in any mode for more than 3 seconds. If cycling modes, press the button after the desired mode is active for 3 seconds.

Figure 2: Illustration of the four available light modes: High, Medium, Low white light, and UV light.

4.2 Using the 90-Degree Rotatable Head

The flashlight head can be rotated 90 degrees to adjust the beam direction. This feature is useful for hands-free operation when combined with the magnetic base or pocket clip.

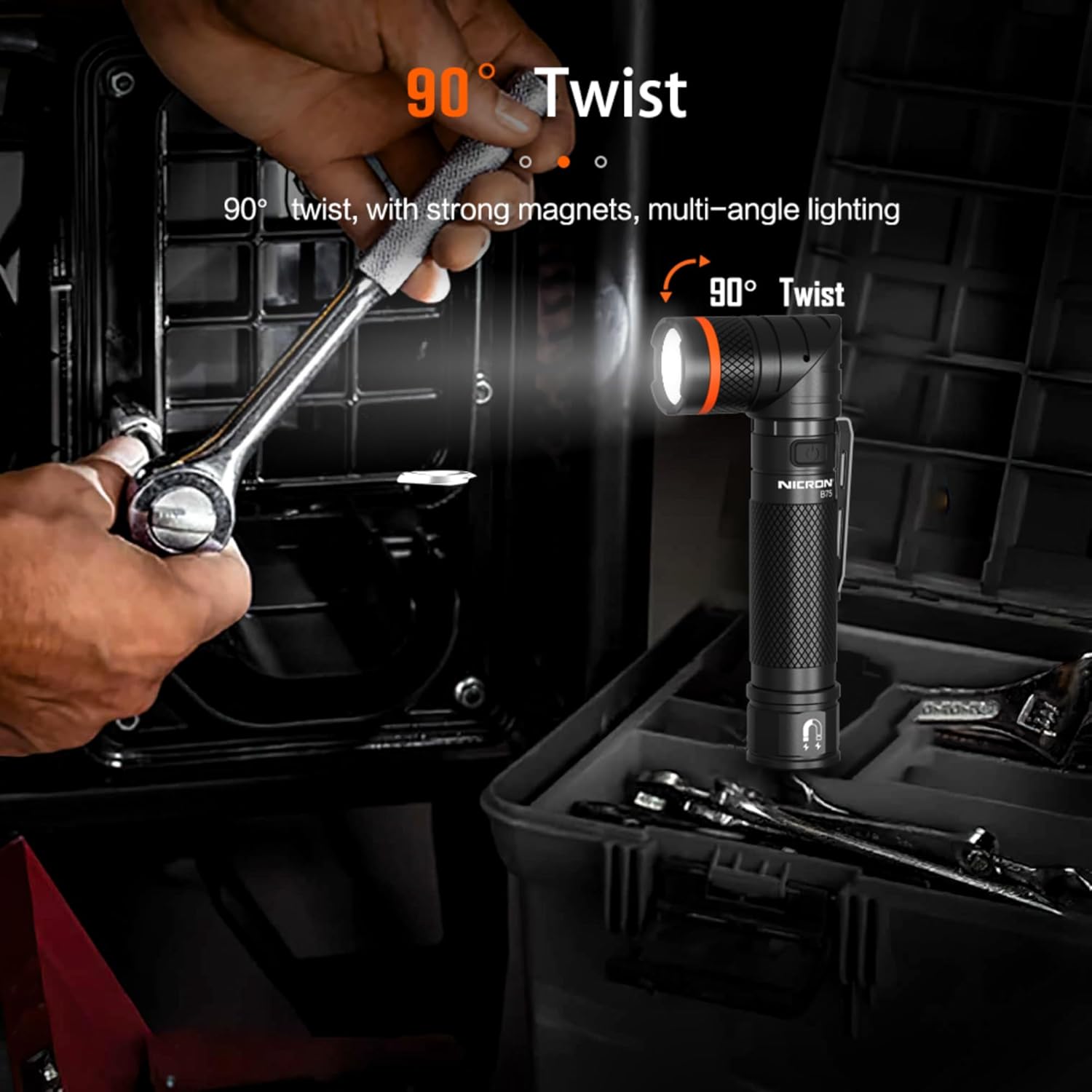

Figure 3: The flashlight head can be twisted 90 degrees for multi-angle lighting, ideal for hands-free use.

4.3 Utilizing the Magnetic Base

The integrated magnetic base allows the flashlight to be securely attached to ferrous metal surfaces. This provides convenient hands-free lighting for tasks such as automotive repairs or working in confined spaces.

4.4 UV Light Applications

The 395nm UV light can be used for various detection purposes, including:

• Counterfeit currency detection.
• Identifying pet urine stains.
• Detecting optical brighteners in fabrics.
• Gemological appraisal.
• Locating scorpions and other insects.

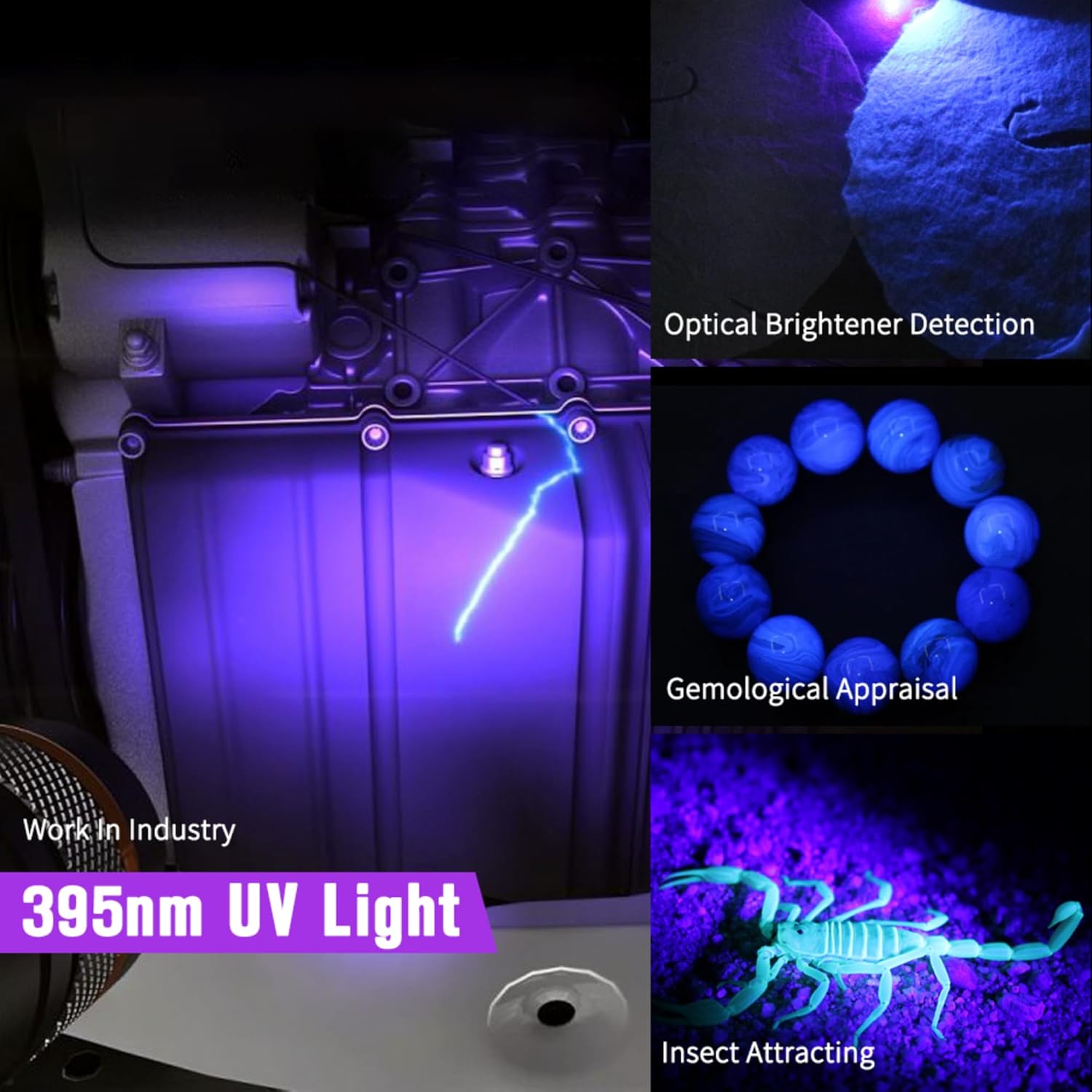

รูปที่ 4: อดีตamples of how the 395nm UV light can be used for detection in various scenarios.

5. การชาร์จและแบตเตอรี่

5.1 กระบวนการชาร์จ

To charge the flashlight, connect the USB charging cable to the flashlight's port and a suitable USB power source. The charging indicator light will provide feedback on the battery status.

5.2 ไฟแสดงสถานะแบตเตอรี่

The power button features an integrated LED indicator to display battery charge level:

• ไฟเขียว: Battery level is approximately >40%.
• ไฟสีเหลือง: Battery level is approximately 40%-20%.
• ไฟแดง: Battery level is approximately <20%, requiring charging.
• During charging, the indicator light will be RED. It will turn GREEN when the battery is fully charged.

Figure 5: The power indicator light displays battery status and charging progress.

6. การบำรุงรักษา

6.1 การทำความสะอาด

เช็ดตัวไฟฉายด้วยผ้านุ่มๆamp cloth. Do not use abrasive cleaners or solvents. Keep the lens clean for optimal light output.

6.2 พื้นที่จัดเก็บ

Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the battery is partially charged (around 50%) and recharge every 3-6 months to maintain battery health.

6.3 ความต้านทานต่อน้ำ

The NICRON B75 has an IP65 waterproof rating, meaning it is protected against dust ingress and low-pressure water jets from any direction. It is resistant to rain and splashes but should not be submerged in water for prolonged periods.

7 การแก้ไขปัญหา

• ไฟฉายไม่ติด: Ensure the battery is charged. If the battery is removable, check if it is correctly inserted.
• แสงสว่างไม่เพียงพอ: Charge the battery. Clean the lens if it is dirty.
• Flashlight does not charge: Ensure the charging cable is securely connected to both the flashlight and the power source. Try a different USB port or charging adapter.

8. ข้อมูลจำเพาะ

Figure 6: Detailed technical specifications for the NICRON B75 Flashlight.

9. ข้อมูลด้านความปลอดภัย

• Do not shine the flashlight directly into eyes, as the intense light can cause temporary vision impairment or permanent damage.
• เก็บให้พ้นจากมือเด็ก
• Do not disassemble the flashlight; this may void the warranty and cause damage.
• Use only the recommended battery type and charging cable.
• Avoid exposing the flashlight to extreme heat or open flames.
• ทิ้งแบตเตอรี่ตามระเบียบข้อบังคับในท้องถิ่น

10. การรับประกันและการสนับสนุน

For warranty information or technical support, please refer to the product packaging or contact NICRON customer service directly. Keep your purchase receipt as proof of purchase.
