TOPENS AD5S Automatic Gate Opener Kit Instruction Manual

1. บทนำ

The TOPENS AD5S Automatic Gate Opener Kit is designed for medium-duty dual swing gates. This system provides automated access control for gates up to 16 feet in length or a maximum weight of 550 pounds per gate leaf. It is engineered for reliable and convenient operation, suitable for residential areas, courtyards, ranches, and farms.

The kit includes two 24VDC 50W motors and is compatible with various power sources including AC electricity, batteries, and solar power. Key features include advanced security code technology, electromagnetism limit switches, obstacle detection with stop-and-reverse function, auto-close, and soft start/soft stop for extended motor lifespan.

2. ข้อมูลด้านความปลอดภัยที่สำคัญ

WARNING: Improper installation or use can cause serious injury or death. Always follow all instructions and safety warnings.

• Read and understand all instructions before installation and use.
• Ensure the gate is properly installed and in good working condition before installing the opener.
• ให้เด็กและสัตว์เลี้ยงอยู่ห่างจากบริเวณประตู โดยเฉพาะในระหว่างการใช้งาน
• Do not allow children to operate the gate opener or play with controls.
• Never attempt to repair the gate opener yourself. Contact qualified personnel for service.
• Ensure all electrical connections are secure and protected from weather.
• Use the manual release key only when necessary and ensure the gate is disengaged before manual operation.

3. ส่วนประกอบที่รวมอยู่

The TOPENS AD5S kit typically includes the following main components:

• Two 24VDC 50W Gate Opener Actuator Arms
• กล่องควบคุม
• Two 10W Monocrystalline Solar Panels
• ตัวควบคุมการชาร์จพลังงานแสงอาทิตย์
• Remote Controls (quantity may vary)
• สายไฟต่อ 25 ตัวนำ ยาว 5 ฟุต
• Full Set of Required Installation Hardware
• ปุ่มปลดล็อคแบบแมนนวล

Please refer to the packaging contents for a complete and accurate list of included items.

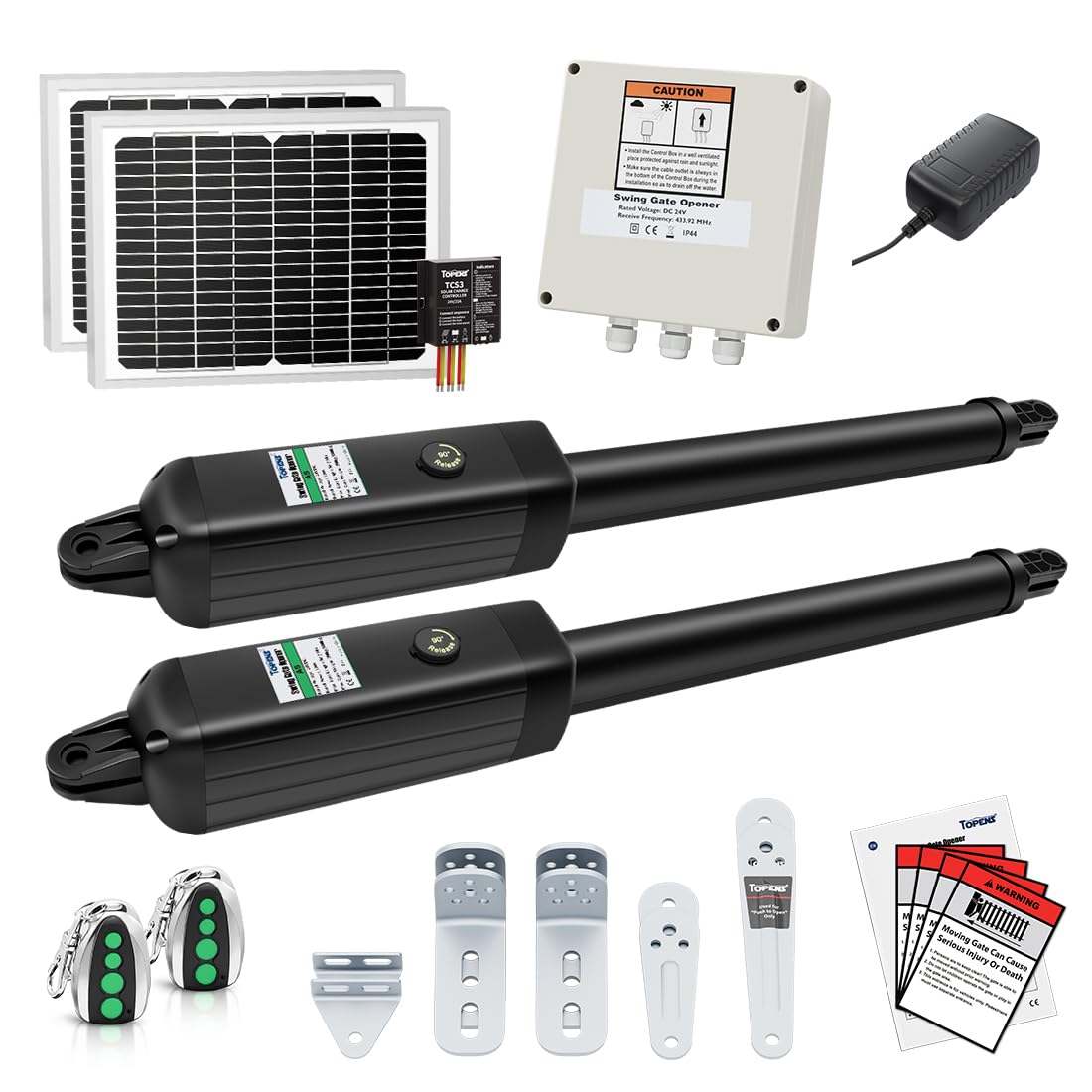

Figure 3.1: Main components of the TOPENS AD5S Automatic Gate Opener Kit.

4. การตั้งค่าและการติดตั้ง

The TOPENS AD5S gate opener is designed for easy installation, requiring only basic tools. Detailed step-by-step guidance is available in the comprehensive user manual provided with the kit.

4.1 ความเข้ากันได้ของเกต

The AD5S is suitable for dual swing gates with a maximum length of 16 feet or a maximum weight of 550 pounds per gate leaf. For solid or heavy-duty gates, alternative TOPENS models may be recommended.

Figure 4.1: Gate capability chart indicating maximum weight per gate leaf based on length.

4.2 โหมดพลังงาน

ระบบนี้มีตัวเลือกแหล่งพลังงานที่ยืดหยุ่น:

• Solar Panels and Batteries: Utilizes the included 10W solar panels and solar charge controller. Requires two 12V automotive/marine type batteries (not included).
• AC Electricity and Batteries: Can be powered by AC electricity using a DPS180-U AC-DC Power Supply (not included) and two 12V batteries (not included) for backup.
• AC Electricity, Solar Panels, and Backup Batteries: A combination of all power sources for maximum reliability.

Figure 4.2: Diagrams illustrating various power configurations for the gate opener.

4.3 ประเภทการติดตั้ง

The AD5S supports both Pull-to-Open and Push-to-Open installation modes, allowing the gate to swing inward or outward based on your preference and gate structure.

Figure 4.3: Diagrams showing Pull-to-Open (inward swing) and Push-to-Open (outward swing) installation modes.

4.4 Actuator and Control Box Dimensions

The actuator arms have a fully extended length of 48.4 inches (1230mm) and a retracted length of 33.7 inches (855mm). The control box measures 6.3 x 6.3 x 2.8 inches (160 x 160 x 70mm).

Figure 4.4: Visual representation of the control box and actuator arm dimensions.

5. คู่มือการใช้งาน

5.1 การทำงานของรีโมทคอนโทรล

The gate opener is operated using the provided remote controls. Pressing the designated button on the remote will initiate the gate opening or closing sequence. The remotes utilize advanced TOPENS code technology for secure access.

Figure 5.1: Illustrates using a remote control to operate the gate opener.

5.2 คุณลักษณะด้านความปลอดภัย

• สวิตช์จำกัดการทำงานด้วยแม่เหล็กไฟฟ้า: Easily adjustable for precise gate positioning.
• Stop-and-Reverse Function: Detects obstacles during gate operation and reverses direction to prevent damage or injury.
• คุณสมบัติปิดอัตโนมัติ: Automatically closes the gate after a set period, enhancing property security.
• ระบบสตาร์ทและหยุดรถอย่างนุ่มนวล: Ensures smooth gate movement, reducing wear and tear on the motor and extending its lifespan.

Figure 5.2: Visual representation of key safety and operational features.

5.3 การเผยแพร่ด้วยตนเอง

กรณีไฟดับtage or remote control loss, a manual release key is included to disengage the gate opener, allowing for manual gate operation.

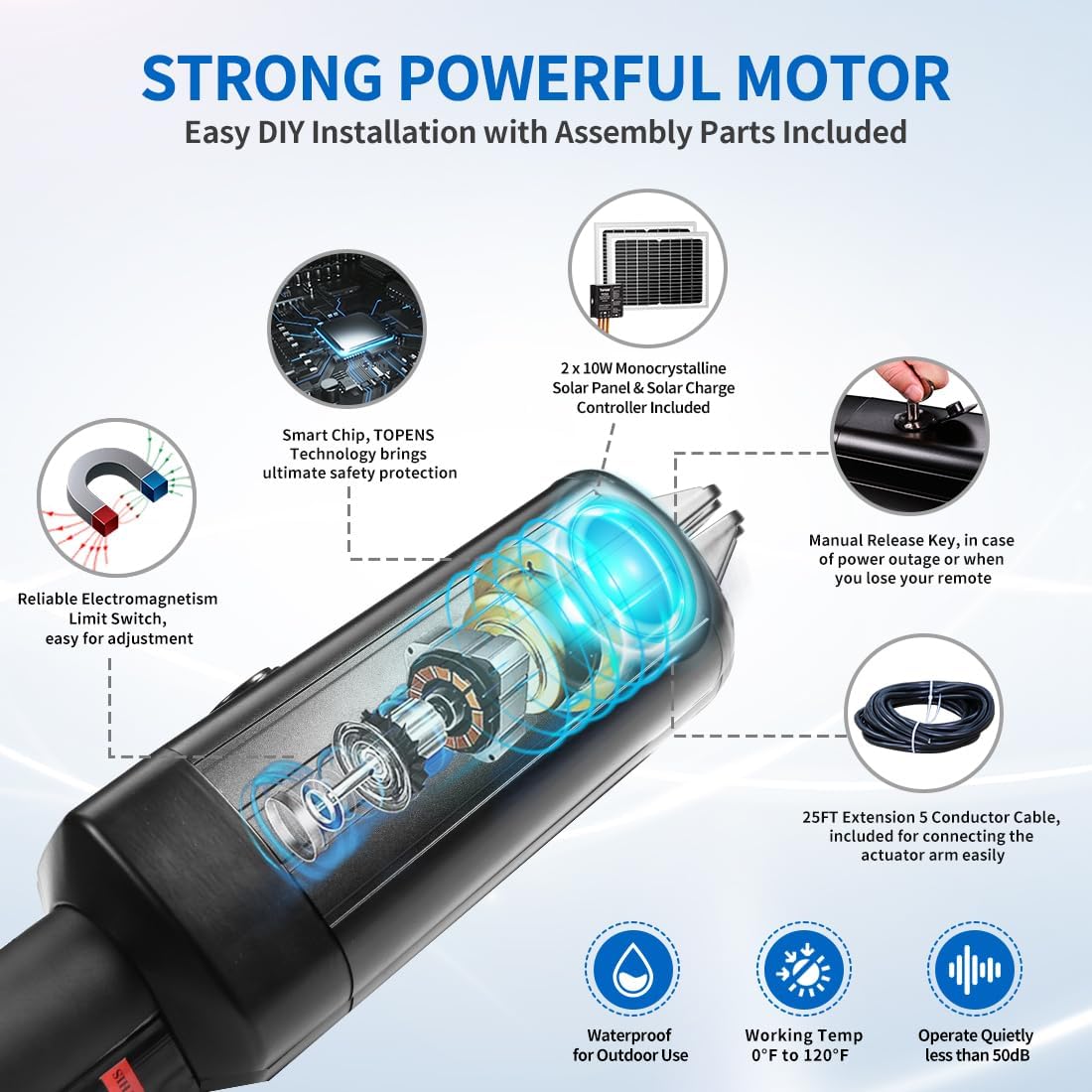

Figure 5.3: Diagram highlighting the manual release mechanism and other motor components.

6. การบำรุงรักษา

Regular maintenance ensures optimal performance and longevity of your TOPENS AD5S gate opener. Perform the following checks periodically:

• ตรวจสอบชิ้นส่วนที่เคลื่อนไหว: Check all hinges, brackets, and moving parts for wear, damage, or loose connections. Lubricate as needed.
• ล้างสิ่งกีดขวาง: Ensure the gate path is free from debris, vegetation, or any objects that could impede movement.
• ตรวจสอบการเชื่อมต่อไฟฟ้า: Verify that all wiring connections in the control box and to the solar panels/batteries are secure and free from corrosion.
• ตรวจสอบสุขภาพแบตเตอรี่: If using batteries, periodically check their charge level and overall condition. Replace if necessary.
• แผงโซล่าเซลล์ที่สะอาด: Keep solar panels clean from dust, dirt, and snow to ensure efficient charging.

7 การแก้ไขปัญหา

If you encounter issues with your gate opener, refer to the detailed troubleshooting guide in the user manual. Common issues and their potential solutions include:

• ประตูไม่ตอบสนอง: Check power supply, remote control battery, and ensure the manual release is fully engaged.
• Gate Stops Mid-Operation: May indicate an obstruction. Clear the path and check safety sensor alignment.
• การทำงานเป็นระยะ: Check for loose wiring connections or weak battery charge.
• เสียงที่ผิดปกติ: Inspect for mechanical wear or obstructions in the gate's movement.

For persistent problems, contact TOPENS customer service for technical support.

8. ข้อมูลจำเพาะ

9. อุปกรณ์เสริมที่ใช้ร่วมกันได้

Enhance the functionality and convenience of your TOPENS AD5S gate opener with a range of compatible accessories, available at the TOPENS Online Store. These include:

• TC196 รีโมทคอนโทรล Tuya WiFi
• TC188 แป้นพิมพ์สากล
• TC175P ปุ่มกดแบบมีสาย
• ปุ่มกดไร้สาย TKP3
• TEW3 ก้านเซนเซอร์ทางออกของยานพาหนะ
• ชุดรีโมทคอนโทรล Homelink รุ่น HLR01
• UPS01 แหล่งจ่ายไฟฟ้าแบบไม่หยุดชะงัก
• ชุดแผงโซลาร์เซลล์ TSQ20W 24V 20W
• ET24 กลอนประตูไฟฟ้า
• โฟโตเซลล์สะท้อนแสง TRF3
• TC102 โฟโต้บีมเซนเซอร์
• ไฟเตือน JD24VY
• M12 เครื่องส่งสัญญาณควบคุมระยะไกล
• ตัวรับสัญญาณภายนอกอเนกประสงค์ ERM12
• TC148 ปุ่มกดติดผนังกันน้ำ
• TC173 ปุ่มกดไร้สาย

Figure 9.1: A selection of compatible accessories for the TOPENS AD5S gate opener.

10. การรับประกันและการสนับสนุน

All TOPENS products come with a 12-month warranty against defects. Additionally, a 30-day exchange and return policy is offered. For any questions, assistance, or to access the user manual and installation videos, please visit the ท็อป webเว็บไซต์. TOPENS is committed to providing professional and timely technical support.
