Einhell TC-SY 700 S Electric Paint Spray Gun User Manual

1. บทนำ

The Einhell TC-SY 700 S electric paint spray gun is a semi-stationary system designed for applying lacquers, glazes, and interior wall paints on medium to large work surfaces. This manual provides essential information for safe and efficient operation, setup, maintenance, and troubleshooting of your device.

Please read this manual thoroughly before using the product for the first time and keep it for future reference.

2. คำแนะนำด้านความปลอดภัย

WARNING: Always observe general safety precautions when working with paints and spray paints. Failure to do so may result in serious injury or property damage.

• อุปกรณ์ป้องกันภัยส่วนบุคคล: Always wear appropriate personal protective equipment, including eye protection (safety goggles), skin protection (gloves and protective clothing), and respiratory protection (mask) to prevent exposure to paint fumes and particles.
• การระบายอากาศ : Ensure adequate ventilation in the work area to prevent the buildup of hazardous fumes. Work in a well-ventilated space or use an exhaust fan.
• วัสดุไวไฟ: Do not spray near open flames, pilot lights, or other ignition sources. Many paints and solvents are flammable.
• ความปลอดภัยทางไฟฟ้า: Ensure the power cord is in good condition and avoid using the device in wet conditions. Do not operate the spray gun if the power cord is damaged.
• เด็กและผู้เห็นเหตุการณ์: ให้เด็กและผู้ยืนดูอยู่ห่างจากพื้นที่ทำงาน
• การปล่อยแรงดัน: Always release pressure from the system before cleaning, refilling, or performing any maintenance.
• Proper Dilution: Always follow the paint manufacturer's instructions for proper dilution and compatibility with spray guns.

3. เนื้อหาบรรจุภัณฑ์

The Einhell TC-SY 700 S electric paint spray gun package includes the following components:

• Einhell TC-SY 700 S Paint Spray System unit
• 3.8-meter air hose
• สายสะพายไหล่
• 2 nozzles for different viscosities (lacquer, glaze, paint)
• Purification brush for cleaning the absorption tube
• Purification needle for cleaning the spray nozzle
• ถ้วยตวงความหนืด
• 1000 ml paint container
• ฝาภาชนะ

4. การตั้งค่า

4.1 การเตรียมสี

1. Ensure your paint is suitable for spray application. Refer to the paint manufacturer's instructions.
2. Use the provided viscosity measuring cup to check the paint's viscosity. Dilute the paint with the appropriate solvent (water for water-based paints, thinner for oil-based paints) until it reaches the recommended viscosity for spraying.
3. Pour the prepared paint into the 1000 ml paint container.

4.2 การประกอบปืนพ่นสี

1. Attach the spray head to the main unit.
2. Select the appropriate nozzle for your paint type and desired spray pattern.
3. Securely attach the paint container to the spray head.
4. Connect the air hose from the main unit to the spray gun handle. The anti-twist air hose design helps prevent tangles.
5. Attach the shoulder strap to the main unit for comfortable portability during use.

5. การดำเนินการ

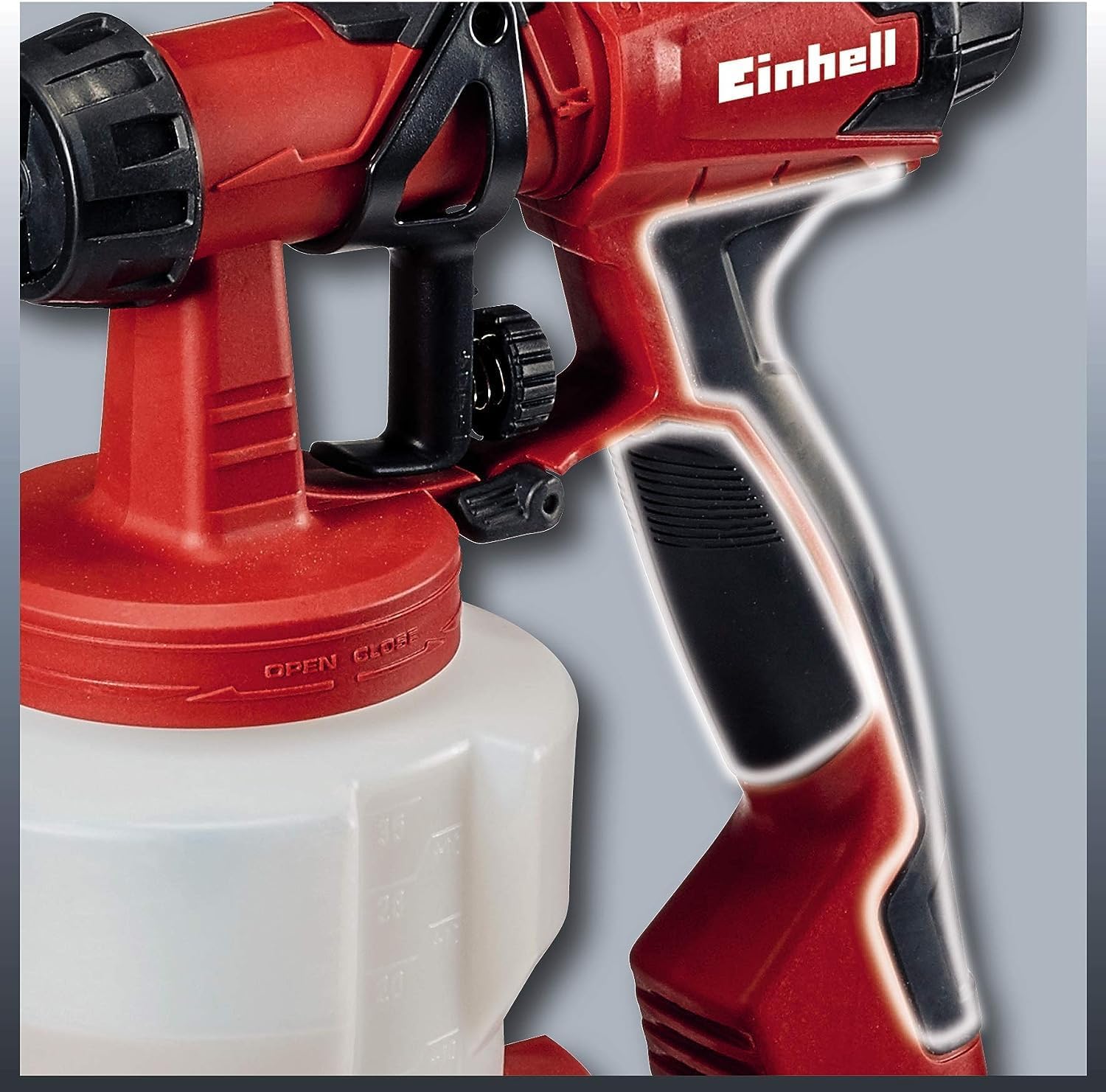

5.1 Adjusting Spray Pattern and Flow

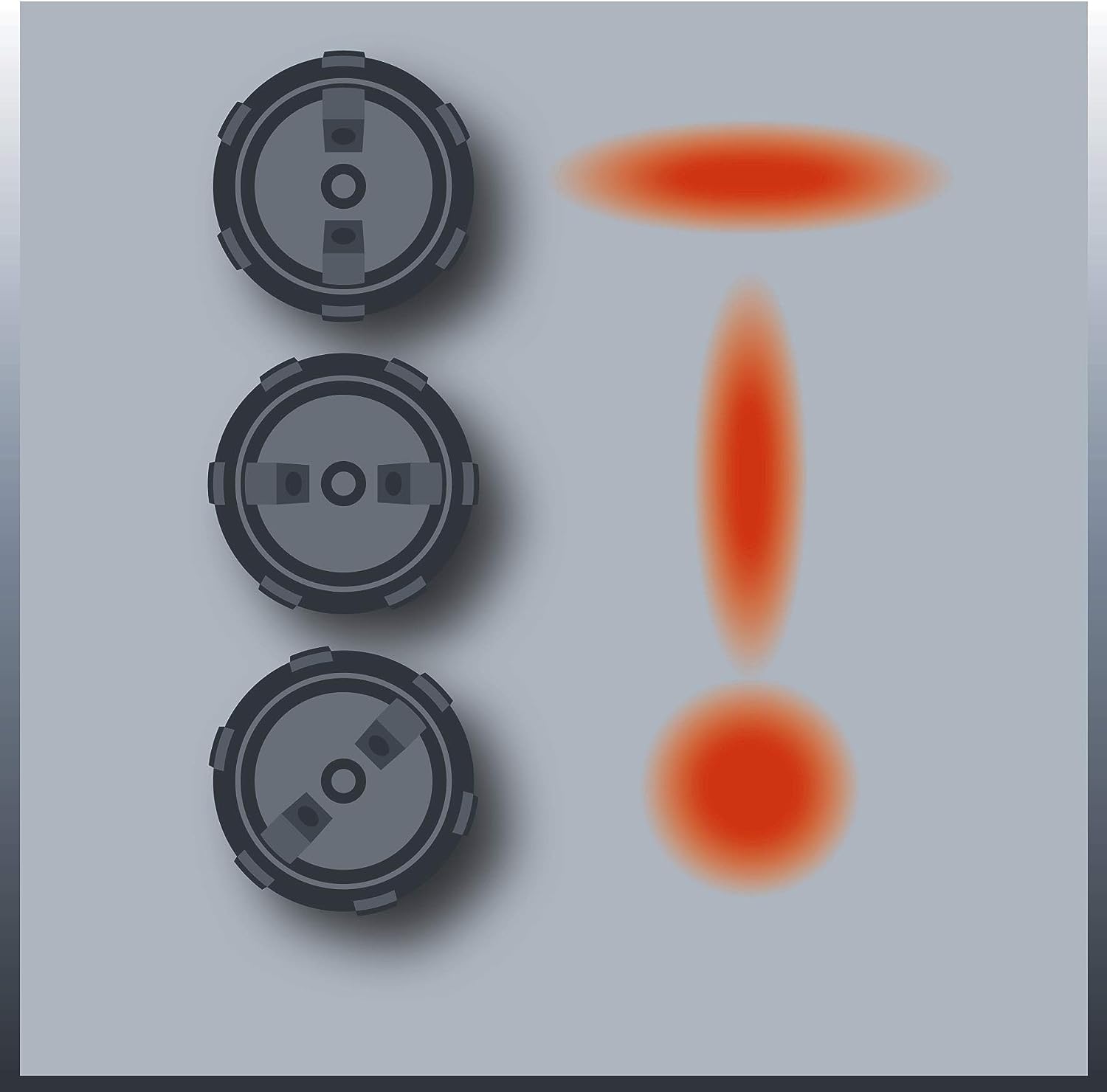

1. รูปแบบสเปรย์: The air cap can be adjusted to achieve three different spray patterns: vertical, horizontal, and circular. Rotate the air cap to select the desired pattern.
2. Paint Flow Regulation: Use the paint flow regulator knob on the spray gun to precisely adjust the amount of paint being applied. Start with a lower setting and increase as needed.

5.2 เทคนิคการพ่น

• Hold the spray gun at a consistent distance (typically 15-30 cm) from the surface.
• เคลื่อนปืนฉีดพ่นเป็นจังหวะที่ราบรื่นและสม่ำเสมอ โดยให้ทับซ้อนกันในแต่ละครั้งประมาณ 50%
• Avoid tilting the spray gun excessively, as this can lead to uneven application or drips.
• Practice on a test surface (e.g., cardboard) to get a feel for the spray pattern and flow before applying to your main project.

6. การบำรุงรักษาและการทำความสะอาด

Proper cleaning after each use is crucial to prevent paint residue buildup and ensure the longevity and optimal performance of your spray gun.

1. ภาชนะใส่สีเปล่า: After spraying, empty any remaining paint from the container. If you have excess paint, use the provided lid to seal the container for storage.
2. ถอดแยกชิ้นส่วน: Detach the spray head from the main unit and disassemble all parts that come into contact with paint (nozzle, air cap, paint container, absorption tube).
3. ทำความสะอาดส่วนประกอบ: Clean all disassembled parts thoroughly with the appropriate cleaning agent (water for water-based paints, solvent for oil-based paints). Use the purification brush for the absorption tube and the purification needle for the spray nozzle to remove any clogs.
4. ล้างและเช็ดให้แห้ง: Rinse all parts with clean water and allow them to dry completely before reassembling.
5. ประกอบกลับเข้าที่: Reassemble the spray gun, ensuring all parts are correctly fitted.
6. เก็บ: Store the spray gun and its accessories in a clean, dry place. The pull-along trolley design allows for convenient and space-saving storage of the hose.

7 การแก้ไขปัญหา

8. ข้อมูลจำเพาะทางเทคนิค

9. การรับประกันและการสนับสนุน

This Einhell product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details. Spare parts availability is typically 1 year from the date of purchase.

For technical support, service, or to order spare parts, please contact Einhell customer service through their official website or the contact information provided in your product documentation. When contacting support, please have your model number (TC-SY 700 S) and serial number (if applicable) ready.
