1. Муқаддима
Thank you for choosing the OSRAM Retractable Ceiling Fan 1070. This innovative ceiling fan combines efficient air circulation with integrated LED lighting, featuring retractable blades for a sleek, space-saving design. This manual provides essential information for safe installation, operation, and maintenance of your new ceiling fan.

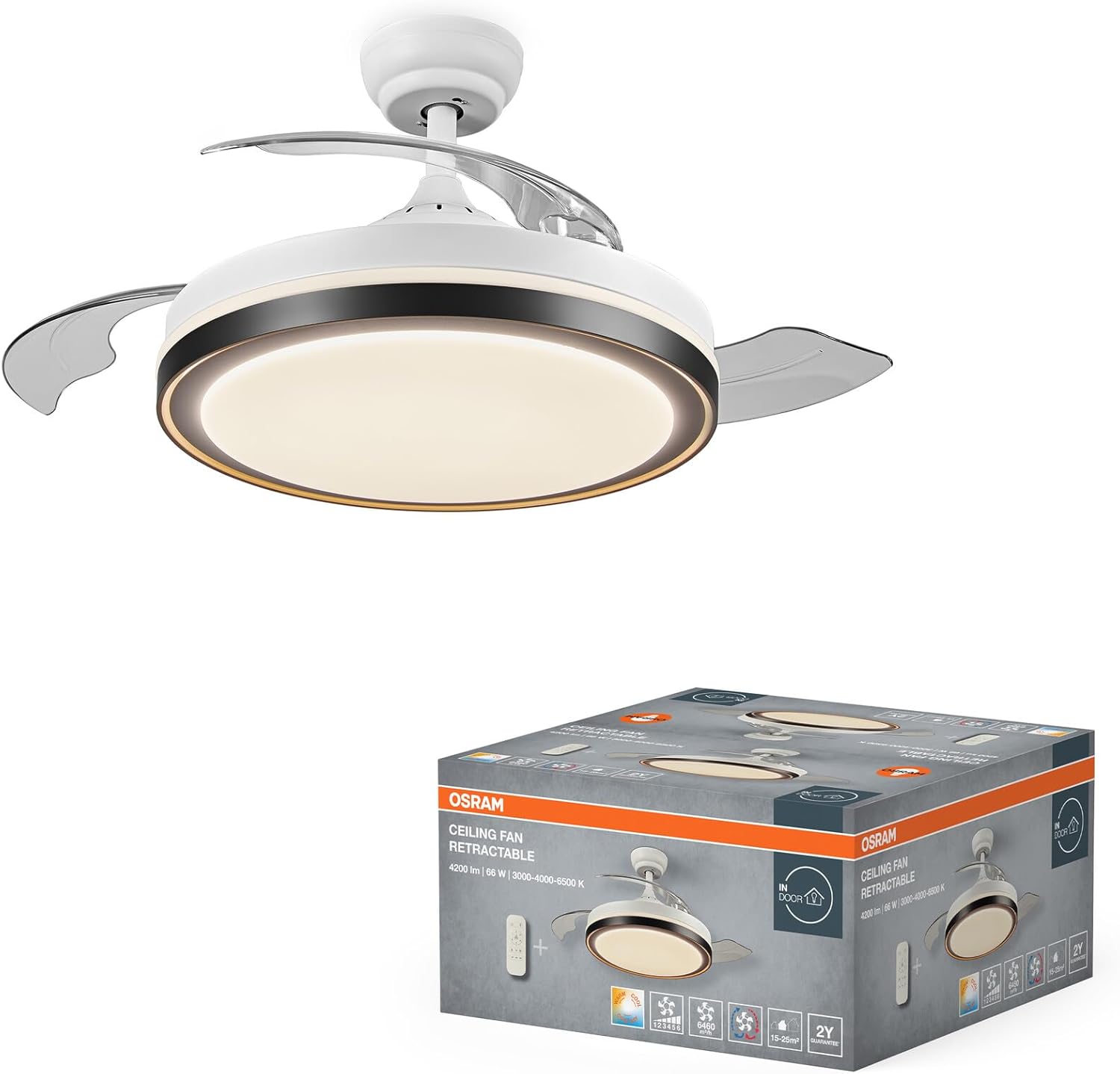

Image: The OSRAM Retractable Ceiling Fan 1070 shown with its retail packaging, highlighting its modern design and compact form.
2. Маълумот оид ба бехатарӣ
Лутфан пеш аз насб ва истифода ҳама дастурҳои бехатариро бодиққат хонед. Риоя накардани ин дастурҳо метавонад боиси зарбаи барқ, сӯхтор ё осеби ҷиддии шахсӣ гардад.
- Бехатарии барқ: Ensure the power supply is disconnected at the main circuit breaker before installation or maintenance. All electrical connections must comply with local codes and regulations.
- Насбкунӣ: This product must be installed by a qualified electrician. The mounting structure must be capable of supporting the fan's weight (approximately 6.5 kg).
- Тозакунии майса: Ensure there is adequate clearance between the fan blades and any obstacles, including walls and furniture, when the blades are extended.
- Тозакунӣ: Пеш аз тоза кардан ҳамеша барқро ҷудо кунед. нармро истифода баред, гamp матоъ; аз тозакунандаҳои абразивӣ истифода набаред.
- Истифода: Do not insert objects into the fan blades while the fan is operating. This product is designed for indoor use only.
3. Мундариҷаи баста
Пеш аз оғози насб боварӣ ҳосил кунед, ки ҳамаи ҷузъҳо мавҷуд ва осеб надидаанд:
- 1x OSRAM Ceiling Fan Retractable 1070 66W White unit
- 1x Идоракунии дурдаст
- Таҷҳизоти васлкунӣ (винтҳо, лангарҳо, кронштейнҳо)
- Дастури корбар (ин ҳуҷҷат)
4. Танзим ва насб
Installation of the OSRAM Retractable Ceiling Fan 1070 requires electrical wiring and secure mounting. It is highly recommended to have this product installed by a certified professional.
4.1. Санҷишҳои пеш аз насб
- Ensure the ceiling junction box is securely mounted and rated for fan support.
- Confirm the power supply is turned off at the circuit breaker.
- Ҳама ҷузъҳоро кушоед ва ягон зарарро тафтиш кунед.
4.2. Васл кардани вентилятор
Follow the detailed instructions provided in the comprehensive installation guide available online. The general steps involve:
- Кронштейн васлкуниро ба қуттии пайванди шифт часпонед.
- Connect the electrical wiring (live, neutral, ground) from the ceiling to the fan's wiring.
- Secure the fan motor housing to the mounting bracket.
- Attach the light fixture and any decorative covers.

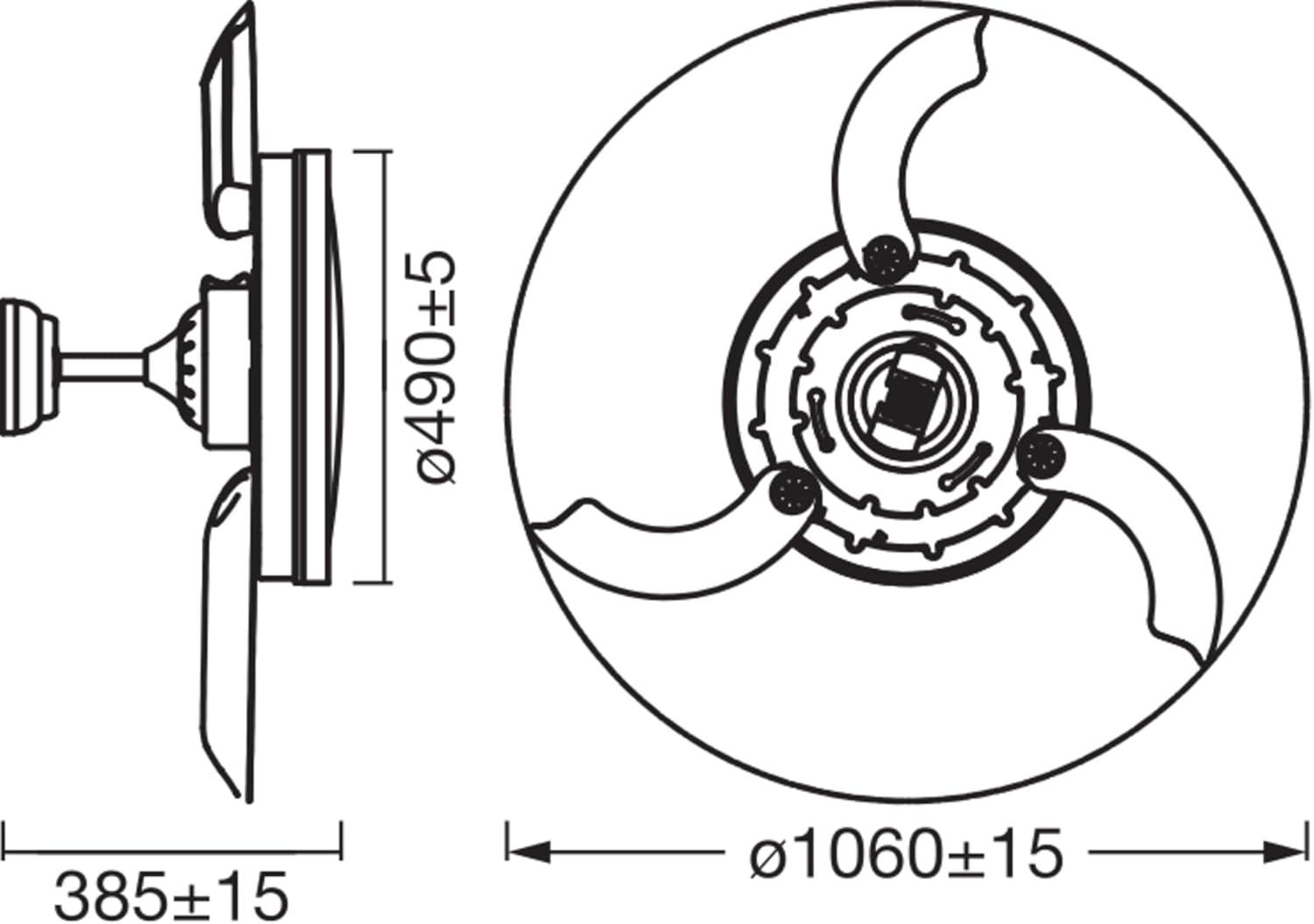

Image: Detailed technical drawing illustrating the dimensions (in mm) of the OSRAM Retractable Ceiling Fan 1070, including its height (385±15), body diameter (Ø490±5), and extended blade diameter (Ø1060±15).
For a complete step-by-step installation guide, please refer to the official documentation: OSRAM Ceiling Fan 1070 Installation Guide
5. Дастурҳои истифодабарӣ
The OSRAM Retractable Ceiling Fan 1070 is controlled via the included remote control, offering comprehensive control over both fan and light functions.
5.1. Фаъолияти вентилятор
- Фаъол / Хомӯш: Press the fan power button on the remote to turn the fan on or off.
- Назорати суръат: The fan features 6 speed settings. Use the speed control buttons (usually '+' and '-') on the remote to adjust the airflow. The blades will automatically extend when the fan is turned on and retract when turned off.
- Функсияи таймер: Activate the timer function to set the fan to turn off automatically after a preset duration. Refer to the remote control's specific buttons for timer settings.
5.2. Light Operation
- Чароғ фурӯзон/хомӯш: Press the light power button on the remote to turn the integrated LED light on or off.
- Танзими ҳарорати ранг: The light offers three color temperature settings: 3000K (Warm White), 4000K (Neutral White), and 6500K (Cool White). Use the dedicated button on the remote to cycle through these options.
- Танзими равшанӣ: The light output is 4200 lumens. Use the dimming buttons on the remote to adjust the brightness level to your preference.
Image: The OSRAM Retractable Ceiling Fan 1070 seamlessly integrated into a modern living room, demonstrating its ability to provide both air circulation and adjustable illumination, here shown with warm light.
6. Нигоҳдорӣ
Нигоҳубини мунтазам мӯҳлати хизмати дарозмуддат ва кори беҳтарини вентиляторро таъмин мекунад.
- Тозакунӣ: Before cleaning, ensure the power is disconnected. Use a soft, lint-free cloth to wipe down the fan blades and motor housing. For stubborn dirt, a slightly damp cloth can be used, followed by a dry cloth. Do not use harsh chemicals or abrasive materials.
- Санҷиши пиёз: Periodically check the retractable blades for any signs of wear or damage. Ensure they extend and retract smoothly.
- Пайвасткунакҳои мустаҳкам: Over time, some fasteners may become loose. Annually, check and tighten all screws and connections to ensure safe operation.
7. Баррасии мушкилот
If you encounter issues with your OSRAM Retractable Ceiling Fan 1070, refer to the following common problems and solutions:
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Вентектор фаъол намешавад | No power supply; Remote control battery low/dead; Loose wiring connection. | Check circuit breaker; Replace remote control batteries; Verify wiring connections (consult electrician). |
| Чароғ фурӯзон намешавад | No power supply; LED module fault; Loose wiring connection. | Check circuit breaker; Contact customer support if LED module is faulty; Verify wiring connections (consult electrician). |
| Вентилятор садои аз ҳад зиёд мебарорад | Винтҳои васлкунии фуҷур; Теғҳои нобаробар. | Tighten all mounting screws; Ensure blades are clean and free of debris. |
| Правленияи дурдаст кор намекунад | Batteries dead/incorrectly inserted; Remote out of range; Interference. | Replace batteries (AAA); Ensure remote is within range; Remove sources of interference. |
If the problem persists after attempting these solutions, please contact OSRAM customer support.
8. Мушаххасоти
| Хусусият | Мушаххасоти |
|---|---|
| Номи модел | Ceiling Fan Retractable 1070 66W White |
| Рақами модел | 4099854506789 |
| Бренд | ОСРАМ |
| Истеъмоли қувваи барқ | 66 Ватт |
| Ҷилдиtage | 220 вольт |
| Ҷараёни рӯшноӣ | 4200 люмен |
| Ҳарорати ранг | 3000K / 4000K / 6500K (Танзимшаванда) |
| Равиши ҳаво | 6460 м³/соат |
| Суръати мухлисон | 6 танзимот |
| Вазни маҳсулот | 6500 грамм |
| Хусусияти махсус | Energy Saving, Retractable Blades, Timer Function |
| Компонентҳо дохил карда шудаанд | 1x Ceiling Fan Retractable 1070 66W White, Remote Control |
9. Кафолат ва дастгирӣ
OSRAM products are designed for quality and durability. For information regarding product warranty, please refer to the terms and conditions provided at the time of purchase or visit the official OSRAM webсайт.
For detailed technical support, additional documentation, or to contact customer service, please visit:
- Official OSRAM Store on Amazon: OSRAM Store
- Product Documentation (Model 4099854506789): ledvance.com/docs/4099854506789
