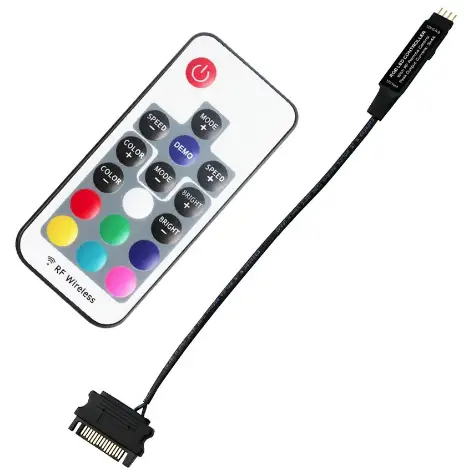

tecno switch CO021RG RGB Strip LED Controller with RF Remote Control
IN CONFORMITY WITH NORMATIVES
ETSI EN 301 489-1 V1.9.2, ETSI EN 301 489-3 V1.4.1, EN 61347-1, EN 61347-2-13
SPECIFICATIONS
- Power supply 12-24 Vdc
- Output voltage 12-24 Vdc
- Three output channels (RGB)
- Max output current per channel 8 A
- Max output power (12 Vdc) 3 x 96W
- Max output power (24 Vdc) 3 x 192W
- Connections via screw terminals
- Quick connection terminals
- Common anode connection
- Aluminium case
REMOTE CONTROL SPECS
- 20 keys RF remote control
- 1xCR2025 battery power
- Brightness regulation, changing color functions
- 6 preset light effects
- Transmission distance 30 mt
DIMENSIONS
CAUTIONS
- Power on the controller only after all the connection are made correctly, following the diagram shown.
- Don’t overvoltage or overload the controller and respect the polarity.
- If the RE remote doesn’t work could be necessary to pair with controller, to pair it: make sure that the controller is off, then power on it, within 6 seconds keep pressed the red button (RED) on remote.
tecnoswitch.com Via P. Leone Dehon, 99/105 76123 Andria (BT) ITALY arealed.it | tel (+39) 0883 555323 fax (+39) 0883 555323
