TOPDON TC002C Duo Thermal Camera User Manual

1. పరిచయం

The TOPDON TC002C Duo Thermal Camera transforms your smartphone into a professional thermal imaging device. This compact tool features an advanced dual-camera system, combining a thermal sensor with a visual camera to deliver precise heat detection and visualization. Designed for portability and ease of use, it is ideal for various applications, including automotive diagnostics, mechanical inspections, and general temperature analysis. This manual provides essential information for the proper setup, operation, and maintenance of your TC002C Duo.

2. ఉత్పత్తి ముగిసిందిview

The TC002C Duo is engineered for professional-grade thermal imaging, offering a range of features to enhance diagnostic capabilities.

• డ్యూయల్ కెమెరా సిస్టమ్: Integrates a thermal sensor and a visual camera for comprehensive heat detection and image overlay.
• స్మార్ట్‌ఫోన్ అనుకూలత: Connects directly to iOS, Android, and Windows devices for real-time viewing మరియు విశ్లేషణ.
• పోర్టబుల్ డిజైన్: Compact and lightweight, requiring no external charging, making it suitable for field use.
• Thermal Image Super Resolution (TISR): Enhances the thermal resolution from 256x192 to 512x384 pixels for improved clarity.
• విస్తృత ఉష్ణోగ్రత పరిధి: Capable of detecting temperatures from -4°F to 1022°F (-20°C to 550°C).
• అధిక ఫ్రేమ్ రేట్: 25Hz frame rate ensures smooth thermal video capture.

మూర్తి 2.1: Illustration of Thermal Image Super Resolution (TISR) technology, demonstrating the enhanced clarity from 256x192 pixels to 512x384 pixels. The image shows two thermal views of an electrical panel, with the right side displaying significantly more detail due to TISR.

మూర్తి 2.2: Detailed diagram showcasing the internal components of TOPDON's thermal imaging technology, including lenses and sensor. Key specifications are listed below the diagram: Frame Rate 25Hz, Super IR resolution 512x384, NETD <40mK, Field of View 50° x 37.2°, and Temperature Range -4°F to 1022°F.

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

To begin using your TC002C Duo, follow these steps for connecting to your smartphone or PC and installing the necessary software.

1. మొబైల్ యాప్‌ని డౌన్‌లోడ్ చేయండి: For smartphone use, download the "TopInfrared" app from your device's app store (available for iOS and Android).
2. Download PC Software: For PC use, download the "TopView" software from the official TOPDON webసైట్.
3. పరికరాన్ని కనెక్ట్ చేయండి: Plug the TC002C Duo directly into your smartphone's USB-C port (or appropriate adapter for iOS devices). For PC, connect via a compatible USB port. The device is powered directly by your connected device and requires no separate charging.
4. అప్లికేషన్‌ను ప్రారంభించండి: Open the "TopInfrared" app on your smartphone or "TopView" software on your PC. The thermal camera feed should appear automatically.

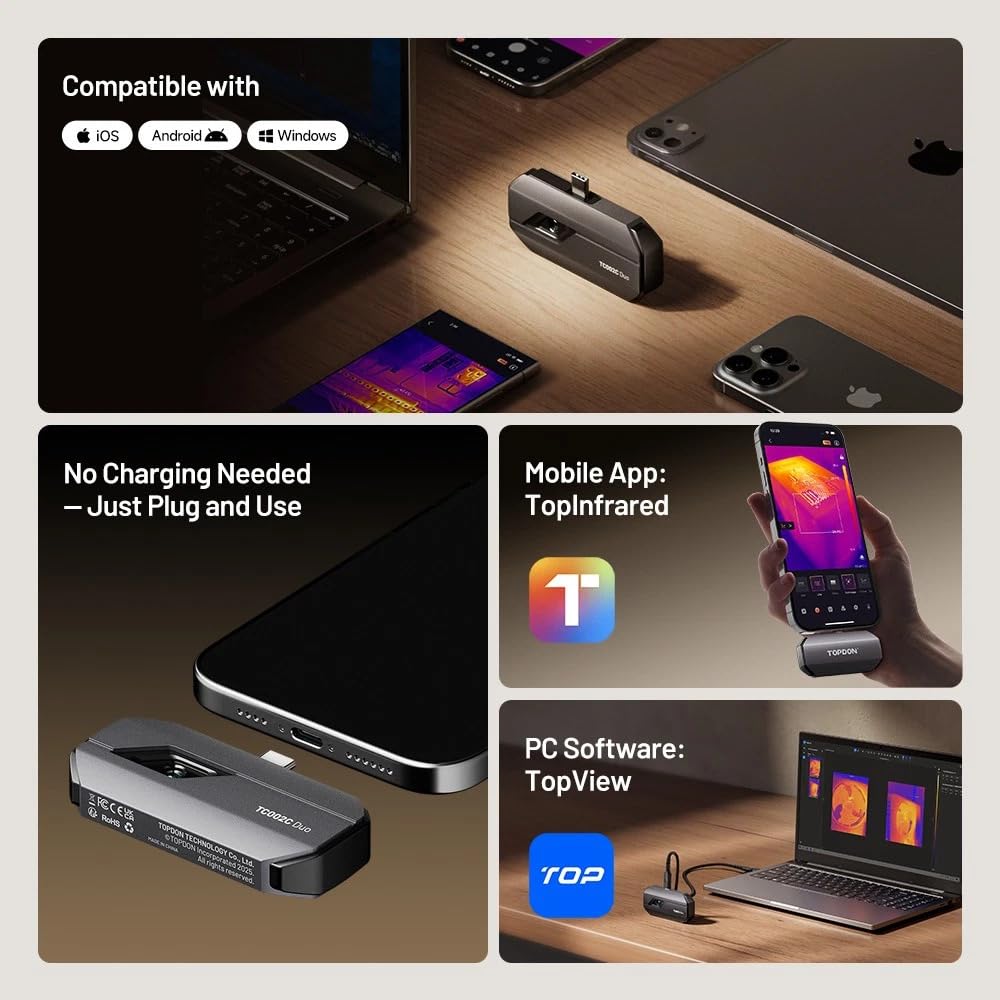

మూర్తి 3.1: The TOPDON TC002C Duo thermal camera shown connected to a smartphone and a laptop, illustrating its compatibility with iOS, Android, and Windows operating systems. The image also highlights the dedicated mobile application "TopInfrared" and PC software "TopView" for device operation.

4. ఆపరేటింగ్ సూచనలు

Once connected and the software is launched, you can begin using your TC002C Duo for thermal imaging. The application provides various tools for analysis and data capture.

4.1 ప్రాథమిక ఆపరేషన్

• ప్రత్యక్షం View: The main screen displays the live thermal feed. You can switch between thermal view, visual view, or an overlay of both (if supported by the app).
• ఉష్ణోగ్రత కొలత: The app typically displays real-time temperature readings for specific points or areas. Use the on-screen tools to select measurement points or regions of interest.
• చిత్రం మరియు వీడియో క్యాప్చర్: Use the dedicated buttons within the app to capture thermal images or record thermal videos. These files are saved to your device's gallery or designated folder.
• పాలెట్ ఎంపిక: Choose from various color palettes (e.g., Iron, Rainbow, White Hot, Black Hot) to visualize temperature differences more effectively based on your application.

4.2 అధునాతన ఫీచర్లు

• High/Low Temperature Alerts: Configure the app to trigger alerts when temperatures exceed or fall below user-defined thresholds. This is useful for identifying anomalies quickly.
• వివరణాత్మక నివేదికలు: The software can generate detailed temperature analysis reports, which can be valuable for professional documentation and diagnostics.
• ఉద్గారత సర్దుబాటు: For accurate temperature readings, adjust the emissivity setting in the app to match the material being inspected. Refer to emissivity tables for common materials.

మూర్తి 4.1: An individual conducting an electrical inspection using the TOPDON TC002C Duo thermal camera connected to a smartphone. The image highlights the app's capabilities for setting high/low temperature alerts and generating detailed temperature analysis reports, crucial for identifying safety risks.

మూర్తి 4.2: A scene depicting a family in a living room, accompanied by thermal images illustrating how the TC002C Duo can be used to detect hidden heat signatures, such as those from pests like rats or termites within walls, contributing to home safety and protection.

5. నిర్వహణ

Proper maintenance ensures the longevity and optimal performance of your TC002C Duo thermal camera.

• లెన్స్ శుభ్రపరచడం: Gently clean the thermal and visual camera lenses with a soft, lint-free cloth. For stubborn smudges, use a lens cleaning solution specifically designed for optics. Avoid abrasive materials or harsh chemicals.
• నిల్వ: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided protective case (if applicable) to prevent physical damage.
• సాఫ్ట్‌వేర్ అప్‌డేట్‌లు: Regularly check for and install software and firmware updates for the "TopInfrared" app and "TopView" PC software to ensure compatibility and access to new features or performance improvements.
• భౌతిక ప్రభావాన్ని నివారించండి: Protect the device from drops and impacts, as this can damage the sensitive internal components.

6. ట్రబుల్షూటింగ్

If you encounter issues with your TC002C Duo, refer to the following common troubleshooting steps.

• పరికరం గుర్తించబడలేదు:
  • Ensure the device is securely plugged into your smartphone or PC.
  • Verify that the "TopInfrared" app or "TopView" software is open and running.
  • Check if your smartphone or PC's USB port is functioning correctly.
  • Restart your smartphone/PC and the application.
• No Thermal Image Display:
  • Confirm the app has necessary permissions (e.g., camera access) on your smartphone.
  • Ensure the device's lenses are not obstructed or dirty.
  • Try reconnecting the device.
• సరికాని ఉష్ణోగ్రత రీడింగ్‌లు:
  • Check and adjust the emissivity setting in the app to match the material being measured.
  • Ensure the target object is within the device's specified temperature range.
  • Verify that there are no obstructions or reflective surfaces interfering with the measurement.
• App/Software Crashing:
  • Ensure your app/software is updated to the latest version.
  • Clear the app's cache (on smartphones) or reinstall the software (on PC).
  • Ensure your smartphone/PC meets the minimum system requirements for the application.

If these steps do not resolve the issue, please contact TOPDON customer support for further assistance.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

TOPDON products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your product or visit the official TOPDON webసైట్.

For technical support, product inquiries, or service requests, please contact TOPDON customer support through their official website or the contact information provided in your product packaging. When contacting support, please have your product model number (TC002C Duo) and purchase information ready.
