OLIGHT Oclip Series Headlamp Strap Bundle Oclip Pro EDC Flashlight Instruction Manual

1. పరిచయం

This manual provides detailed instructions for the safe and effective use of your OLIGHT Oclip Series Headlamp Strap Bundle, featuring the Oclip Pro EDC Flashlight. Please read this manual thoroughly before operation and retain it for future reference.

Image 1.1: The OLIGHT Oclip Pro EDC Flashlight and its compatible Headlamp పట్టీ.

2. ఉత్పత్తి ముగిసిందిview

2.1 Oclip Pro EDC Flashlight

The Oclip Pro is a versatile clip-on light designed for everyday carry. It features multiple lighting solutions to suit various needs.

• Three Lighting Solutions: Includes a floodlight with 500 lumens, a 120-meter range spotlight, and a 40/4 lumen red light.
• User-friendly UI Design: Modes are switched via a selector.
• బ్యాటరీ సూచిక: Located in the center of the switch, it displays the current battery level.

Image 2.1: Various angles of the OLIGHT Oclip Pro, highlighting its compact design and clip.

2.2 Oclip Headlamp పట్టీ

The Oclip Headlamp Strap is designed to convert your Oclip series flashlight into a hands-free headlamp. It is compatible with Oclip, Oclip Pro, and Oclip Ultra models.

• Flexible Rotating Light Holder: హెడ్ల్amp bracket allows for 160-degree rotation, ensuring optimal light direction. This mechanism is tested for over 5,000 flips.
• నాణ్యమైన పదార్థాలు: Constructed from premium nylon for durability, lightweight comfort, and a secure fit.

Image 2.2: The OLIGHT Headlamp Strap, designed for hands-free use of Oclip series flashlights.

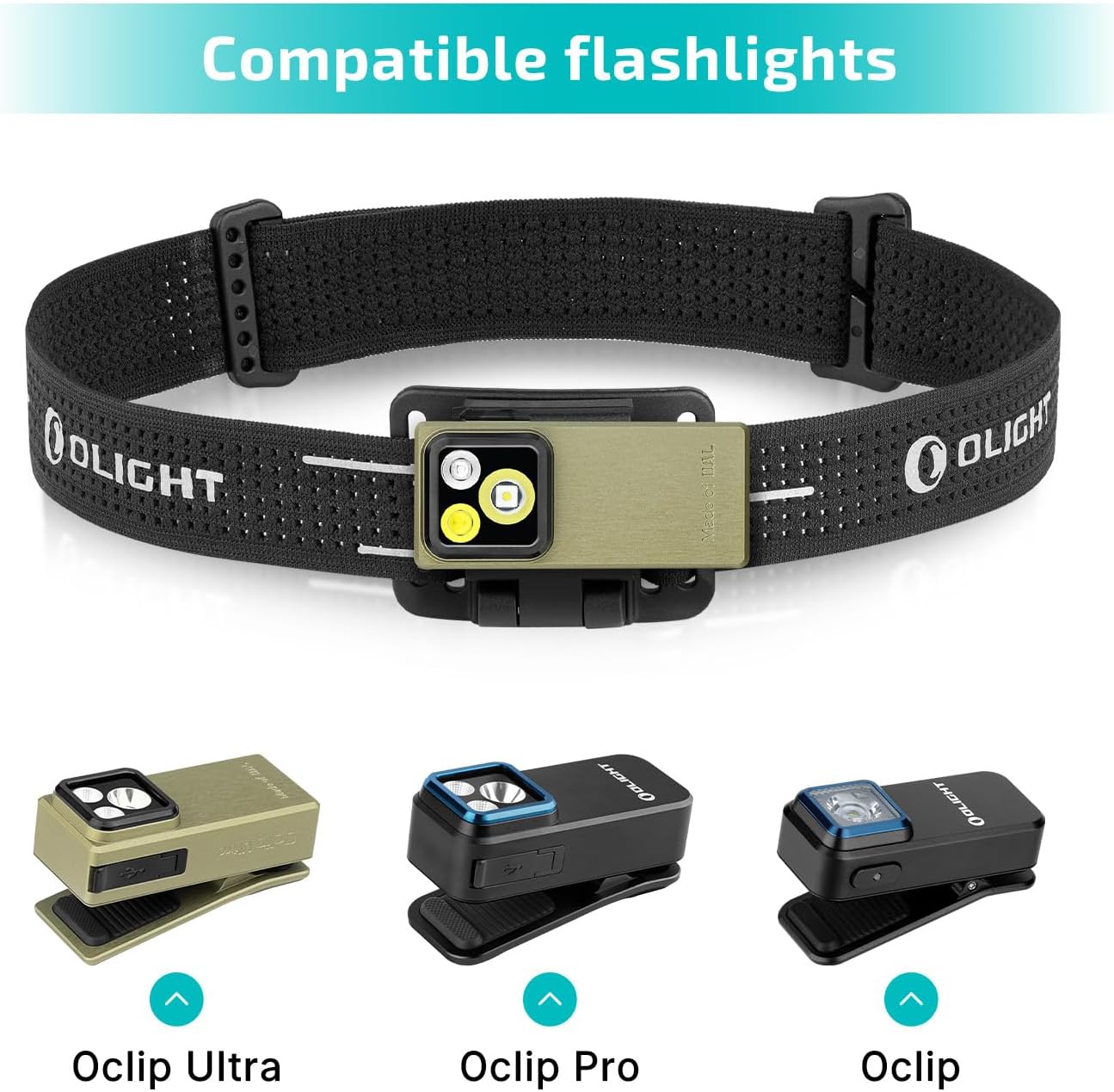

Image 2.3: The headlamp strap shown with compatible Oclip Ultra, Oclip Pro, and Oclip flashlights.

Image 2.4: Size and feature comparison between the Oclip Pro and Oclip models.

3. సెటప్

3.1 Attaching the Oclip Pro to the Headlamp పట్టీ

1. Ensure the Oclip Pro flashlight is in the unlocked state (refer to Section 4.4 for lockout/unlock instructions).
2. Align the clip of the Oclip Pro flashlight with the bracket on the headlamp పట్టీ.
3. Gently push the flashlight into the bracket until it securely clips into place. You should hear a distinct click.
4. Adjust the angle of the flashlight within the bracket to your desired position. The bracket allows for 160-degree rotation.
5. హెడ్ల్ ఉంచండిamp strap on your head and adjust for a comfortable and secure fit.

Image 3.1: The Oclip Pro attached to the headlamp strap, providing hands-free illumination.

3.2 Alternative Mounting Options for Oclip Pro

The Oclip Pro can also be clipped onto various surfaces or attached to metal objects due to its magnetic base, offering versatile hands-free lighting without the headlamp పట్టీ.

చిత్రం 3.2: ఉదాamples of the Oclip Pro being used by clipping it to a shirt, belt, or attaching it magnetically to a metal surface.

4. ఆపరేటింగ్ సూచనలు

4.1 పవర్ ఆన్/ఆఫ్

To turn the Oclip Pro on or off, press the main switch button located on the side of the flashlight.

4.2 మోడ్ స్విచింగ్

The Oclip Pro features a selector for switching between different lighting modes (floodlight, spotlight, red light). Rotate the selector to choose your desired mode.

4.3 ప్రకాశం సర్దుబాటు

While the flashlight is on, press and hold the main switch button to cycle through the brightness levels. The typical order of brightness is Low, Medium, then High. Moonlight mode and Turbo mode may be accessed with specific button presses (refer to the diagram below).

Image 4.1: Visual guide for adjusting brightness levels, including Moonlight, Low, Medium, High, and Turbo modes.

4.4 Lockout & Unlock

For first-time use or to prevent accidental activation, the Oclip Pro may be in a locked state. To unlock, press and hold the main switch button for approximately 1 second. To engage lockout mode, press and hold the button for more than 2 seconds while the light is off.

Image 4.2: Instructions for locking and unlocking the Oclip Pro flashlight.

4.5 బ్యాటరీ సూచిక

The battery indicator in the center of the switch provides real-time information about the remaining battery level. Refer to the product's specific indicator guide for detailed interpretations (e.g., green for high, yellow for medium, red for low).

5. నిర్వహణ

To ensure the longevity and optimal performance of your OLIGHT Oclip Pro and Headlamp Strap, follow these maintenance guidelines:

• శుభ్రపరచడం: Wipe the flashlight and strap with a soft, damp వస్త్రం. కఠినమైన రసాయనాలు లేదా రాపిడి పదార్థాలను నివారించండి.
• ఛార్జింగ్: Recharge the Oclip Pro using the provided charging cable when the battery indicator shows low power.
• నిల్వ: ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతల నుండి దూరంగా చల్లని, పొడి ప్రదేశంలో ఉత్పత్తిని నిల్వ చేయండి.
• తనిఖీ: క్రమానుగతంగా హెడ్‌ల్‌ను తనిఖీ చేయండిamp strap for any signs of wear or damage.

6. ట్రబుల్షూటింగ్

If you encounter issues with your OLIGHT Oclip Pro, refer to the following common problems and solutions:

• లైటు వెలగడం లేదు:
  • Check if the flashlight is in lockout mode (refer to Section 4.4).
  • బ్యాటరీ ఛార్జ్ చేయబడిందని నిర్ధారించుకోండి.
• కాంతి అవుట్‌పుట్ మసకగా ఉంది:
  • The battery might be low; recharge the device.
  • లెన్స్ శుభ్రంగా ఉందని నిర్ధారించుకోండి.
• Flashlight not securely attaching to strap:
  • Verify that the flashlight is correctly aligned with the bracket and pushed in until it clicks.
  • Inspect the strap bracket and flashlight clip for any damage.

For further assistance, please contact OLIGHT customer support.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

OLIGHT products are manufactured to high-quality standards. For information regarding warranty coverage, product registration, or technical support, please visit the official OLIGHT webసైట్‌లో లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని సంప్రదించండి. వారంటీ క్లెయిమ్‌ల కోసం కొనుగోలు రుజువుగా మీ కొనుగోలు రసీదును ఉంచండి.

OLIGHT Official Webసైట్: www.olightstore.com
