Tera EV Charger W01 User Manual

1. పరిచయం

This manual provides essential information for the safe and efficient operation of your Tera EV Charger W01. Please read this manual thoroughly before installation and use, and retain it for future reference. The Tera EV Charger W01 is a Level 2 electric vehicle supply equipment (EVSE) designed for home use, compatible with both J1772 and Tesla electric vehicles (with the included adapter).

2. భద్రతా సమాచారం

Your Tera EV Charger W01 is designed with multiple safety features and is ETL certified, ensuring compliance with North American safety standards. Always adhere to the following safety guidelines:

Ensure professional installation by a qualified electrician to meet all local electrical codes and regulations.
Do not attempt to open, disassemble, or modify the charger unit.
Avoid exposing the charger to extreme physical impact or damage.
ఆపరేషన్ సమయంలో పిల్లలు మరియు పెంపుడు జంతువులను ఛార్జింగ్ ప్రాంతం నుండి దూరంగా ఉంచండి.
In case of any malfunction or damage, disconnect power immediately and contact customer support.
The charger features Overvoltagఇ రక్షణ, అండర్వాల్tage Protection, Overload Protection, Overtemperature Protection, Ground Protection, Earth Leakage Protection, and Short Circuit Protection.

Tera EV Charger with safety certifications and protection features listed — Image: The Tera EV Charger highlights its safety features including overvoltagఇ, అండర్వాల్tage, overload, overtemperature, ground, earth leakage, and short circuit protection, along with FCC, ETL, TUV SUD, and CE certifications.

Image: ETL certification is a stringent U.S. certification required for valid insurance coverage, ensuring the product meets safety standards.

3. ప్యాకేజీ విషయాలు

ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయని నిర్ధారించుకోండి:

Tera EV Charger Unit
వినియోగదారు మాన్యువల్
మౌంటు ప్లేట్
మరలు సెట్
Tools (Hex Key)
J1772 to Tesla Adapter with Lock
Cable Holder for Tesla

Diagram showing all included components: User Manual, Mounting Plate, Screws Set, Tools, J1772 to Tesla Adapter with Lock, Cable Holder for Tesla, and the EV Charger unit. — Image: The package includes the Tera EV Charger, user manual, mounting plate, screw set, tools, J1772 to Tesla adapter with lock, and a cable holder for Tesla vehicles.

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

The Tera EV Charger W01 is designed for wall-mounted installation. Professional installation by a certified electrician is highly recommended to ensure safety and compliance with local electrical codes.

4.1 ఛార్జర్‌ను మౌంట్ చేయడం

Unscrew the back plate from the charger unit using the provided tool.
Secure the mounting plate to the wall at the desired location using the screws and anchors. Ensure the location is suitable for a NEMA 14-50 outlet and within reach of your vehicle's charging port.
Place the charger unit onto the mounted plate.
Assemble the anti-theft screw to secure the charger to the mounting plate.
Connect the NEMA 14-50 plug to a dedicated 240V NEMA 14-50 outlet.

Step-by-step visual guide for mounting the EV charger to a wall. — Image: Visual steps for mounting the charger: unscrew with tool, screw plate to wall, place charger on plate, assemble anti-theft screw, and finish installation.

5. ఆపరేటింగ్ సూచనలు

The Tera EV Charger W01 offers both manual touch screen control and smart app control for managing your charging sessions.

5.1 Manual Touch Screen Control

The charger features a touch screen display for direct control over charging parameters.

ప్రస్తుత సర్దుబాటు: You can manually adjust the charging current to 24A, 32A, 40A, or 48A directly on the unit's touch screen.
షెడ్యూల్ ఛార్జింగ్: Set a delayed charging schedule from 1 to 12 hours using the touch screen.
ముఖ్యమైన గమనిక: To initiate a manual scheduled charge, configure the charging current and schedule on the unit ముందు connecting the charging cable to your vehicle. Plugging it in first will activate plug-and-play mode.

Touch screen display of the Tera EV Charger showing options for current adjustment (24A, 32A, 40A, 48A) and schedule charging (1-12 hours). — Image: The charger's touch screen allows for manual adjustment of charging current and setting a charging schedule.

Close-up of the Tera EV Charger touch screen showing 'Adjust Current' and 'Schedule Charging' options. — చిత్రం: వివరణాత్మకం view of the touch screen interface for adjusting current and setting charge schedules.

5.2 స్మార్ట్ యాప్ నియంత్రణ

Manage your charging sessions remotely using the Smart Life app.

అనువర్తనాన్ని డౌన్‌లోడ్ చేయండి: కోసం వెతకండి "Smart Life" in your device's app store, download, and register an account.
పరికరాన్ని జోడించండి: In the app, click "Add Device" to initiate device discovery. Wait for the Tera EV Charger to be detected and added. Ensure your phone is on 2.4G WiFi, and both Bluetooth and location services are enabled.
ఛార్జింగ్ మోడ్‌లు: Once connected, you can select between "RealTime charging" (plug & play) or "Delayed charging" (scheduled charging). For delayed charging, you can set a delay from 1 to 12 hours.
కరెంట్‌ని సర్దుబాటు చేయండి: Within the app settings, you can adjust the charging current to your desired level.
రిమోట్ కంట్రోల్: The app allows you to start/stop charging, adjust current, set schedules, and monitor charging status remotely.

Video: This video provides a detailed guide on how to use the Smart Life app to control your Tera EV Charger, including adding the device, selecting charging modes, and adjusting settings.

Smartphone screen showing the Smart Life app interface for scheduling EV charging, with options for start/stop, remote charging, adjustable current, schedule, and monitoring. — Image: The Smart Life app interface allows for comprehensive control and monitoring of your EV charging sessions.

Graphic illustrating scheduled charging times with peak and off-peak electricity costs, managed via the app. — Image: Optimize charging costs by scheduling sessions during off-peak hours using the app.

5.3 Connecting to Your Electric Vehicle

The Tera EV Charger W01 is compatible with both J1772 and Tesla vehicles.

For J1772 compatible EVs, simply plug the J1772 connector into your vehicle's charging port.
For Tesla vehicles, attach the provided J1772 to Tesla adapter to the charger's J1772 connector, then plug the adapter into your Tesla's charging port.

Video: This video demonstrates the process of connecting the Tera EV Charger to a Tesla vehicle using the provided adapter, highlighting the ease of use and compatibility.

A person connecting the J1772 charger with a Tesla adapter to a Tesla vehicle's charging port. — Image: The Tera EV Charger is fully compatible with Tesla and J1772 EVs, ensuring seamless charging for a wide range of electric vehicles.

Illustration showing the importance of configuring current and schedule on the charger or app FIRST before plugging into the car. — Image: Always configure the current and schedule settings on the charger or app before plugging into your car to ensure proper operation of scheduled charging.

6 ఫీచర్లు

The Tera EV Charger W01 is equipped with advanced features for a superior charging experience.

9X Fast Charging & Adjustable Current: Experience rapid charging speeds with an adjustable output of up to 48A, delivering up to 46 miles of range per hour. This ensures less waiting time and more driving time.
IP65 Rated Durable Performance: The charger boasts an IP65 rating, providing robust protection against dust and water. It is designed to operate reliably in various weather conditions, from -22°F to 122°F, making it suitable for year-round outdoor use.
యూనివర్సల్ అనుకూలత: Engineered for perfect compatibility with a wide range of electric vehicles, including Tesla models (S, 3, X, Y) and all J1772 EVs.
25 ft Ultra-Long Cable: The generous 25-foot cable allows for flexible placement and convenient charging of your EV in various locations.

Graphic illustrating 9X faster charging, showing 240V, up to 48A, and approximately 46 miles per hour charging rate. — Image: The Tera EV Charger provides 9X faster charging, delivering up to 46 miles per hour at 240V and 48A.

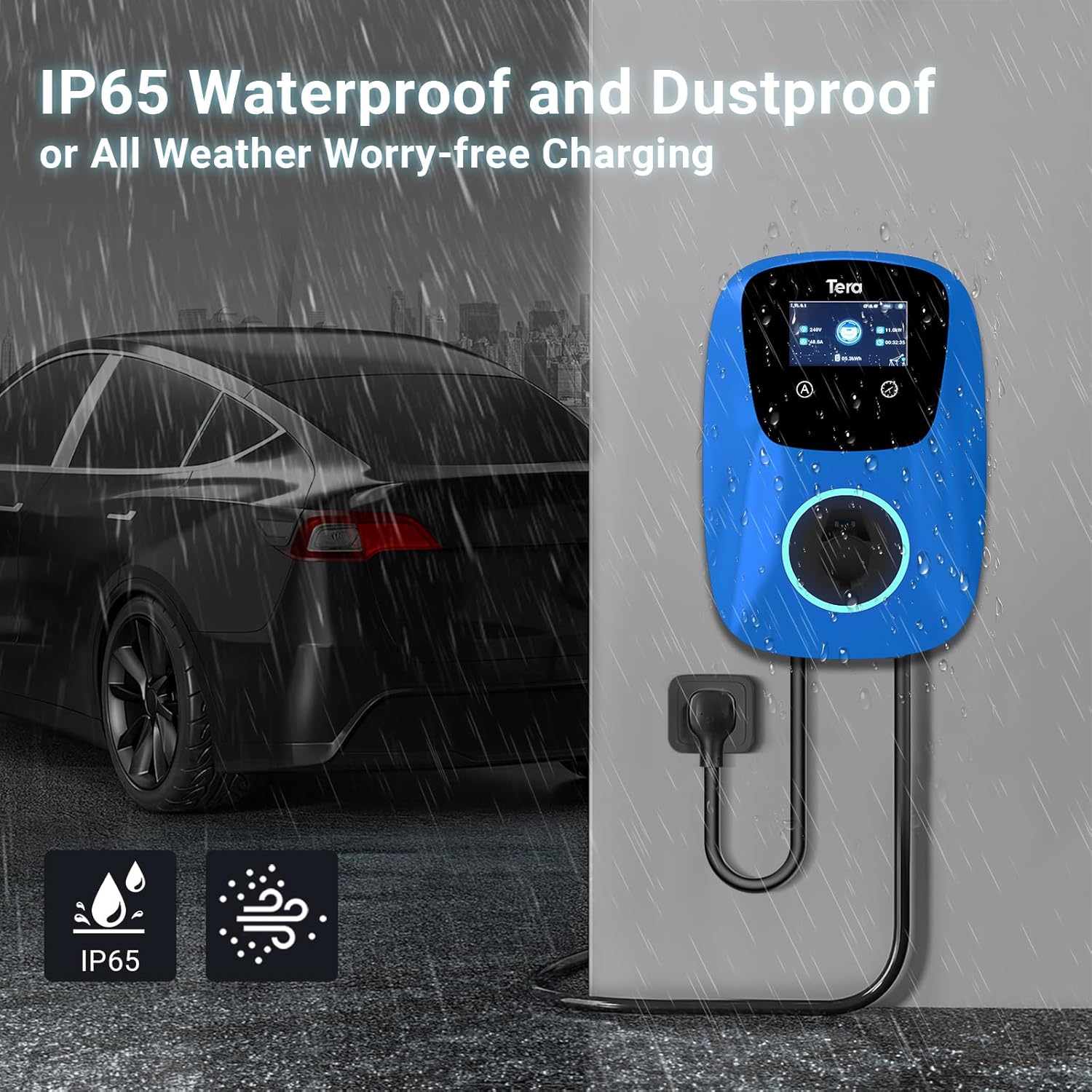

The Tera EV Charger installed outdoors in rainy conditions, demonstrating its IP65 waterproof and dustproof rating. — Image: The IP65 rating ensures the charger is waterproof and dustproof, suitable for all-weather outdoor use.

Video: This video demonstrates the Tera EV Charger's waterproof capabilities, showing it being sprayed with water while operating, confirming its IP65 rating for all-weather use.

The Tera EV Charger shown in both snowy winter and sunny summer environments, emphasizing its ability to charge in any weather. — Image: The charger is built to withstand extreme temperatures, functioning reliably from -22°F to 122°F.

The Tera EV Charger with a 25 ft ultra-long cable, showing various compatible EV brands like Tesla, BMW, Land Rover, Toyota, Jaguar, Nissan, Porsche, Ford, Lexus, and Volkswagen. — Image: The 25 ft cable provides extended reach, and the charger is compatible with a wide range of EV brands.

7. స్పెసిఫికేషన్లు

స్పెసిఫికేషన్	విలువ
బ్రాండ్	తేరా
మోడల్ సంఖ్య	EV-W01-BU-AM_US
వస్తువు బరువు	20 పౌండ్లు
ఉత్పత్తి కొలతలు	22 x 15 x 11 అంగుళాలు
Ampఎరేజ్	48 Amps (Adjustable)
వాట్tage	11520 వాట్స్
అవుట్పుట్ వాల్యూమ్tage	240 వోల్ట్‌లు (AC)
ప్రత్యేక లక్షణాలు	For Tesla and J1772 EVs, Manual & App Schedule
ప్రవేశ రక్షణ (IP) రేటింగ్	IP65
ధృవపత్రాలు	ETL, FCC, TUV SUD, CE

8. ట్రబుల్షూటింగ్

If you encounter issues with your Tera EV Charger, refer to the following common indicators and solutions:

8.1 స్థితి సూచికలు

The LED indicator on the charger provides visual feedback on its status:

Blue (Always on): స్టాండ్బై మోడ్.
Green (Always on): Charger inserted.
Green (Flashes every 1S): ఛార్జింగ్ ప్రోగ్రెస్‌లో ఉంది.
Red (Always on): CP Abnormal.
Red (Flashes every 1S): ఓవర్/అండర్వాల్tagఇ రక్షణ.
Red (Flashes every 2S): Ground Fault.
Red (Flashes 3S, Off 3S): ఓవర్-కరెంట్ రక్షణ.
Purple (Flashes every 1S): లీకేజ్ రక్షణ.
Purple (Flashes every 2S): Over-temperature Protection.
Purple (Flashes every 4S): Adhesion Protection.

Diagram showing different LED indicator colors and flash patterns corresponding to various charger statuses and error conditions. — Image: LED indicator guide for understanding charger status and error codes.

8.2 సాధారణ ట్రబుల్షూటింగ్ చిట్కాలు

ఛార్జర్ ఆన్ కావడం లేదు: Ensure the NEMA 14-50 plug is fully inserted into the outlet and the circuit breaker is on.
ఛార్జింగ్ ప్రారంభం కాలేదు: Verify the charging cable is securely connected to both the charger and the vehicle. Check the app or touch screen for any error messages or if a schedule is preventing immediate charging.
నెమ్మదిగా ఛార్జింగ్: Confirm the current setting on the charger or app is set to the desired amperage. Note that hybrid vehicles may automatically reduce charging current.
యాప్ కనెక్టివిటీ సమస్యలు: Ensure your phone's Bluetooth and location services are enabled, and it is connected to a 2.4G WiFi network. Restart the app and the charger if necessary.

9. నిర్వహణ

To ensure the longevity and optimal performance of your Tera EV Charger W01, follow these maintenance guidelines:

Regularly inspect the charging cable and connector for any signs of wear, damage, or fraying. Do not use if damaged.
Keep the charger unit clean by wiping it with a soft, damp గుడ్డ. కఠినమైన రసాయనాలు లేదా రాపిడి క్లీనర్లను ఉపయోగించడం మానుకోండి.
Ensure the charging port on your vehicle is clean and free of debris before connecting the charger.
Store the charging cable properly using the provided cable holder when not in use to prevent tangling or damage.

10. వారంటీ మరియు మద్దతు

The Tera EV Charger W01 comes with a 2 సంవత్సరాల వారంటీ. For technical support, warranty claims, or any questions regarding your product, please contact Tera customer service through the official channels provided at the time of purchase or on the Tera brand webసైట్.

Image: Tera offers a 2-year warranty and is a US-based brand providing dedicated customer service.
