Tera Pro Series L0013B-OG 1D Wireless Barcode Scanner User Manual

పరిచయం

Thank you for choosing the Tera Pro Series L0013B-OG 1D Wireless Barcode Scanner. This manual provides detailed instructions for setting up, operating, and maintaining your device. Please read this manual thoroughly before use to ensure optimal performance and longevity of your scanner.

సెటప్

1. కనెక్టివిటీ ఎంపికలు

The Tera L0013B-OG scanner offers two primary connection methods: Bluetooth and Wired USB.

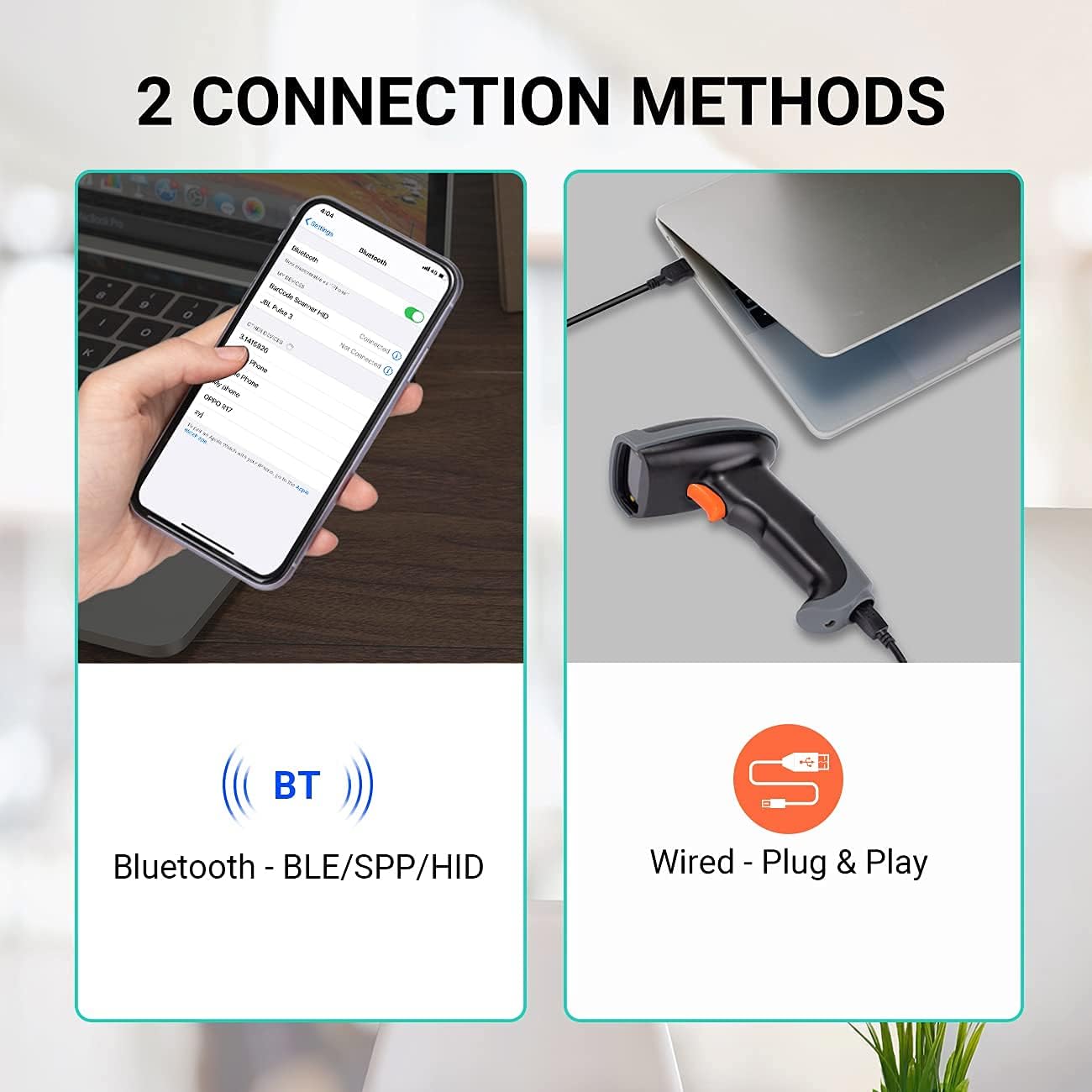

This image illustrates the two connection methods: Bluetooth for wireless pairing with devices like smartphones, and wired USB for direct connection to computers. The scanner supports both for versatile use.

బ్లూటూత్ కనెక్షన్:

1. స్కానర్ ఛార్జ్ అయ్యిందని నిర్ధారించుకోండి.
2. స్కానర్‌ను ఆన్ చేయండి.
3. Scan the Bluetooth pairing barcode (refer to the quick start guide or the scanner's internal settings for this barcode).
4. On your host device (e.g., smartphone, tablet, laptop), enable Bluetooth and search for available devices.
5. Select "Tera L0013B" or a similar device name from the list to pair.
6. The scanner will indicate successful pairing (e.g., a beep or LED change).
7. Bluetooth transmission range is up to 50 meters in an accessible environment.

వైర్డు USB కనెక్షన్:

1. Connect the USB cable to the scanner and to an available USB port on your computer.
2. The scanner is plug-and-play; no driver installation is required.
3. The scanner will be recognized as a keyboard input device.

2. Scan Modes

The scanner supports three operational scan modes:

• నిరంతర స్కాన్ మోడ్: The scanner continuously emits a laser beam, scanning barcodes automatically as they are presented.
• మాన్యువల్ ట్రిగ్గర్ మోడ్: The scanner only scans when the trigger button is pressed.
• Sensor Scan Mode: The scanner activates the laser beam and scans when it detects a barcode in its field of view.

This image illustrates the scanner in operation, emphasizing the availability of three distinct scan modes: Continuous, Manual Trigger, and Sensor Scan Mode, allowing users to choose the most suitable method for their workflow.

3. Data Upload Modes

స్కానర్ రెండు డేటా అప్‌లోడ్ మోడ్‌లను అందిస్తుంది:

• Real-Time Upload Mode: Barcodes are transmitted to the host device immediately after scanning.
• Memory (Storage) Upload Mode: Scanned barcodes are saved in the scanner's internal memory. Data can be uploaded to the host device later when connectivity is established or restored. This mode is useful when the scanner is out of Bluetooth range.

This image demonstrates the two data upload modes: Real Time Mode, where data is uploaded instantly, and Storage Mode, where barcodes are saved internally for later upload, particularly useful when out of range.

4. Keyboard Language Support

The scanner supports multiple keyboard languages to ensure compatibility with various regional setups. You can configure the scanner to match your system's keyboard layout (e.g., English, Spanish, German, Japanese, French, Italian).

This image highlights the scanner's support for multiple keyboard languages, including English, Spanish, German, Japanese, French, and Italian, ensuring broad compatibility with international systems.

5. Device and System Compatibility

The Tera L0013B-OG barcode scanner is designed for wide compatibility with various devices and operating systems.

• అనుకూల పరికరాలు: Computers, Laptops, Mobile Phones, Tablets.
• అనుకూలమైన ఆపరేటింగ్ సిస్టమ్‌లు: iOS, Android, Windows, Mac OS, POS, Linux, Raspberry Pi.

This image illustrates the broad compatibility of the scanner with various devices such as PCs, laptops, iPads, and iPhones, and operating systems including Windows, iOS, Linux, Android, and Mac OS.

ఆపరేటింగ్ సూచనలు

బార్‌కోడ్‌లను స్కాన్ చేస్తోంది

The Tera L0013B-OG scanner provides superior 1D decoding capabilities, handling various barcode conditions efficiently.

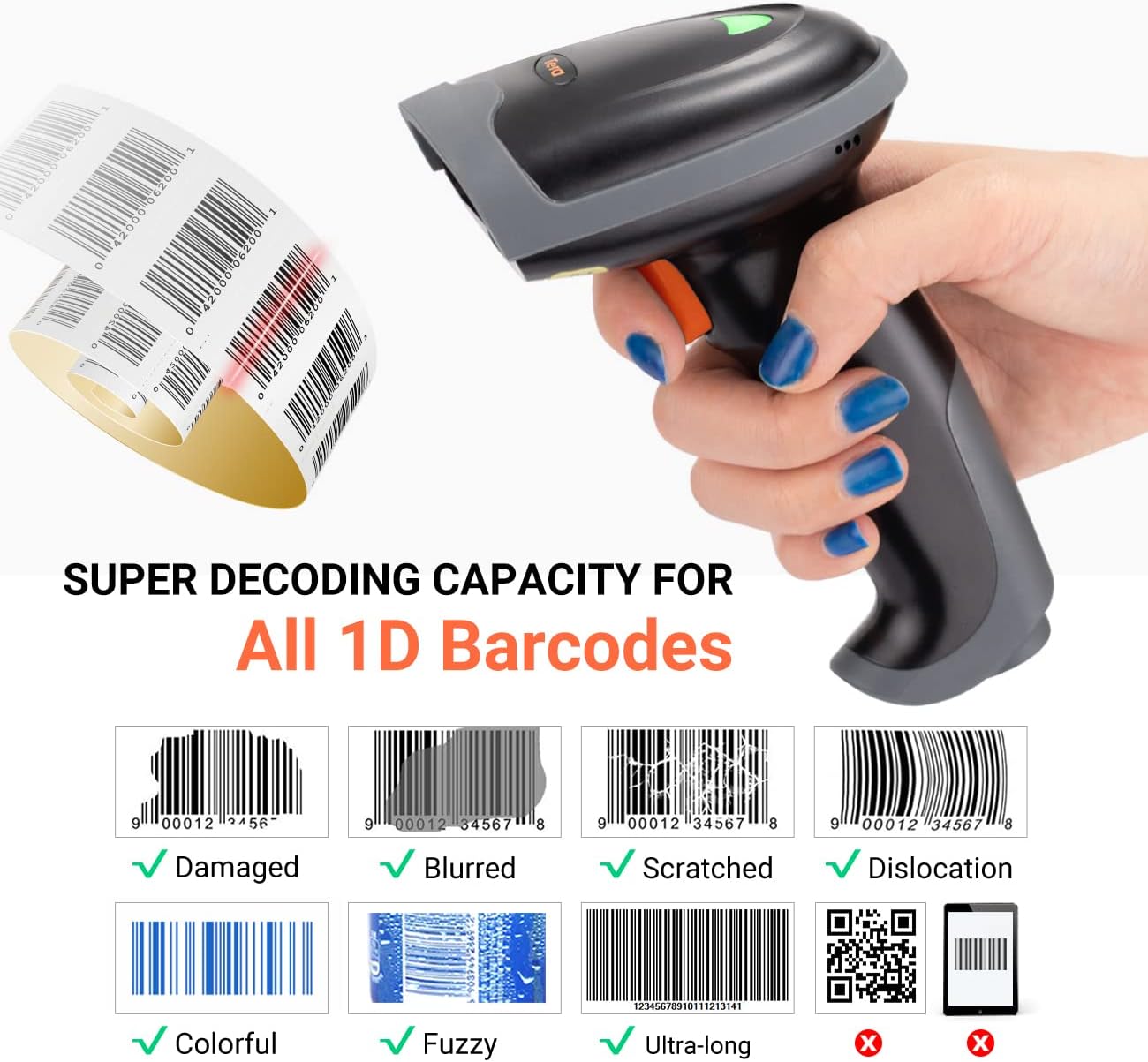

This image demonstrates the scanner's advanced 1D decoding capability, showing its ability to read damaged, blurred, scratched, dislocated, colorful, fuzzy, and ultra-long 1D barcodes. Please note that 2D/QR codes are not supported by this model.

1. Ensure the scanner is powered on and connected to your host device via Bluetooth or USB.
2. Point the scanner's light beam at the barcode you wish to scan.
3. Depending on your selected scan mode (Continuous, Manual Trigger, or Sensor), either wait for the automatic scan or press the trigger button.
4. A successful scan will typically be indicated by a beep and/or an LED indicator change.
5. The scanned data will appear in the active application on your host device (e.g., a text editor, spreadsheet, or POS system).

Supported 1D Barcode Types:

The scanner supports most common 1D barcodes, including:

• CODE39, CODE39 Full ASCII, CODE128, CODE 32, CODEBAR, CODE93, EAN13, CODE11, EAN-128, EAN-8, EAN-13, UPC-A, UPC-E, MSI, ISBN, ISBN 13, Industrial 2/5, ITF14, Interleaved 2/5, Standard 2/5, Matrix 2/5, GS1.

NOTE: This scanner does NOT support 2D or QR codes.

నిర్వహణ

సరైన నిర్వహణ మీ బార్‌కోడ్ స్కానర్ యొక్క దీర్ఘాయువు మరియు సరైన పనితీరును నిర్ధారిస్తుంది.

• శుభ్రపరచడం: స్కానర్ బాహ్య భాగాన్ని శుభ్రం చేయడానికి మృదువైన, పొడి వస్త్రాన్ని ఉపయోగించండి. స్కానింగ్ విండో కోసం, మెత్తటి రహిత వస్త్రాన్ని తేలికగా ఉపయోగించండి dampతేలికపాటి, రాపిడి లేని క్లీనర్‌తో తయారు చేయబడింది. కఠినమైన రసాయనాలు లేదా రాపిడి పదార్థాలను నివారించండి.
• నిల్వ: స్కానర్‌ను ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా చల్లని, పొడి ప్రదేశంలో నిల్వ చేయండి.
• బ్యాటరీ సంరక్షణ: For models with rechargeable batteries, avoid fully discharging the battery frequently. Charge the device regularly, even if not in constant use, to maintain battery health.
• కేబుల్ కేర్: Inspect USB cables for any signs of wear or damage. Replace damaged cables immediately to prevent connectivity issues.

ట్రబుల్షూటింగ్

If you encounter issues with your Tera L0013B-OG scanner, refer to the following common troubleshooting steps:

స్కానర్ స్పందించడం లేదు:

• శక్తిని తనిఖీ చేయండి: స్కానర్ ఛార్జ్ చేయబడి, పవర్ ఆన్ చేయబడిందని నిర్ధారించుకోండి.
• కనెక్షన్‌ని తనిఖీ చేయండి:
  • USB: USB కేబుల్ స్కానర్ మరియు కంప్యూటర్ రెండింటికీ సురక్షితంగా కనెక్ట్ చేయబడిందని ధృవీకరించండి. వేరే USB పోర్ట్ లేదా కేబుల్‌ను ప్రయత్నించండి.
  • బ్లూటూత్: Ensure Bluetooth is enabled on your host device and the scanner is paired. If already paired, try unpairing and re-pairing the device. Make sure the scanner is within the 50-meter Bluetooth range.
• Reset Scanner: Refer to the quick start guide for instructions on how to perform a factory reset, if available.

బార్‌కోడ్‌లను స్కాన్ చేయడం సాధ్యం కాలేదు:

• బార్‌కోడ్ రకం: Confirm that you are scanning a 1D barcode. This scanner does not support 2D or QR codes.
• బార్‌కోడ్ పరిస్థితి: Ensure the barcode is not severely damaged, blurred, or too small/large for the scanner's read range.
• లైటింగ్: Adjust ambient lighting if necessary. Avoid direct glare on the barcode.
• స్కాన్ మోడ్: Verify the scanner is in the correct scan mode (e.g., Manual Trigger requires pressing the button).

Scanned Data Appears Incorrectly:

• కీబోర్డ్ భాష: Ensure the scanner's configured keyboard language matches your host device's keyboard layout. Refer to the quick start guide for instructions on changing the keyboard language.
• అప్లికేషన్ ఫోకస్: Make sure the target application (e.g., text editor) is active and has focus to receive input.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

For warranty information, please refer to the documentation included with your purchase or contact your retailer. For technical support or further assistance, please reach out to Tera customer service.

This image depicts customer service representatives ready to assist with any inquiries or support needs regarding the product.

While specific details on spare parts availability and guaranteed software updates are not provided, Tera is committed to providing quality products and support.
