VEVOR 4550 Stud Welder Kit Instruction Manual

1. పరిచయం

This manual provides comprehensive instructions for the safe and effective operation of the VEVOR 4550 Stud Welder Kit. This 800 VA, 110V spot welding system is designed for automotive body repair, specifically for pulling dents and attaching studs. Please read this manual thoroughly before use to ensure proper function and safety.

2. భద్రతా సమాచారం

WARNING: Electric shock, fire, and serious injury can result from improper use. Always follow safety guidelines.

• Always wear appropriate personal protective equipment (PPE), including welding helmet with proper shade, safety glasses, welding gloves, and protective clothing.
• Ensure the work area is well-ventilated to avoid inhaling welding fumes.
• వెల్డింగ్ ప్రాంతం నుండి మండే పదార్థాలను దూరంగా ఉంచండి.
• d లో వెల్డర్‌ను ఆపరేట్ చేయవద్దుamp లేదా తడి పరిస్థితులు.
• Ensure the power supply matches the welder's requirements (110V).
• The unit features thermal protection that activates when the main transformer temperature reaches approximately 95 °C (203 °F) to prevent overheating. Allow the unit to cool down if this protection engages.
• ఏదైనా నిర్వహణ లేదా ఉపకరణాలను మార్చడానికి ముందు విద్యుత్తును డిస్‌కనెక్ట్ చేయండి.

3. ఉత్పత్తి ముగిసిందిview మరియు భాగాలు

The VEVOR 4550 Stud Welder Kit is designed for efficient dent repair. Key components and features include:

• Heat-Proof Repair Gun: Constructed with durable ABS material and featuring a pure copper electrode for excellent performance and longevity.
• Upgraded Slide Hammer: A heavy-duty slide hammer with a quick-release chuck, cast iron slide weight, and a comfortable non-slip grip for effective dent pulling.
• ఎర్గోనామిక్ డిజైన్: Features a super sensitive trigger and an easy-to-handle D-handle design for comfortable, one-handed operation.
• ఉష్ణ రక్షణ: Built-in overload relay to prevent overheating, enhancing safety and product lifespan.

చేర్చబడిన భాగాలు:

• 1 x Multifunctional Pull Hammer
• 500 x 2mm Studs
• 1 x Stud Electrode
• 1 x Internal Stud Lock
• 1 x External Stud Lock
• 1 x నిల్వ కేసు

Figure 1: VEVOR 4550 Stud Welder Kit showing the welder gun, slide hammer, and various accessories within its storage case.

4. సెటప్

1. అన్‌ప్యాక్: ప్యాకేజింగ్ నుండి అన్ని భాగాలను జాగ్రత్తగా తీసివేసి, ఏదైనా నష్టం జరిగిందో లేదో తనిఖీ చేయండి.
2. పవర్ కనెక్షన్: Connect the welder's power cord to a grounded 110V power outlet. Ensure the outlet is capable of handling the 800 VA power requirement.
3. ఎలక్ట్రోడ్ ఇన్‌స్టాలేషన్: Insert the appropriate stud electrode into the front of the welding gun. Ensure it is securely seated.
4. Stud Loading: Load a 2mm stud into the stud lock mechanism on the electrode.
5. పని ప్రాంతం తయారీ: Clean the dented metal surface thoroughly to remove any paint, rust, or contaminants. This ensures a good electrical connection for welding.

Figure 2: Detail of the welder gun's pure copper electrode and durable ABS body construction.

5. ఆపరేటింగ్ సూచనలు

Follow these steps for effective dent pulling using the VEVOR 4550 Stud Welder Kit:

1. Position the Stud: Place the tip of the stud, which is held by the electrode, firmly against the cleaned dented area of the metal panel.
2. వెల్డింగ్‌ను ప్రారంభించండి: Press the trigger on the welder gun. The unit will instantly weld the stud to the metal surface. Release the trigger once the weld is complete.
3. Attach Slide Hammer: Securely attach the multifunctional pull hammer to the welded stud. The quick-release chuck ensures a firm grip.
4. Pull the Dent: Use the slide hammer to gently and repeatedly pull the stud outwards, gradually working the dent out of the panel. Apply controlled force to avoid over-pulling or damaging the metal.
5. Remove Stud: Once the dent is sufficiently pulled, twist or cut the stud off the panel. Grind down any remaining stud material for a smooth finish.
6. పునరావృతం: For larger dents, repeat the process by welding multiple studs across the affected area and pulling them incrementally.

Figure 3: The upgraded slide hammer being used to pull a dent, illustrating its effectiveness.

6. నిర్వహణ

Regular maintenance ensures the longevity and optimal performance of your VEVOR 4550 Stud Welder Kit:

• శుభ్రపరచడం: After each use, wipe down the welder gun and accessories with a clean, dry cloth. Remove any metal dust or debris from the electrode area.
• ఎలక్ట్రోడ్ తనిఖీ: Periodically inspect the stud electrode for wear or damage. Replace if necessary to ensure consistent welding performance.
• కేబుల్ తనిఖీ: Check all power cables and connections for signs of wear, cuts, or damage. Do not use the unit if cables are compromised.
• నిల్వ: Store the kit in its provided case in a dry, clean environment, away from moisture and extreme temperatures.

7. ట్రబుల్షూటింగ్

If you encounter issues with your VEVOR 4550 Stud Welder Kit, refer to the following common problems and solutions:

Figure 4: Illustration of the thermal protection feature, indicating the temperature threshold for activation.

8. స్పెసిఫికేషన్లు

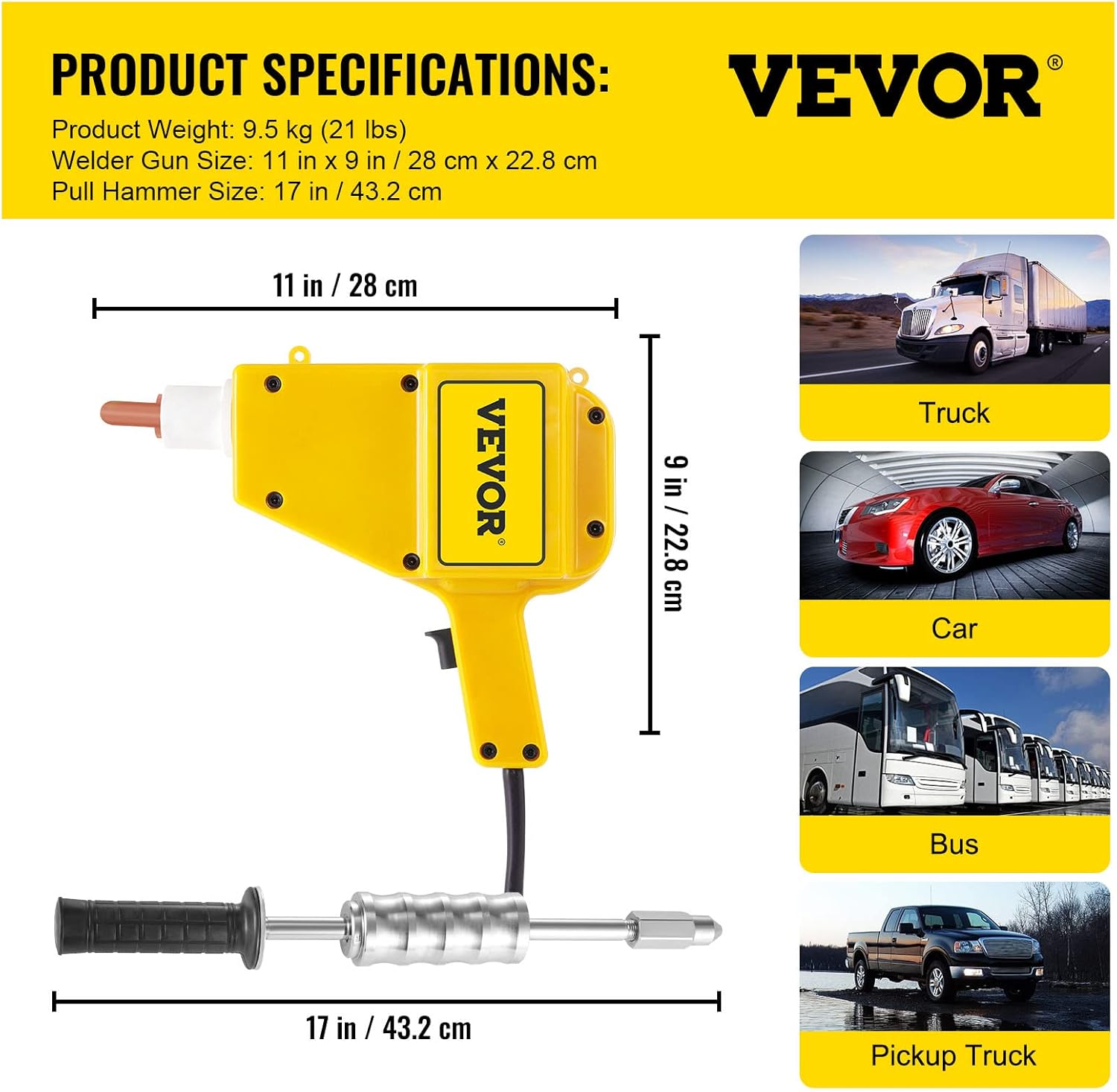

Figure 5: Visual representation of the welder gun and pull hammer dimensions, along with product weight.

9. వారంటీ మరియు మద్దతు

For warranty information, technical support, or to inquire about replacement parts, please contact VEVOR customer service directly. Refer to the contact information provided with your product packaging or visit the official VEVOR webసైట్.
