TCL THMLd4D-3HBp-A Mono Split Heating and Cooling System

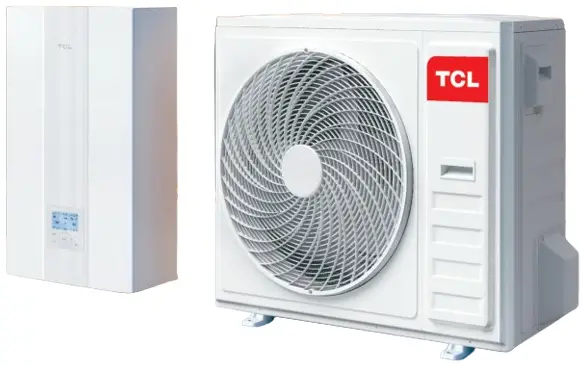

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-product

Product Usage Instructions

  • Ensure the power supply matches the specifications provided.
  • Follow the installation manual to set up the unit securely.
  • Make appropriate piping connections for cooling and heating.
  • Power on the unit using the designated power switch.
  • Set the desired temperature using the control panel.
  • Select the mode of operation (heating, cooling, hot water) based on your requirement.
  • Regularly clean the air filters to ensure efficient operation.
  • Schedule professional maintenance checks at least once a year.

FAQ

  • Q: What is the recommended power supply for this product?
  • A: The recommended power supply is 220-240V/1/50Hz.
  • Q: How often should I clean the air filters?
  • A: It is recommended to clean the air filters every 2-3 weeks for optimal performance.
  • Q: Can this product be used for both heating and cooling?
  • A: Yes, this product is designed for both heating and cooling applications.

Mono product parameters

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-18



Model name

 THMLd- 4D/3HBp

– A

 THMLd- 6D/3HBp

-A

 THMLd- 8D/3HBp

– A

 THMLd- 10D/3HBp

– A

 THMLd- 12D/3HBp

– A

 THMLd- 14D/3HBp

– A

 THMLd- 16D/3HBp

– A

 THMLd- 12S/6(9) HBp-A THMLd- 14S/6(9) HBp-A THMLd- 16S/6(9) HBp-A
Power supply V/Ph/Hz 220-240/1/50 220-240/1/50 380-415/3/50


Heating A7W35

 Capacity kW 4.20 6.22 8.00 9.50 12.10 14.50 16.00 12.10 14.50 16.00
Rated input kW 0.82 1.27 1.60 1.98 2.42 3.05 3.54 2.42 3.05 3.54
COP 5.10 4.90 5.00 4.80 5.00 4.75 4.52 5.00 4.75 4.52


Heating A7W45

 Capacity kW 4.35 6.35 8.00 9.50 12.05 14.25 16.00 12.05 14.25 16.00
Rated input kW 1.14 1.69 2.11 2.60 3.14 3.83 4.42 3.14 3.83 4.42
COP 3.80 3.75 3.80 3.65 3.84 3.73 3.62 3.84 3.73 3.62


Heating A7W55

 Capacity kW 4.40 6.00 7.40 9.00 12.00 14.00 16.00 12.00 14.00 16.00
Rated input kW 1.49 2.03 2.38 3.00 3.85 4.65 5.49 3.85 4.65 5.49
COP 2.95 2.96 3.11 3.00 3.12 3.01 2.91 3.12 3.01 2.91


Cooling A35W18

 Capacity kW 4.50 6.00 8.00 9.50 12.00 13.50 15.00 12.00 13.50 15.00
Rated input kW 0.81 1.22 1.67 2.07 3.00 3.60 4.35 3.00 3.60 4.35
EER 5.55 4.92 4.80 4.60 4.00 3.75 3.44 4.00 3.75 3.44


Cooling A35W7

 Capacity kW 4.50 6.00 7.00 8.00 11.60 12.95 14.30 11.60 12.95 14.30
Rated input kW 1.28 1.93 2.14 2.53 4.20 4.98 5.70 4.20 4.98 5.70
EER 3.50 3.11 3.27 3.16 2.76 2.60 2.51 2.76 2.60 2.51
SCOP2 LWT at 35⁰C 4.60 4.65 5.07 5.05 4.77 4.63 4.56 4.77 4.63 4.56
LWT at 55⁰C 3.35 3.49 3.47 3.51 3.48 3.43 3.48 3.54 3.46 3.49
Seasonal space heating energy efficiency LWT at 35⁰C A+++
LWT at 55⁰C A++
Electric heater power input kW 3 3 3 3 3 3 3 6(9) 6(9) 6(9)
MOP(Maximum overcurrent protection)3 A 18 18 19 19 32 32 32 14 14 14
MCA( Minimum circuit amps) A 12 14 16 17 25 26 27 10 11 12
Compressor Type Twin rotary DC inverter


Outdoor fan

 Motor type Brushless DC motor
Number of fans 1
Throttle type Electronic expansion valve
Air side heat

exchanger

 Type Finned tube
Water-side heat exchanger Type Plate type


Refrigerant

 Type R32
Factory charge kg 1.30 1.30 1.40 1.40 1.74 1.74 1.74 1.74 1.74 1.74
Sound power Level4 dB 56 59 60 61 64 66 68 64 66 68
Sound pressure level5 dB 44 46 47 50 53 54 55 53 54 55
Net dimensions (W×H×D) mm 1220×709×390 1293×860×495
Packing dimension (W×H×D) mm 1315×844×430 1395×996×535
Net/Gross weight kg 76.0/87.0 76.0/87.0 95.0/116.0 95.0/116.0 112.0/133.0 112.0/133.0 112.0/133.0 124.0/145.0 124.0/145.0 124.0/145.0
Piping connections R1″ R1″ R5/4″ R5/4″ R5/4″ R5/4″ R5/4″ R5/4″ R5/4″ R5/4″


Operation range

 Cooling ⁰C – 5～ 43
Heating ⁰C – 25～ 35
DHW ⁰C – 25～ 43


Water outlet

 Cooling ⁰C 5 ～ 20
Heating ⁰C 25 ～ 65
DHW ⁰C 20 ～ 60

Abbreviations:

  • DHW: Domestic hot water
  • LWT: Leaving water temperature

Notes

  1. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811/2013; (EU) No 813/2013; OJ 2014/C 207/02.
  2. Seasonal space heating energy efficiency class tests in average climate conditions.
  3. Sound power test condition ：EN12102- 1.
  4. Sound pressure level is the maximum value tested under the two conditions of A7W35 and A35W18.

Split product parameters

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-19



Model name

 THF-4D/ HBpO-A THF-6D/ HBpO-A THF-8D/ HBpO-B THF-10D/ HBpO-B THF-12D/ HBpO-A THF-14D/ HBpO-A THF-16D/ HBpO-A THF-12S/ HBpO-A THF-14S/ HBpO-A THF-16S/ HBpO-A
Power supply V/Ph/Hz 220-240/1/50 220-240/1/50 220-240/1/50 380-415/3/50
Heating A7W35 Capacity kW 4.20 6.22 8.00 9.50 12.10 14.50 16.00 12.10 14.50 16.00
Rated input kW 0.82 1.27 1.60 1.98 2.42 3.05 3.54 2.42 3.05 3.54
COP 5.10 4.90 5.00 4.80 5.00 4.75 4.52 5.00 4.75 4.52
Heating A7W45 Capacity kW 4.35 6.35 8.00 9.50 12.05 14.25 16.00 12.05 14.25 16.00
Rated input kW 1.14 1.69 2.11 2.60 3.14 3.83 4.42 3.14 3.83 4.42
COP 3.80 3.75 3.80 3.65 3.84 3.73 3.62 3.84 3.73 3.62
Heating A7W55 Capacity kW 4.40 6.00 7.40 9.00 12.00 14.00 16.00 12.00 14.00 16.00
Rated input kW 1.49 2.03 2.38 3.00 3.85 4.65 5.49 3.85 4.65 5.49
COP 2.95 2.96 3.11 3.00 3.12 3.01 2.91 3.12 3.01 2.91
Cooling A35W18 Capacity kW 4.50 6.00 8.00 9.50 12.00 13.50 15.00 12.00 13.50 15.00
Rated input kW 0.81 1.22 1.67 2.07 3.00 3.60 4.39 3.00 3.60 4.39
EER 5.55 4.92 4.80 4.60 4.00 3.75 3.42 4.00 3.75 3.42
Cooling A35W7 Capacity kW 4.50 6.00 7.00 8.00 11.60 12.95 14.30 11.60 12.95 14.30
Rated input kW 1.28 1.93 2.14 2.53 4.20 4.98 5.70 4.20 4.98 5.70
EER 3.50 3.11 3.27 3.16 2.76 2.60 2.51 2.76 2.60 2.51
SCOP2 LWT at 35⁰C 4.60 4.65 5.07 5.05 4.78 4.63 4.56 4.70 4.58 4.56
LWT at 55⁰C 3.35 3.49 3.47 3.51 3.48 3.47 3.48 3.48 3.35 3.44
Seasonal space heating energy efficiency class2 LWT at 35⁰C A+++
LWT at 55⁰C A++
MOP(Maximum overcurrent protection)3 A 18 18 19 19 32 32 32 14 14 14
MCA( Minimum circuit amps) A 12 14 16 17 25 26 27 10 11 12
Compressor Type Twin rotary DC inverter
Outdoor fan Motor type Brushless DC motor
Number of fans 1
Throttle type Electronic expansion valve
Air side heat exchanger Type Finned tube


Refrigerant

 Type R32
Factory charge kg 1.30 1.30 1.65 1.65 1.84 1.84 1.84 1.84 1.84 1.84
Sound power level4 dB 56 59 60 61 64 66 68 64 66 68
Sound pressure level5 dB 44 46 47 50 53 54 55 53 54 55
Net dimensions (W×H×D) mm 845×700×375 1010×860×494
Packed dimensions(W×H×D) mm 960×732×400 1135×970×530
Net/Gross weight kg 45.5/48.0 45.5/48.0 62.0/75.0 62.0/75.0 78.0/90.5 78.0/90.5 78.0/90.5 90.0/102.5 90.0/102.5 90.0/102.5






Piping connections

 Type   Flare Flare Flare Flare Flare Flare Flare Flare Flare Flare
Liquid Dia. mm Φ6.35 Φ6.35 Φ9.52 Φ9.52 Φ9.52 Φ9.52 Φ9.52 Φ9.52 Φ9.52 Φ9.52
Gas Dia. mm Φ15.9 Φ15.9 Φ15.9 Φ15.9 Φ15.9 Φ15.9 Φ15.9 Φ15.9 Φ15.9 Φ15.9
Min. pipelength m 2 2 2 2 2 2 2 2 2 2
Max. pipe length m 30 30 30 30 30 30 30 30 30 30


Installation height

 Outdoor unit above m 20 20 20 20 20 20 20 20 20 20
Outdoor unit below m 20 20 20 20 20 20 20 20 20 20


Operating range

 Cooling ⁰C – 5 ～ 43
Heating ⁰C – 25 ～ 35
DHW ⁰C – 25 ～ 43

Notes

  1. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811:2013; (EU) No 813:2013; OJ 2014/C 207/02:2014.
  2. Seasonal space heating energy efficiency class tested in average climate conditions.
  3. Test standard: EN12102- 1.
  4. The sound pressure level is the maximum value tested under the two conditions of A7W35 and A35W18.

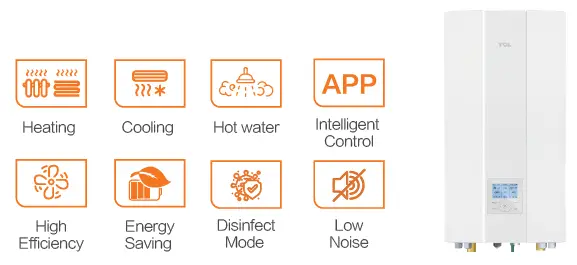

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-20



Model name

 SMKLd- 4(6)D/3HBp- A SMKLd- 8(10)D/3HBp- B SMKLd- 12(14,16)D/3HBp-A
Function Heating and cooling


Water outlet

 Cooling ℃ 5 to 20
Heating ℃ 25 to 65
DHW ℃ 20 to 60
Power supply V/Ph/Hz 220-240/1/50 220-240/1/50 220-240/1/50
Electric heater power input kW 3 3 3
Sound power level1 dB 38 42 44
Sound pressure level(1m)2 dB 28 30 32
Net dimensions (W×H×D) mm 420×790×270
Packed dimensions (W×H×D) mm 530×1035×355
Net/gross weight kg 44.0/50.0 41.0/47.0 42.0/48.0










Water circuit

 Piping connections inch R1″
Safety valve set pressure Mpa 0.3
Drainage pipe connection mm DN25


Expansion tank

 Volume L 8
Max. water pressure MPa 0.3
Pre-pressure Mpa 0.1
Heat exchanger Type Plate type
water pump head m 9


Refrigerant circuit

 Liquid Dia. mm Φ6.35 Φ9.52 Φ9.52
Gas Dia. mm Φ15.9 Φ15.9 Φ15.9
Excessive operating refrigerant pressure MPa 4.3 4.3 4.3
Operating temperature range Ambient temperature ⁰C +5～ +35
Water pressure MPa 0.1 ～ 0.3

Notes

  1. Test standard: EN12102- 1.
  2. The sound pressure level is the maximum value tested under the two conditions of Note3 and Note4 for different combination between outdoor unit and hydronic box..
  3. Outdoor air temperature 7℃ DB, 85% R.H.; EWT 30℃, LWT 35℃.
  4. Outdoor air temperature 35℃ DB; EWT 23℃, LWT 18℃.

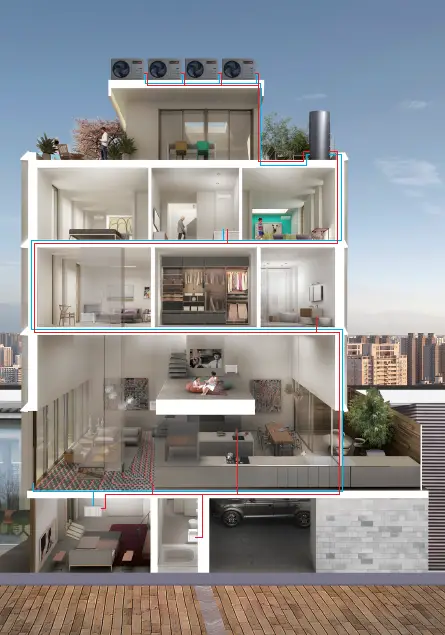

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-1

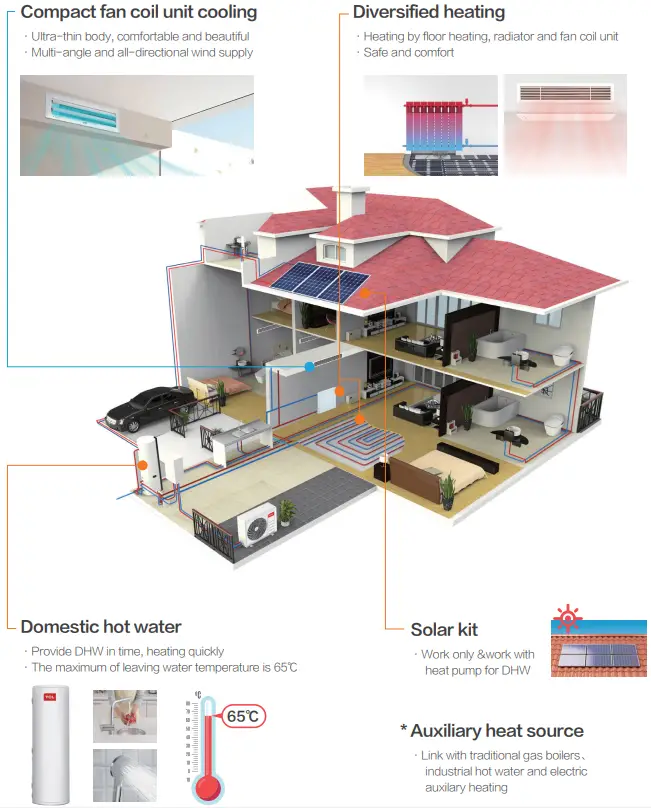

Versatility

Heating, cooling, and hot water with complete solutions, to the creative life
Tri-thermal is an integrated system that provides space heating and cooling as well as domestic hot water, offering a complete, all-year-round solution that can remove the need for traditional gas or oil boilers, or work together with them.TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-2

High Efficient and energy-saving

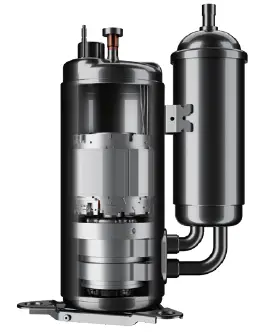

Well-known brand DC inverter compressor（GMCC）

High-reliability electrical design

  • High-current resistant& high-temperature resistant

Large pressure ratio design

  • Low suction pressure
  • High exhaust pressure
  • Heating at low ambient temperature

Low oil output design

  • Optimized internal tank design
  • Less lubricating oil required
  • Effectively solves the problem of oil return

DC Inverter motor design

  • High efficiency, the highest SCOP is 5.07

Low noise vibration design

  • Vibration optimization of twin rotor
  • Noise optimization of double-layer mufflers

High-reliability volume design

  • Large oil storage space
  • Suitable for use in partial load conditions and long-pipe

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-3

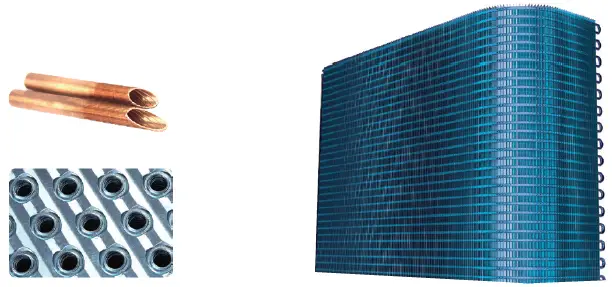

High-efficient L-type heat exchanger

  • Adopting advanced 3-D dynamic analysis and cross-flow path design, air volume increased by 8%, and heat exchange was more efficient.

Internal thread heat transfer pipe

  • Using hydrophilic anti-corrosive fins, heat transfer efficiency increased 6%.

Corrugated fin

  • Applying inner thread tube with 10% higher heat exchange efficiency.

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-4

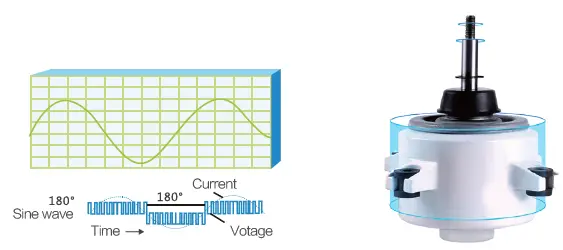

Stepless inverter fan motor

  • Realize stepless speed regulation, and reduce power consumption by 20% compared with AC motors
  • Original built-in drive, high motor efficiency, more reliable
  • Stepless regulation of air volume, precise control
  • Quiet operation
  • Insulation grade E

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-5

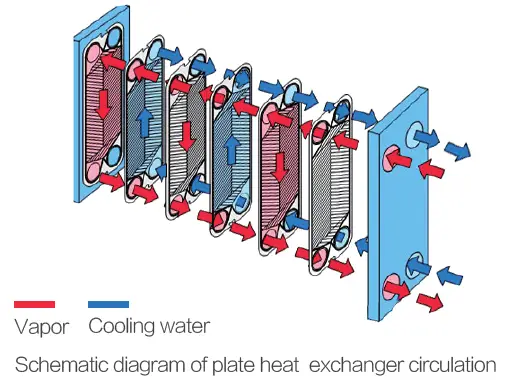

Plate heat exchanger

  • Withstand high temperature and high pressure
  • Compact design, smaller volume, and less pressure drop
  • High anti-corrosion performance
  • High thermal efficiency and lower fouling factor
  • Easy installation and maintenance
  • Under the same pressure loss, the heat transfer coefficient of the plate heat exchanger is 3~5 times higher than that of the tubular heat exchanger, covering an area of 1 / 3 of the tubular heat exchanger.

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-6

Multiple certifications

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-7

Environmental friendly refrigerant

  • The GWP of R32 is 675TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-8
  • CO2 equivalent is decreased 68% compared with R410a
  • Save clients energy and protect the environment

Safe and Comfort

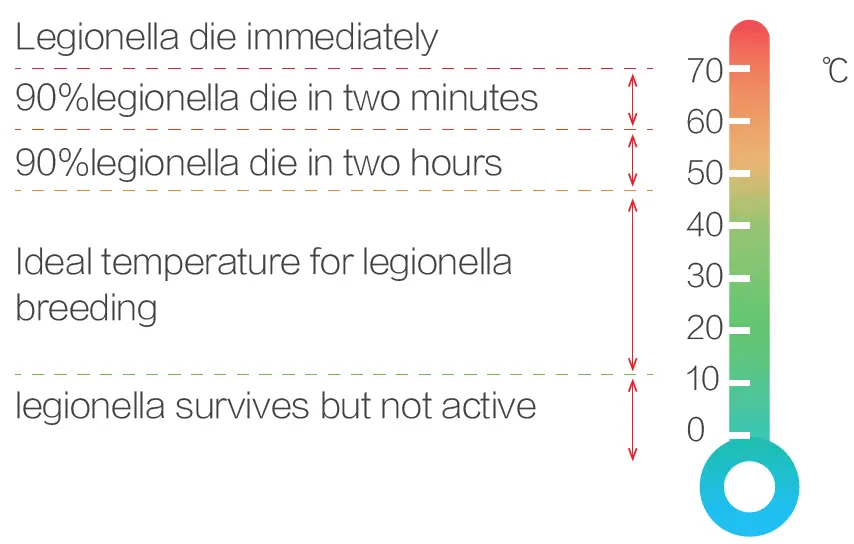

Anti-bacteria mode

  • Designed to guarantee our safety and health.
  • It works by heating the water to about 70 degrees.

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-9

Provide DHW in time

Water pump

  • Running smoothly

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-10

Electrical heater

  • Heat DHW quickly
  • As a back-up facility for inclement weather

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-11

Solar kit heater

  • Energy saving

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-12

Low level of noise

  • Multiple silent modes are optional Silent mode, night silent mode, and super silent mode.
  • Optimized right & back side plates design Based on the 3-D simulation, which greatly decrease the vibration and running noise.

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-13

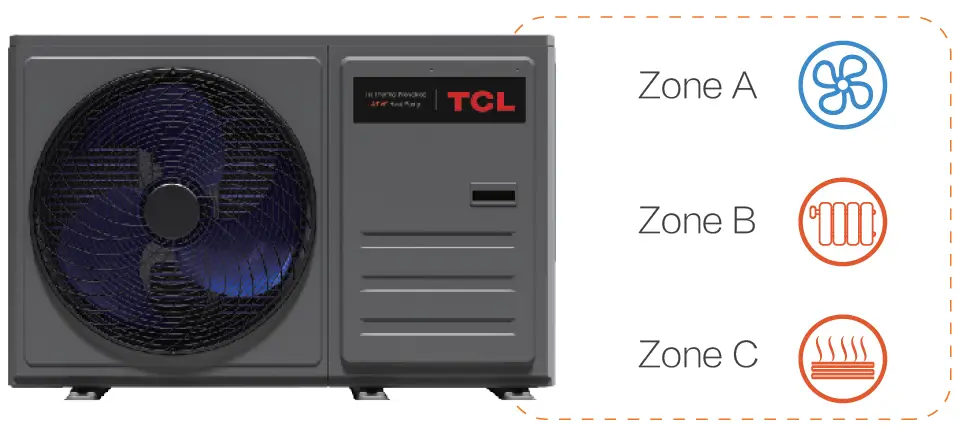

3-zone control

  • Connect max 3 zones at the same time and achieve different temperature control in different zones.

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-14

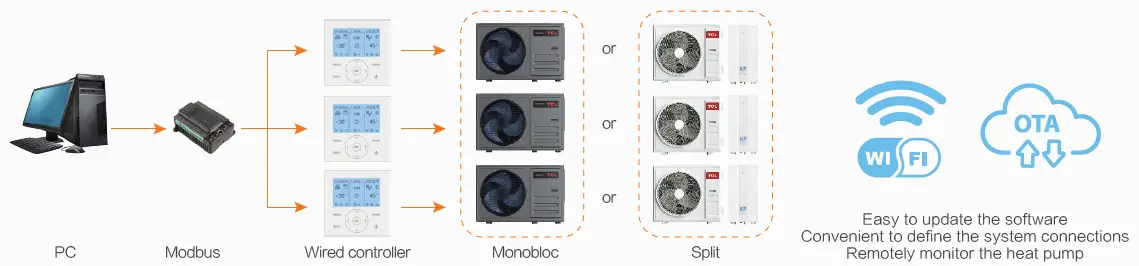

Intelligent control

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-15

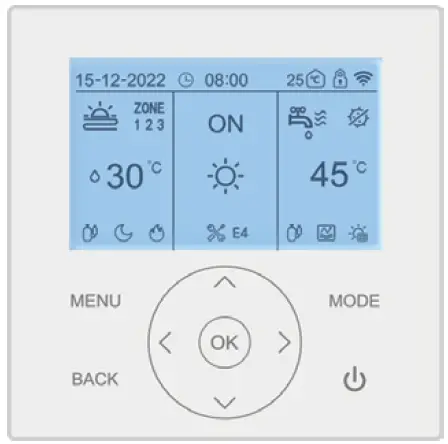

Wired controller

  • Liquid crystal, two-way communication, backlight at night
  • Access to wifi with internet control
  • Multiple languages are available
  • Can set the parameters and query for faults
  • Daily schedule and weekly schedule accurately control time and operation mode to prevent forgetting

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-16

APP controller

  • Modes adjustment
  • Cascade control
  • Power consumption record
  • Sanitory hot water priority mode
  • Unit status & fault information display
  • Temp, Pump flow rate, timer setting etc.

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-17

CONTACT

TECHNICAL SUPPORT, GLOBAL SALES COMPANY

  • GD TCL INTELLIGENT HEATING & VENTILATING EQUIPMENT CO., LTD.
  • Address: No.7 Yuanlin Road, Nantou, Zhongshan, Guangdong, PR China
  • Web: hao.tcl.com Email: hvac@tcl.com

TCL-THMLd4D-3HBp-A-Mono-Split-Heating-and-Cooling-System-fig-21

Documents / Resources

TCL THMLd4D-3HBp-A Mono Split Heating and Cooling System [pdf] Owner's Manual
THMLd4D-3HBp-A, THMLd6D-3HBp-A, THMLd8D-3HBp-A, THMLd10D-3HBp-A, THMLd12D-3HBp-A, THMLd14D-3HBp-A, THMLd16D-3HBp-A, THMLd12S-6 9 -A, THMLd14S-6 9 -A, THMLd16S-6 9 -A, THMLd4D-3HBp-A Mono Split Heating and Cooling System, THMLd4D-3HBp-A, Mono Split Heating and Cooling System, Heating and Cooling System, Cooling System, System

References

Leave a comment

Your email address will not be published. Required fields are marked *
