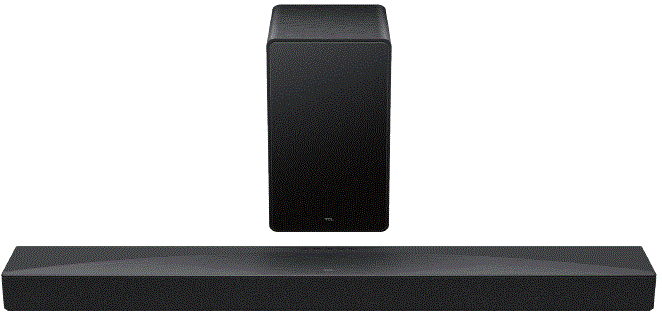

TCL Q65H 5.1 Channel Dolby Atmos Soundbar
Specifications
- Product: Q65H 5.1 Channel Dolby Atmos Soundbar with Wireless Subwoofer
- Channels: 5.1
- Sound Technology: Dolby Atmos
- Subwoofer: Wireless
Product Usage Instructions
Safety Instructions
Before using the product, make sure to read all safety information provided in the manual.

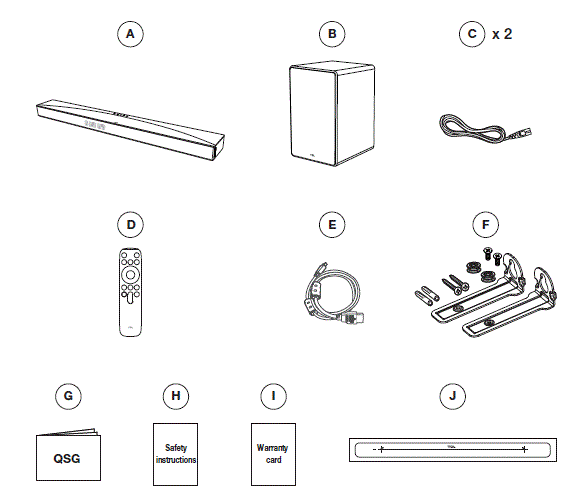

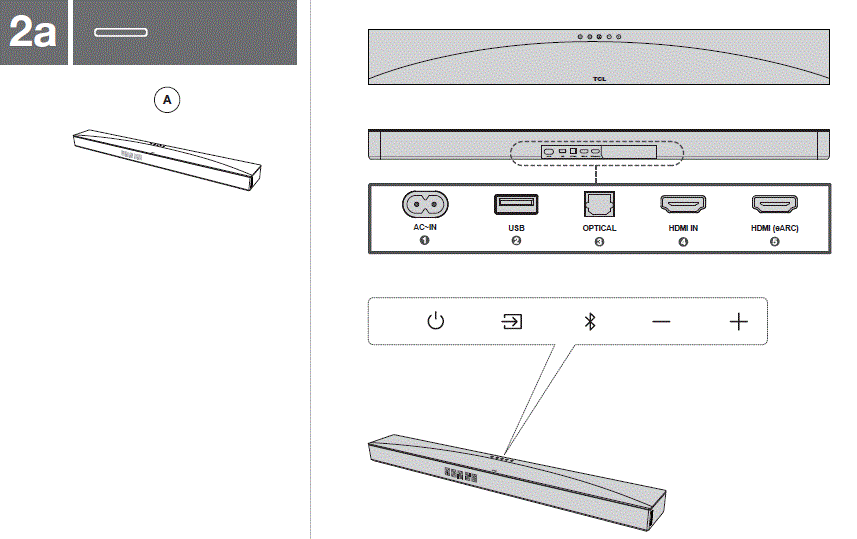

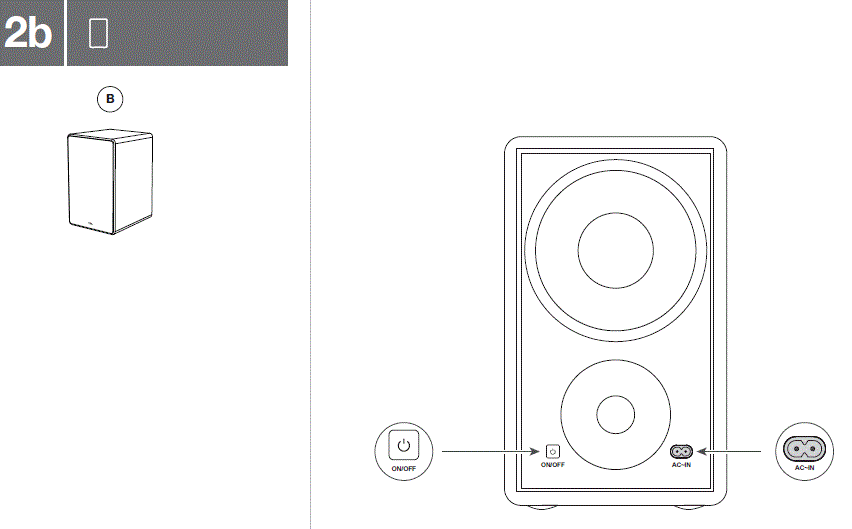

What’s in the box
Make sure you read all the safety information before you use this product.

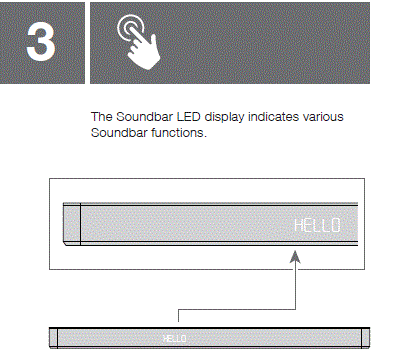

Functionality

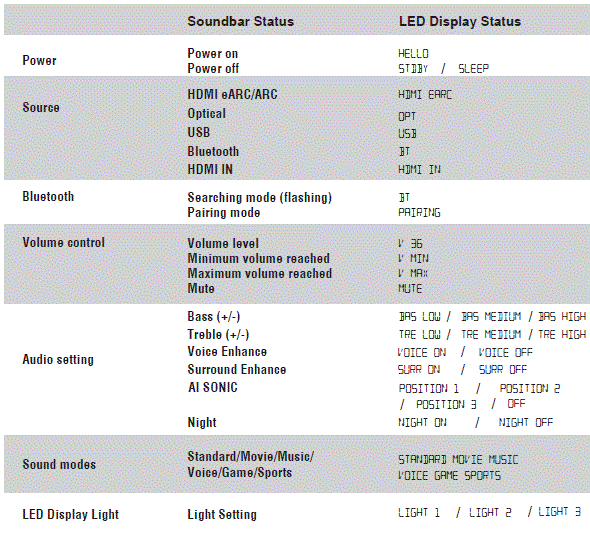

The LED display on the soundbar indicates various functions:
- Power status
- Source selection (Bluetooth, HDMI, Optical, USB)
- Volume control
- Audio settings (Bass, Treble, Voice Enhance, Surround Enhance, AI SONIC)
- Sound modes (Standard, Movie, Music, Voice, Game, Sports)
- Light settings

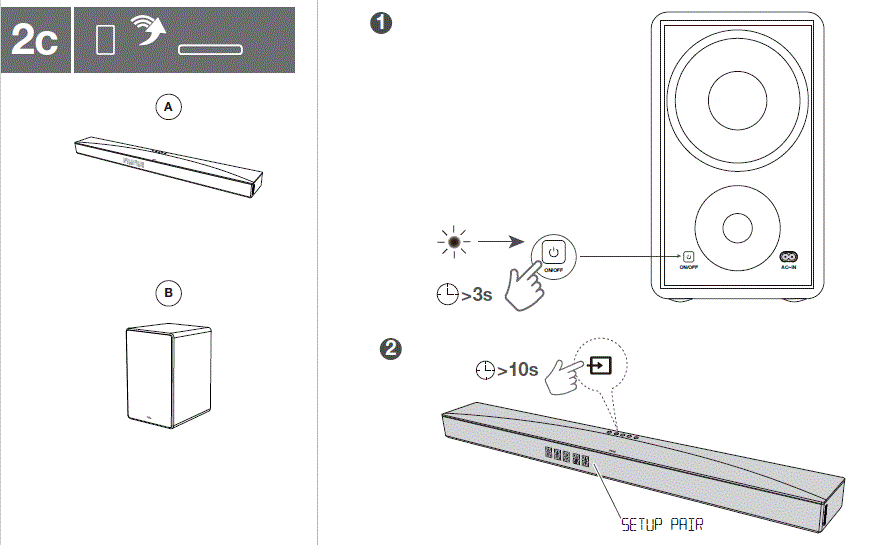

Setup
- Connect the soundbar to power using the AC adapter.
- Connect your preferred audio source using HDMI, optical, or USB cables.
- Power on the soundbar using the ON/OFF button.
Factory Reset
To perform a factory reset, press and hold the volume control panel and power button simultaneously for 10 seconds until the LED display shows FACTORY RESET.
Specification

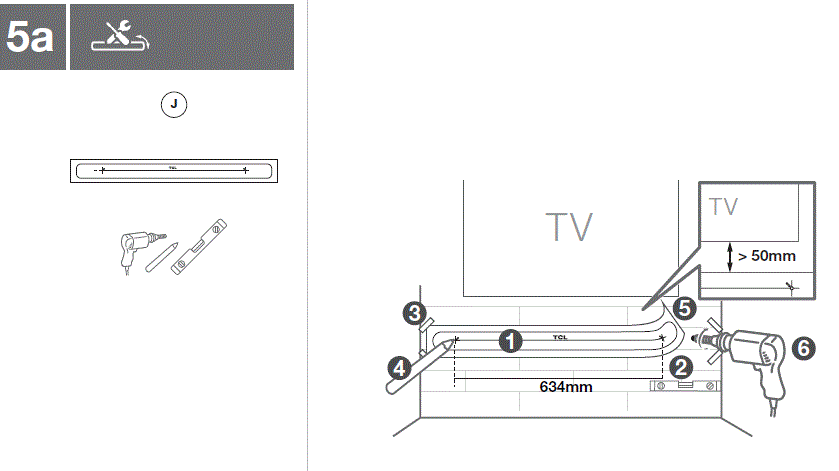

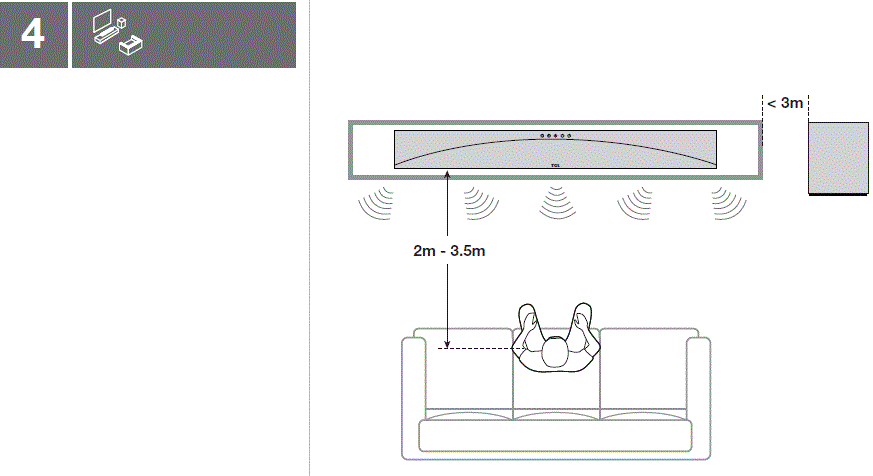

Installation

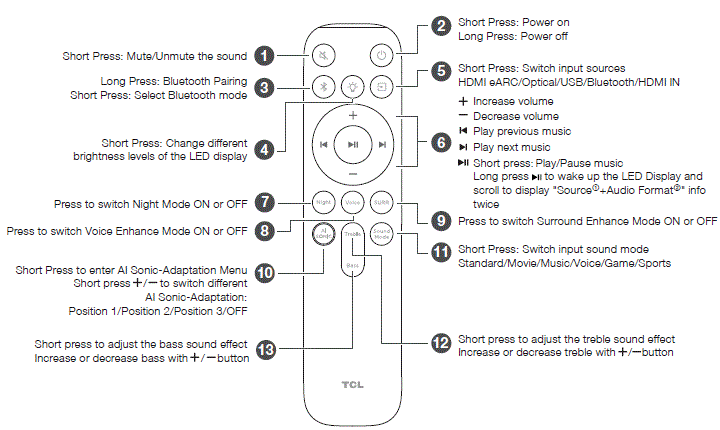

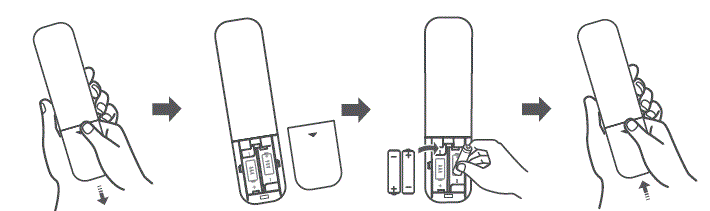

Remote Control
- Warning: Do not expose batteries to excessive heat such as sunshine, fire, or the like. Keep new and used batteries away from children. For disposal or recycling information, please contact your local authorities.
- CAUTION: Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.
Note:
- Source: HDMI eARC/Optical/USB/Bluetooth/HDMI IN
- Audio Format: PCM AUDIO/DOLBY SURROUND/DOLBY ATMOS/DTS/DTS HD/DTS:X, etc.

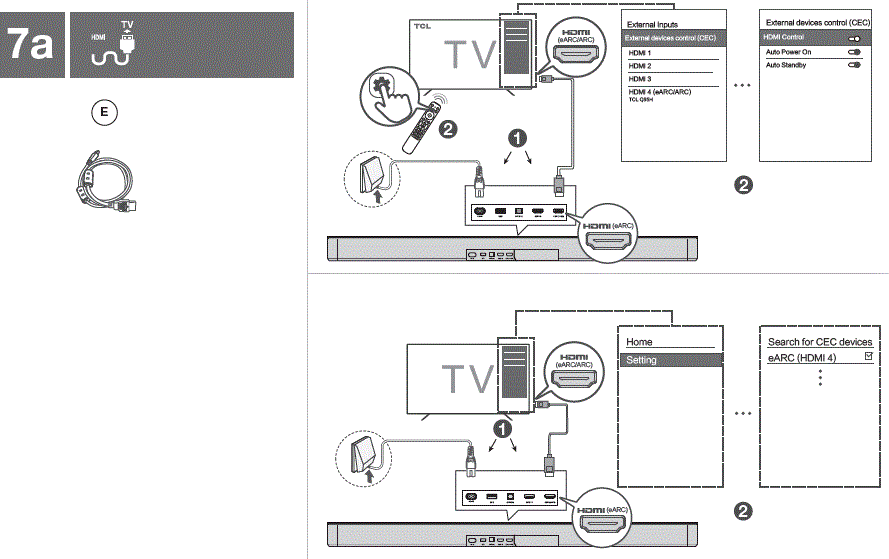

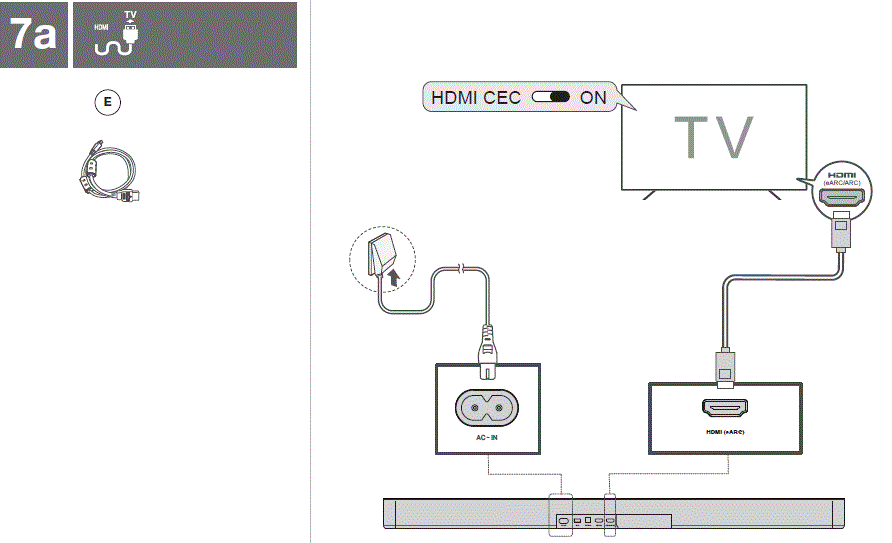

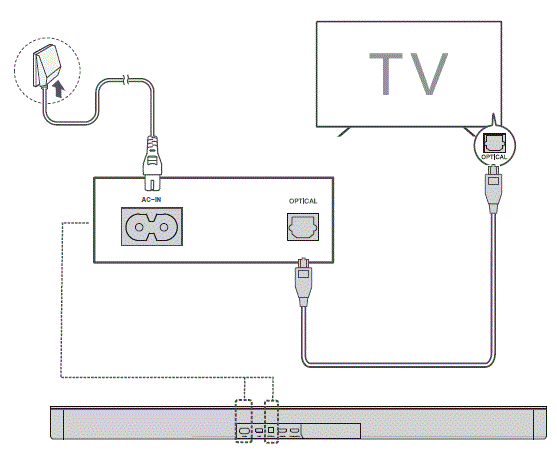

Plug Connection

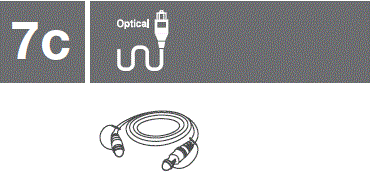

Cable Fitting
This cable is sold seperately.

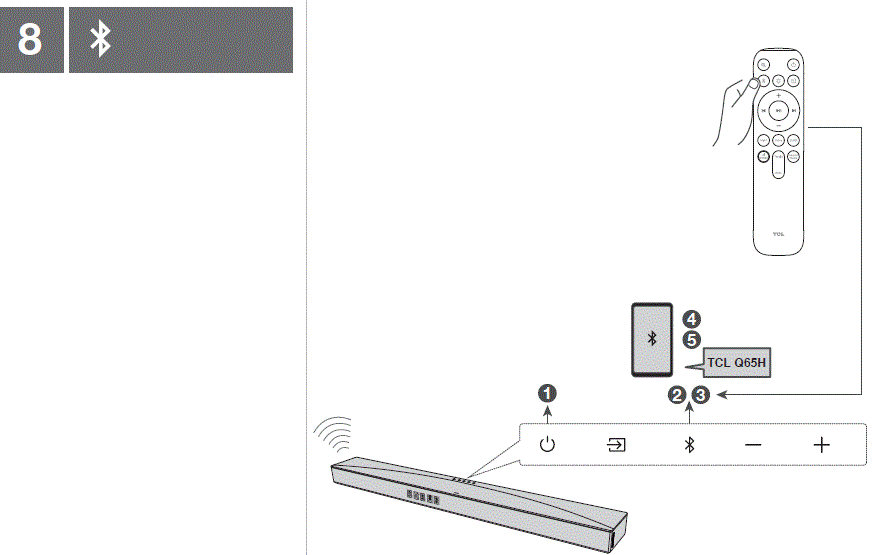

Bluetooth Connection

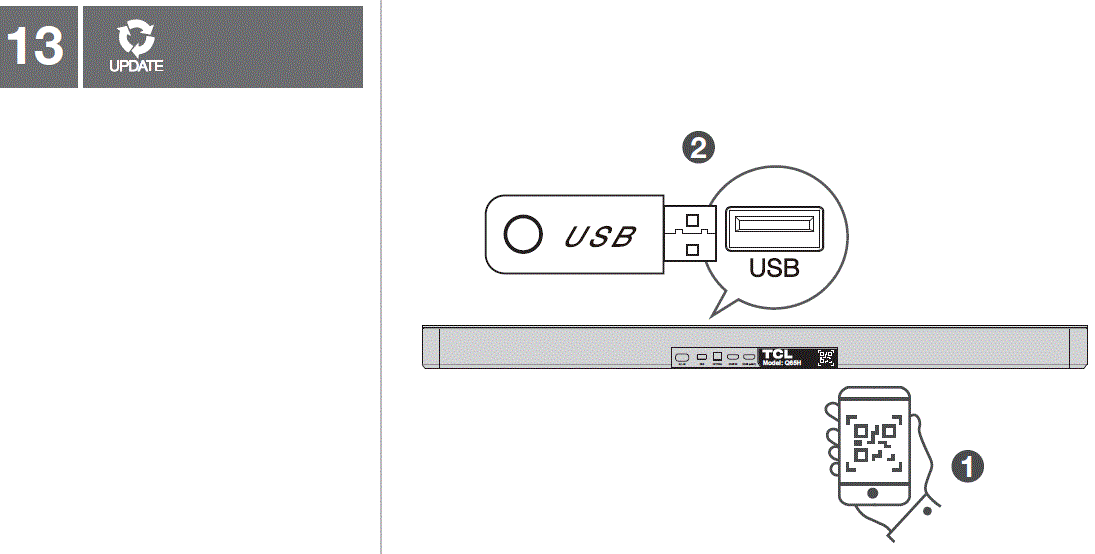

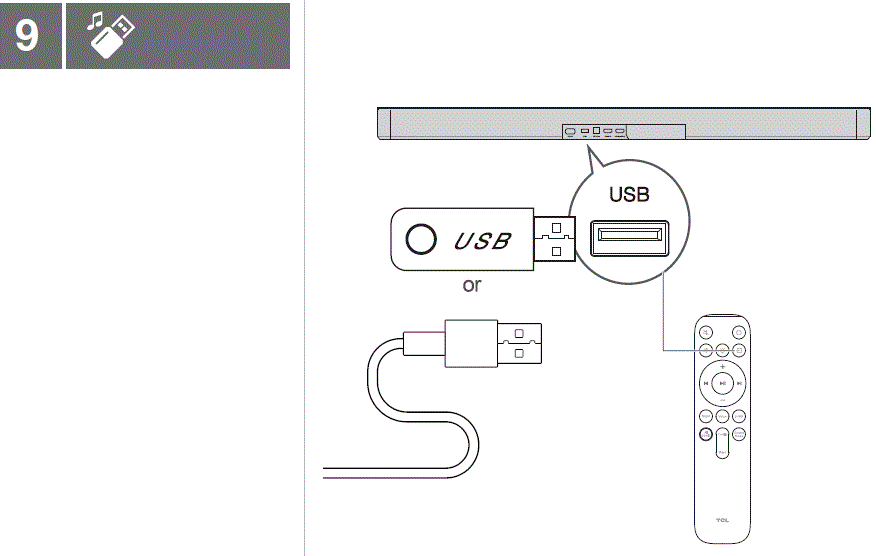

USB Fitting
- Supported audio files: MP3, WMA, WAV, FLAC.
- USB format: FAT and FAT 32.

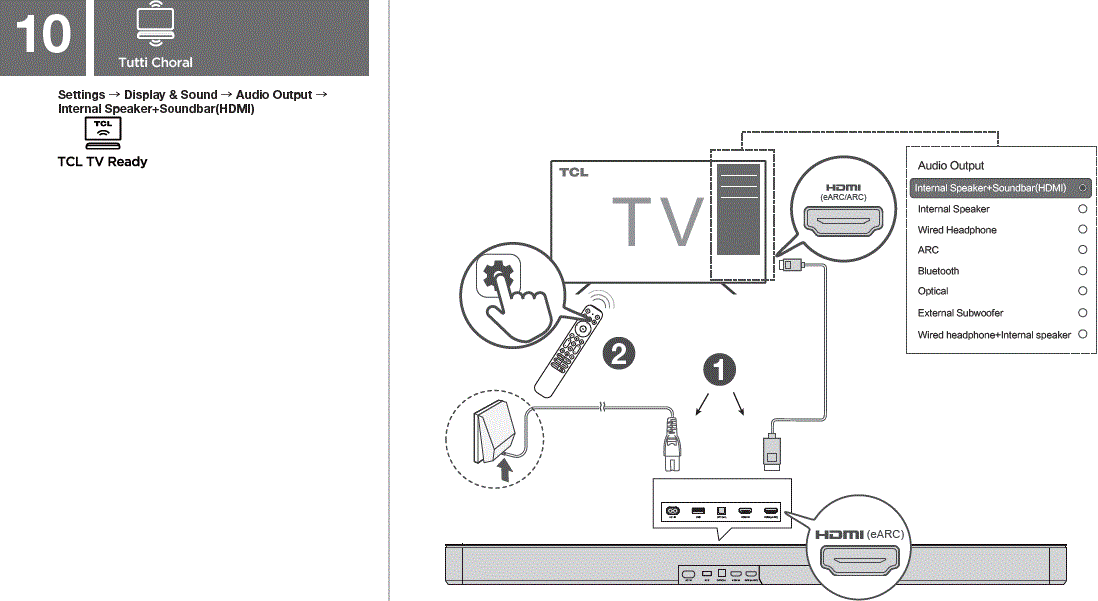

Model Checking
This function is available in some TCL TVs and some TCL models.
Audio Checking
Scanning
Trademarks
Dolby, Dolby Vision, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories.
Confidential unpublished works. Copyright © 2012-2025 Dolby Laboratories. All rights reserved.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TTE Corporation is under license. Other trademarks and trade names are those of their respective owners.
For DTS patents, see http://xperi.com/dts-patents/. Manufactured under license from DTS Licensing Limited. DTS, DTS:X, DTS Virtual: X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries.
© 2025 DTS, Inc. ALL RIGHTS RESERVED.
“The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.”
Radio information
- Bluetooth frequency range: 2400 – 2483.5 MHz
- Bluetooth transmitter power: <11 dBm (EIRP)
Radio information
- Frequency range: 2404MHz-2478MHz
- Maximum power (EIRP): <10 dBm
Statement of Compliance – for products dedicated to UK market:
2023 No. 1007 The Product Security and Telecommunications infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023
The product is in compliance with the following standard(s) or normative document(s):
- ETSI EN 303 645 V2.1.1:2020-06
- Provision 5.1-1
- Provision 5.1-2
- Provision 5.2-1
- Provision 5.3-13
The full text of the UK declaration of conformity is available at the following internet address: www.tcl.com.
Choose the model name and go to DOWNLOADS.
The product complies with Commission Regulation (EU) 2023/826 ecodesign requirements for off mode, standby mode, and networked standby energy consumption of electrical and electronic household and office equipment.
- Information on power consumption
- Off mode: N/A
- Standby mode: 0.4 W
- Networked standby mode: 1.3 W
- Networked standby mode if all wired ports are connected and all wireless ports are activated: 1.3 W
- The period after which the power management function switches the equipment automatically into:
| Off /Standby | When the system is normal operation | Switched to Off/Standby mode after 19 minutes of inactivity |
| Networked Standby | When wireless network connection is activated | Switched to networked Standby mode after 19 minutes of inactivity |
DO NOT RETURN TO STORE
- WE ARE READY TO HELP contact us first with any questions
- TAKE CARE WHEN manual
TCL SUPPORT: www.tcl.com
REMOVING THE SOUND BAR
Important safety instructions
- Make sure you read all the safety information before you use this product.
- TCL ELECTRONICS AUSTRALIA PTY LTD bears no responsibility for accidents or damages caused by unauthorized changes, modifications or improper use of the product.
- User Manual can be found at www.tcl.com/au on the specific product page in the “Download” section.
- CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN - CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
This symbol indicates that this product incorporates double insulation between hazardous main voltage and user accessible parts. When servicing, use only identical replacement parts.
Warnings
- To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. This product should not be exposed to dripping or splashing. No objects filled with liquids, such as vases, should be placed on or near the product.
- The product is unstable if it is not properly placed or mounted to the wall. Be sure to follow the wall mounting instructions provided in the user manual to ensure your safety.
- Do not expose batteries to excessive heat such as sunshine, fire, and so forth.
- To avoid the danger of suffocation, keep plastic packaging away from pets, babies, and children.
- Do not use packaging bags in cribs, beds, carriages, or playpens.
Safety
- Read these instructions – Read all the safety and operating instructions before operating the product.
- Retain these instructions – Retain the safety and operating instructions for future reference.
- Heed all warnings – Adhere to all warnings on the product and in the operating instructions.
- Follow all instructions – Follow all operating and use instructions.
- Do not use this apparatus near water – The appliance should not be used near water or moisture
- for example, in a wet basement or near a swimming pool and the like.
- Clean only with a dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits from the product. If the cord set is damaged, it must be replaced by a special cord set available from the manufacturer or its service agent.
- Use only attachments/accessories specified by the manufacturer.
- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- The user must maintain a minimum distance of 20CM from the device at all time.
- This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.
Cautions
- To prevent electric shock, match wide blade of plug to wide slot, fully insert.
- Do not place any sources of danger on the product (for example: liquid filled objects, lighted candles).
- Disconnect the power cord to shut off when find trouble or not in use. The power cord shall be readily operable.
- Use of controls or adjustments or performance of procedures other than those described herein, may result in hazardous radiation exposure or other unsafe operation.
- The power cord/appliance coupler is used as the disconnect device, the disconnect device must remain readily operable.
- The rating label is located at the bottom or back of the product.
- The use of apparatus in tropical and moderate climates.
Battery precautions
- Do not mix batteries (old and new or carbon and alkaline).
- Do not dispose of batteries in fire or water.
- Recycle or dispose of batteries as per state and local guidelines.
- Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
- When the remote control is not to be used for a long time (mo re than a month), remove the battery from the remote control to prevent it from leaking.
- If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones.
- Keep away the batteries from heat or moisture.
- Do not carry or store batteries with other metallic objects. Doing so could cause batteries to short circuit, leak or explode.
- Never recharge a battery unless it is confirmed to be a rechargeable type.
- If the battery compartment does not close securely, stop using the product and keep it away from children.
Disposal of your old product and battery
- Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
- This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities.
This product contains batteries:
- Do not incinerate. Batteries may explode if overheated.
- For disposal or recycling information, please contact your local authorities.
- CAUTION: Risk of explosion if the battery is replaced by an incorrect type.
- CAUTION: Replacement of a battery with an incorrect type that can defeat a safeguard.
- CAUTION: Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
- CAUTION: Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
- CAUTION: A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
FAQ
- Q: How do I pair my Bluetooth device with the soundbar?
- A: Enter Bluetooth pairing mode by pressing the designated button or following the on-screen instructions. Once in pairing mode, search for the soundbar on your device and connect.
- Q: How can I adjust the sound settings?
- A: Navigate through the sound modes and adjust settings such as bass, treble, voice enhance, and surround enhance using the remote control or buttons on the soundbar.
