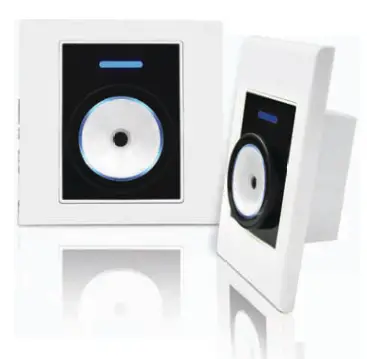

SYS R-S8
QRCode + HF RFID Reader Install Instruction
V0100
Please use the OR Code to download the Tools and manual.
SYS R-S8/ Specification
|
Items |
Specs |
| Frequency | 13.56MHz |
| Code Scan Mode | 640*480 CMOS |
| Read 2D Code Type | OR Code,Data Matrix,PDF417,maxicode,Aztec,hanxin |
| Read 1D Code Type | EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN128, Codabar,lnterleaved 2 of 5,Standard 25,MSI-Plessey GS1 Databar,Industrial 25,Matrix 2 of 5 |
| Scanning angle | Intersection angle 360°, Elevation ± 55° Deflection angle ± 55° |
| Viewing angle | Inclination 60° ,Elevation 46° |
| HF Protocols | IS015693 / IS014443A IS014443B / Mifare Block |
| HF Read range | Up to 5 cm |
| Status Indicator | Tricolor LED(RGB) & Beeper |
| Configuration Interface | Micro USB / Ethernet / Wi-Fi |
| Digital Output | 2 Relay output |
| Power Supply | 12 VDC |
| Power Consumption | 1W-6W |
| Operating temperature | -10°c – +60°C |
| Size(mm) | 86.0 x 86.0 x 41.6 mm |
SYSR-S8 WIRING DIAGRAM
https://reurl.cc/pmlo2b
Micro USB For setup only
SYRIA TECHNOLOGY CORP.
12F, No.16, Sec. 2, Taiwan Blvd., West Dist.,
Taichung City 40354, Taiwan
TEL: +886-4-2207-8888
FAX: +886-4-2207-9999
E-Mail: service@syris.com
Web: http://www.syris.com/app
