RCF EVOX 12

Mwongozo wa Mtumiaji wa Mfumo wa Chanzo cha Mistari Ndogo ya RCF EVOX 12

Model: EVOX 12

1. Utangulizi

The RCF EVOX 12 is a powerful line-source system designed for professional audio applications. It combines a high-performance subwoofer with a compact line array column to deliver clear, dynamic sound reproduction. This manual provides essential information for the safe and efficient setup, operation, and maintenance of your EVOX 12 system.

Key features include a 1400W Class-D power amplifier, eight 4-inch full-range neodymium transducers, and a 15-inch high-excursion subwoofer. The system offers a constant horizontal directivity coverage of 90° x 30°.

RCF EVOX 12 Sub Line-Source System in White

Figure 1: The RCF EVOX 12 Sub Line-Source System, showcasing the subwoofer base and the vertical line array column mounted on top.

2. Kuweka

Proper setup is crucial for optimal performance and safety. Follow these steps to assemble and connect your EVOX 12 system:

  1. Kufungua: Carefully remove all components from the packaging. Verify that all parts are present: one EVOX 12 subwoofer and one EVOX 12 line array column.
  2. Kuweka Subwoofer: Place the subwoofer on a stable, level surface. The integrated wheels and extendable handle facilitate transport.
    3. RCF EVOX 12 Subwoofer front and side view

    Kielelezo 2: Mbele na upande view of the RCF EVOX 12 Subwoofer, highlighting its robust enclosure and grille.

  3. Mounting the Line Array Column: Insert the pole mount from the line array column into the designated socket on top of the subwoofer. Ensure it is securely seated.
    4. RCF EVOX 12 Line Array Column front view

    Kielelezo 3: Mbele view of the RCF EVOX 12 Line Array Column, showing the perforated grille protecting the transducers.

    RCF EVOX 12 Line Array Column rear view with mounting point

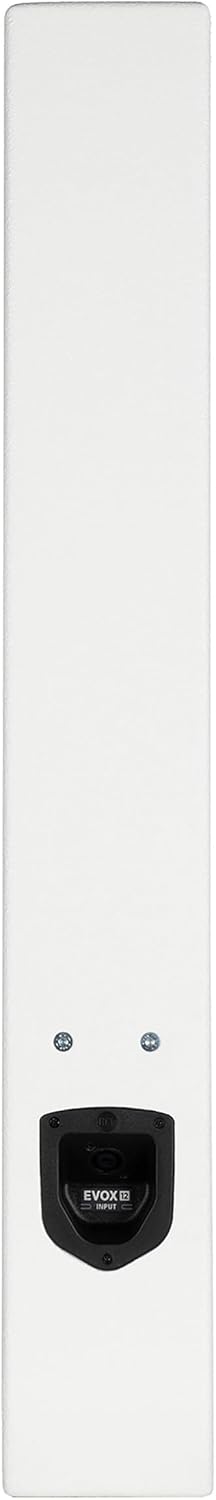

    Kielelezo cha 4: Nyuma view of the RCF EVOX 12 Line Array Column, illustrating the integrated mounting point for connection to the subwoofer.

  4. Muunganisho wa Nishati: Connect the power cable to the subwoofer's power input and then to a suitable AC power outlet.
  5. Ingizo la Sauti: Connect your audio source (mixer, instrument, etc.) to the input connectors on the subwoofer's rear panel. The EVOX 12 supports Bluetooth connectivity for wireless audio streaming.
RCF EVOX 12 Subwoofer rear panel with controls and connections

Kielelezo 5: Kina view of the RCF EVOX 12 Subwoofer's rear panel, showing input/output connections, volume control, and other settings.

3. Maagizo ya Uendeshaji

Mara tu mfumo umewekwa, fuata hatua hizi kwa uendeshaji:

  1. Washa: Turn on the power switch located on the subwoofer's rear panel. The power indicator light should illuminate.
  2. Marekebisho ya Sauti: Start with the master volume control on the subwoofer set to a low level. Gradually increase the volume to the desired listening level.
  3. Ufungaji wa Bluetooth: To use Bluetooth, activate Bluetooth on your audio device and select 'RCF EVOX 12' from the list of available devices. Once paired, you can stream audio wirelessly.
  4. Uboreshaji wa Sauti: Adjust any available EQ or processing controls on the subwoofer's rear panel or your audio source to fine-tune the sound for your environment. The system's 90° x 30° directivity ensures consistent sound coverage.

4. Matengenezo

Regular maintenance helps ensure the longevity and optimal performance of your EVOX 12 system:

  • Kusafisha: Use a soft, dry cloth to clean the exterior surfaces of the subwoofer and line array column. Avoid using abrasive cleaners or solvents.
  • Uingizaji hewa: Ensure that the ventilation grilles on the subwoofer are clear of obstructions to allow for proper heat dissipation. The integrated mechanical aluminum structure aids in fan-less heat dissipation.
  • Hifadhi: When not in use, store the system in a dry, dust-free environment. For transport, utilize the integrated wheels and extendable handle.
    • Close-up of RCF EVOX 12 extendable handle and output

    Figure 6: Close-up of the RCF EVOX 12's extendable handle, designed for easy portability, along with the output connection.

    Close-up of RCF EVOX 12 wheel

    Figure 7: Close-up of one of the integrated wheels on the RCF EVOX 12 subwoofer, facilitating easy movement.

  • Ukaguzi wa Cable: Periodically check all power and audio cables for any signs of wear or damage. Replace damaged cables immediately.

5. Utatuzi wa shida

If you encounter issues with your EVOX 12 system, refer to the following common troubleshooting tips:

  • Hakuna Nguvu:
    • Ensure the power cable is securely connected to both the subwoofer and a working power outlet.
    • Check the power switch on the subwoofer.
    • Thibitisha kuwa umeme unafanya kazi kwa kuchomeka kifaa kingine.
  • Hakuna Sauti:
    • Check all audio cable connections from your source to the subwoofer.
    • Ensure the master volume on the subwoofer and your audio source is turned up.
    • If using Bluetooth, confirm the device is correctly paired and audio is playing.
    • Verify that the line array column is properly connected to the subwoofer.
  • Sauti Iliyopotoka:
    • Reduce the input level from your audio source to prevent clipping.
    • Lower the master volume on the subwoofer.
    • Angalia nyaya zilizoharibika.
  • Masuala ya Muunganisho wa Bluetooth:
    • Ensure no other devices are currently paired with the EVOX 12.
    • Move your Bluetooth device closer to the subwoofer.
    • Jaribu kubatilisha uoanishaji na uoanishe upya kifaa.

6. Vipimo

KipengeleVipimo
ChapaRCF
MfanoEVOX 12
MtengenezajiRCF
Vipimo vya BidhaaInchi 23.6 x 23.5 x 18.5
Uzito wa KipengeePauni 71.4
Kiwango cha Juu cha Pato la Spika1400 Watts
Teknolojia ya UunganishoBluetooth
Aina ya KuwekaSakafu imesimama
Tarehe ya Kwanza InapatikanaFebruari 6, 2024

7. Udhamini na Msaada

For warranty information and technical support, please refer to the documentation provided with your product at the time of purchase or visit the official RCF website. Contacting RCF directly will provide the most accurate and up-to-date support resources.
