STP0280C1-240320 Series TFT LCD Panel
User Manual
https://www.aliexpress.com/item/4000529012784.html
General Description
MODEL NO | STP0280C1-240320 YT280L002 |
Display Mode | Transmissive |
Display Format | Graphic 240RGB*320 Dot-matrix 240xRGBx320 |
Input Data | MCU-8bit/16bit interface |
Viewing Direction | 12 o’clock |
Drive | ILI9341V |
Mechanical Specification
Item | Specifications | Unit |
Dimensional outline | 50.00(W)*69.20(H)*2.60(T)(NTP) 50.00(W)*69.20(H)*3.80(T)(RTP) (FPC not include) |
mm |
Resolution | 240RGB*320 | dots |
LCD Active area | 36.72(W)*48.96 (H) | mm |
Pixel size | 0.153(W)*0.153(H) | mm |
Mechanical Dimension
NOTES:
- DISPLAY TYPE:TFT
- OPERATING TEMP: -20°C~70°C
- STORAGE TEMP: -30°C~80°C
- LCD DRIVER: COG(IC:ST7789V);
- BACKLIGHT: 4 CHIP-WHITE LED(Parellel)
- GENERAL TOLERANCE: ±0.20
- ROHS
Pin | Discription | Pin | Discription |
1 | DBO | 20 | LEDK4 |
2 | DB1 | 21 | TE |
3 | DB2 | 22 | DB4 |
4 | DB3 | 23 | DB8 |
5 | GND | 24 | DB9 |
6 | VDDI | 25 | DB10 |
7 | CSX | 26 | DB11 DB12 |
8 | DCX | 77 | |
9 | WRX | 28 | DB13 |
10 | RDX | 29 | DB14 |
11 | NC | 30 | DB15 |
12 | XL/X- | 31 | RESX |
13 | YU/y- XR/X+ |
32 | VDD |
14 | 33 | VDDI | |
15 | YD /Y+ | 34 | GND |
16 | LEDA | 35 | DB5 |
17 | LEDK1 | 36 | DB6 |
18 | LEDK2 | 37 | DB7 |
19 | LEDK3 |
![]() |
Third Perspective:![]() |
||||
Product number: | STP0280C1-240320 (YT280L002) | ||||
Part Model: | LCM Outline | confirm: | |||
Version: | v0.0 | unit: | MM | Audit: | |
date: | 2018.08.16 | Proportion: | 1:01 | design: | |
UNMRKED TOLERANCE: +0.20 mm | page number: | 1 OF 1 |
Electrical Maximum Ratings
Item | Symbol | Min | Max | Unit | Note |
Supply voltage (VDDI) | V | 1.8 | 3.3 | V | – |
Supply voltage (VDD) | V | 2.8 | 3.3 | V | – |
Operating temperature 1 | TOPR | -20 | 70 | °C | – |
Storage temperature | TSTR | -30 | 80 | °C | – |
※NOTE: VDDI and VDD can be directly connected together and share a set of voltage (2.8V~3.3V) for power supply.
Brightness characteristic & Power dissipation
Item | Symbol | Min | Typical | Max | Unit |
LED module Forward voltage | V LED | 2.9 | 3.1 | 3.3 | V |
LED module current | I LED | – | 60 | – | mA |
LCD Surface Luminance | Ls | 250 | 300 | – | Cd/m² |
LCM Surface brightness uniform | L D | 80 | – | – | % |
LCD power dissipation | P LCD | – | 0.22 | – | W |
※NOTE: P LCD=VDD * (ILED+ILCD)
Module Function Description
PIN No. | Symbol | Description | Notes |
1-4 | DB0-DB3 | MCU parallel interface data bus. | – |
5 | GND | Ground | – |
6 | VDDI | Power Supply for I/O System. | – |
7 | CSX | -Chip selection pin Low enable. High disable. |
– |
8 | DCX | -Display data/command selection pin in parallel interface. DCX=’1’: display data or parameter. DCX=’0’: command data |
– |
9 | WRX | -Write enable in MCU parallel interface. | – |
10 | RDX | Read enable in 8080 MCU parallel interface. -If not used, please fix this pin at VDDI or GND. |
– |
11 | NC | No connection | – |
12 | XL(X-) | Touch panel Logical foot | – |
13 | YU(Y-) | Touch panel Logical foot | – |
14 | XR(X+) | Touch panel Logical foot | – |
15 | YD(Y+) | Touch panel Logical foot | – |
16 | LEDA | Anode of Backlight (2.9V-3.3V Typical:3.1V) | – |
17 | LEDK1 | Cathode of Backlight | – |
18 | LEDK2 | Cathode of Backlight | – |
19 | LEDK3 | Cathode of Backlight | – |
20 | LEDK4 | Cathode of Backlight | – |
21 | TE | Tearing effect signal is used to synchronize MCU to frame | – |
22 | DB4 | MCU parallel interface data bus. | – |
23-30 | DB8-DB15 | MCU parallel interface data bus. | – |
31 | RESX | -This signal will reset the device and it must be applied to properly initialize the chip. -Signal is active low. |
– |
32 | VDD | Power Supply for Analog, Digital System and Booster Circuit. | – |
33 | VDDI | Power Supply for I/O System. | – |
34 | GND | Ground | – |
35-37 | DB5-DB7 | MCU parallel interface data bus. | – |
Figure 6-1: Display STP0260C1 MCU-8-bit parallel port reference application circuit
Figure 6-2: Reference application STP0280C1 MCU-8 circuit of display screen bit parallel port
Figure 6-3: Touch screen reference application circuit
※NOTE:
- If it is a version without touch screen, refer to Figure 6-1 or Figure 6-2 to connect the circuit, and connect the four screens XL, YU, XR, and YD Just touch the foot and hang it in the air.
- For the version with touch, refer to Figure 6-3 Touch Application Connection Circuit.
Response time & Contrast ratio
Item | Symbol | Condition | Remark | Unit | ||
Min. | Typ. | Max. | ||||
Response time | Tr+Tf | θ = 0º | – | 25 | 40 | ms |
Contrast ratio | CR | θ = 0º | 350 | 500 | – | – |

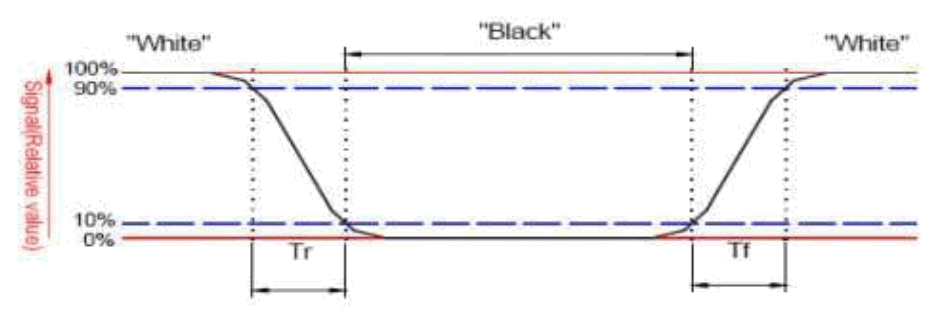

Response time graph
Contrast calculation formula
Viewing Angle
Item | Symbol | Condition | Remark | Unit | ||
Min. | Typ. | Max. | ||||
Viewing angle | Top | CR ≥ 10 | 40 | 50 | – | Deg. |
Bottom | CI ≥ 10 | 55 | 65 | – | ||
Left | CR ≥ 10 | 55 | 65 | – | ||
Right | CR ≥ 10 | 55 | 65 | – |
NOTE: The angle of view of 3 o’clock, 6 o’clock, 9 o’clock, and 12 o’clock refers to the angle (0) between the lines perpendicular to the surface of the screen and the line of sight of the eye.
Reliability Trial
NO. | ITEM | CONDITION | CRITERION |
1 | High Temperature Non-Operating Test | 80°C *120Hrs | No Defect Of Operational Function In Room Temperature Are Allowable |
2 | Low Temperature Non-Operating Test | -30 C*120Hrs | |
3 | High Temperature/Humidity Non Operating Test | 60°C*90%RH*120Hrs | |
4 | High Temperature Operating Test | 70°C*72Hrs | |
5 | Low Temperature Operating Test | 20°C *72Hrs | |
6 | 1 hermal Shock Test | -20°C (30Min) Q 70°C (30Min) *10CYCLES |
Inspection standards
NO | Defect item | Criteria | Remark |
1 | Dimension Unconformity (Major defect) | By Engineering Drawing | |
2 | Cracks (Major defect) | 1. Linear cracks panel 【Reject】 2. Nonlinear crack contrast by limited sample |
![]() |
3 | Glass extrude the conductive area (minor defect) | a: disregards and no influence assemblage. 1) b≤1/3Pin width(non bonding area) 【Accept】 2)bonding area≤0.5mm 【Accept】 |
A: Length, b: Width |
4 | Pin-side ,conductive area damaged (minor defect) | (a c: disregards) b≤1/3of effective length for bonding electrode 【Accept】 |
a: length, b: Width, c: Thickness![]() |
5 | Pin-side,non-conductive area damaged (minor defect) | 1)Damage area don’t touch the ITO (Inclueling contraposition mark, except scribing mark) 【Accept】 2)C<T b≦BM1/3of width 【Accept】 3)c=T b not touch the seal glue 【Accept】 4)a disregards |
a: Length, b: Width c: Thickness ![]() |
6 | Non-pin-side damage (minor defect) | c<T 1)b exceeds 1/3Bm 【Reject】 c=T b not touch the seal glue 【Reject】 |
c: Thickness b: width of damage![]() |
10.2 LCD appearance defect(View area)
NO | Defect item | Criteria | Remark | |
1 | Fiber, glass cratch, polarizer scratch/folded (minor defect) | Specification | Allowable | note l:L: Length, W: Width note 2: disregard if out of AA ![]() |
W- 0.03mm | disregard | |||
0.03mm<W O. 05mm;1_,- 3. Omm | 2 | |||
0.05mm<W O. lmm; L-<= 3. Omm | 1 | |||
W>0.1mm;L>3.0mm | 0 | |||
2 | Polarizer bubble, concave and convex (minor defect) | 0.2mm | disregard | note l: (I)= (L+W) /2, L : Length, W :Width note 2:disregard if out of AA |
0.2mm< (I) 0. 3mm | 2 | |||
0.3mm< (1) 0. 5mm | 1 | |||
0.5mm< (1) | 0 | |||
3 | Black dots, dirty dots, | (1) 0.15 mm | disregard | note 2:disregard if out of AA |
impurities, eye winker (minor defect) | 0.15mm< (1) -.. O. 25mm | 2 | ![]() |
|
0.25mm< (1) -.. 0. 3m | 1 | |||
0.3mm< (1) | 0 | |||
4 | Polarizer prick (minor defect) |
(1) 0.1mm | disregard | note 1: (1) = (L+W) /2, L=Length, W=Width note2:the distance between two dots>5mm |
0.1mm< (1) 0. 25m | 3 | |||
(1) >O. 25mm | 0 |

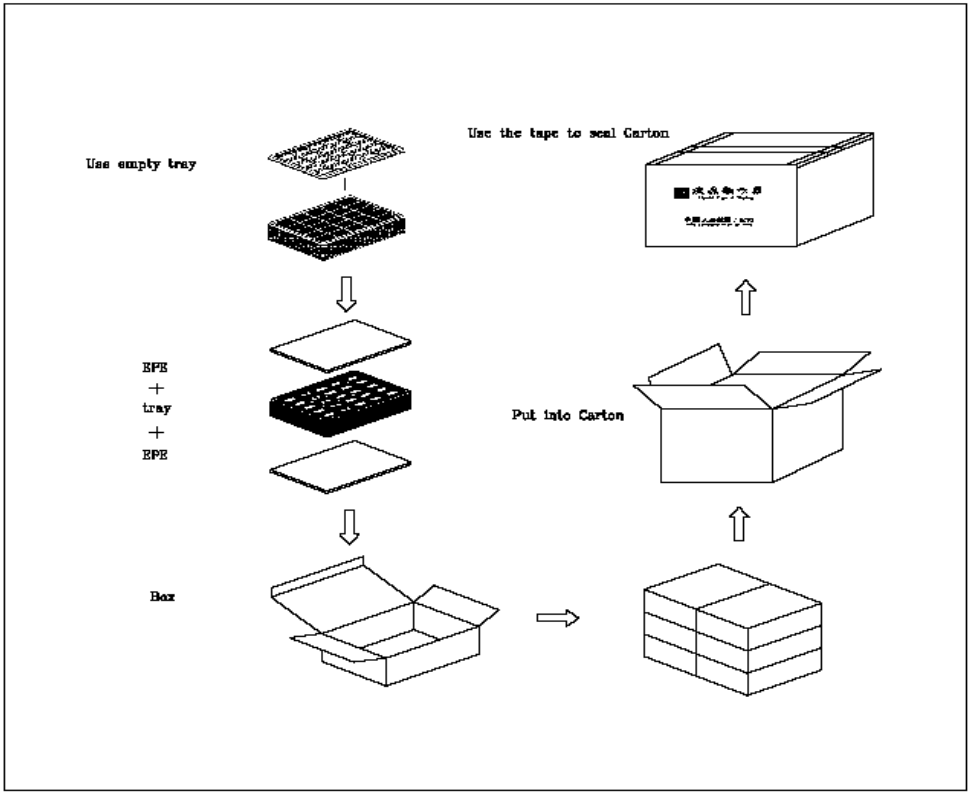

Package Method
![]() |
![]() |
![]() |
