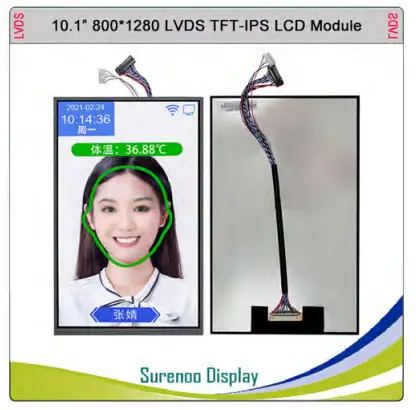

Surenoo SLV1010B-8001280 Series LVDS Interface TFT LCD Module User Manual
General Description
Introduction
SLV1010B-8001280color active matrix thin film transistor (TFT) liquid crystal display that
uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 10.1 (16:9) inch diagonally measured active display area with (800 horizontal by 1280 vertical pixel) resolution.
Features
10.1(16:9 diagonal) inch configuration Image Reversion: UP/DOWN and LEFT/RIGHT ROHS design
General information

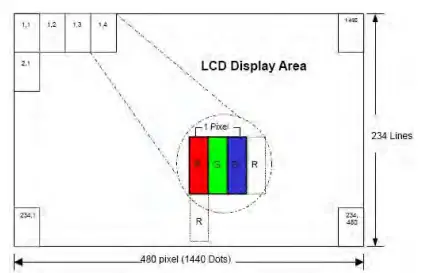

| Item | Specification | Unit |
| Outline Dimension | 143(H) x 228.6V) x2.6(D) | mm |
| LCD Display area | 135.36(H) x 216.58 (V) | mm |
| Number of Pixel | 800(H) x3(RGB)x 1280 (V) | pixels |
| Pixel pitch | 0.1692(H) x 0.1692 (V) | mm |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | IPS(Normal Black) | |
| Color Filter Array | RGB vertical stripes | |
| Luminous | TYP=350nits | nits |
| Weight | TBD | g |
| Interface | LVDS interface |
Absolute Maximum Ratings
Environment Absolute Rating
| Item | Symbol | Min. | Max. | Unit | Note |
| Operating Temperature | Topa | -10 | 50 | ℃ | |
| Storage Temperature | Tstg | -20 | 60 | ℃ |
- Back-light Unit:
| PARAMETER | Sym. | Min. | Typ. | Max. | Unit | Test Condition | Note |
| LED Voltage | VLED | 2.5 | — | 14 | V | – | – |
| PWM | PEM | 100 | 200K | Hz | Duty=5%~100% | ||
| Enable | LED_EN | 2.5 | 5.5 | V | |||
| Life Time | – | 20000 | – | Hr. | – | ||
| Color | White | ||||||
Note (1) Permanent damage may occur to the LCD module if beyond this specification. Functional operation should be restricted to the conditions described under normal operating conditions. (2)Ta=25±2℃
Optical Characteristics
|
Item |
Symbol |
Condition |
Uni t |
Remark |
|||
| Min | Typ | Max | |||||
|
Response Time |
Tr |
θ= 0° |
– | 10 | 20 |
ms |
Note 3 |
| Tf | – | 15 | 30 | ||||
| Tr+Tf | – | 25 | – | ||||
| Contrast Ratio | CR | θ= 0° | 800 | 100 | – | Note 2,4 | |
|
Viewing Angle |
Top(12 o’clock) |
CR≧10 |
80 | 85 | – |
deg |
Note 1 |
| Bottom(6
o’clock) |
80 | 85 | – | ||||
| Left(9 o’clock) | 80 | 85 | – | ||||
| Right(3 o’clock) | 80 | 85 | – | ||||
|
Color Chromaticity |
Wx |
θ= 0° |
0.293 |
0.313 |
0.343 |
Note 5 |
|
| Wy |
0.299 |
0.329 |
0.359 |
||||
| Rx | – | – | – | ||||
| Ry | – | – | – | ||||
| Gx | – | – | – | ||||
| Gy | – | – | – | ||||
| Bx | – | – | – | ||||
| By | – | – | – | ||||
| Cross Talk | Ct | – | – | 1.2 | % | Note 6 | |
| Transmittance | Trans | – | 4.58 | – | % | ||
| Luminance | L |
θ= 0° |
300 | 350 | – | cd/
㎡ |
|
| Luminance
uniformity |
YU | 70 | 75 | – | % |
Measuring Condition
- Measuring surrounding : dark room
- Ambient temperature : 25±2℃
- warm-up time.
Measuring Equipment
TOPCON BM-7

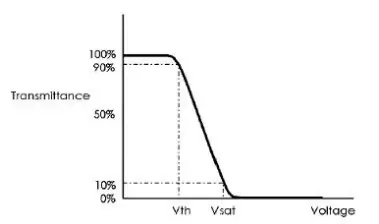

Note (1) Definition of Vsat and Vth (at 20℃)

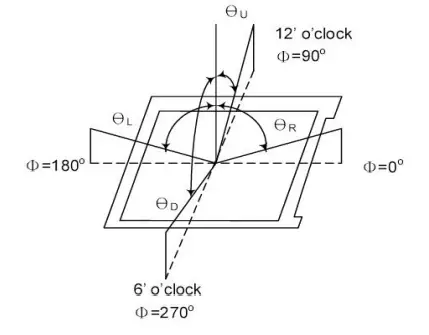

Note (2) Definition of Viewing Angle
Note (3) Definition of Contrast Ratio(CR) : measured at the center point of panel
CR = Luminance with all pixels white Luminance with all pixels black
Note (4) Definition of Response Time : Sum of TR and TF

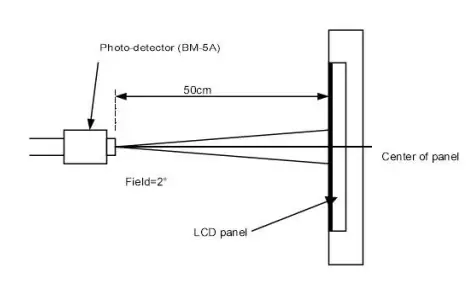

Definition of optical measurement setup
Definition of brightness uniformity
Rubbing Direction (The different Rubbing Direction will cause the different optima view direction.
Block Diagram
TFT-LCD Module
Interface pin define:
Connector：DF14-20P-1.25H
Electrical Characteristics
TFT LCD Module
| Item | Symbol | Min. | Typ. | Max. | Unit | Note |
| Power Supply | VDD3V3 | 3.0 | 3.3 | V | ||
| VLED | VLED | 5 | 14 | V | ||
| Input signal voltage | VIH | 0.7DVDD | – | DVDD | V | |
| VIL | 0 | – | 0.3DVDD | V | ||
| Power Current | IVDD3V3 | – | 135 | — | mA |
- LVDS input format （Only Support 8bit LVDS）
- LVDS input timing
POWER ON/OFF sequence
Reliability test items
| NO | Item | Conditions | Remark |
| 1 | High Temperature Storage | Ta=+60℃,48hrs | |
| 2 | Low Temperature Storage | Ta=-20℃,48hrs | |
| 3 | High Temperature Operation | Ta=+50℃,48hrs | |
| 4 | Low Temperature Operation | Ta=-10℃,48hrs | |
| 5 | High Temperature and High
Humidity (operation) |
Ta=+40℃,80%RH,48hrs | |
| 6 | Thermal Cycling Test (non
operation) |
-20℃(0.5hr)→+60℃(0.5hr),100cycles | |
|
7 |
Vibration |
1. Random:1.04G,10-500HZ,X,Y,Zdirection 30min/each direction
2. Sweep sine:1.5G, 5~500Hz, X/Y/Z,30min/each direction |
|
| 8 | Shock | 100G,6ms, ±X, ±Y, ±Z
3 time for each direction |
JIS C7021, A-10
(Condition A) |
|
9 |
Vibration (with carton) |
Random:1.04Grms, 10~500Hz, X/Y/Z 45min/each direction
Fixed:5Hz, 1.5Grms, X/Y/Z 45min/each direction |
|
| 10 | Drop (with carton) | Height: 60cm 1 corner, 3 edges, 6 surfaces | JIS Z0202 |
| 11 | Electrostatic Discharge | ±200V,200PF,0Ω1 time/each terminal |
Note: All tests above are practiced at module type.
There is no display function NG issue occurred, All the cosmetic specification is judged before the reliability stress.
General Precaution
Use Restriction
This product is not authorized for use in life supporting systems, aircraft navigation control systems, military systems and any other application where performance failure could be life-threatening or otherwise catastrophic.
Asembly Precaytton
- Please use the mounting hole on the module side in installing and do not bending or wrenching LCD in assembling. And please do not drop, bend or twist LCD module in
- Please design display housing in accordance with the following guide
- Housing case must be destined carefully so as not to put stresses on LCD all sides and not to wrench The stresses may cause non-uniformity even if
there is no non-uniformity statically.
- Housing case must be destined carefully so as not to put stresses on LCD all sides and not to wrench The stresses may cause non-uniformity even if
- Keep sufficient clearance between LCD module back surface and housing when the LCD module is The clearance in the design is recommended
taking into account the tolerance of LCD module thickness and mounting structure height on the housing.
- Please do not push or scratch LCD panel surface with any-thing And do not soil LCD panel surface by touching with bare hands. ( Polarizer film, surface of LCD
panel is easy to be flawed.)
- Please do not press any parts on the rear side such as source IC, gate IC, and FPC during handling LCD If pressing rear part is unavoidable, handle the LCD module with care not to damage them.
- Please wipe out LCD panel surface with absorbent cotton or soft cloth in case of it being
- Please wipe out drops of adhesives like saliva and water on LCD panel surface They might damage to cause panel surface variation and color change.
- Please do not take a LCD module to pieces and reconstruct it. Resolving and reconstructing modules may cause them not to work
Disassembling or Modification
Do not disassemble or modify the module. It may damage sensitive parts inside LCD module, and may cause scratches or dust on the display. HannStar does not warrant the module, if customers disassemble or modify the module.
Breakage of LCD Panel
- If LCD panel is broken and liquid crystal spills out, do not ingest or inhale liquid crystal, and do not contact liquid crystal with
- If liquid crystal contacts mouth or eyes, rinse out with water
- If liquid crystal contacts skin or cloths, wash it off immediately with alcohol and rinse thoroughly with water.
- Handle carefully with chips of glass that may cause injury, when the glass is
10.5 Absolute Maximum Ratings and Power Protection Circuit
- Do not exceed the absolute maximum rating values, such as the supply voltage variation, input voltage variation, variation in parts’ parameters, environmental temperature, etc., otherwise LCD module may be
- Please do not leave LCD module in the environment of high humidity and high temperature for a long
- It’s recommended employing protection circuit for power
- Operation
- Do not touch, push or rub the polarizer with anything harder than HB pencil lead.Use fingerstalls of soft gloves in order to keep clean display quality, when persons handle
the LCD module for incoming inspection or assembly.
- When the surface is dusty, please wipe gently with absorbent cotton or other soft
- Wipe off saliva or water drops as soon as If saliva or water drops contact with polarizer for a long time, they may causes deformation or color fading.
- When cleaning the adhesives, please use absorbent cotton wetted with a little petroleum benzine or other adequate
10.7 Static Electricity
- Protection film must remove very slowly from the surface of LCD module to prevent from electrostatic occurrence.
- Because LCD module uses CMOS-IC on TFT-LCD panel, it is very weak to electrostatic discharge. Please be careful with electrostatic
- Persons who handle the module should be grounded through adequate
10.8 Disposal
When disposing LCD module, obey the local environmental regulations.
10.9 OTHERS
- A strong incident light into LCD panel might cause display characteristics’ changing inferior because of polarizer film, color filter, and other materials becoming
Please do not expose LCD module direct sunlight land strong UV rays.
- Please pay attention to a panel side of LCD module not to contact with other materials in preserving it
- For the packaging box, please pay attention to the followings:
- Packaging box and inner case for LCD are designed to protect the LCDs from the damage or scratching during transportation. Please do not open except
picking LCDs up from the box.
- Please do not pile them up more than 6 (They are not designed so.) And please do not turn over.
- Please handle packaging box with care not to give them sudden shock and And also please do not throw them up.
- Packing box and inner case for LCDs are made of cardboard. So please pay attention not to get them wet. (Such like keeping them in high humidity or wet
place can occur getting them wet.)
