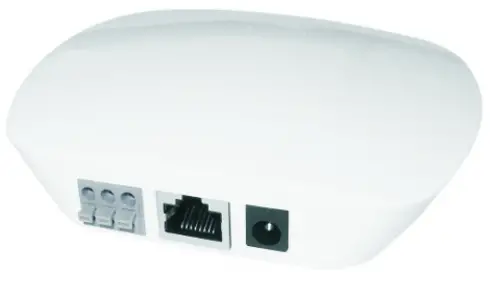

10 DMX512 Master Controller
11 Accessories
12 Signal Repeater
13 Power Repeater
14 Documents / Resources
14.1 References

About SUNRICHER

SUNRICHER DMX512 RDM Control Expert - About SUNRICHER

Shenzhen Sunricher Technology Limited is specialized in the wired and wireless lighting control systems for over 18 years, our products are widely used for the commercial lighting, industrial lighting and smart home with innovative design and high quality.
Sunricher has always been the first ODM/OEM choice of many global leading brands. With our rich experience and expertise in lighting control systems and IoT technologies, such as DALI, DMX 512, KNX, Zigbee, Z-Wave, Bluetooth, Wi-Fi, RF and etc, and we are the Alliance member of DALI, KNX, Zigbee, Z-Wave, and Bluetooth Alliances.
We have designed and manufactured various high quality product types for our global clients. We always take good care of our clients with:

  • Well experienced and powerful R&D team.
  • High efficient production and strict quality control.
  • Good after-sales service.
  • Global high end certification such as UL, TUV CE, FCC, SAA, PSE, CCC etc.
  • Patented design and functionality.
  • DALI-2, KNX, Zigbee3.0, Z-Wave Plus, Bluetooth BQB certification.

SUNRICHER DMX512 RDM Control Expert - icon2

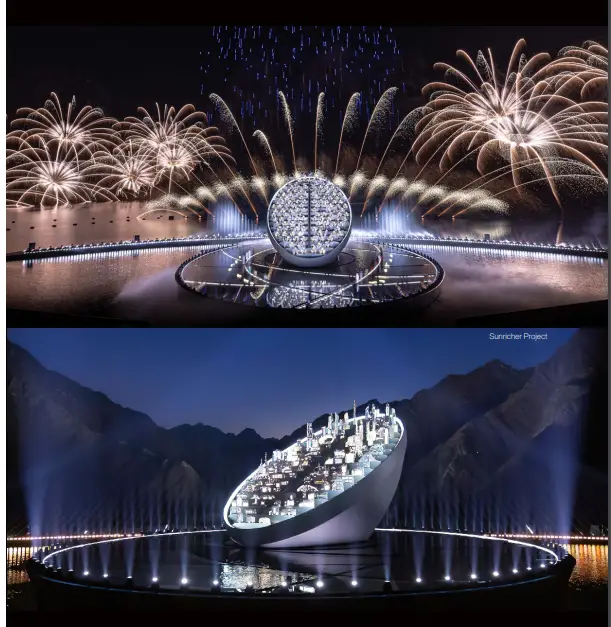

System Overview

SUNRICHER DMX512 RDM Control Expert - System Overview

Small project solution

SUNRICHER DMX512 RDM Control Expert - EasyLighting

Medium and large project solutions

SUNRICHER DMX512 RDM Control Expert - Medium and large project solut

Constant Voltage DMX512 Decoder

  • Standard DMX512 compliant control interface.
  • Supports RDM function.
  • DMX address manually settable.
  • Output dimming curve gamma value from 0.1 ~ 9.9 settable.
  • To work with power repeater to expand output power unlimitedly.
  • Constant voltage output.

SUNRICHER DMX512 RDM Control Expert - fig1

4 Channels RDM Enabled DMX512 Decoder

  • DMX channel quantity from 1CH~4CH settable.
  • Output PWM frequency 2KHz
    Product Code 100602060001
    Model SR-2102B
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 178x46x22mm

SUNRICHER DMX512 RDM Control Expert - 4 Channels RDM Enabled DMX512 Decoder

4 Channels RDM Enabled DMX512 Decoder

  • DMX channel quantity from 1CH~4CH settable.
  • Output PWM frequency 2KHz
  • Flip type, screwless
Product Code 100602330001
Model SR-2102P
Input Voltage 12-36Vdc
Output Current 5A*4CH
Output Power 240-720W
Product Size 166×53.4x23mm

SUNRICHER DMX512 RDM Control Expert -

4 Channels RDM Enabled DMX512 Decoder

  • DMX channel quantity from 1CH~4CH settable.
  • Output PWM frequency 2KHz
  • Din rail installation, screwless
    Product Code 100602170001
    Model SR-2102DIN
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 110x53x65mm

SUNRICHER DMX512 RDM Control Expert - 4 Channels RDM

4 Channels RDM Enabled DMX512 Decoder

  • DMX channel quantity from 1CH~4CH settable.
  • Output PWM frequency 2KHz
    Product Code 100602130001
    Model SR-2102BEA
    Input Voltage 12-36Vdc
    Output Current 8A*4CH
    Output Power 384-1152W
    Product Size 170x59x29mm

SUNRICHER DMX512 RDM Control Expert - Enabled4 Channels RDM Enabled DMX512 Decoder

  • DMX channel quantity from 1CH~4CH settable.
  • Output PWM frequency from 200HZ ~ 35K HZ settable.
  • RJ45 terminal, easy and quick connect for DMX512 signal
    Product Code 100603220001
    Model SR-2108EAS-RJ45
    Input Voltage 12-36Vdc
    Output Current 8A*4CH
    Output Power 384-1152W
    Product Size 165x60x32mm

SUNRICHER DMX512 RDM Control Expert - Decoder

4 Channels RDM Enabled DMX512 Decoder

  • DMX channel quantity from 1CH~4CH settable.
  • Output PWM frequency from 200HZ ~ 35K HZ settable.
  • IP67
    Product Code 100603260001
    Model SR-2108AS(WP)
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 180.5×73.6x38mm

SUNRICHER DMX512 RDM Control Expert - fig8

5 Channels RDM Enabled DMX512 Decoder

  • DMX channel quantity from 1CH~5CH settable.
  • Output PWM frequency from 200HZ ~ 35K HZ settable.
  • IP67
    Product Code 100603610001
    Model SR-2108AS(WP)-5C
    Input Voltage 12-36Vdc
    Output Current 3A*5CH
    Output Power 180-940W
    Product Size 180.5×73.6x38mm

SUNRICHER DMX512 RDM Control Expert - fig9

4 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity from 1CH~4CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
    Product Code 100602770001
    Model SR-2108FB-DIN
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 110x53x65mm

SUNRICHER DMX512 RDM Control Expert - fig10

4 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity from 1CH~4CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
  • RJ45 terminal, easy and quick connect for DMX512 signal
    Product Code 100603290001
    Model SR-2108FB-RJ45-DIN
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 110x53x65mm

SUNRICHER DMX512 RDM Control Expert - fig114 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity from 1CH~4CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
  • Flip type, screwless
    Product Code 100602690001
    Model SR-2108FB-4CH
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 170×53.4x28mm

SUNRICHER DMX512 RDM Control Expert - fig12

4 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity from 1CH~4CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
  • RJ45 terminal, easy and quick connect for DMX512 signal
    Product Code 100603080001
    Model SR-2108FB-RJ45
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 170×53.4x28mm

SUNRICHER DMX512 RDM Control Expert - resolution

5 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity from 1CH~5CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
    Product Code 1.00603E+11
    Model SR-2108EB-5CH
    Input Voltage 12-36Vdc
    Output Current 5A*5CH
    Output Power 300-900W
    Product Size 170x59x29mm

SUNRICHER DMX512 RDM Control Expert - fig13

5 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity from 1CH~5CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
  • With multiple kinds of DMX in/out ports: RJ 45, XLR 3/5 , normal screws.
    Product Code 100602930001 100602940001
    Model SR-2108B-M5-3 SR-2108B-M5-5
    Input Voltage 12-24Vdc 12-24Vdc
    Output Current 8A*5CH 8A*5CH
    Output Power 480-960W 480-960W
    Product Size 164x73x38mm 164x73x38mm

SUNRICHER DMX512 RDM Control Expert - fig14

6 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity from 1CH~6CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
  • With multiple kinds of DMX in/out ports: RJ 45, XLR 3/5 , normal screws.
    Product Code 100603320001 100603280001
    Model SR-2108B-M6-3 SR-2108B-M6-5
    Input Voltage 12-24Vdc 12-24Vdc
    Output Current 6A*6CH 6A*6CH
    Output Power 432-864W 432-864W
    Product Size 187.7×85.3x41mm 187.7×85.3x41mm

SUNRICHER DMX512 RDM Control Expert - fig15

12 Channels RDM Enabled DMX512 Decoder’

  • DMX decoder & Master mode.
  • DMX channel quantity 1CH, 4CH, 6CH, 12CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
  • With multiple kinds of DMX in/out ports: RJ 45, XLR 3/5 , normal screws.
    Product Code 100602970001 100602980001
    Model SR-2108B-M12-3 SR-2108B-M12-3
    Input Voltage 12-24Vdc 12-24Vdc
    Output Current 5A*12CH 5A*12CH
    Output Power 720-1440W 720-1440W
    Product Size 165.5×99.7x38mmmm 165.5×99.7x38mmmm

SUNRICHER DMX512 RDM Control Expert - 35K HZ settable

24 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity from 1CH~24CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
    Product Code 100602990001 100603010001
    Model SR-2108B-M24-3 SR-2108B-M24-5
    Input Voltage 12-24Vdc 12-24Vdc
    Output Current 4A*24CH 4A*24CH
    Output Power 1152-2304W 1152-2304W
    Product Size 264.5X83X42mm 264.5X83X42mm

    SUNRICHER DMX512 RDM Control Expert - 25 Channels RDM

25 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity 1CH, 2CH, 3CH, 4CH, 5CH, 25CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
  • With multiple kinds of DMX in/out ports: RJ 45, XLR 3/5 , normal screws.
    Product Code 100604980001
    Model SR-2108B-M25
    Input Voltage 12-24Vdc
    Output Current 4A*25CH
    Output Power 1200-2400W
    Product Size 293.2X92.2X36mm

SUNRICHER DMX512 RDM Control Expert - 6 Channels RDM

36 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity 1CH, 2CH, 3CH, 4CH, 6CH, 12CH, 24CH, 36CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
  • With multiple kinds of DMX in/out ports: RJ 45, XLR 3/5 , normal screws.
    Product Code 100112770001
    Model SR-2108B-M36
    Input Voltage 12-24Vdc
    Output Current 3A*36CH
    Output Power 1296-2592W
    Product Size 393.2×92.2x37mm

SUNRICHER DMX512 RDM Control Expert - fig18

Constant Current DMX512 Decoder

  • Standard DMX512 compliant control interface.
  • DMX address manually settable.
  • Output dimming curve gamma value from 0.1 ~ 9.9 settable.
  • To work with power repeater to expand output power unlimitedly.
  • Constant current output.

SUNRICHER DMX512 RDM Control Expert - Current Settable 4 Channels

Current Settable 4 Channels DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity from 1CH~4CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 2K HZ settable.
  • Output current 100-700mA settable
    Model SR-2108FBC-4CH
    Input Voltage 12-36Vdc
    Output Current (100-700)mA*4CH
    Output Power 4.8-100.8W
    Product Size 170×53.4x28mm

SUNRICHER DMX512 RDM Control Expert - 4 Channels DMX512 Decoder4 Channels DMX512 Decoder

  • DMX channel quantity from 1CH~4CH settable.
  • Output PWM frequency 2KHz.
    Product Code 100602070001 100602080001
    Model SR-2112B SR-2114B
    Input Voltage 12-48Vdc 12-48Vdc
    Output Current 350mA*4CH 700mA*4CH
    Output Power 16.8-67.2W 33.6-144.4W
    Product Size 178x46x22mm 178x46x22mm

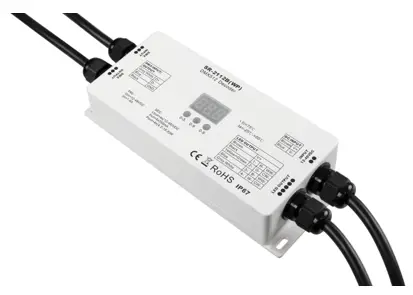

SUNRICHER DMX512 RDM Control Expert - 4 Channels DMX512 Decoder24 Channels DMX512 Decoder

  • DMX channel quantity from 1CH~4CH settable.
  • Output PWM frequency 2KHz
  • IP 67.
    Product Code 100603410001 100603170001
    Model SR-2112B(WP) SR-2114B(WP)
    Input Voltage 12-48Vdc 12-48Vdc
    Output Current 350mA*4CH 700mA*4CH
    Output Power 16.8-67.2W 33.6-144.4W
    Product Size 180.5×73.6x38mm 180.5×73.6x38mm

SUNRICHER DMX512 RDM Control Expert - 4 Channels DMX512 Decoder8

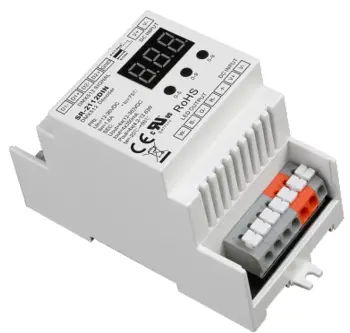

4 Channels DMX512 Decoder

  • DMX channel quantity from 1CH~4CH settable.
  • Output PWM frequency 2KHz
  • Din rail installation, screwless
    Product Code 100602180001 100602190001
    Model SR-2112DIN SR-2114DIN
    Input Voltage 12-48Vdc 12-48Vdc
    Output Current 350mA*4CH 700mA*4CH
    Output Power 16.8-67.2W 33.6-67.2W
    Product Size 110x53x65mm 110x53x65mm

SUNRICHER DMX512 RDM Control Expert - 5 Channels RDM

5 Channels RDM Enabled DMX512 Decoder

  • DMX decoder & Master mode.
  • DMX channel quantity from 1CH~5CH settable.
  • PWM output resolution ratio 8bit , 16bit settable.
  • Output PWM frequency from 500HZ ~ 2K HZ settable.
  • With multiple kinds of DMX in/out ports: RJ 45, XLR 3/5 , normal screws.
    Product Code 100602870001 100603430001
    Model SR-2108B-M5-5-700mA SR-2108B-M5-5-1000mA
    Input Voltage 12- Vdc48 12- Vdc48
    Output Current 700mA*5CH 1000mA*5CH
    Output Power 42-168W 60-240W
    Product Size 164x73x38mm 164x73x38mm

High Volt LED Strip DMX/RDM Decoder

  • Standard DMX512 compliant control interface
  • RDM function enabled to realize intercommunication between DMX master and decoder
  • With digital display to show data directly, easily to set and show DMX address
  • Output PWM frequency from 200HZ ~ 35K HZ settable
  • Output dimming curve gamma value from 0.1 ~ 9.9 settable

SUNRICHER DMX512 RDM Control Expert - High Volt LED Strip

High Volt LED Strip DMX512 RDM Controller

  • Safe and reliable full isolation design
  • DMX channel quantity from 1CH~3CH settable.
    Product Code 100602440001
    Model SR-2102HT
    Input Voltage 100-240Vac
    Output Voltage 100-240Vdc
    Output Current 1.6A*3CH
    Output Power 500-1000W
    Product Size 170x59x29mm

SUNRICHER DMX512 RDM Control Expert - High Volt LED Strip2

High Volt LED Strip DMX512 RDM Controller

  • Safe and reliable full isolation design
  • DMX channel quantity from 1CH~4CH settable.
  • IP68
    Product Code 100603370001
    Model SR-2108HT(WP)
    Input Voltage 100-240Vac
    Output Voltage 100-240Vdc
    Output Current 1.5A*4CH
    Output Power 600-1440W
    Product Size 180.5×73.6x38mm

SUNRICHER DMX512 RDM Control Expert - High Volt LED

DMX RDM LED Driver(Constant Current)

  • Standard DMX512 compliant control interface
  • With digital display to show data directly, easily to set and show DMX address.
  • RDM function enabled to realize intercommunication between DMX master and decoder
  • Output PWM frequency from 500HZ ~ 2K HZ settable
  • Output dimming curve gamma value from 0.1 ~ 9.9 settable

SUNRICHER DMX512 RDM Control Expert - 50W CC DMX LED Driver

50W CC DMX LED Driver

  • PWM output, 250-1500mA constant current settable
  • Dips to set the operation current
  • High power factor and efficiency
    Product Code 105600500001
    Model SRP-2108-50CC
    Input Voltage 200-240Vac
    Output Voltage 8-48Vdc
    Output Current 250-1500mA
    Output Power 50W max.
    Power Factor >0.9
    Efficiency 87%
    Product Size 210x50x32mm

SUNRICHER DMX512 RDM Control Expert - 50W CCT DMX LED Driver50W CCT DMX LED Driver

  • 2 channels PWM output, 250-1500mA constant current settable
  • Dips to set the operation current
  • High power factor and efficiency
    roduct Code 105600880001
    Model SRP-2108-50CCT
    Input Voltage 200-240Vac
    Output Voltage 8-48Vdc
    Output Current 250-1500mA
    Output Power 50W max.
    Power Factor >0.9
    Efficiency 87%
    Product Size 210x50x32mm

SUNRICHER DMX512 RDM Control Expert - 55W CC DMX RGB LED Driver

55W CC DMX RGB LED Driver

  • PWM output, 350mA constant current
  • High power factor and efficiency
    Product Code 105601000001
    Model SRP-2108AS-55RGB
    Input Voltage 100-277Vac
    Output Voltage 53Vdc
    Output Current 0.35A*3CH
    Output Power 55W max.
    Power Factor >0.95
    Efficiency 87%
    Product Size 210x50x32mm

SUNRICHER DMX512 RDM Control Expert - 75W 4 Channels DMX LED Driver75W 4 Channels DMX LED Driver

  • 4 channels constant current output, 300mA-1500mA output current optional
  • Dips to set the operation current
  • High power factor and efficiency
    Product Code 105600570001
    Model SRP-2108-75CCF
    Input Voltage 200-240Vac
    Output Voltage 8-43Vdc
    Output Current 250-1500mA
    Output Power 75W max.
    Power Factor >0.9
    Efficiency 87%
    Product Size 244x64x32mm

DMX RDM LED Driver(Constant Voltage)

  • Standard DMX512 compliant control interface
  • With digital display to show data directly, easily to set and show DMX address.
  • RDM function enabled to realize intercommunication between DMX master and decoder
  • Output dimming curve gamma value from 0.1 ~ 9.9 settable

SUNRICHER DMX512 RDM Control Expert - 75W DMX RDM LED Driver

75W DMX RDM LED Driver

  • 4 Channels Output . DMX channel quantity from 1CH~4CH settable
  • Output PWM frequency from 500HZ ~ 30K HZ settable.
  • High power factor and efficiency
    Product Code 105600480001
    Model SRP-2108-24-75CVF
    Input Voltage 100-277ac
    Output Voltage 24Vdc
    Output Current 3.12A max.
    Output Power 75W max.
    Power Factor >0.93
    Efficiency 86%
    Product Size 244x64x32mm

SUNRICHER DMX512 RDM Control Expert - 100W DMX RDM LED Driver

100W DMX RDM LED Driver

  • 4 Channels Output . DMX channel quantity from 1CH~4CH settable
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
  • High power factor and efficiency
    Product Code 105600380001
    Model SRP-2108-24-100CVF
    Input Voltage 100-277ac
    Output Voltage 24Vdc
    Output Current 4.16A max.
    Output Power 100W max.
    Power Factor >0.9
    Efficiency 90%
    Product Size 244x64x32mm

SUNRICHER DMX512 RDM Control Expert - 200W DMX RDM LED Driver200W DMX RDM LED Driver

  • 4 Channels Output . DMX channel quantity from 1CH~4CH settable
  • Output PWM frequency from 500HZ ~ 35K HZ settable.
  • High power factor and efficiency
    Product Code 1.056E+11
    Model SRPC-2108-24-200CVF
    Input Voltage 100-277Vac
    Output Voltage 24Vdc
    Output Current Max. 4.1A/CH, total 8.4A
    Output Power 200W max.
    Power Factor >0.98
    Efficiency 93%
    Product Size 330x79x39mm

DMX512 Phase Dimmer

  • Triac dimmable and Mosfet dimmable
  • Forward-phase control dimmer(TRIAC) & Reverse-phase control dimmer both available
  • Supports resistive loads and capacitive loads
  • To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights
  • Safe and reliable full isolation design

SUNRICHER DMX512 RDM Control Expert - 2 Channels AC DMX512 Phase Dimmer

2 Channels AC DMX512 Phase Dimmer

  • Great compatibility with a variety of DMX512 controls
  • Innovative minimum brightness setting function
  • 2 Channels Output . DMX channel quantity from 1CH~2CH settable
    Product Code 100602420001
    Model SR-2102AC
    Input Voltage 100-240Vac
    Output Voltage 100-240Vac
    Output Current 1.2A*2CH
    Output Power 240-576W
    Product Size 170x59x29mm

SUNRICHER DMX512 RDM Control Expert - RDM Enabled 4 Channels DMX Phase Dimmer

RDM Enabled 4 Channels DMX Phase Dimmer

  • RDM function enabled.
  • Innovative minimum brightness setting function.
  • 4 Channels Output . DMX channel quantity from 1CH~4CH settable.
  • Din rail installation, easy and fast.
    Product Code 1.00603E+11
    Model SR-2108AC-4CH-DIN
    Input Voltage 100-240Vac
    Output Voltage 100-240Vac
    Output Current 18 41. A* CH
    Output Power 800W*1CH, 600W*2CH, 500W*3CH, 400W*4CH
    Product Size 145.4x90x66.4mm

DMX512 Relay

  • DMX512 relay, The DMX512 master can only do Switch ON/OFF command to the switch decoder
  • Set DMX address freely
  • DMX address display
  • Input Protocols:DMX512(2008), DMX512-A

SUNRICHER DMX512 RDM Control Expert - DMX512 Switch

DMX512 Switch

  • One channel output. AC input and AC output , only one DMX512 address.
    Product Code 100602540001
    Model SR-2703B
    Input Voltage 100-240Vac
    Output Voltage 100-240Vac
    Output Current 5A*1CH
    Output Power 500W max.
    Product Size 170x59x29mm

    SUNRICHER DMX512 RDM Control Expert - DMX512 Switch5

DMX512 Switch

  • 3 channels DC output. 3 DMX512 addresses
  • DMX channel quantity from 1CH~3CH settable.
    Product Code 100602550001
    Model SR-2704B
    Input Voltage 12-36Vdc
    Output Voltage 12-36Vdc
    Output Current 8A*3CH
    Output Power 288-864W
    Product Size 170x59x29mm

DMX512 Master Controller

RDM Tester

  • Portable and powerful RDM tester
  • Simple and easy to use interface
  • Max. 512 DMX channels output, RJ45 port for DMX signal transmission
  • Suitable for large project testing, no complicated DMX master controller required
  • Supports RDM standard protocol, RDM user customized PID testing
  • Supports manual DMX output & DMX signal view
  • Built-in 2000mAh rechargeable lithium battery
  • Supports firmware updating through USB port

SUNRICHER DMX512 RDM Control Expert - DMX512 Master Controller

Product Code 100601870001(Equipped with 3PIN adapter)
100601840001(Equipped with 5PIN adapter)
Model SR-2100RDM-Tester
Input Voltage 5Vdc
Input Current 500mA
Output DMX512 signal
Product Size 130x70x25mm

Art-Net™ DMX Bidirectional Converter

  • Art-Net™ DMX bidirectional converter, supports the latest Art-Net™ 4 protocol.
  • 2 Ethernet ports with Ethernet switch function, 4 RJ45 DMX ports, it takes up to 4 Art-Net™ universes.
  • With 3.5″ LCD screen and a touch control pen for easy & simple configuration.
  • Recorder function allows the device to record programs such as color sequences and save them into SD card.
  • 4 universes record simultaneously, high speed recording with 40FPS frame rate.
  • Play Back function allows the device to play the recorded programs under standalone mode.
  • Task Manage function allows the device to create up to 10 scheduled tasks to play the recorded programs.
  • Task Manage function works under standalone mode with no Art-Net™ supported PC software required.
  • One Art Net supported PC software is enough for multiple projects which will save much costs.
  • The PC software can be just used for Recorder function, all projects can run programs under standalone mode.
  • Provides a reliable, highly customizable network infrastructure for complex control systems
  • Compatible with popular Art-Net™ supported software including Madrix, Sunlite, Luminair, DMX workshop, etc.

SUNRICHER DMX512 RDM Control Expert - Product Code

Product Code 100601920001
Model SR-2100ArtNet-DMX
DMX Protocols DMX512, DMX512-A
Ethernet Protocols Art-Net ™, sACN
Input Voltage 12-24Vdc
Power Consumption <4W/0.17A
Connectivity DMX:4xRJ45, Network:2xRJ45
Product Size 148.5*100*25.5mm

DMX512 Touch Panel

  • DMX signal output, comply to standard protocol DMX512(2008)
  • User-friendly interface, easy and simple operation.
  • High sensitive & high stable Glass touch panel ,fast &precise control
  • Reliable & stable switch &Dimming control without any flash
  • AC100-240V / DC12-24V version power inputSUNRICHER DMX512 RDM Control Expert - DMX512 Touch Panel

RF/Wi-Fi to DMX512 Touch Panel

  • Can match with RF/Wi-Fi remote controller and convert to DMX512 signal
  • User-friendly interface, easy and simple operation.
  • Control up to 8 zones. Can set 8 scenes at each zone.
  • Preset 10 changing modes, with pause function.
  • Synchronization function of pattern changes ensure consistent change forever.
  • Memory function, remember the last last color/scene
  • RJ45 connector & XLR 3pin connectors optionalSUNRICHER DMX512 RDM Control Expert - Touch Pane
    Product Code 100601470001 100601480001
    Model SR-2816 SR-2816WI
    Input Voltage 12Vdc 12Vdc
    Output RF to DMX WI-FI to DMX
    Product Size 165x75x37mm 165x75x37mm

SUNRICHER DMX512 RDM Control Expert - DMX Master Touch PanelDMX Master Touch Panel

  • The DMX512 control panel is a master controller designed to control the DMX decoders
  • Control 512 DMX channels
  • Enables to configure max. 16 groups or zones with max. 8 scenes, 24 time schedules and 8 cycle schedules to each group
  • Supports 5 different types of DMX load: Dim, CCT, RGB, RGBW, RGB+CCT
    Product Code 100601940001
    Model SR-2847
    Input Voltage 100-240Vac
    Output DMX512
    Product Size 86x86x41mm

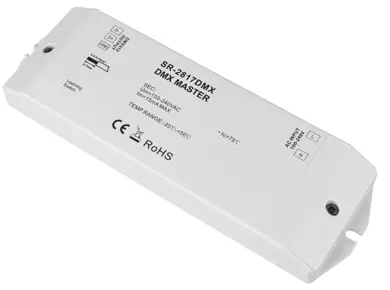

SUNRICHER DMX512 RDM Control Expert - RF to DMX512 Master ControllerRF to DMX512 Master Controller

  • Receives RF signal, compatible with RF remote controller: RF+DMX512 function
  • Can set max. 8 different zones
  • Standard DMX512 compliant control interface
    Product Code 100600730001
    Model SR-2817DMX
    Input Voltage 100-240Vac
    Output RF to DMX512
    Product Size 178x57x21mm

SUNRICHER DMX512 RDM Control Expert - Wi-Fi+RF to DMX512 Master ControllerWi-Fi+RF to DMX512 Master Controller

  • Receives WiFi / RF signal, compatible with WiFi / RF remote controller:
    RF/WiFi+DMX512 function
  • Can set max. 8 different zones
  • Standard DMX512 compliant control interface
  • Can be control through Easy Lighting APP
    Product Code 100600740001
    Model SR-2817WI
    Input Voltage 100-240Vac
    Output Wi-Fi +RF to DMX512
    Product Size 178x57x21mm

SUNRICHER DMX512 RDM Control Expert - Wi-Fi to DMX512 Master ControllerWi-Fi to DMX512 Master Controller

  • Receives Wi-Fi signal, compatible with Easy Lighting APP
  • Can set max. 8 different zones
  • Standard DMX512 compliant control interface
    Product Code 100104820001
    Model SR-2818WIN-D
    Input Voltage 12Vdc
    Output RF+DMX512
    Product Size 110x85x24.2mm

SUNRICHER DMX512 RDM Control Expert - RF to DMX512 Master Controller9RF to DMX512 Master Controller

  • Receives RF signal, compatible with RF remote controller: RF+DMX512 function
  • Can set max. 8 different zones
  • Standard DMX512 compliant control interface
  • IP67
    Product Code 100600780001
    Model SR-2817DMX(WP)
    Input Voltage 100-240Vac
    Output RF to DMX512
    Product Size 180.5×73.6x38mm

SUNRICHER DMX512 RDM Control Expert - Wi-Fi+RF to DMX512 Master Controller8

Wi-Fi+RF to DMX512 Master Controller

  • Receives WiFi / RF signal, compatible with WiFi / RF remote controller:
    RF/WiFi+DMX512 function
  • Can set max. 8 different zones
  • Standard DMX512 compliant control interface
  • Can be control through Easy Lighting APP
  • IP67
    Product Code 100600790001
    Model SR-2817WI(WP)
    Input Voltage 100-240Vac
    Output Wi-Fi+RF to DMX512
    Product Size 180.5×73.6x38mm

Accessories

SUNRICHER DMX512 RDM Control Expert - DMX512

DMX512 to 0/1-10V/PWM Dimmer

  • DMX signal converter to 0/1-10V
  • DMX512 signal input, 2 channels 0-10V signal output
  • To dim and switch single color LED lighting
  • Relay output: max. 5Amps
    Product Code 100602430001
    Model SR-2102(0-10V/PWM)
    Input Voltage 100-240Vac
    Input Current 60mA
    Output 2x(0-5V), 2x(0-10V), 2x(0-15V)
    Product Size 170x59x29mm

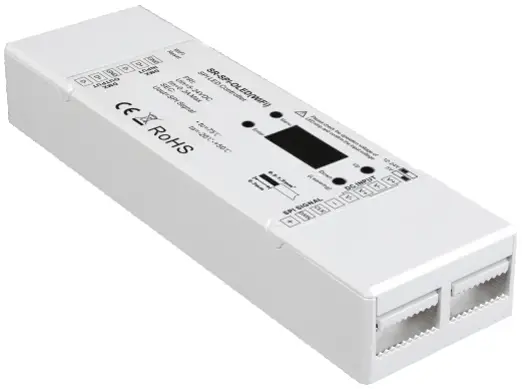

SUNRICHER DMX512 RDM Control Expert - SPI LED Controller

  • SPI signal output for control of RGB/RGBW pixel lights
  •  DMX512 controllable and RF/WiFi remote controllable
  • Capable of addressing up to 1020 pixels at the same time
  • Addressing up to 170 RGB pixels or 128 RGBW pixels individually
  •  The built-in, backlit OLED panel allows for easy configuration of most settings
  • Supports 39 types of driving IC
  • Support max. 3060 output channels configurable
  • 35 built-in sequencing, chasing, changing and static colors under RF mode
    Product Code 1.011E+11
    Model SR-SPI-OLED
    Input Voltage 12-24Vdc/5Vdc
    Input Current 0.2A
    Output SPI
    Product Size 170×53.4x28mm

Signal Repeater

  • Work with DMX decoder to expand DMX signal based on the actual lighting projects.
  • Extend both cable distance (up to 300m) and the number of devices
  • Signal input and output are isolated by optocoupler
  • Up to 32 devices can be connected in a daisy-chain, with a terminator on the last device

SUNRICHER DMX512 RDM Control Expert - DMX512 Signal Repeater

DMX512 Signal Repeater

  • 1 channel signal input, 1 channel signal output
Product Code 100602790001
Model SR-2100AMP
Input Voltage 12-24Vdc
Input Current Max 90mA @ 12V, 50mA @ 24V
Output DMX512
Product Size 145×46.5x16mm

SUNRICHER DMX512 RDM Control Expert - RDM Enabled DMX512 Signal Repeater

RDM Enabled DMX512 Signal Repeater

  • 1 channel signal input, 1 channel signal output
  • Built-in DMX terminators (can be set by DIP switches) attached on two DMX
    IN/OUT ports to stop data reflections for more reliable and stable data transmission.
    Product Code 1.00603E+11
    Model SR-2100AMP-RDM
    Input Voltage 12-24Vdc
    Input Current 50mA @ 12V, 30mA @ 24V
    Output DMX512 RDM
    Product Size 145×46.5x16mm

SUNRICHER DMX512 RDM Control Expert - DMX512 Signal Repeater8

DMX512 Signal Repeater

  • 1 channel signal input, 1 channel signal output
  • RJ45 terminal, easy to be connected
    Product Code 1.00603E+11
    Model SR-2100AMP-RJ45
    Input Voltage 12-24Vdc
    Input Current Max 90mA @ 12V, 50mA @ 24V
    Output DMX512
    Product Size 170×53.4x28mm

SUNRICHER DMX512 RDM Control Expert - DMX512 Signal Repeater7

DMX512 Signal Repeater

  • 1 channel signal input, 1 channel signal output
  • IP67
    Product Code 100602880001
    Model SR-2100AMP(WP)
    Input Voltage 12-24Vdc
    Input Current Max 90mA @ 12V, 50mA @ 24V
    Output DMX512
    Product Size 180.5×73.6x38mm

SUNRICHER DMX512 RDM Control Expert - RDM Enabled DMX512RDM Enabled DMX512 Signal Repeater

  • 1 channel signal input, 1 channel signal output
  • IP67
    Product Code 1.00603E+11
    Model SR-2100AMP-RDM(WP)
    Input Voltage 12-24Vdc
    Input Current 50mA @ 12V, 30mA @ 24V
    Output DMX512 RDM
    Product Size 180.5×73.6x38mm

SUNRICHER DMX512 RDM Control Expert - RDM Enabled DMX51

RDM Enabled DMX512 Signal Repeater

  • 1 channel signal input, 1 channel signal output
  • Various types of DMX signal connection port: 3/5-Pin XLR connector, RJ45 port
  • With plug-in type power input terminal, easy wiring
    Product Code 100603200001
    Model SR-2100AMP-RDM-RJ45-5
    Input Voltage 12-24Vdc
    Input Current Max 300mA
    Output DMX512 RDM
    Product Size 164x60x36.6mm

SUNRICHER DMX512 RDM Control Expert - Signal Repeater

8 Channels RDM Enabled DMX512 Signal Repeater

  • 8-Way isolated DMX splitter
  • Plug and play, 3/5-Pin XLR male DMX input, eight XLR female DMX outputs
  • Each output provides LED data indicators, providing full confirmation of proper operation
    Product Code 100603300001 100603310001
    Model SR-2100AMP-RDM-8CH-3 SR-2100AMP-RDM-8CH-5
    Input Voltage 12-24Vdc 12-24Vdc
    Input Current Max 300mA Max 300mA
    Output DMX512 RDM DMX512 RDM
    Product Size 199.4x116x44mm 199.4x116x44mm

SUNRICHER DMX512 RDM Control Expert - 8 Channels RDM Enabled DMX512 Signal Repeater

8 Channels RDM Enabled DMX512 Signal Repeater

  • DMX/RDM compatible, RDM function can be enabled or disabled by dial switch
  • Plug and play, RJ45 port DMX input, eight RJ45 port DMX outputs
  • Each output provides LED data indicators, providing full confirmation of proper operation
    Product Code 100603360001
    Model SR-2100AMP-8CH-RJ45
    Input Voltage 12-24Vdc
    Input Current Max 300mA
    Output DMX512 RDM
    Product Size 199.4x116x44mm

Power Repeater

SUNRICHER DMX512 RDM Control Expert - 1 Channel Power Repeater

1 Channel Power Repeater
  • Repeater dimming signal
  • One channel input ,one channel output
  • Power repeater in series to expand output unlimitedly
    Product Code 1.014E+11
    Model SR-3003S
    Input Voltage 12-36Vdc
    Output Current 8A*1CH
    Output Power 96-288W
    Product Size 95x37x20mm

SUNRICHER DMX512 RDM Control Expert - 1 Channel Power Repeater

1 Channel Power Repeater

  • Repeater dimming signal
  • One channel input ,one channel output
  • Power repeater in series to expand output unlimitedly
    Product Code 101400140001
    Model SR-3003
    Input Voltage 12-24Vdc
    Output Current 24A*1CH
    Output Power 288-576W
    Product Size 150x54x32.2mm

SUNRICHER DMX512 RDM Control Expert - 4 Channels Power Repeater

4 Channels Power Repeater

  • Repeater dimming signal
  • Four channels input ,four channels output
  • Power repeater in series to expand output unlimitedly
    Product Code 101400010001
    Model SR-3001
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 178x46x22mm

SUNRICHER DMX512 RDM Control Expert - 4 Channels Power Repeater

4 Channels Power Repeater

  • Repeater dimming signal
  • Four channels input ,four channels output
  • Power repeater in series to expand output unlimitedly
    Product Code 1.014E+11
    Model SR-3001P
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 166×53.4x23mm

SUNRICHER DMX512 RDM Control Expert - 4 Channels Power Repeater5

4 Channels Power Repeater

  • Repeater dimming signal
  • Four channels input ,four channels output
  • Power repeater in series to expand output unlimitedly
  • Din Rail installation
    Product Code 101400160001
    Model SR-3001DIN
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 110x53x65mm

SUNRICHER DMX512 RDM Control Expert - 4 Channels Power Repeater8

4 Channels Power Repeater

  • Repeater dimming signal
  • Four channels input ,four channels output
  • Power repeater in series to expand output unlimitedly
  • IP67
    Product Code 101400050001
    Model SR-3001(WP)
    Input Voltage 12-36Vdc
    Output Current 5A*4CH
    Output Power 240-720W
    Product Size 180.5×73.6x38mm

SUNRICHER DMX512 RDM Control Expert - Repeater dimming signal4 Channels Power Repeater

  • Repeater dimming signal
  • Four channels input ,four channels output
  • Power repeater in series to expand output unlimitedly
    Product Code 101400040001
    Model SR-3002
    Input Voltage 12-36Vdc
    Output Current 8A*4CH
    Output Power 384-1152W
    Product Size 170x59x29mm

SUNRICHER DMX512 RDM Control Expert - 5 Channels Power Repeater

5 Channels Power Repeater

  • Repeater dimming signal
  • Five channels input ,five channels output
  • Power repeater in series to expand output unlimitedly
    Product Code 101400240001
    Model SR-3002EA-5C
    Input Voltage 12-36Vdc
    Output Current 5A*5CH
    Output Power 300-900W
    Product Size 170x59x29mm

SUNRICHER 2024
Lighting Control Expert
SUNRICHER DMX512 RDM Control Expert - dall SUNRICHER DMX512 RDM Control Expert - bluetooth SUNRICHER DMX512 RDM Control Expert - qr code

https://www.sunricher.com

sales@sunricher.com
https://www.sunricher.com
Shenzhen Sunricher Technology Co.,Ltd
3F&5F,Bldg.E.Qihang Technology Innovation
R&D Industrial Park, Shenzhen, China

Documents / Resources

SUNRICHER DMX512 RDM Control Expert [pdf] Instruction Manual
SR-2102B, SR-2102P, DMX512 RDM Control Expert, DMX512, RDM Control Expert, Control Expert, Expert

References

Leave a comment

Your email address will not be published. Required fields are marked *
